SKU: GMK2.GM.GSQ

Agora - GMK2.GM.GSQ

Name: GMK2.GM.GSQ
Brand: Agora
SKU: GMK2.GM.GSQ
Price: 3960.5 EUR
Availability: OutOfStock

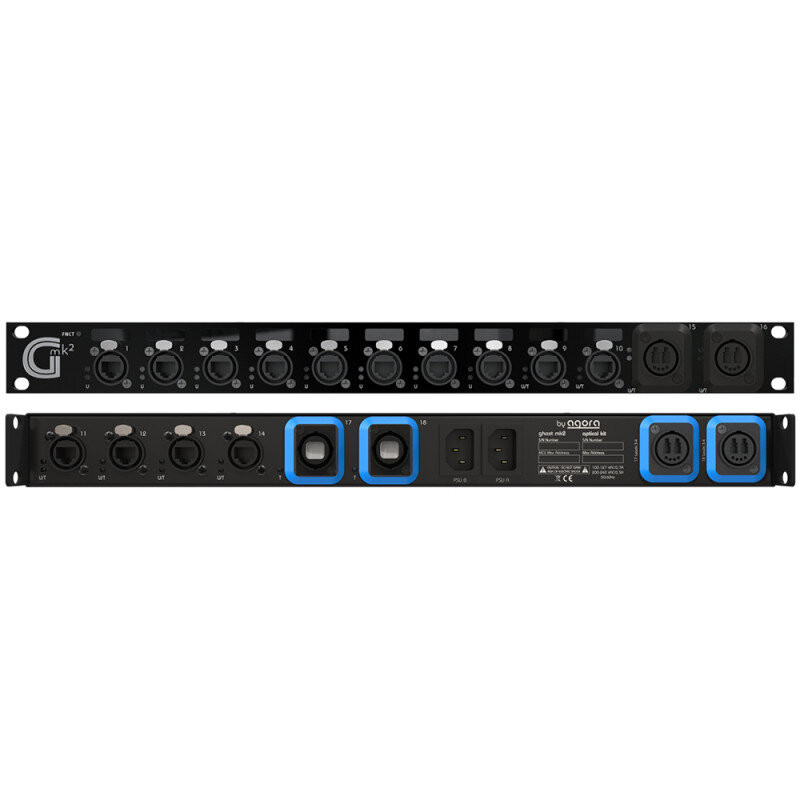

GHOST MK2 + 2 x transmit 1 Gbit ports - F.O. DUAL opticalCON multi-mode (front panel) + 2 x transmit 1 Gbit ports - F.O. QUAD OC single-mode + F.O. 3/4 to 2 x DUAL OC (rear panel)

(0)

7 612,00 €

- 48%

3 960,50 €

La quantité sélectionnée est supérieure à celle disponible en stock. Pas de problème ! Nous procéderons en vous envoyant immédiatement la quantité disponible. Nous vous enverrons ensuite le solde, sous 10 jours environ.

Unfortunately, the quantity you have selected exceeds the amount available in stock.

Condition : Neuf

J'accepte les conditions générales et la politique de confidentialité

Not available.

delivery is not available for this product.

Livraison gratuite pour toute commande égale ou supérieure à 199 € sont limités à la livraison au sein de l'Europe

Variants of this product

Agora - GMK2.XS.GSQ

4 151,00 €

(0)

GHOST MK2 + 2 x transmit 10 Gbit ports - F.O. DUAL opticalCON single-mode (front panel) + 2 x transmit 1 Gbit ports - F.O. QUAD OC single-mode + F.O. 3/4 to 2 x DUAL OC (rear panel)

Agora - GMK2.GS.XS.HD

7 025,00 €

(0)

GHOST MK2 + 2 x transmit 1 Gbit ports - F.O. DUAL opticalCON single-mode (front panel) + 2 x transmit 10 Gbit ports - F.O. DUAL opticalCON single-mode (rear panel) + H-DC card

Agora - GMK2.GM.XMQ.HD

7 502,50 €

(0)

GHOST MK2 + 2 X transmit 1 Gbit ports - F.O. DUAL opticalCON multi-mode (front panel) and 2 X transmit 10 Gbit ports - F.O. QUAD OC multi-mode + F.O. 3/4 to 2 x DUAL OC (rear panel) + H-DC card

Agora - GMK2.NA.XSQ.HD

6 977,00 €

(0)

GHOST MK2 + 2 x transmit 10 Gbit ports - F.O. QUAD OC single-mode + F.O. report 3/4 to 2 x DUAL OC (rear panel) + H-DC card

Agora - GMK2.XS.XSQ

4 341,50 €

(0)

GHOST MK2 + 2 x transmit 10 Gbit ports - F.O. DUAL opticalCON single-mode (front panel) + 2 x transmit 10 Gbit ports - F.O. QUAD OC single-mode + F.O. 3/4 to 2 x DUAL OC (rear panel)

EN Instruction Manual (1.08MB)

Documentation

EN Instruction Manual (1.08MB)

Documentation

EN Instruction Manual (1.08MB)

Documentation

Watch it in action

Close the video

Détails du produit

Ghost MK2 avec 2 ports de transmission 1 Gbit - F.O DUAL OpticalCon Multimode (panneau avant) et 2 ports de transmission 1 Gbit - F.O QUAD OC Singlemode et F.O 3/4 à 2 x DUAL OC (panneau arrière)

Technical characteristics

Connectivity & interface

Front panel	10 x 10 Base-T / 100 Base-TX / 1000 Base-T etherCON ports 10 x 8 caracters LCD sceens 2 x 1000 or 10,000 Mbps opticalCON DUAL ports 2 LEDs (Status-Traffic, ID) on each port 1 x configuration and navigation function switch
Rear panel	4 x 10 Base-T / 100 Base-TX / 1000 Base-T etherCON ports 2 x 1000 or 10,000 Mbps opticalCON DUAL ports 2 x extra opticalCON DUAL ports (opticalCON QUAD) 2 x IEC power sockets (internal redundant power supply)
Software	SNMPv3 & SSH remote protocol Emulate Mode

Processing

Mother board	1 x Marvell 98DX Data flow: up to 95.23 Mbps Switching capacity: 128 Gb/s
Network	250 x groups available 16000 MAC address capacity IEEE 802.1p traffic priority

General

Power consumption	100 - 127 V_AC 0.6 A, 200 - 240 V_AC 0.4 A
Power supply	100 - 240 V_AC 50/60 Hz
Idle power	19.5 W
Maximum power rating	26.6 W
Thermal dispersion (without options)	80.36 BTU/h (110 V 60 Hz)
Storage temp. / humidity	-40 to 70 °C / 5 - 90% without condensation
Operating temp. / humidity	0 to 45 °C / 10 - 90% without condensation
Altitude	up to 3 km
Operating noise	without FAN
Size (W x D x H)	48.26 x 36.8 x 4.36 cm
Weight (without options)	1.7 kg
