SKU: GMK2.NA.GSQ

Agora - GMK2.NA.GSQ

Name: GMK2.NA.GSQ
Brand: Agora
SKU: GMK2.NA.GSQ
Price: 3106.5 EUR
Availability: OutOfStock

GHOST MK2 + 2 x transmit 1 Gbit ports - F.O. QUAD OC single-mode + F.O. report 3/4 to 2 x DUAL OC (rear panel)

(0)

Not available.

delivery is not available for this product.

Free shipping for orders over € 199 (within Europe)

Variants of this product

Agora - GMK2.XM.XS

3 473,50 €

(0)

GHOST MK2 + 2 x transmit 10 Gbit ports - F.O. DUAL opticalCON multi-mode (front panel) + 2 x transmit 10 Gbit ports - F.O. DUAL opticalCON single-mode (rear panel)

Agora - GMK2.XM.XS.HD

5 077,00 €

(0)

GHOST MK2 + 2 x transmit 10 Gbit ports - F.O. DUAL opticalCON multi-mode (front panel) + 2 x transmit 10 Gbit ports - F.O. DUAL opticalCON single-mode (rear panel) + H-DC card

Agora - GMK2.GS.GMQ

3 473,50 €

(0)

GHOST MK2 + 2 x transmit 1 Gbit ports - F.O. DUAL opticalCON single-mode (front panel) + 2 x transmit 1 Gbit ports - F.O. QUAD OC multi-mode + F.O. 3/4 to 2 x DUAL OC (rear panel)

Agora - GMK2.XS.GS.HD

4 910,00 €

(0)

GHOST MK2 + 2 x transmit 10 Gbit ports - F.O. DUAL opticalCON single-mode (front panel) + 2 x transmit 1 Gbit ports - F.O. DUAL opticalCON single-mode (rear panel) + H-DC card

Agora - GMK2.NA.XM.HD

4 542,50 €

(0)

GHOST MK2 + 2 x transmit 10 Gbit ports - F.O. DUAL opticalCON multi-mode (rear panel) + H-DC card

EN Instruction Manual (1.08MB)

Documentation

Watch it in action

Close the video

Détails du produit

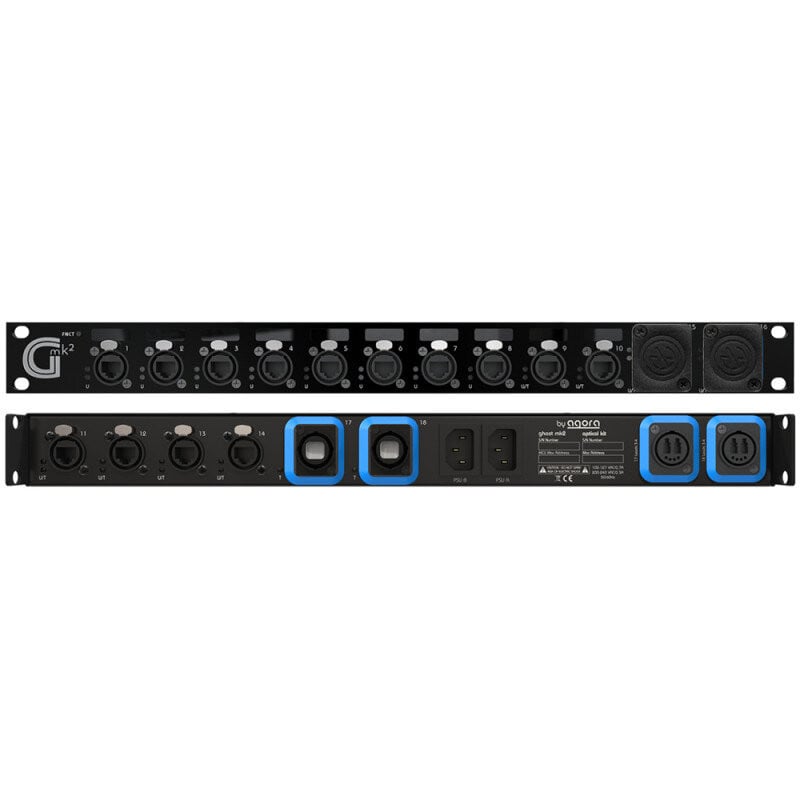

Ghost MK2 avec 2 ports de transmission 1 Gbit - F.O QUAD OC Singlemode + F.O report 3/4 à 2 x DUAL OC (panneau arrière).

Connectivity & Interface

Front panel	10 x 10 Base-T / 100 Base-TX / 1000 Base-T etherCON 10 x 8 caracters LCD sceens 2 LEDs (Status-Traffic, ID) on each port 1 x configuration and navigation function switch
Rear panel	4 x 10 Base-T / 100 Base-TX / 1000 Base T-etherCON ports 2 x 1000 or 10,000 Mbps opticalCON DUAL ports 2 x extra opticalCON DUAL ports (opticalCON QUAD) 2 x IEC power sockets (internal redundant power supply)
Software	SNMPv3 & SSH remote protocol Emulate Mode

Processing

Mother board	1 x Marvell 98DX Data flow : up to 95.23 Mbps Switching capacity: 128 Gb/
Network	250 x Groups available 16000 MAC Address capacity IEEE 802.1p traffic priority

GENERAL

Size (W x D x H)	482.60 x 368 x 43.60 mm
Weight (without options)	1.7 kg
Power consumption	100 - 127 V_AC 0.6 A, 200 - 240 V_AC 0.4 A
Power supply	100 - 240 V_AC 50/60 Hz
Idle power*	19.5 W
Maximum Power rating**	26.6 W
Thermal dispersion (without options)	80.36 BTU/h (110 V 60 Hz)
Storage temp. / humidity	-40 °C -70 °C / 5-90% without condensation
Operating temp. / humidity	0 °C - 45 °C / 10-90% without condensation
Altitude	Up to 3 km (10,000 ft)
Operating noise	Without FAN
