SKU: H1.GS.R

Agora

Agora - H1.GS.R

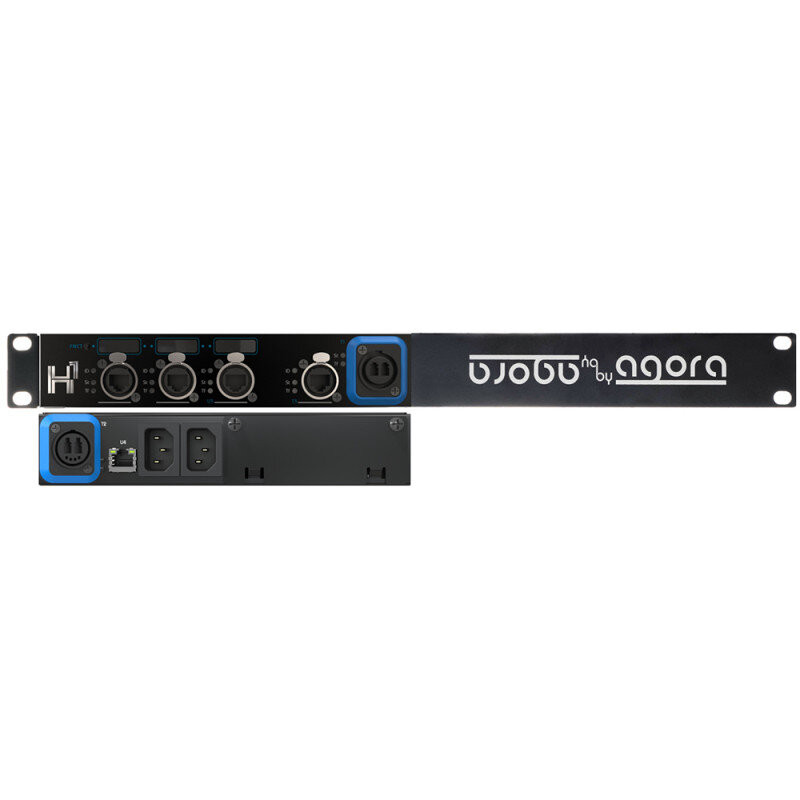

H1 + 2 x transmit 1 Gbit ports - F.O. DUAL opticalCON Neutrik - single-mode (1 on front panel & 1 on the rear panel) + redundant power supply option - 10 / 16 A
star_border star_border star_border star_border star_border
(0)
5 621,50 €
- 35%

3 670,50 €

La quantité sélectionnée est supérieure à celle disponible en stock. Pas de problème ! Nous procéderons en vous envoyant immédiatement la quantité disponible. Nous vous enverrons ensuite le solde, sous 10 jours environ.
Unfortunately, the quantity you have selected exceeds the amount available in stock.
Condition : Neuf

Not available.

delivery is not available for this product.

Free shipping for orders over € 199 (within Europe)

Variants of this product

Agora - H1.R

3 119,50 €

H1 + redundant power supply option - 10 / 16 A
Agora - H1

2 872,00 €

Half size 19" Gbit platform H1 + Dante Brooklyn II + audio matrix + available slot for one Auvitran AxC card + HB-RKMNT & HB-HKMNT (19" acc. included)
Agora - H1.GS

3 426,00 €

H1 + 2 x transmit 1 Gbit ports - F.O. DUAL opticalCON Neutrik - single-mode (1 on front panel & 1 on the rear panel)
Agora - H1.GM.R

3 570,50 €

H1 + 2 x transmit 1 Gbit ports - F.O. DUAL opticalCON Neutrik - multi-mode (1 on front panel & 1 on the rear panel) + redundant power supply option - 10 / 16 A
Agora - H1.GM

3 367,00 €

H1 + 2 x transmit 1 Gbit ports - F.O. DUAL opticalCON Neutrik - multi-mode (1 on front panel & 1 on the rear panel)

EN Instruction Manual (12.48MB)

Documentation

Watch it in action

Video Youtube
Close the video

Détails du produit

H1 avec 2 ports de transmission 1 Gbit  - F.O DUAL OpticalCon NEUTRIK - Singlemode (1 sur le panneau avant & 1 sur le panneau arrière) + alimentation redondante - 10/16 A.

Connectivity & Interface

Front panel 3 x 10 Base-T / 100 Base-TX / 1000 Base-T etherCON ports with LCD screens
1 x 10 Base-T / 100 Base-TX/ 1000 Base-T etherCON ports
1 x 10 Base-T / 100 Base-TX / 1 000 Base-T opticalCON DUAL ports
2 x Internal port connected to the Audinate Dante primary & secondary interfaces
3 LEDs (Statut, traffic, ID) on each etherCON User port
2 LEDs (Statut et traffic) on each opticalCON & etherCON transmit port
1 x Configuration and navigation function switch
Rear panel 1 x 10 Base-T / 100 Base-TX / 1000 Base-T RJ45 ports
1 x 10 Base-T / 100 Base-TX / 1 000 Base-T opticalCON DUAL ports

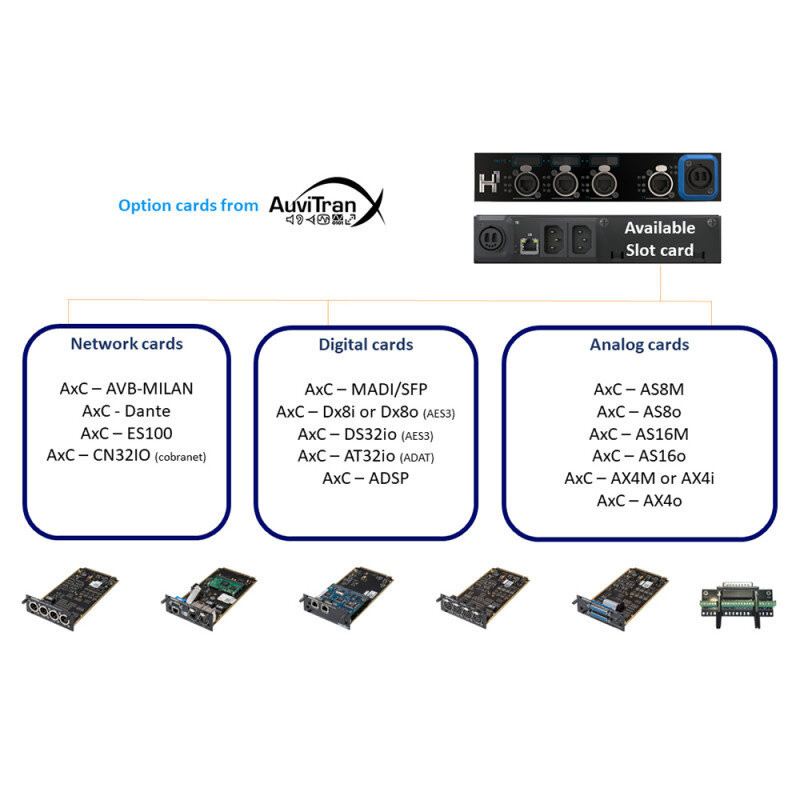

1 x AxC‚ Auvitran slot
2 x power cord (redundant power supply)
Software Web service for switch board control
Switch, Audio matrix and interface cards remote is available on Auvitran AVS Monitor software AudinateTM Brooklyn II control and monitoring is available on Audinate Dante controller software Service and maintenance window

Processing

Switch mother board 99 x available groups
Capacity of 2 x 8K MAC Address
IEEE 802.1p Qos
Network capacity 99 x available groups
Capacity of 8K MAC Address
IEEE 802.1p Qos
Audio matrix 128 x 128 audio channels @ 48 kHz
Internal slot: up to 64 x 64 audio channels @ 48 kHz
External slot: up to 64 x 64 audio channels @ 48 kHz
Network streaming capacity: up to 64 x 64 audio channels @ 48 kHz / 32 simultaneous streams Dante / AES67
Clocking : two onboard oscillators‚ Dante / Internal‚ software switchable

GENERAL

Size (W x D x H) 220 x 433.9 x 43.3 mm (without accessoires)
Weight (without options) 3.8 kg
Power consumption 100 - 127 VAC 0.5 A, 200 - 240 VAC 0.25 A
Power supply 100 - 240 VAC 50/60 Hz
Idle power* 25 W
Maximum power rating* 50 W
Storage temperature / humidity 70 °C > T > -40 °C / 90% > H > 10% without condensation
Operating temperature / humidity 40 °C > T > 0 °C / 90% > H > 10% without condensation
Altitude up to 10,000 ft (3 km)
Acoustic Fanless

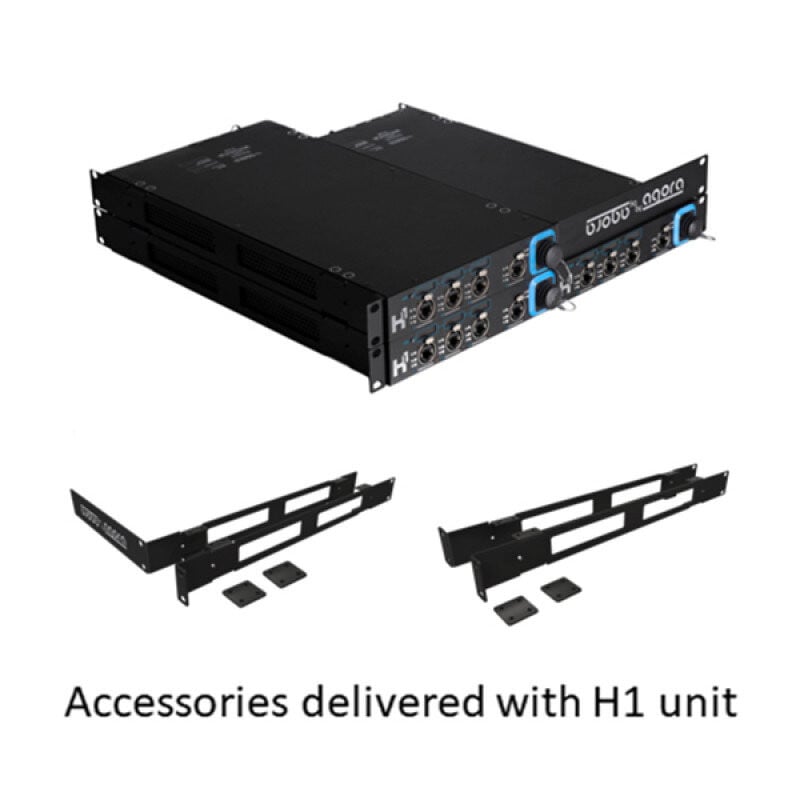

Package

Package includes 1 x H1 engine
1 x IEC13 lock power cord
1 x USB stick with Software, firmware and owner‚ documents
20 x M3 screw
1 x removable short angle bracket
1 x removable long angle bracket
2 x removable wall-mount bracket (OPTION)
1 x M10 removable plate (OPTION)
1 x 5030-B Truss clamp (OPTION)
2 x linking plate
