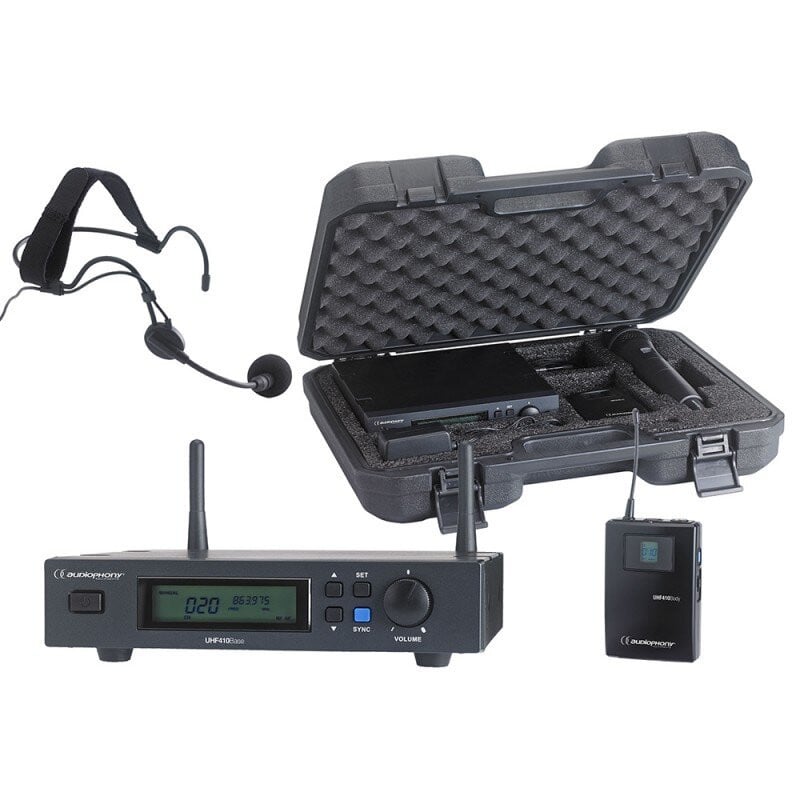

Audiophony - PACK-UHF410-Head

Ensemble composé d'un récepteur UHF 823-832 et 863 -865 MHz True Diversity et d'un émetteur de poche sans fil avec un microphone serre-tête, fonction auto-scan, mallette de transport incluse.

UHF40-Base RECEIVER

• True Diversity receiver
• Frequency range: UHF 863 ~ 865 MHz
• 40 preset frequencies with Auto-scan function
• Channels presets: 4 groups, 4 compatible channels per group
• Channels selection: Tact Switch, Auto-Scan, SYNC
• LCD Display: frequencie, group, canal, RF & AF
• Audio output: XLR3-M and 6.35 mm TRS-M jack,
• Line or Mic level
• Oscillator: PLL Synthesiser
• Frequence stability: ± 0,005%
• Modulation: FM
• T.H.D.: <1% (@ 1 kHz)
• Audio frequency response: 80 Hz at 18 kHz
• Adjust theVolumeWith the front control knob
• Adjust the Squelch settingWith the rear control knob
• BNC removable antennas, many accessories available
• Power supply: 12 V_DC (adapter supplied)
• Power consumption: 260mA ± 10mA

BODYPACK TRANSMITTER

• True Diversity transmitter
• Frequency ranges: UHF 863 ~ 865 MHz
• Max power: 10m W (max.)
• 40 channelsWith Auto-scan function
• LCD display: channel, battery level
• Mic input via mini XLR
• Gain level: -10/0/+10 dB
• Power supply: 2x AA type 1,5VV batteries (not supplied)

HEADSET MICROPHONE

• Micro type: Electret condenser
• Sensitivity: -47 ±4 dB
• Directivity: Cardioid
• Frequency response: 100 Hz - 10 kHz
• Max current: 10V
• Standard current: 1.5V
• Power consumption: 0.5 mA max.
• S/N ratio: More than 60 dB
• Supplied accessory:Windshield
