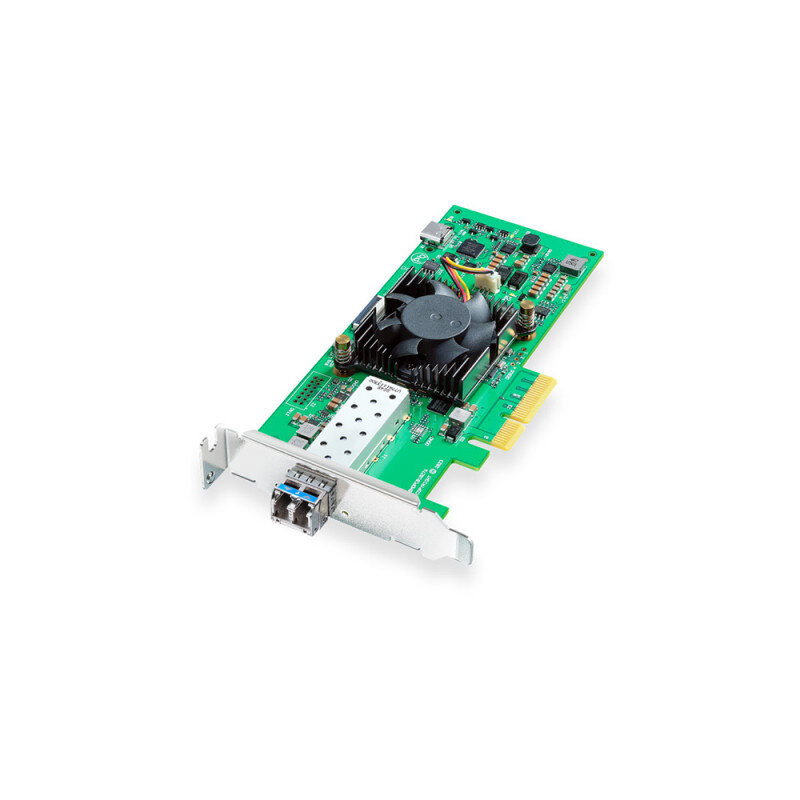

Blackmagic Design - DeckLink IP HD Optical

Le DeckLink IP HD Optical offre 3 canaux d’acquisition vidéo et 3 canaux de lecture vidéo vers des systèmes broadcast IP 2110 via une connexion Ethernet à fibre optique basée sur SFP. Il est conçu pour fonctionner avec des vidéos de la plus haute qualité avec acquisition et lecture dans des formats vidéo populaires tels que Apple ProRes, DNxHD ou même le 10 bits non compressé. Les connexions DeckLink IP sont multidébits et prennent en charge les normes vidéo 525i, 625i, 720p, 1080i et 1080p jusqu’à 1080p60.

Connections

• 10G Optical Fiber SFP+ Port: 1 x 10GBASE-LR Supports 3 input channels and 3 output channels, each up to 1080p60 with 16 audio channels.
• Computer Interface: PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots.
• Supported Codecs: AVC‑Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV‑NTSC, DV‑PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8‑bit 4:2:2, Uncompressed 10‑bit 4:2:2, Uncompressed 10‑bit 4:4:4

Software

• Software Included: Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
• Internal Software Upgrade: Firmware built into software driver. Loaded at system start or via updater software.
• Physical Installation: PCI Express 4 lane generation 2, compatible with 4 and 8 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.

Video Standards

• SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards: 720p50, 720p59.94, 720p60; 1080i50, 1080i59.94, 1080i60; 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59, 1080p59.94, 1080p60; 1080PsF23.98*, 1080PsF24*, 1080PsF25*, 1080PsF29.97*, 1080PsF30*  * PsF SDI ONLY
• Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
• Color Precision: 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes.
• Color Space: REC 601, REC 709, REC 2020

IP Video Compliance

• SMPTE 2110-20 (Uncompressed Video): IGMP v2
• SMPTE 2110-21 (Traffic Shaping): Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous
• SMPTE 2110-30 (PCM): Audio Conformance level: Level C
• SMPTE 2110-40 (Ancillary Data): Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
• Precision Time Protocol: IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2
• NMOS IS-04 Discovery and Registration: v1.3.2 Peer-to-peer via mDNS/DNS-SD
• NMOS IS-05 Connection Management: v1.1.2
• NMOS BCP-002-01: Natural Grouping
• NMOS BCP-004-01: Receiver capabilities

Processing

• Colorspace Conversion: Hardware based real time.
• Real Time Effects: DaVinci Resolve, Final Cut Pro internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
• Physical Installation: PCI Express low profile.

Power Requirements

• Power Consumption: 10 Ws

Environmental Specifications

• Operating Temperature: 5° to 40 °C (32° to 104° F)
• Storage Temperature: -20° to 45° C (-4° to 113° F)
• Relative Humidity: 0% to 90% non-condensing

What's Included

• DeckLink IP HD Optical
• 10GBASE-LR Optical Fiber SFP+ Module and Cage
• Low profile slot bracket
• Welcome wallet with QR code for software download

Warranty

• 3 Year Limited Manufacturer's Warranty
