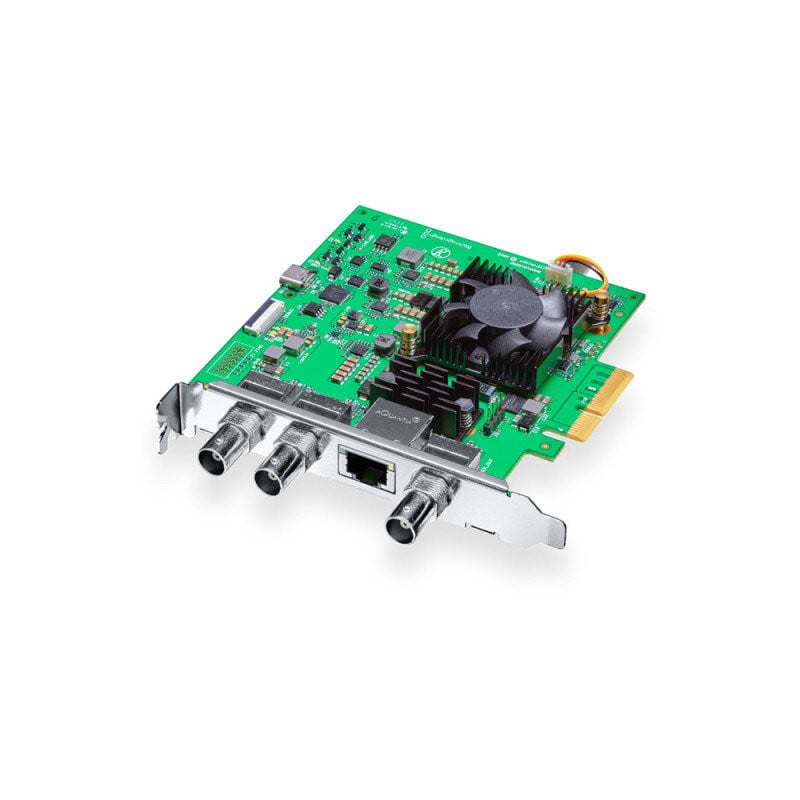

Blackmagic Design - DeckLink IP/SDI HD

DeckLink IP/SDI HD est une carte d'acquisition et de lecture vidéo professionnelle conçue pour s'intégrer à la fois aux infrastructures IP SMPTE 2110 et aux systèmes 3G-SDI traditionnels. Elle est destinée aux environnements broadcast, de post-production et aux flux de travail de haute qualité.

Elle offre 2 canaux d'acquisition et de lecture pour 2110 IP via Ethernet RJ45, 2 connexions 3G-SDI à direction configurable et une sortie de référence. Elle est conçue pour fonctionner avec des vidéos de très haute qualité dans les formats vidéo courants, notamment Apple ProRes, DNxHD et même la vidéo non compressée 10 bits. Elle prend en charge les normes vidéo 525i, 625i, 720p, 1080i et 1080p jusqu'à 1080p 60.

Technical characteristics

Connections

• SDI ports: 2 x bidirectional 12-bit SD / HD independently configurable as either input or output. 16 channels audio embedded in SD and HD
• 10G Ethernet port: 1 x 10G BASE-T. 10G Ethernet supports 2 input channels and 2 output channels, each up to 1920 x 1080p 60 with 16 audio channels
• Sync output: Tri-Sync or Black Burst
• Computer interface: PCIe 4 lane generation 2, compatible with 4, 8 and 16 lane PCIe slots

Supported Codecs

• Codecs: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR, DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, uncompressed 8-bit 4:2:2, uncompressed 10-bit 4:2:2, uncompressed 10-bit 4:4:4

Video Standards

• SD video standards: 525i59.94 NTSC, 625i50 PAL
• HD video standards: 1280 x 720p 50, 1280 x 720p 59.94, 1280 x 720p 60; 1920 x 1080i 50, 1920 x 1080i 59.94, 1920 x 1080i 60; 1920 x 1080p 23.98, 1920 x 1080p 24, 1920 x 1080p 25, 1920 x 1080p 29.97, 1920 x 1080p 30, 1920 x 1080p 50, 1920 x 1080p 59, 1920 x 1080p 59.94, 1920 x 1080p 60; 1920 x 1080PsF 23.98*, 1920 x 1080PsF 24*, 1920 x 1080PsF 25*, 1920 x 1080PsF 29.97*, 1920 x 1080PsF 30* (*PsF SDI only)
• SDI compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, ITU-R BT.656 and ITU-R BT.601
• SDI metadata support: RP 188/SMPTE 12M-2 and closed captioning
• Audio sampling: television standard sample rate of 48 kHz and 24 bit
• Color precision: 8, 10, 12-bit RGB 4:4:4 in all modes up to 1920 x 1080p 30 and 8, 10-bit YUV 4:2:2 in all modes
• Color space: REC 601, REC 709, REC 2020
• HDR support: HDR static metadata packing, HLG and PQ transfer characteristics

IP video compliance

• SMPTE 2110-20 (uncompressed video): IGMP v2
• SMPTE 2110-21 (traffic shaping): sender: Narrow; Receiver: Narrow, Wide Synchronous, Asynchronous
• SMPTE 2110-30 (PCM): audio conformance level: Level C
• SMPTE 2110-40 (ancillary data): full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata
• Precision Time Protocol: IEEE 1588-2008 (PTP v2) ST 2059-1, ST 2059-2
• NMOS IS-04 discovery and registration: v1.3.2 peer-to-peer via mDNS/DNS-SD
• NMOS IS-05 connection management: v1.1.2
• NMOS BCP-002-01: natural grouping
• NMOS BCP-004-01: receiver capabilities

Processing

• Colorspace conversion: hardware based real time
• Real time effects: DaVinci Resolve, Final Cut Pro internal effects, Adobe Premiere Pro CC Mercury Playback Engine effects, Avid Media Composer internal effects

Physical installation

• Form factor: PCIe full height

Power requirements

• Power consumption: 10 W

Environmental specifications

• Operating temperature: 5 to 40 °C
• Storage temperature: -20 to 45 °C
• Relative humidity: 0% to 90% non-condensing

Physical specifications

• Dimensions: lenght 137,6 mm
• Weight: 159 g

What's included

• DeckLink IP/SDI HD
• Welcome wallet with QR code for software download
