Le SmartScope Duo 4K de Blackmagic Design est similaire au SmartView Duo, mais ajoute un suivi indépendant de la forme d'onde afin que vous puissiez choisir entre la forme d'onde, le vecteurscope, la parade RGB, la parade YUV, l'histogramme et l'affichage du niveau de phase audio.
Chaque moniteur est indépendant, ce qui signifie que vous pouvez afficher n'importe quelle combinaison d'oscilloscopes ou d'images !
Technical characteristics

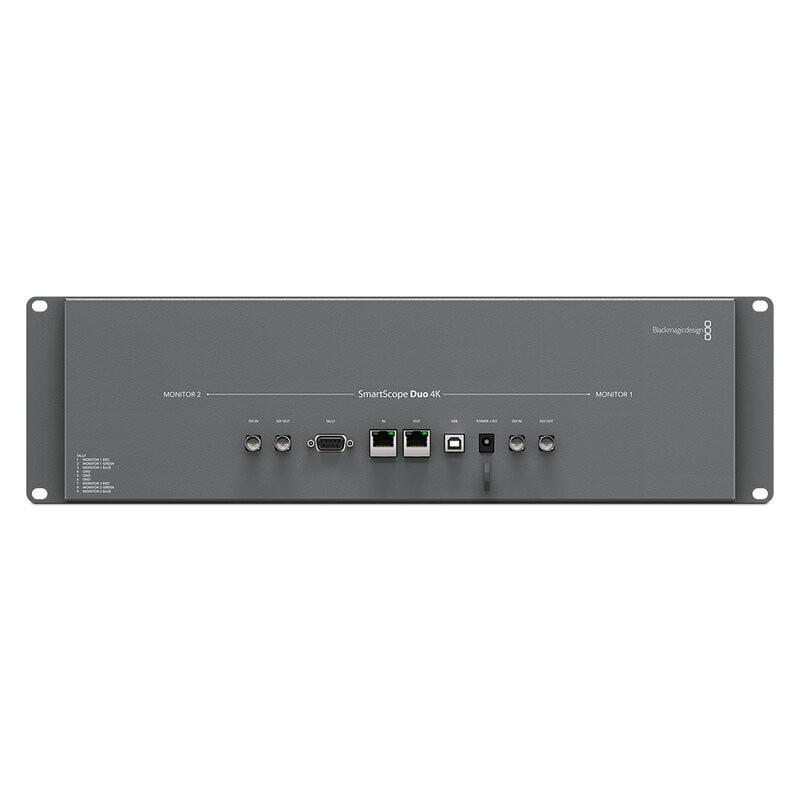

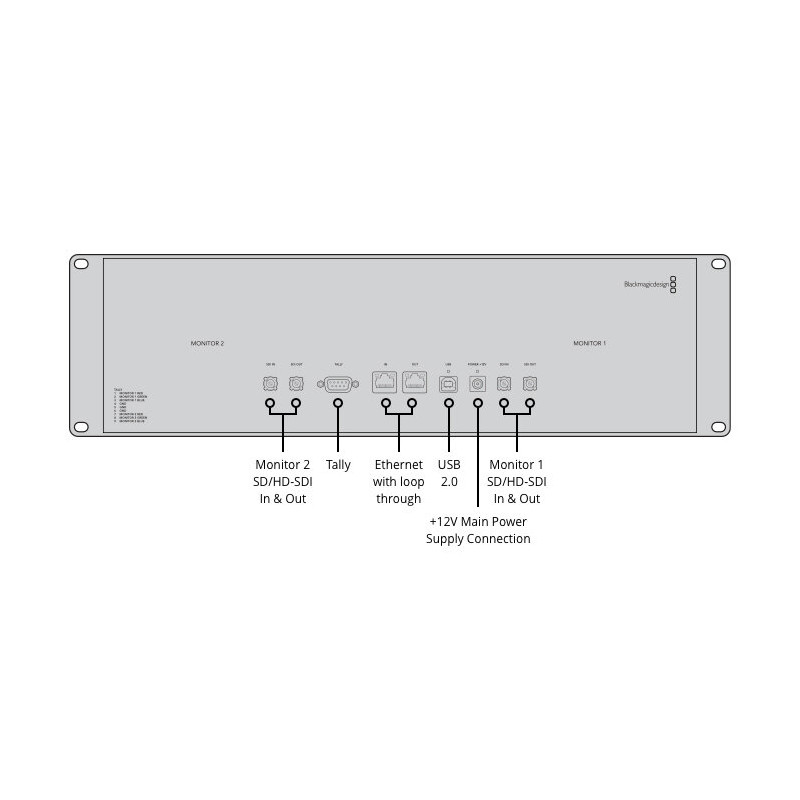

Connections
- SDI video input: automatically switches between SD, HD and 6G-SDI. Reclocked loop through output
- SDI video output: 1 x 10-bit loop through SD, HD and 6G-SDI switchable
- SDI audio input: 16 channels embedded in SD, HD and UHD
- SDI audio output: 16 channels embedded in SD, HD and UHD
- Multi rate support: standard definition SDI, high definition SDI and 6G-SDI
- Tally: 9-pin D connector
Standards
- SD format support: 525i 29.97 NTSC, 625i 50 PAL
- HD format support: 720p 50, 59.94, 60; 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60; 1080PsF 23.98, 24, 25, 29.97, 30; 1080i 50, 59.94, 60
- 2K format support: 2K DCI 23.98p, 24p, 25p; 2K DCI 23.98PsF, 24PsF, 25PsF
- Ultra HD format support: 2160p 23.98, 24, 25, 29.97, 30
- SDI compliance: SMPTE 259M, 292M, 296M, 372M, 424M Level B, 425M
- Audio sampling: television sample rate of 48 kHz
- Video sampling: 4:2:2 and 4:4:4
- Color precision: 8-bit
- Color space: YUV and RGB
Computer interface
- USB 2.0 for software updates
- Ethernet for configuration
Colorspace conversion
- Hardware based real-time conversion
Scopes
- Luminance waveform
- Vectorscope
- RGB parade
- YUV parade
- Histogram
- Audio phase and level
Software
- Software included: configuration utility for Mac and Windows
- Internal software upgrade: via included firmware updater software
Physical installation
Operating systems
- Mac: macOS 10.15 Catalina, macOS 11.1 Big Sur or later
- Windows: Windows 10, 64-bit
Power requirements
- Power supply: 12V universal power supply included with international socket adapters
- Power consumption: less than 20 W
- Operational voltage range: 12 - 15 V
Environmental specifications
- Operating temperature: 0 to 40 °C
- Storage temperature: -20 to 45 °C
- Relative humidity: 0% to 90% non-condensing

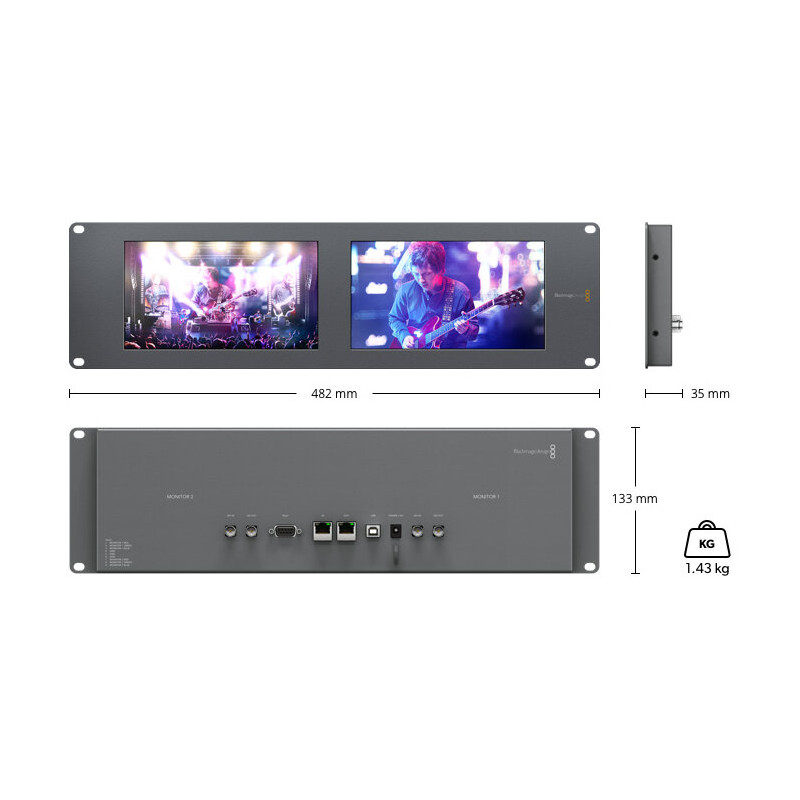

Physical specifications
- Dimensions: 48.2 x 13.3 x 3.2 cm
- Weight: 1.53 kg
What's in the box
- SmartScope Duo 4K
- Power supply
- Welcome wallet with QR code for software download
