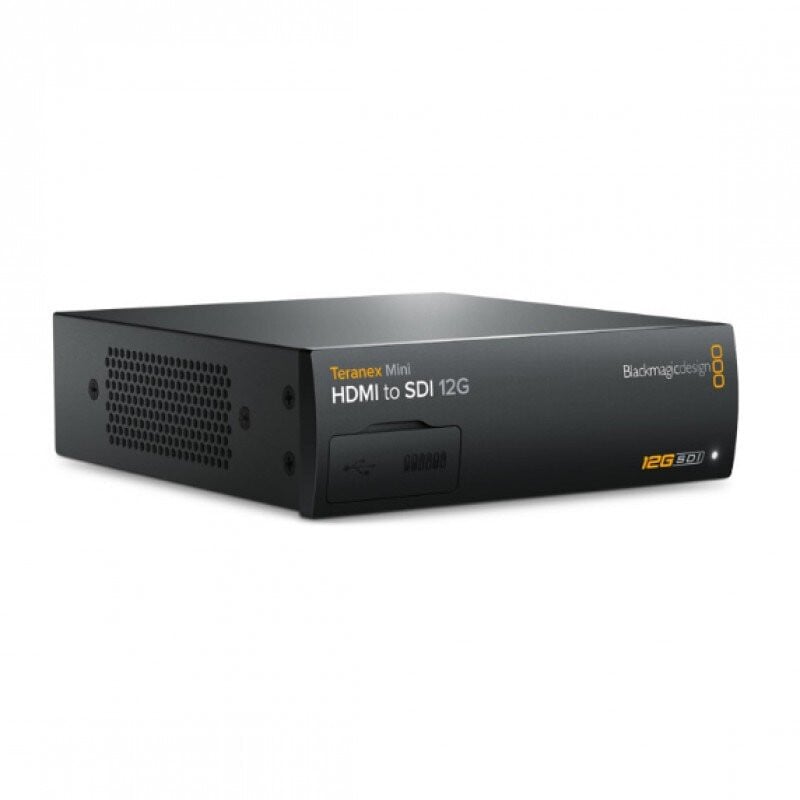

Blackmagic Design - Teranex Mini - HDMI to SDI 12G

Name: Teranex Mini - HDMI to SDI 12G
Brand: Blackmagic Design
SKU: CONVNTRM/AB/HSDI
Price: 448.5 EUR
Availability: InStock

HDMI to 12G SDI converter up to Ultra HD with analog or AES/EBU audio

(0)

897,50 €

- 50%

448,50 €

Pay in 4 interest-free payments of 112,13 € with Discover More

1 articles disponibles dans notre entrepôt italien

La quantité sélectionnée est supérieure à celle disponible en stock. Pas de problème ! Nous procéderons en vous envoyant immédiatement la quantité disponible. Nous vous enverrons ensuite le solde, sous 10 jours environ.

Unfortunately, the quantity you have selected exceeds the amount available in stock.

448,50 €

Condition : Neuf

Prime

livraison rapide est disponible pour ce produit.

Ce produit est disponible dans nos entrepôts en Italie, il sera donc livré dans un délai de 2 à 5 jours ouvrables.

Livraison gratuite pour toute commande égale ou supérieure à 199 € sont limités à la livraison au sein de l'Europe

Variants of this product

Blackmagic Design - Teranex AV

1 392,50 €

(0)

Standards converter designed for professional AV with 12G-SDI, HDMI 2.0a, XLR

Blackmagic Design - ATEM Camera Converter

496,50 €

(0)

Battery powered optical fiber converter with talkback, tally and mic inputs

Blackmagic Design - Mini Converter - HDMI to SDI 6G

127,50 €

(0)

HDMI to SDI 6G converter up to Ultra HD with audio

Blackmagic Design - Teranex Express

1 156,50 €

(0)

12G-SDI real time up, down, cross and standards converter

Blackmagic Design - Mini Converter - SDI Distribution

137,00 €

(0)

8 x 3G-SDI distributor

IT Manuale d’istruzioni (7.17MB)

Documentation

ES Manual de instrucciones (7.19MB)

Documentation

DE Bedienungsanleitung (7.23MB)

Documentation

FR Manuel d'instructions (7.19MB)

Documentation

EN Instruction Manual (7.69MB)

Documentation

Watch it in action

Close the video

Détails du produit

Le Teranex Mini HDMI vers SDI 12G permet de convertir un signal HDMI en 12G-SDI.

Tous les formats vidéo sont pris en charge, y compris SD, HD, 6G et 12G-SDI. Vous pouvez également convertir un signal HD en Ultra HD grâce au convertisseur ascendant inclus. Le Teranex Mini permet l'intégration de l'audio à partir de formats analogiques symétriques ou AES/EBU et l'entrée Time Code.

Le Teranex Mini HDMI vers SDI 12G est la solution idéale pour convertir les caméras grand public HDMI en SDI ou pour ajouter des sorties SDI à des ordinateurs équipés de connexions HDMI.

Technical characteristics

Connections

SDI video outputs: 2 x 12G SDI outputs. Automatically matches the SD, HD and 12G-SDI HDMI video input
HDMI video inputs: 1 x HDMI 2.0 type A
Analog audio inputs: 2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for Time Code input
Digital audio inputs: 4 channels professional 110 ohm balanced digital audio via XLR connectors. Right XLR can be configured for Time Code input
Embedded audio support: 16 channels
Multi rate support: automatic switching between SD / HD / 2K and 4K
Updates and configuration: front USB-C or Ethernet
Reclocking: yes

SDI output standards

SD video standards: 525i 59.94 NTSC, 625i 50 PAL
HD video standards: 720p 50, 720p 59.94, 720p 60, 1080i 50, 1080i 59.94, 1080i 60, 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 50, 1080p 59.94, 1080p 60
2K video standards: 2Kp 23.98 DCI, 2Kp 24 DCI, 2Kp 25 DCI
Ultra HD video standards: 2160p 23.98, 2160p 24, 2160p 25, 2160p 29.97, 2160p 30, 2160p 50, 2160p 59.94, 2160p 60
4K video standards: 4Kp 23.98 DCI, 4Kp 24 DCI, 4Kp 25 DCI
SDI compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10
SDI video rates: SDI video connections are auto switching between standard definition SDI, high definition 3G-SDI, 6G-SDI, and 12G-SDI
SDI video sampling: 4:2:2
SDI audio sampling: television standard sample rate of 48 kHz and 24‑bit
SDI color precision: 4:2:2
SDI color space: YUV

HDMI input standards

SD video standards: 525i 59.94 NTSC, 625i 50 PAL
HD video standards: 720p 50, 720p 59.94, 720p 60, 1080i 50, 1080i 59.94, 1080i 60, 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 47.95, 1080p 48, 1080p 50, 1080p 59.94, 1080p 60
2K video standards: 2Kp 23.98 DCI, 2Kp 24 DCI, 2Kp 25 DCI
Ultra HD video standards: 2160p 23.98, 2160p 24, 2160p 25, 2160p 29.97, 2160p 30, 2160p 47.95, 2160p 48, 2160p 50, 2160p 59.94, 2160p 60
4K video standards: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
HDMI color space: REC 601, REC 709
HDMI color precision: YUV 4:2:2 in HD, 2K and 4K
Copy protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content

Format conversion

HD up and down conversion

Software

Software control: Mac OS X and Windows software upgrade via USB-C or Ethernet
Internal software upgrade: via included updater application

Operating systems

Mac 10.15 Catalina, Mac 11.1 Big Sur or later, Windows 10 64-bit

Settings control

Basic Settings control: mini switches, USB and Ethernet via free software utility
Optional front panel control: front mounted Smart Panel with LCD, rotary knob and six settings buttons

Power requirements

Power supply: 1 x built in international AC power supply with IEC C14 inlet, IEC power cable required, 100 to 240 V_AC input
PoE: can be powered via 48 V_DC using PoE+ (Power over Ethernet)
Power consumption: 16 W
Operational voltage range: 100 to 240 V_AC

Environmental specifications
