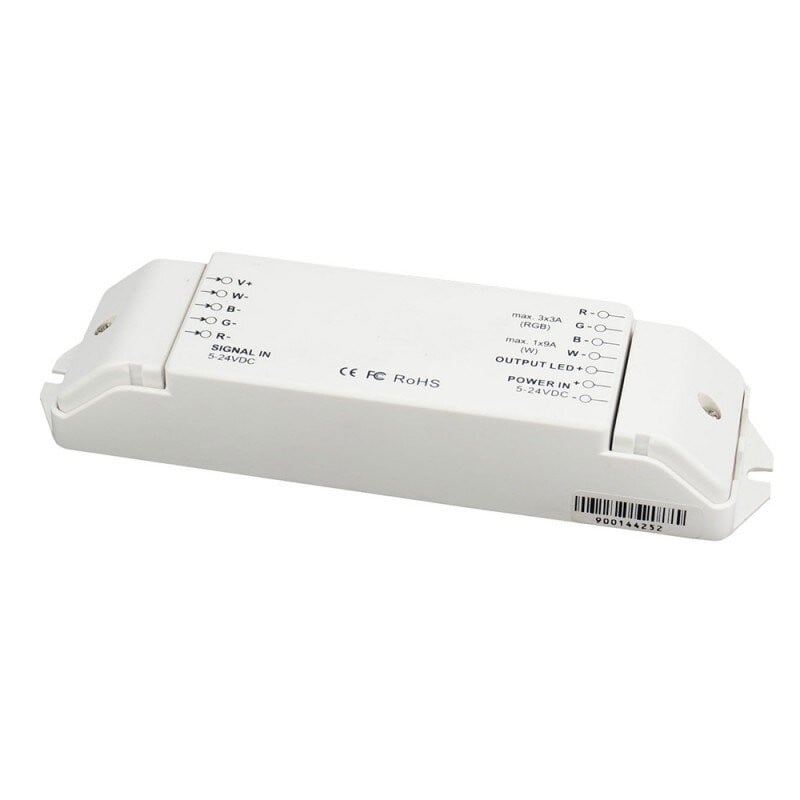

Contest - TAPEBOOSTER RGB W
4-Channel signal booster 5-24 VDC - 3 x 3A + 1 x 9A max.
Available
delivery is available for this product.
This item is currently in stock and will be shipped from our supplier's warehouse in Europe.
Free shipping for orders over € 199 (within Europe)
Variants of this product
1 SPI port, 1440 pixel, WiFi controller
35,50 €
DMX Driver - 1 channel - 12-24 VDC - 6A max
91,00 €
Power supply - 24 VDC 320 W max - IP20 - 3 outputs
6 PLC ports, 1500 pixel (250 per port), Ethernet controller
99,00 €
DIN rail stabilized power supply24 V-20A-240W-MW
Détails du produit
Amplificateur de signal à 4 canaux - 5-24VDC - RGB 3 x 3 A ou monochrome 1 x 9 A max. Pour les rubans monochromes et RGB.
Input voltage | DC5V-DC24 |
Max Load Current |
RGB: 3A×3CH W: 9A×1CH |
Output signal | Constant voltage PWM |
Max output power |
RGB: 72W×3CH W: 216W(24 V) |
Product Dimension | L176 × W46 × H30(mm) |
Gross Weight | 145g |
