Détails du produit
Technical characteristics
Module specification | |
Pixel pitch | 3.9 mm |
LED type | SMD 3-in-1 1921 |
Module size | 250 x 250 mm |
Module resolution | 64 x 64 pixel |
Cabinet specification | |

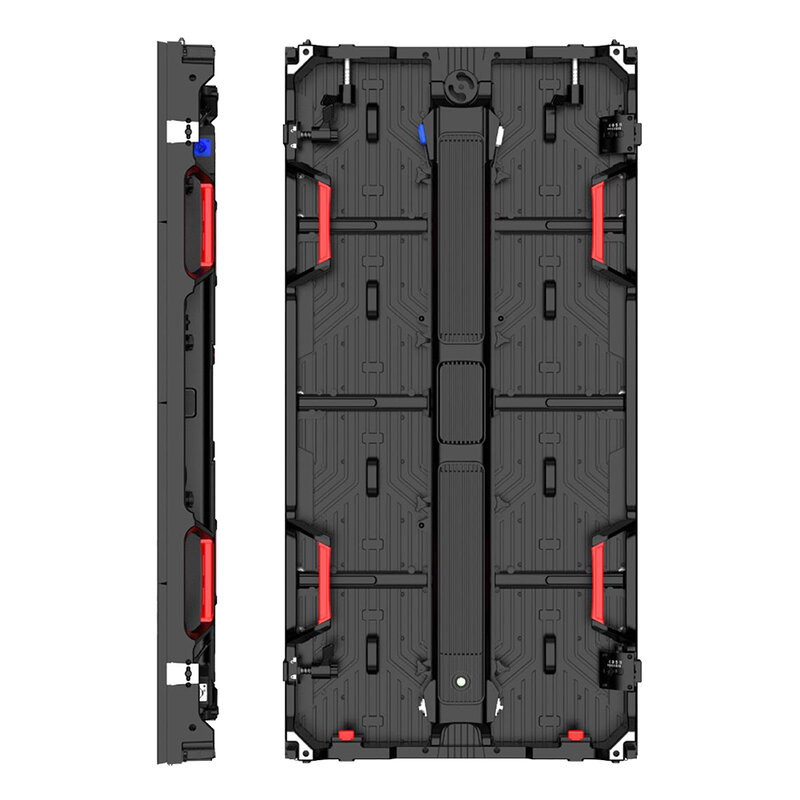

Cabinet material | die casting aluminum |
Size of cabinet | 500 x 1000 x 80 mm |
Cabinet resolution | 128 x 256 |
Module quantity per cabinet | 8 pcs. |
Cabinet weight | 13.5 kg |
Screen parameters | |
Brightness | 4000 - 4500 nit |
Refresh rate | 3840 Hz |
Gray scale | 14 bit |
Receiving card | Novastar |
Contrast ratio | 4000:1 |
Color temperature | 6500 K |
Viewing angle (H / V) | 160° / 150° |
Driving type | 1/16 |
IP rating | IP65 / IP54 |
Work voltage | 100 - 240 VAC |
Power consumption (max. / avg.) | 588 / 196 W/m2 |
Other parameters | |
Storage temperature | -40 to 60 °C |
Operating temperature | -20 to 50 °C |
Storage humidity | 10 - 90% |
Operating humidity | 10 - 90% |
IP rating (front / rear) | IP65 / IP54 |
LED lifetime | 100,000 h |
Module maintenance | front / rear |
PSU & others maintenance | front / rear |
Panel installation type | hanging / stacking |
Max rigging qty | 10 |
Certification | CE, ETL, FCC |
