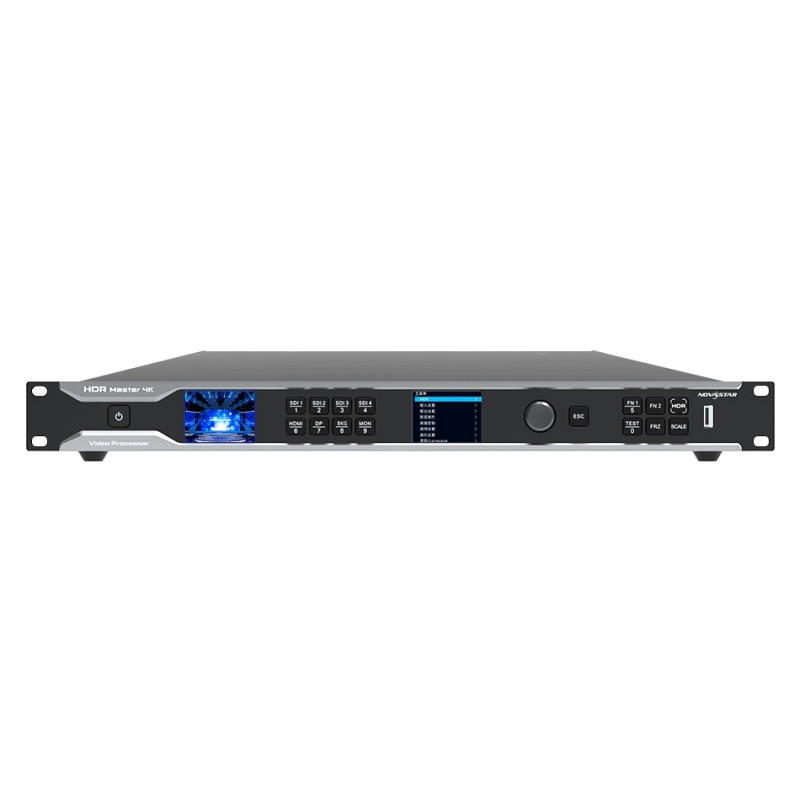

NovaStar - HDR MASTER 4K

Name: HDR MASTER 4K
Brand: NovaStar
SKU: M04010027
Price: 4546 EUR
Availability: OutOfStock

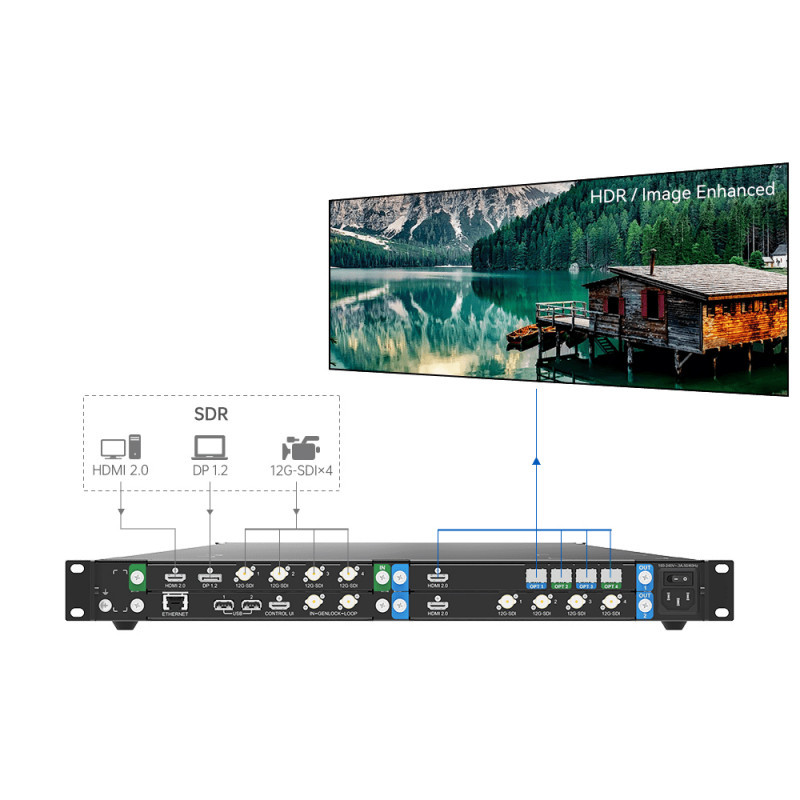

4 K video processor for improving image quality (SDR - HDR)

(0)

6 415,00 €

- 29%

4 546,00 €

La quantité sélectionnée est supérieure à celle disponible en stock. Pas de problème ! Nous procéderons en vous envoyant immédiatement la quantité disponible. Nous vous enverrons ensuite le solde, sous 10 jours environ.

Unfortunately, the quantity you have selected exceeds the amount available in stock.

Condition : Neuf

J'accepte les conditions générales et la politique de confidentialité

Not available.

delivery is not available for this product.

Livraison gratuite pour toute commande égale ou supérieure à 199 € sont limités à la livraison au sein de l'Europe

Variants of this product

PIXELHUE - 4K View Pro

3 590,50 €

(0)

Powerful video processor supporting 4K x 2K @ 60 Hz input and output, FPGA system architecture

RGBlink - FLEX 4ml

750,00 €

(0)

Splicing Video wall Processor with a 4K2K @ 60 input module, 4 DVI output modules and 2 EXT output modules

RGBlink - X2

893,00 €

(0)

16x16 Universal Processor

RGBlink - X2

803,50 €

(0)

16x16 Universal Processor

NovaStar - H2-KIT

4 609,00 €

(0)

Kit that include: H2 video splicing processor + H_2 x RJ45 + 1 x HDMI1.3 preview card + H_4 x fiber sending card + H_16 x RJ45 + 2 x fiber output card

EN Instruction Manual (4.04MB)

Documentation

Détails du produit

Input Card

Connector	Qty	Standard	Description
HDMI 2.0	1	HDMI 2.0 Backwards compatible with HDMI 1.4 and HDMI 1.3	Up to 4K×2K@60Hz or 8K×1K@60Hz input resolution 1080i/576i/480i deinterlacing HDCP 2.2 and HDCP 1.4 compliant HDR10 and HLG supported Max. width: 8192 pixels, max. height: 4000 pixels
DP 1.2	1	DP 1.2 Backwards compatible with DP 1.1	Up to 4K×2K@60Hz or 8K×1K@60Hz input resolution 1080i/576i/480i deinterlacing HDCP 1.3 compliant Max. width: 8192 pixels, max. height: 4000 pixels
12G-SDI	4	12G-SDI Backwards compatible with 6G-SDI, 3G-SDI,HD-SDI and SD-SDI	Supports ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G), ST-292 (HD) and SMPTE 259 (SD). Up to 4K×2K@60Hz input resolution 1080i/576i/480i deinterlacing For 3G-SDI, HD-SDI or SD-SDI inputs, SDI mosaic input is supported.

Output Card

1×HDMI2.0+4×Fiber Output Card

Connector	Qty	Standard	Description
HDMI 2.0	1	HDMI 2.0 Backwards compatible with HDMI 1.4 and HDMI 1.3	HDR10 supported Up to 4K×2K@60Hz output resolution Max. width: 8192 pixels, max. height: 4000 pixels
10G optical fiber port	4	10G	OPT 1 and OPT 2 copy the output on HDMI 2.0. OPT 3 copies the output on OPT 1. OPT 4 copies the output on OPT 2.

4×12G SDI+1×HDMI2.0 Process Card

Connector

Qty

Standard

Description

HDMI 2.0

HDMI 2.0 HDMI 1.4 and HDMI 1.3 compatible

HDR10 supported
Up to 4K×2K@60Hz output resolution
Max. width: 8192 pixels, max. height: 4000 pixels

12G-SDI

12G-SDI 6G-SDI, 3G-SDI, HD- SDI and SD-SDI compatible

Up to 4K×2K@60Hz output resolution on each connector
For 3G-SDI, HD-SDI or SD-SDI outputs, SDI mosaic output is supported.

Note: When two connectors are used for mosaic output, SDI 1 and SDI 2 are always used.

SDI 3 and SDI 4 copy the output on SDI 1 and SDI 2 respectively.

Control Card

ETHERNET	Gigabit Ethernet port Connect to the control PC.
USB	2 × USB 2.0 (Type-A) Insert a USB drive to update the device. Insert a USB drive to import the BKG or LOGO files
CONTROL UI	Reserved
GENLOCK	Connect to a sync source. IN: Accept the sync source. LOOP: Loop the sync source.

More.. Show less
