NovaStar - MX20

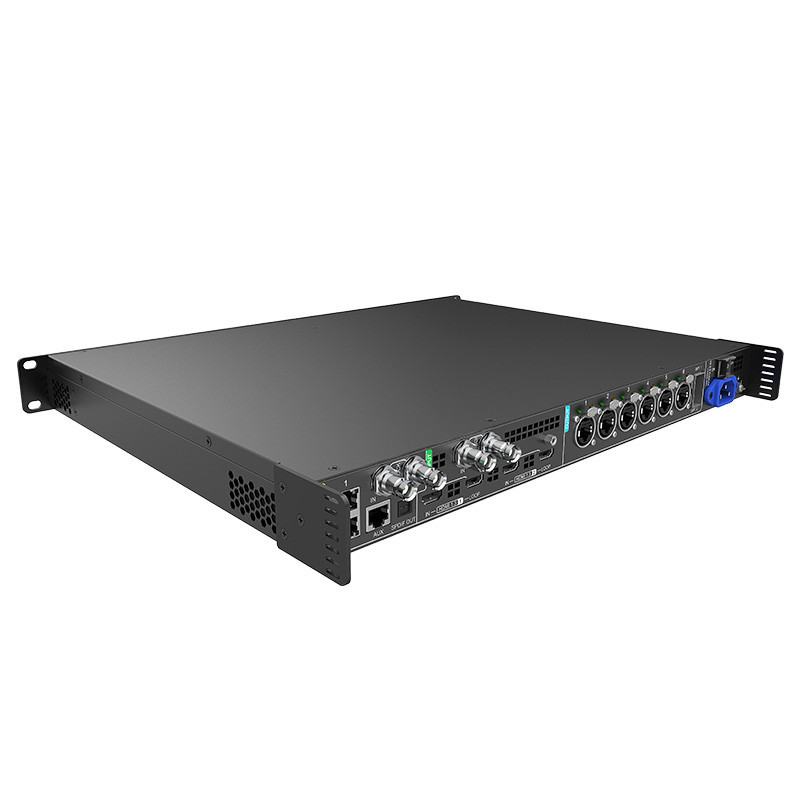

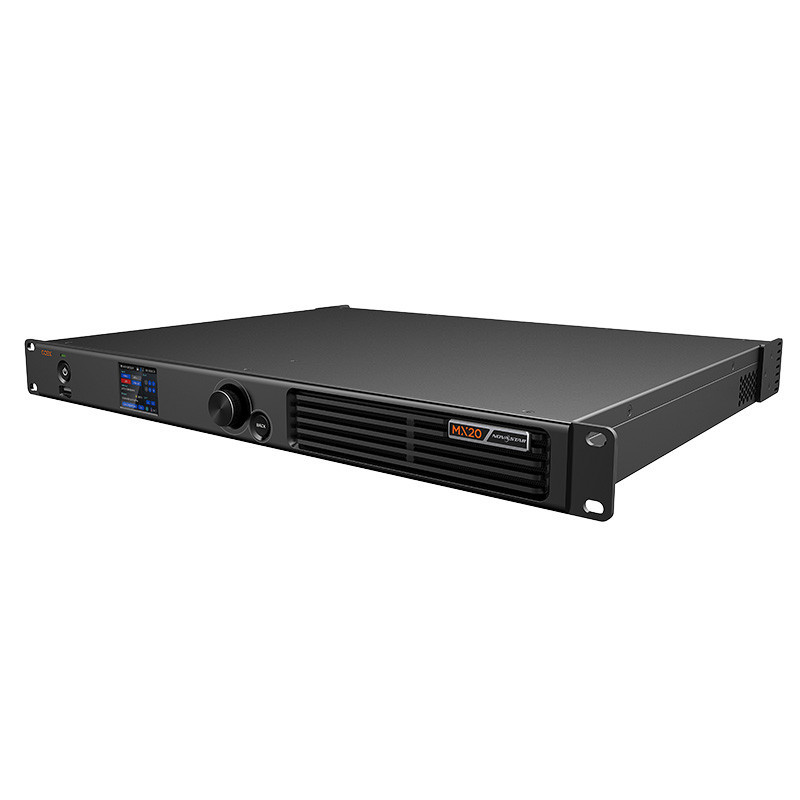

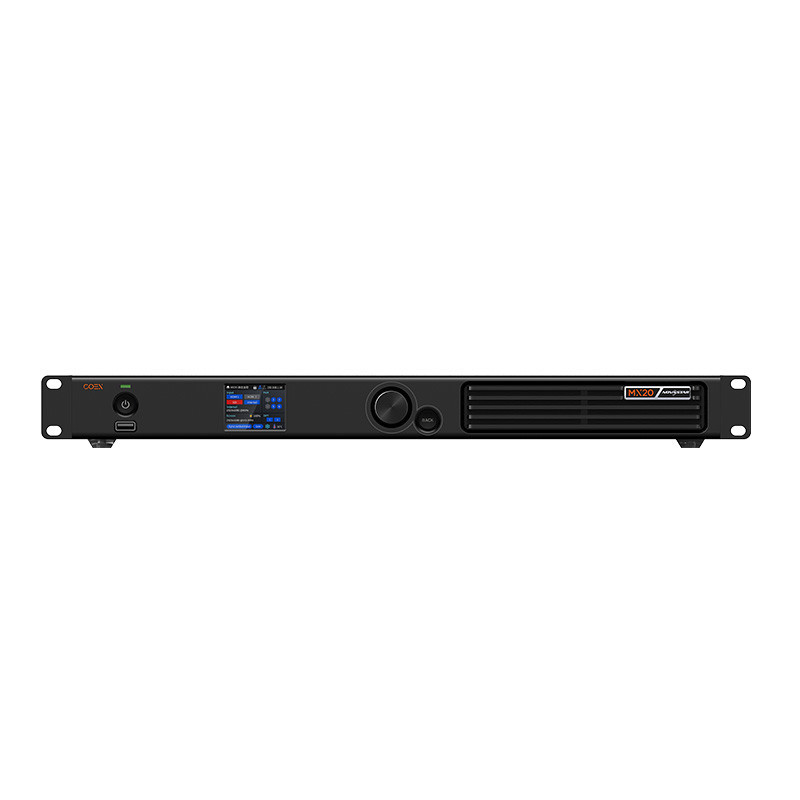

Le MX20 est un contrôleur d'écran LED tout-en-un qui intègre le traitement et le contrôle vidéo dans un seul appareil. Il propose 2 connecteurs HDMI 1.3, 1 connecteur d'entrée 3G-SDI, 6 ports de sortie Ethernet et 2 ports optiques 10G. Il peut également fonctionner avec le dernier logiciel VMP (Vision Management Platform) pour offrir une meilleure expérience de fonctionnement et de contrôle.

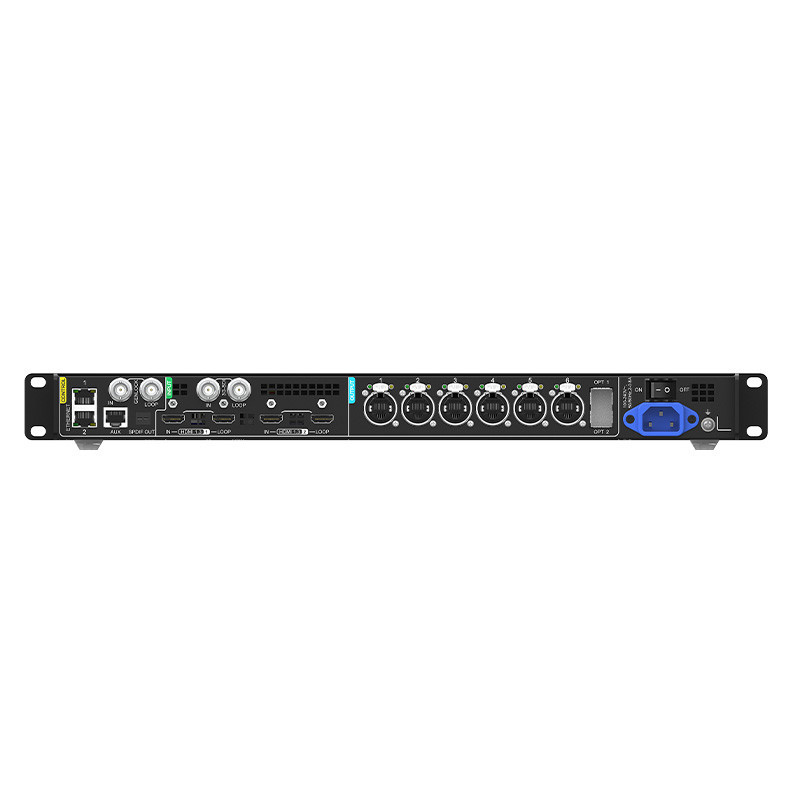

Input

• HDMI 1.3 IN x 2
  • Max. resolution 1920×1200 @ 60 Hz, min. resolution: 800×600 @ 60 Hz
  • Max width/height: max. width 3840 pixels (3840×600 @ 50 Hz), max. height 2560 pixels (800×2560 @ 50 Hz)
  • Frame rate: 23.98 / 24 / 25 / 29.97 / 30 / 47.95 / 48 / 50 / 59.94 / 60 / 72 / 75 / 85 / 100 / 119.88 / 120 / 143.86 / 144 Hz
  • EDID management supports standard resolutions, up to 1920×1080 @ 60 Hz. Support custom input resolutions.
  • HDCP support HDCP 1.4
  • Interlaced signal inputs not supported
• 3G-SDI IN x 1
  • Standards support ST-424 (3G), ST-292 (HD) and ST-259 (SD) standard video inputs. Support 3G-Level A / Level B (DS mode)
  • Max. resolution: 1920×1080 @ 60 Hz
  • Frame rates 23.98 Hz to 60.00 Hz
  • Interlaced signal inputs support MQ level deinterlacing. The interlaced signals will be automatically detected and converted to progressive signals

Output

• 1–6: ​​Gigabit Ethernet output ports. Support hot backup between Ethernet ports.
  • Max device load capacity: 3.9 Mpixels
  • The maximum load capacity per Ethernet port is as follows. For details, see the Ethernet port load capacity section.
    • 8 bit @ 60 Hz: 659,722 pixels
    • 10 bit @ 60 Hz: 329,861 pixels. When the controller works with the A10s Pro receiving card, the capacity can be up to 494,791 pixels.
• OPT 1–2: 10G optical output ports
  • OPT 1 transmits the data of Ethernet ports 1 to 6
  • OPT 2 is the copy channel of OPT 1
• HDMI 1.3 LOOP x 2 HDMI loop through. Up to 8 devices can be cabled in one loop
• 3G-SDI LOOP x 1 SDI loop through. Up to 8 devices can be cabled in one loop
• SPDIF OUT 1 A digital audio output (reserved)

Controls

• Ethernet x 2 Gigabit Ethernet control ports. Support TCP/IP protocol and star topology
  • They have the same functions without priority and order, and can be connected to VMP software. No switch or router is needed to deploy multiple devices on the same LAN via device cascading as the network switching function is already built in. Up to 20 MX20 devices can be cascaded.
• GENLOCK x 1 A pair of Genlock signal connectors. Support Bi-Level and Tri-Level.
  • IN: accept the sync signal
  • LOOP: loop the sync signal
  • For standard Genlock signal generators, up to 20 MX20 devices can be cascaded.
• AUX 1 An auxiliary port that connects to the central control device (RS232) (reserved).

Power

• 100-240 V_AC, 50/60 Hz, 0.8 - 2 A . An AC power input connector and switch
