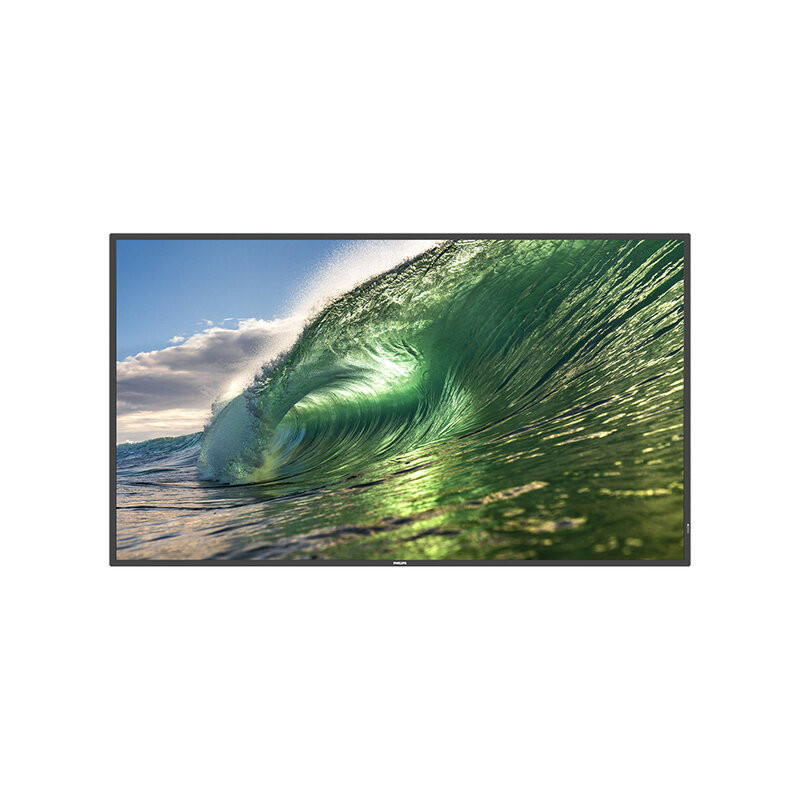

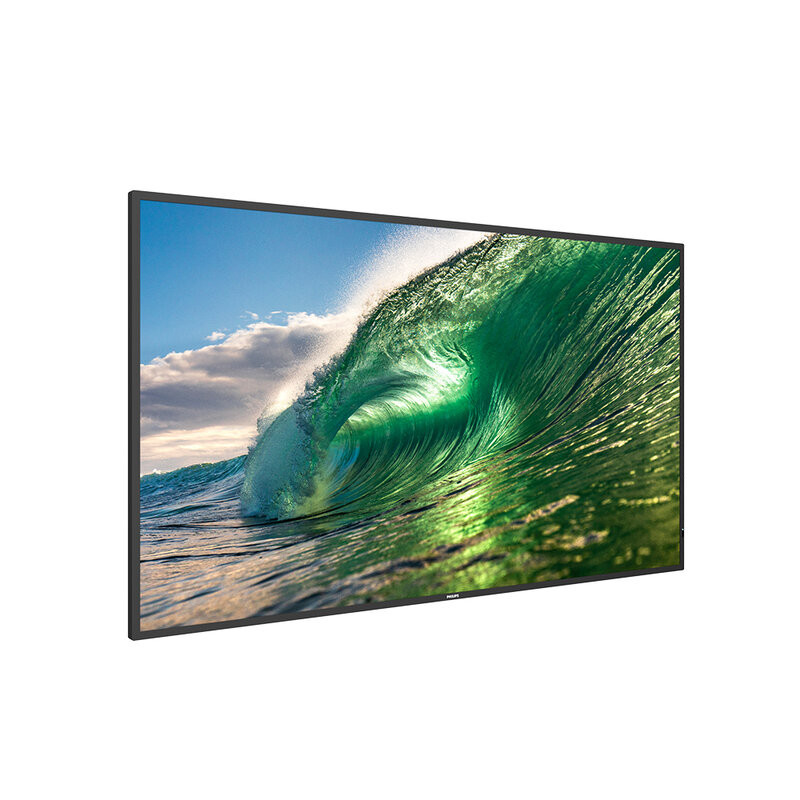

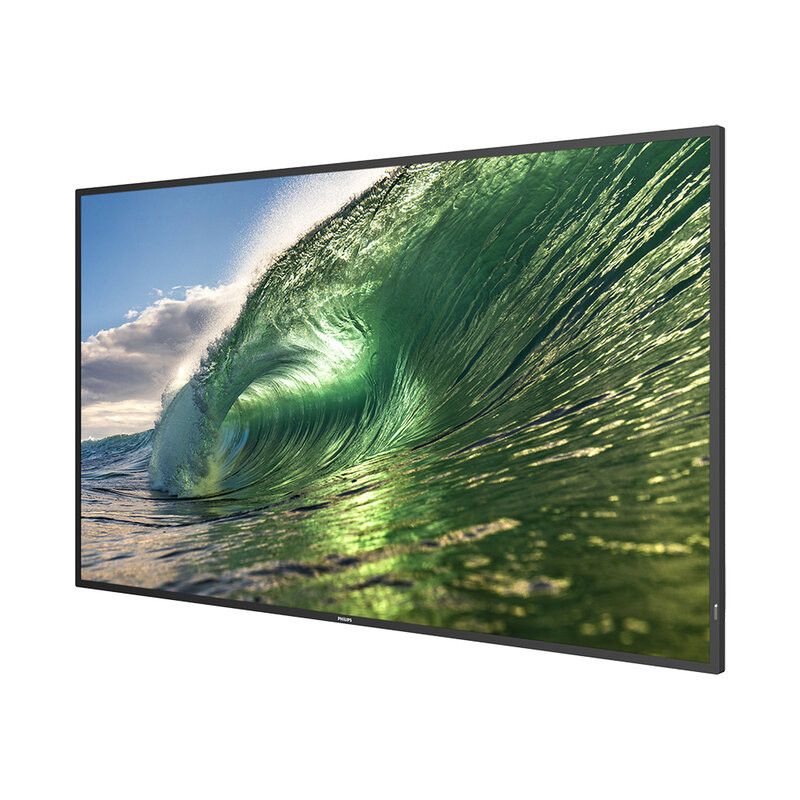

PPDS - 55BDL3650QE/00

Technical characteristics

Picture / display

• Diagonal screen size: 54.6", 138.7 cm
• Aspect ratio: 16:9
• Panel resolution: 3840 x 2160
• Pixel pitch: 0.315 x 0.315 mm
• Optimum resolution: 3840 x 2160 @ 60 Hz
• Brightness: 350 cd/m²
• Display colours: 1.06 billion
• Contrast ratio (typical): 1200:1
• Dynamic contrast ratio: 500,000:1
• Response time (typical): 8 ms
• Viewing angle (horizontal): 178°
• Viewing angle (vertical): 178°
• Picture enhancement: 3/2 - 2/2 motion pull down, dynamic contrast enhancement, motion compensation deinterlacing, progressive scan
• Panel technology: IPS
• Operating system: Android 10

Connectivity

• Audio output: 3.5 mm mini-jack
• Video input: 2 x HDMI 2.0, DVI-I, 2 x USB 2.0, 2 x USB 3.0
• Audio input: 3.5 mm mini-jack
• Other connections: micro SD
• External control: RJ45, RS232C (IN/OUT) 2.5 mm mini-jack, IR (IN/OUT) 3.5 mm mini-jack
• Optional WiFi functionality: CRD22 Wi-Fi dongle

Convenience

• Placement: landscape (18/7), portrait (18/7)
• Tiled matrix: up to 15 x 15
• Keyboard control: lockable, hidden
• Remote control signal: lockable
• Signal loop through: RS232, IR loop through
• Energy-saving functions: Smart Power
• Network controllable: RS232, RJ45

Sound

• Built-in speakers: 2 x 10 W_RMS

Power

• Mains power: 100 - 240 V_AC 50/60 Hz
• Consumption (typical): 70 W
• Consumption (max.): 120 W
• Standby power consumption: < 0.5 W
• Power saving features: Smart Power
• Energy label class: D

Supported display resolution

• Computer formats: 1920 x 1080 @ 60 Hz, 1600 x 1200 @ 60 Hz, 1440 x 900 @ 60 Hz, 1280 x 1024 @  60 Hz, 1280 x 720 @ 60 Hz, 1280 x 800 @ 60 Hz, 1024 x 768 @ 60 / 70 / 75 Hz, 720 x 400 @ 70 Hz, 640 x 480 @ 60 / 67 / 72 / 75 Hz, 1152 x 870 @ 75 Hz, 1680 x 1050 @ 60 Hz, 800 x 600 @ 56 / 60 / 72 / 75 Hz, 1152 x 864 @ 75 Hz, 832 x 624 @ 75 Hz, 3840 x 2160 @ 24 / 25 / 30 / 60 Hz
• Video formats: 480i @ 60 Hz, 480p @ 60 Hz, 1080p @ 50 / 60 Hz, 1080i @ 50 / 60 Hz, 720p @ 50 / 60 Hz, 3840 x 2160p @ 24 / 25 / 30 / 60 Hz

Operating conditions

• Altitude: 0 - 3000 m
• Temperature range (operation): 0 - 40 °C
• MTBF: 30,000 hours
• Temperature range (storage): -20 to 60 °C
• Humidity range (operation): 20 - 80% RH (no condensation)
• Humidity range (storage): 5 - 95% RH (no condensation)

Multimedia applications

• USB playback video: H.263, H.264, H.265, MPEG1/2, MPEG4, VP8, VP9
• USB playback picture: JPEG, BMP, PNG
• USB playback audio: AAC, HEAAC, MPEG

Internal player

• CPU: Dual-core Cortex A53 1.1 GHz, Dual-core Cortex A73 1.15 GHz, Quad-Core Cortex A55
• GPU: G52 MC1
• Memory: 16 GB, 3 GB DDR

Miscellaneous

• OSD languages: English, French, German, Italian, Polish, Russian, Spanish, Turkish, Simplified Chinese, Traditional Chinese, Arabic, Japanese
• Warranty: 3-year
• Regulatory approvals: CE, CB, BSMI, FCC, Class A, VCCI, J-Moss, ETL, RoHS

Dimensions & weight

• Set width: 124.18 cm
• Set height: 71.26 cm

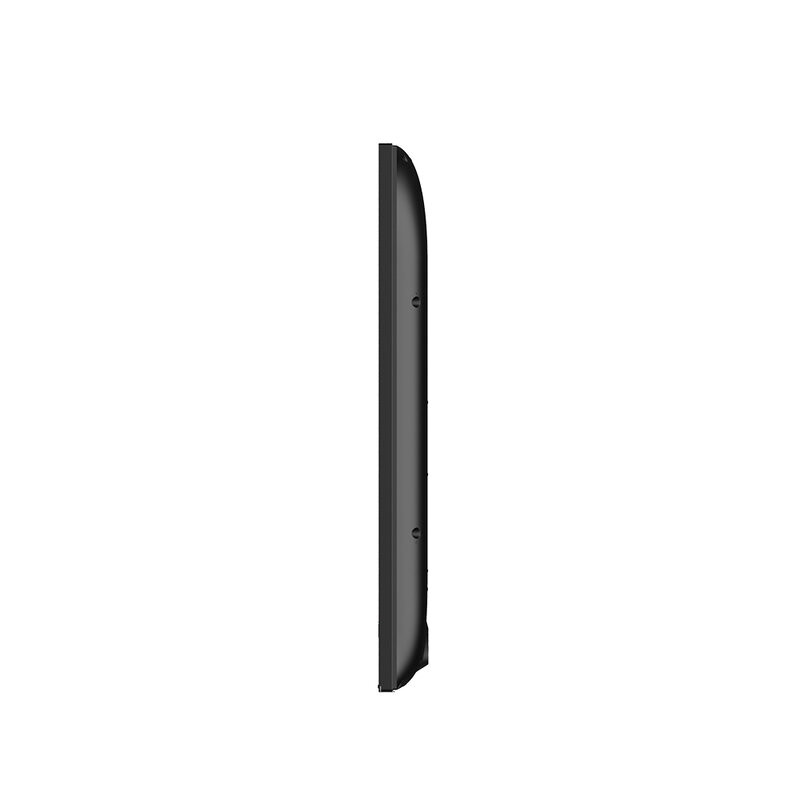

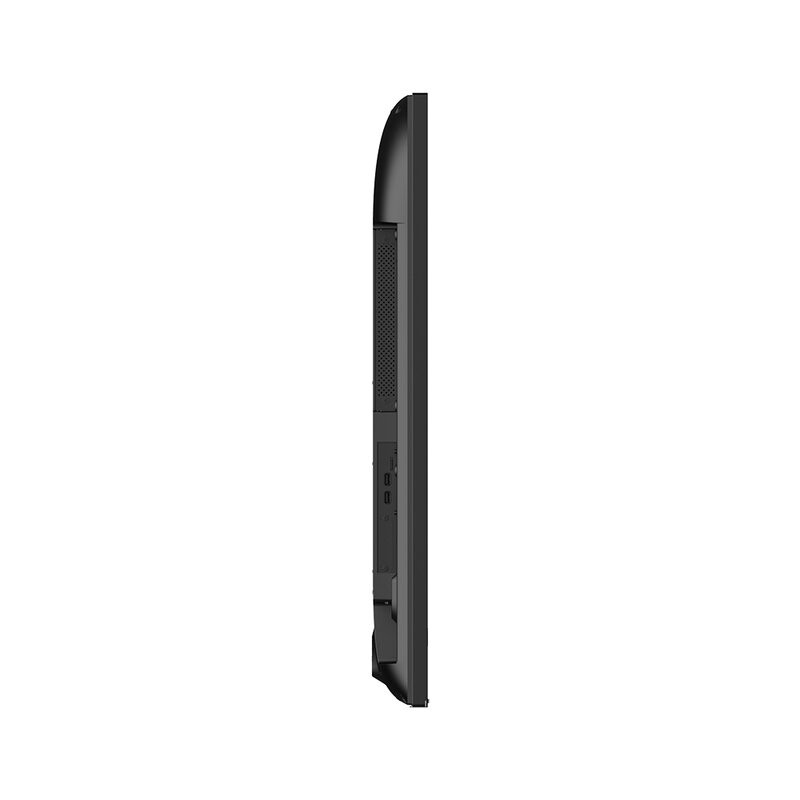

• Set depth: 6.36 cm
• Product weight: 17.2 kg

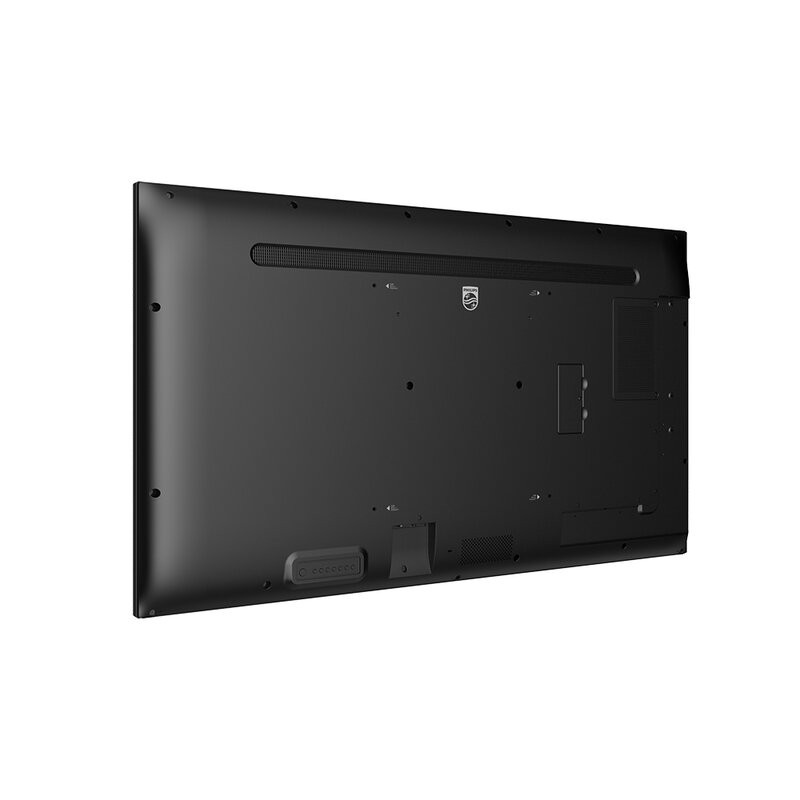

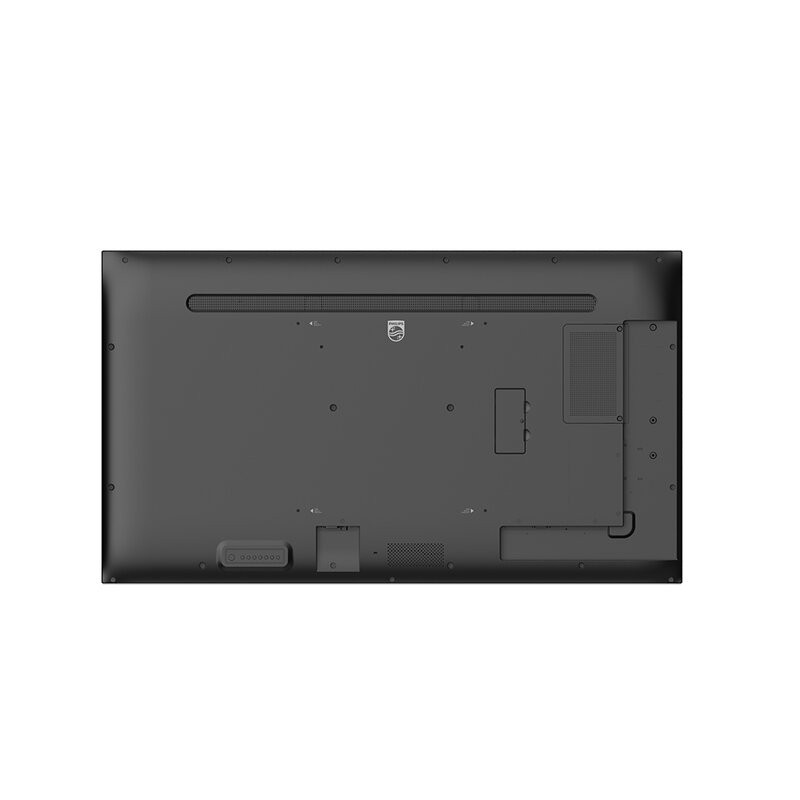

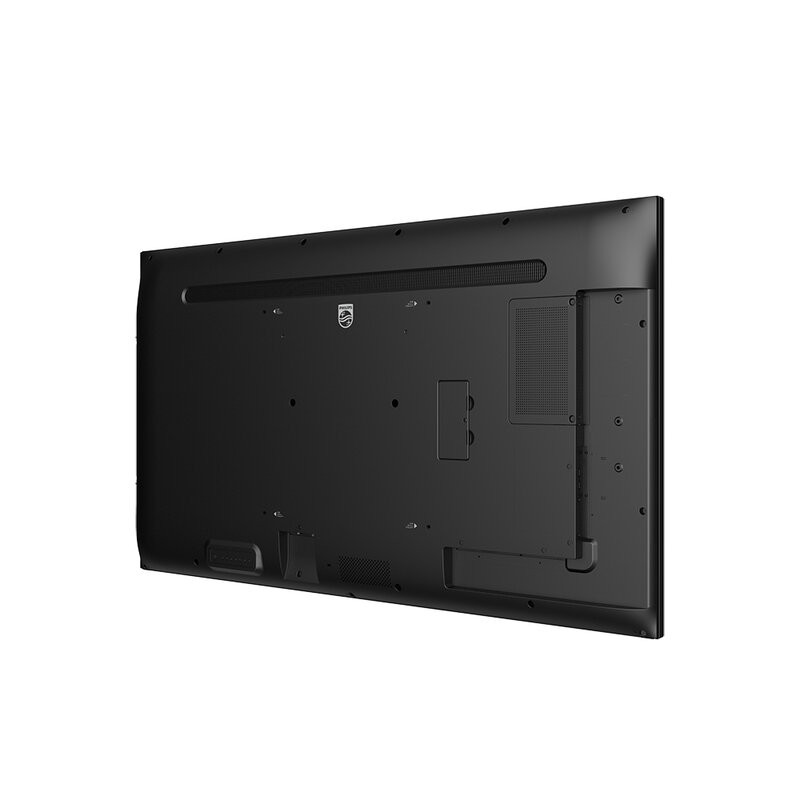

• Wall mount: 400 x 400 mm, M6
• Bezel width: 13.9 mm (even bezel)

What's in the box

• PPDS 55BDL3650QE/00 display
• IR sensor cable (1.8 m)
• RS232 daisy-chain cable
• Philips logo
• AC power cord
• AC switch cover
• 2 x cable clip
• Quick start guide
• RS232 cable
• USB cover
