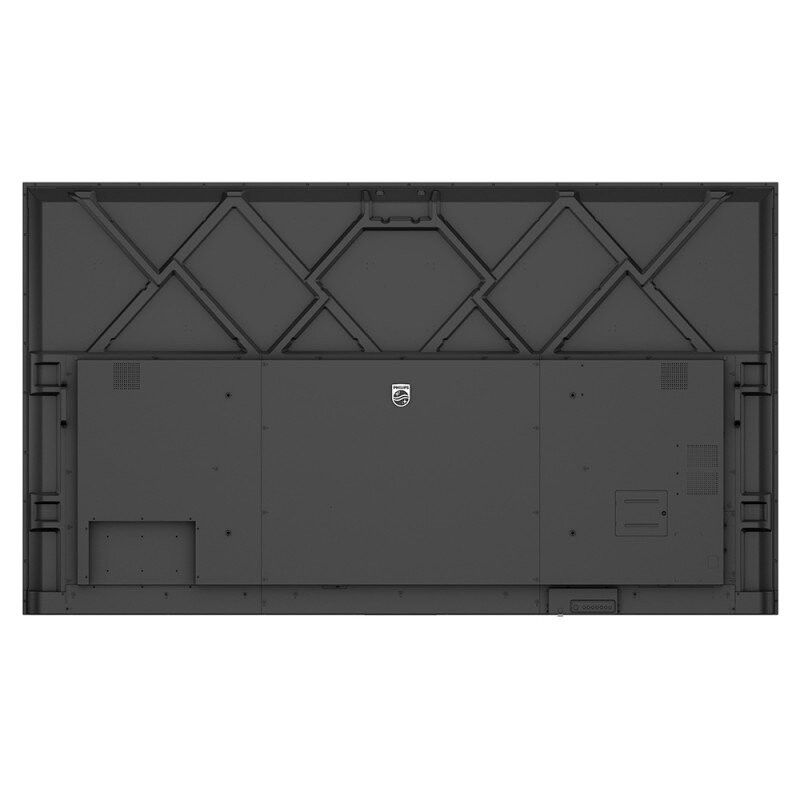

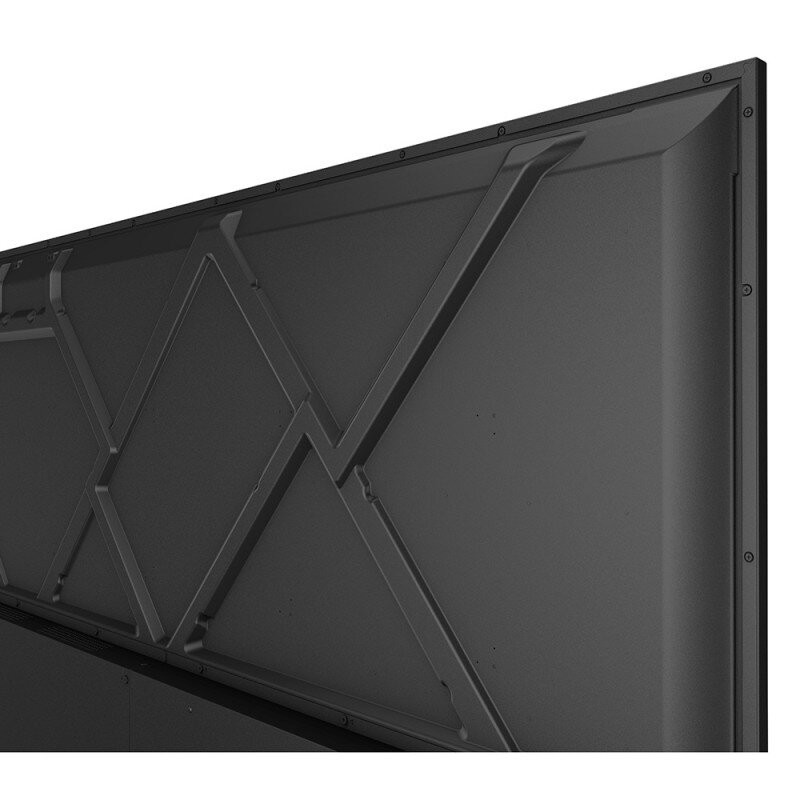

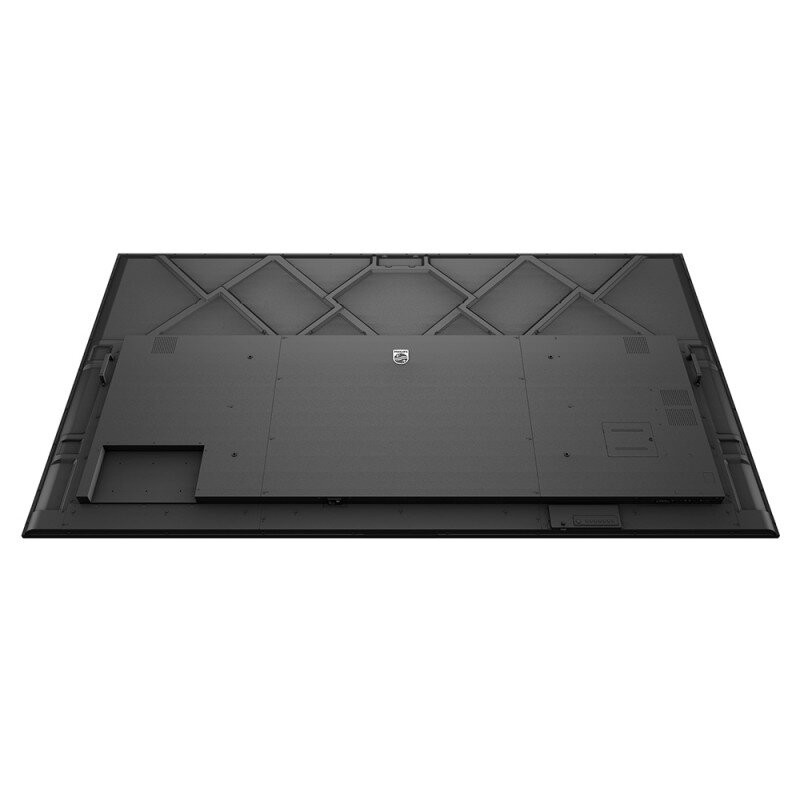

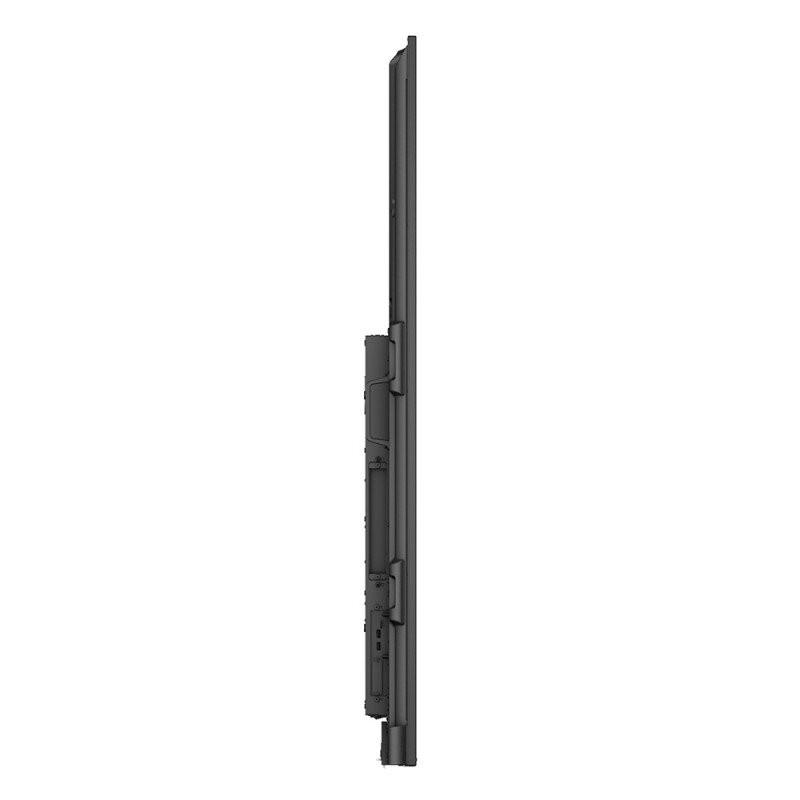

PPDS - 98BDL3650Q/00

Informez et captivez avec un écran numérique Philips Q-Line 4K Ultra HD. Cette solution de signage fiable, facile à installer et fonctionnant sous Android est compatible avec Wave pour la gestion à distance, ce qui vous permet d'avoir le contrôle total, à tout moment et en tout lieu.

Picture/Display

• Diagonal screen size: 97.5 inch / 247.7 cm
• Panel resolution: 3840 x 2160
• Optimum resolution: 3840 x 2160 @ 60 Hz
• Brightness: 400 cd/m²
• Contrast ratio (typical): 1200:1
• Dynamic contrast ratio: 500,000:1
• Response time (typical): 8 ms
• Aspect ratio: 16:9
• Viewing angle (H / V): 178 / 178 degree
• Pixel pitch: 0.56 x 0.56 mm
• Display colors: 1.07 Billion
• Picture enhancement: 3/2 - 2/2 motion pull down, progressive scan, dynamic contrast enhancement
• Panel technology: IPS
• Operating system: Android 10
• Haze: 25%

Supported Display Resolution

• Computer formats resolution refresh rate: 1920 x 1080 60 Hz, 1680 x 1050 60 Hz, 1600 x 1200 60 Hz, 1440 x 900 60 Hz, 1280 x 1024 60 Hz, 1280 x 800 60 Hz, 1280 x 720 60 Hz, 1024 x 768 60, 70, 75 Hz, 3840 x 2160 60 Hz
• Video formats resolution refresh rate: 1080p 50, 60 Hz, 1080i 50, 60 Hz, 720p 50,60 Hz, 2160p 50, 60 Hz

Connectivity

• Video input: USB 2.0 (x 2), DVI-I (x 1), HDMI 2.0 (x 2), USB 3.0 (x 1)
• Audio input: 3.5 mm jack
• Audio output: 3.5 mm jack
• External control: RS232C (in/out) 2.5 mm jack, IR (in/out) 3.5 mm jack, RJ45
• Other connections: micro SD, OPS Convenience
• Keyboard control: hidden, lockable
• Network controllable: RS232, RJ45
• Signal loop through: RS232, IR Loopthrough
• Energy saving functions: Smart Power
• Remote control signal: lockable
• Tiled matrix: up to 3 x 3
• Placement: landscape (18/7), portrait (18/7)
• Ease of installation: Smart Insert

Operating conditions

• Altitude: 0 ~ 3000 m
• Temperature range (operation): 0 ~ 40 °C
• Temperature range (storage): -20 ~ 60 °C
• MTBF: 50,000 hour(s)
• Humidity range (operation)[RH]: 20 ~ 80% RH (no condensation)
• Humidity range (storage) [RH]: 5 ~ 95% RH (no condensation) power
• Mains power: 100 - 240 V_AC 50/60 Hz
• Standby power consumption: <0.5 W
• Power saving features: Smart Power
• Consumption (Max): -
• Consumption (Typical): -
• Energy Label Class: G

Sound

• Built-in speakers: 2 x 10 W_RMS
