SKU: P1.9MG6SI21cube

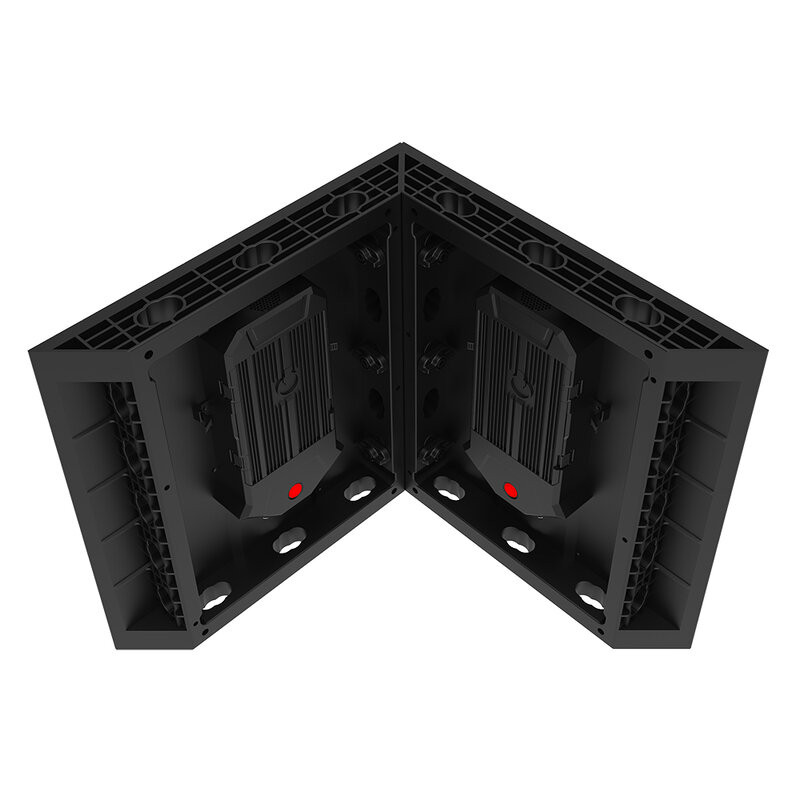

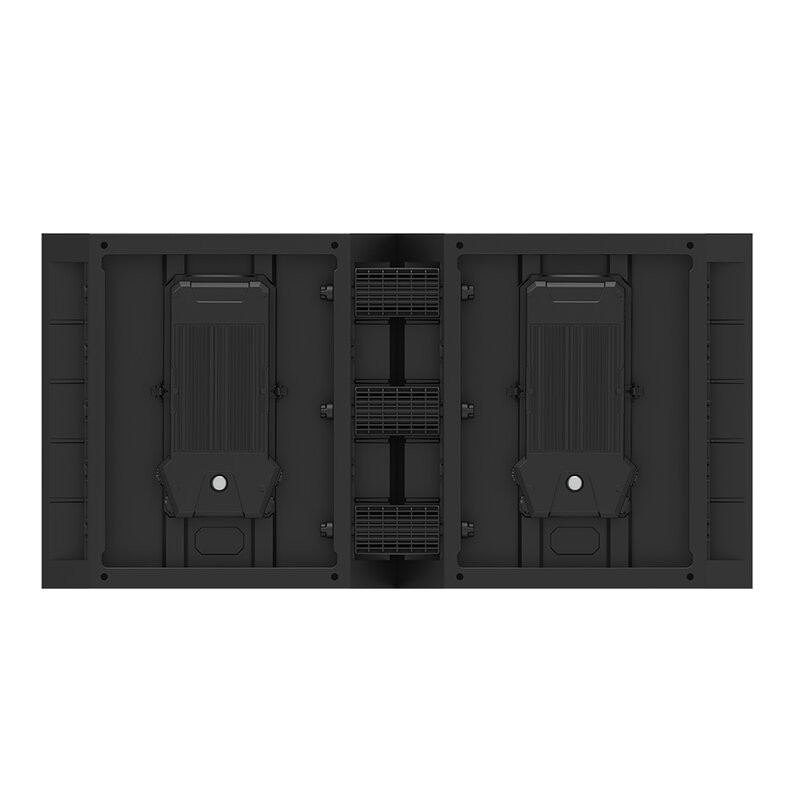

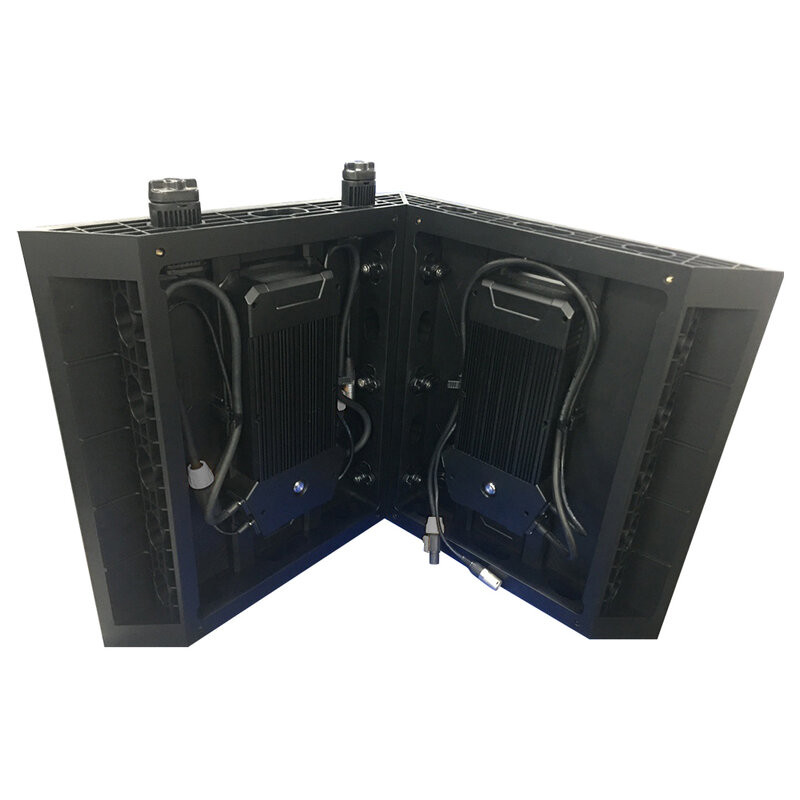

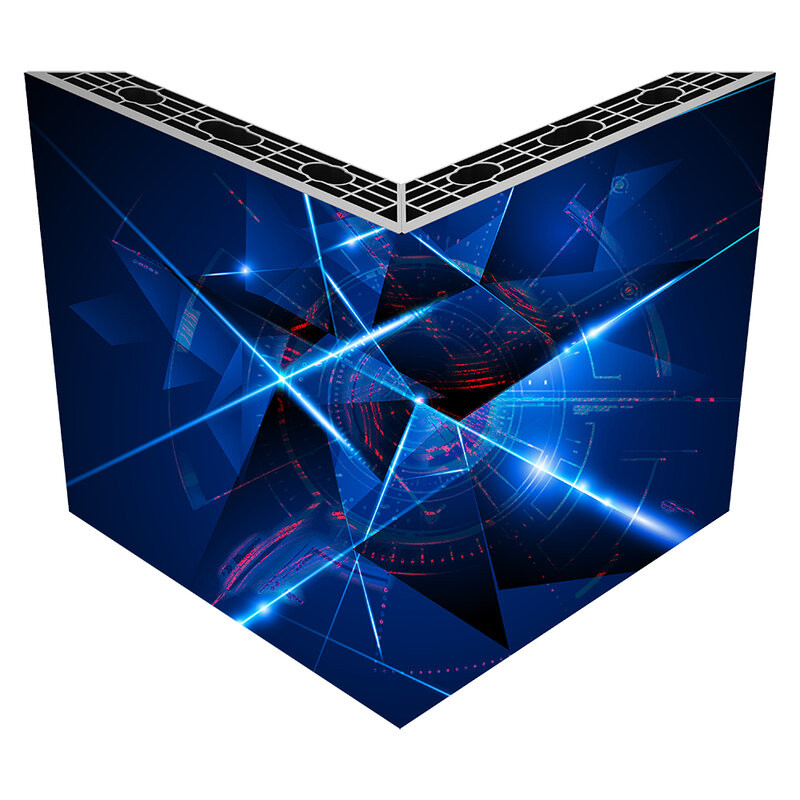

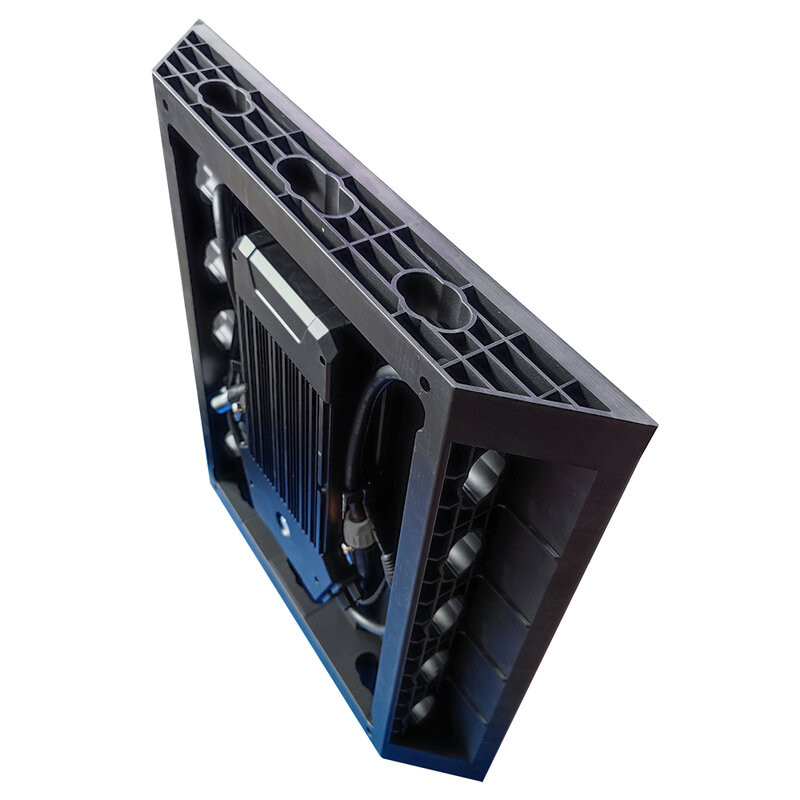

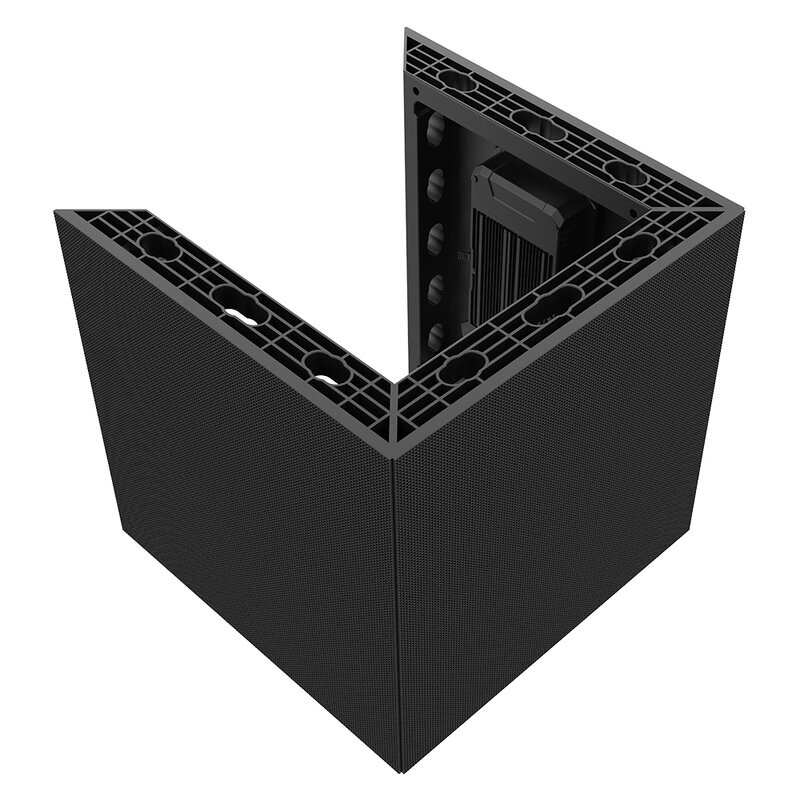

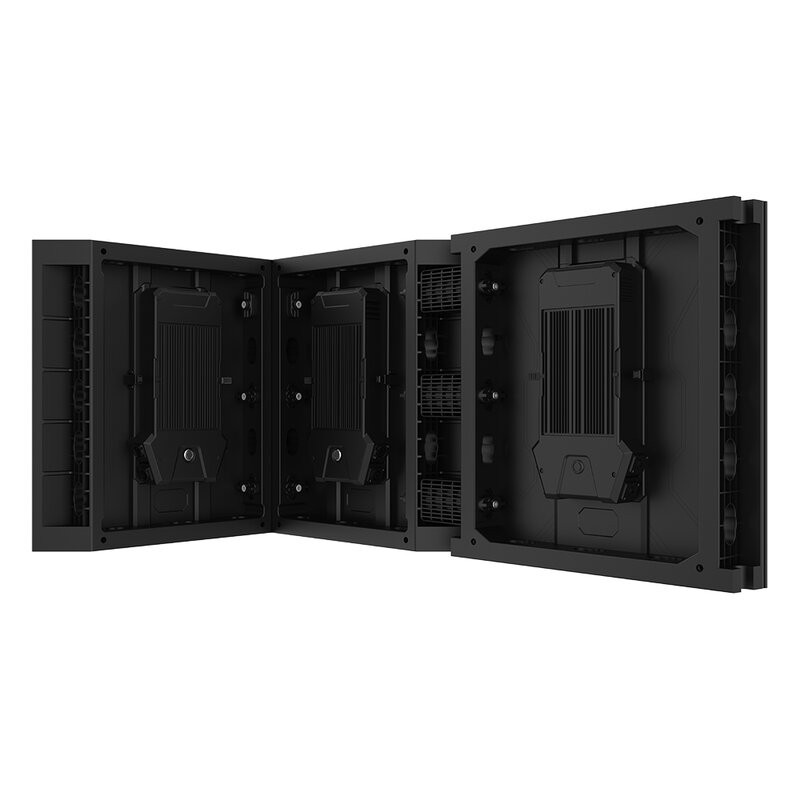

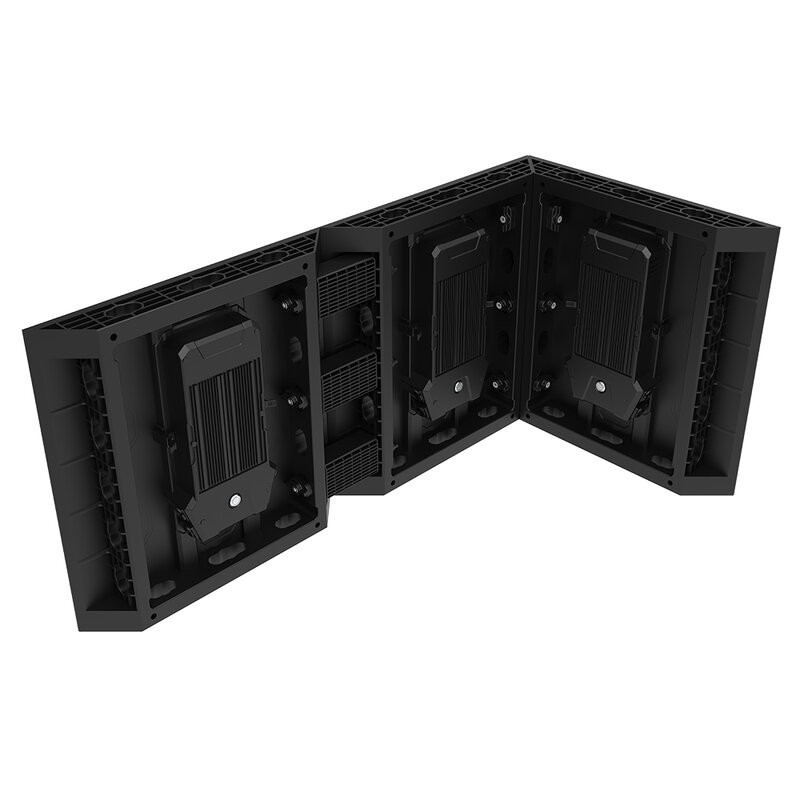

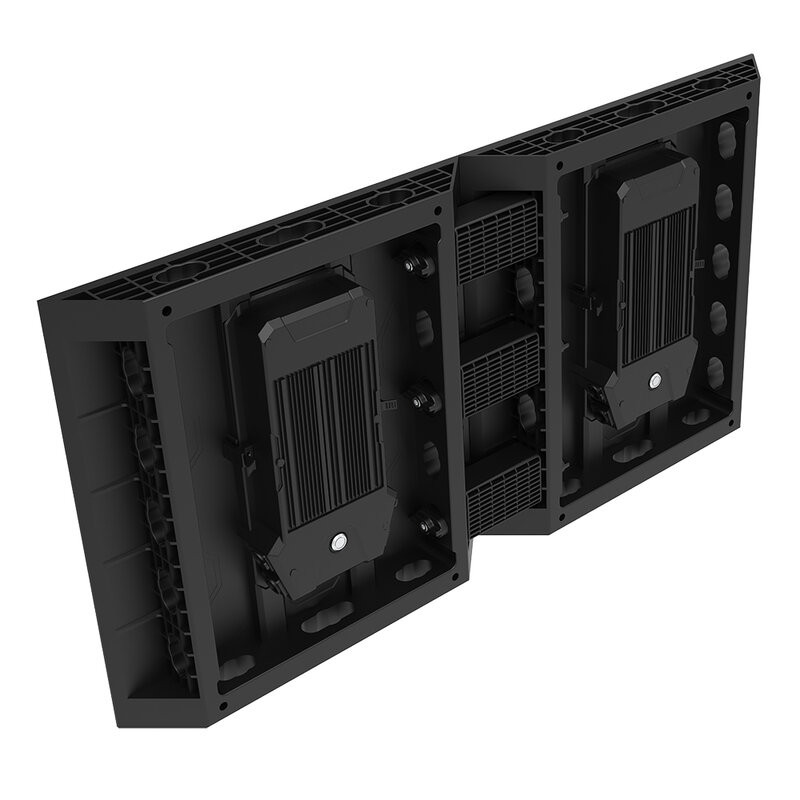

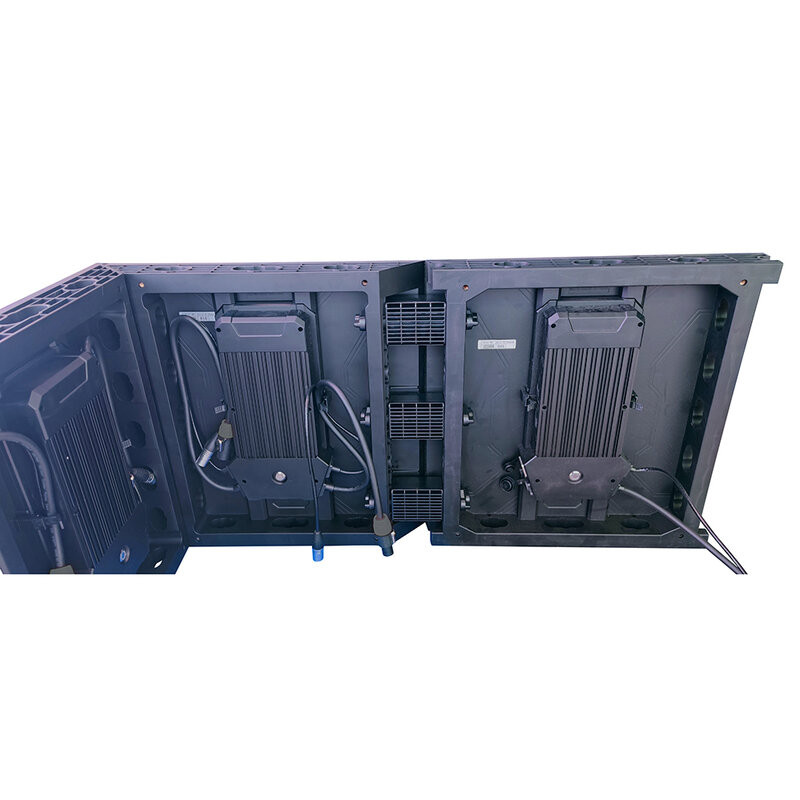

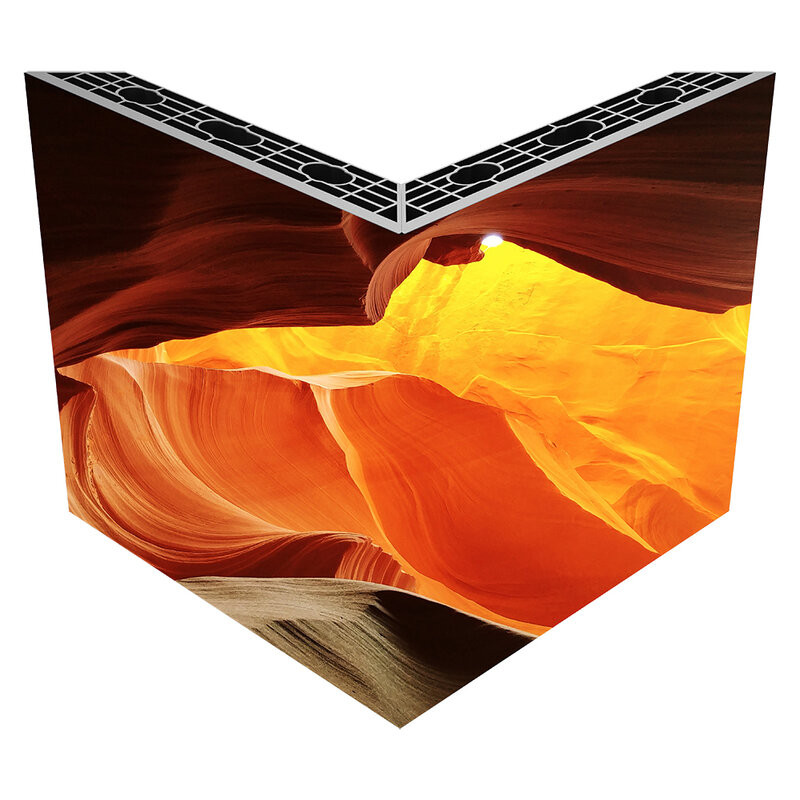

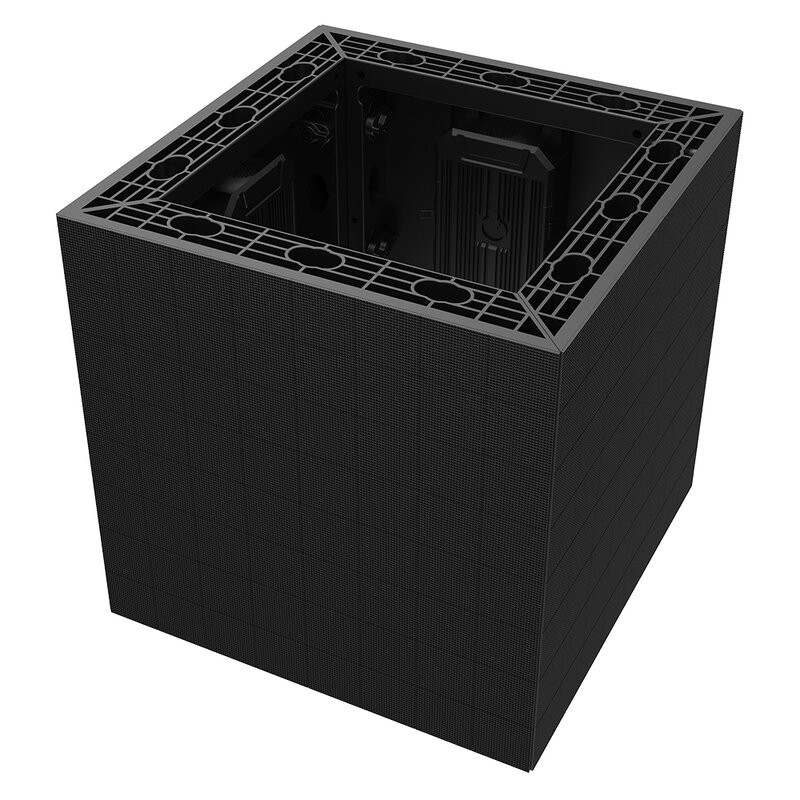

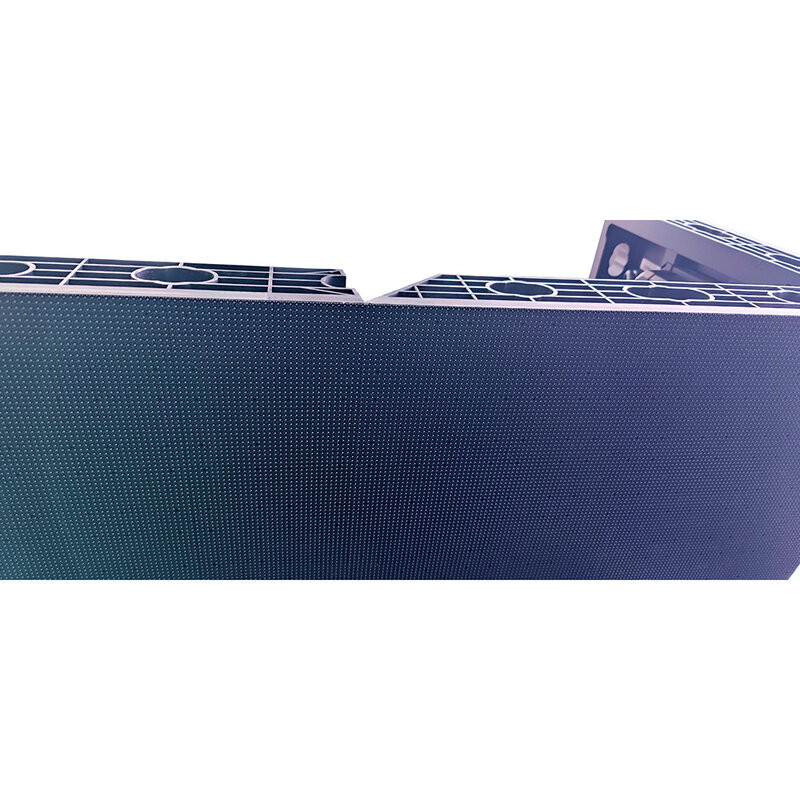

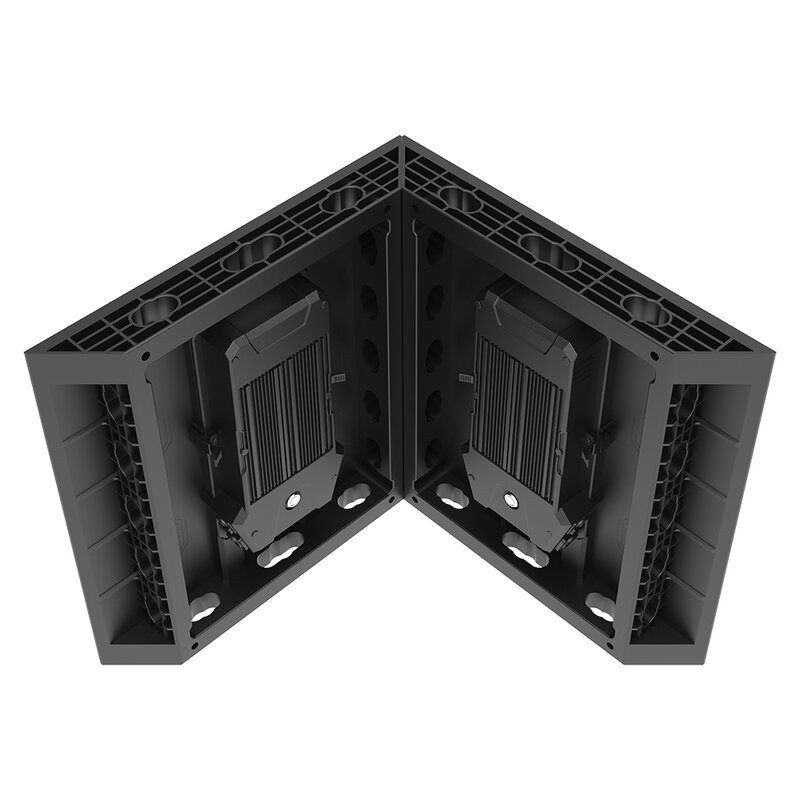

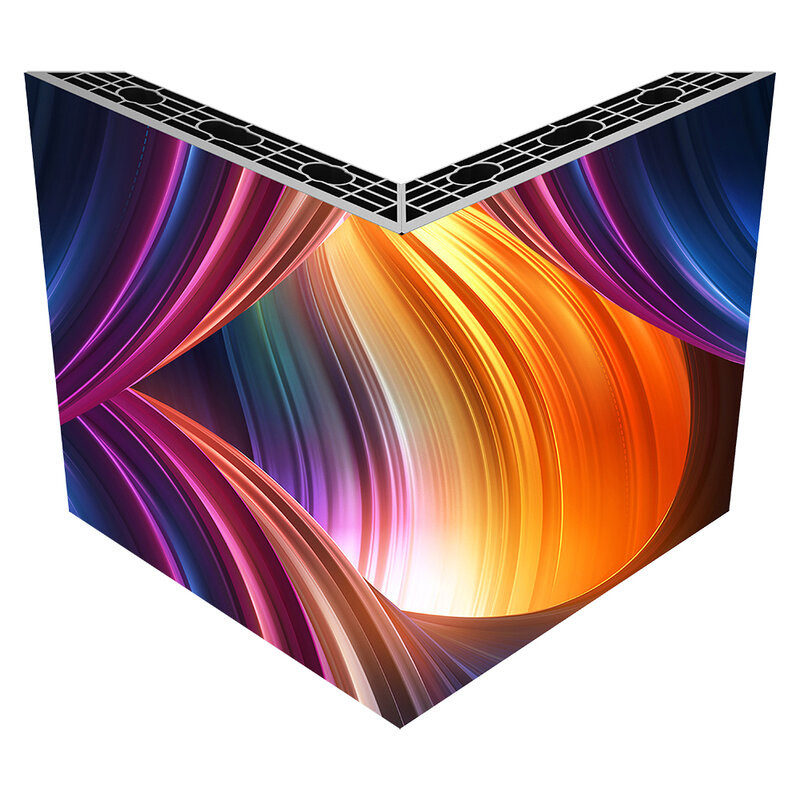

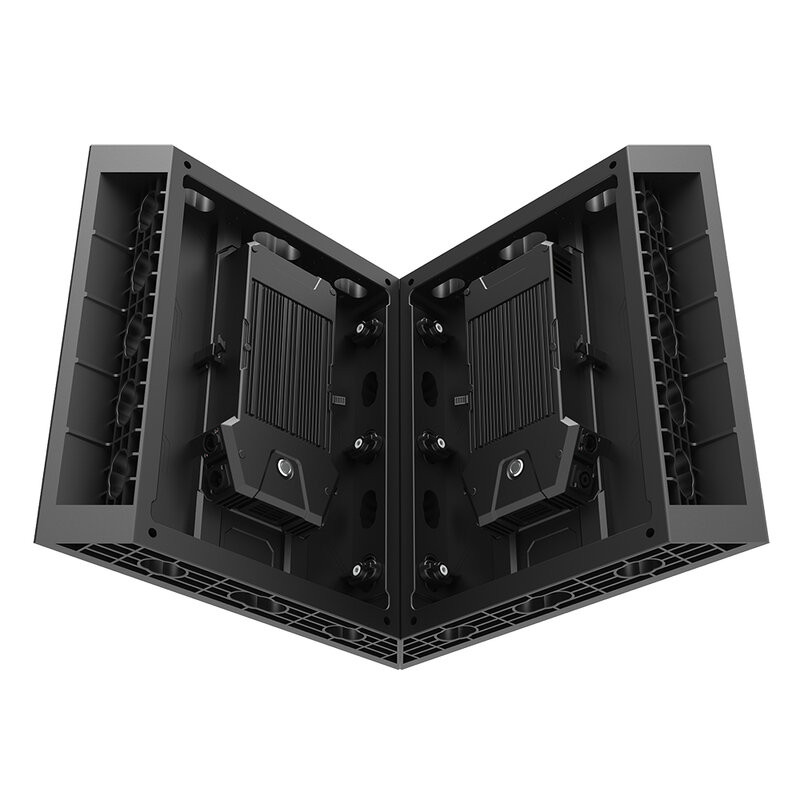

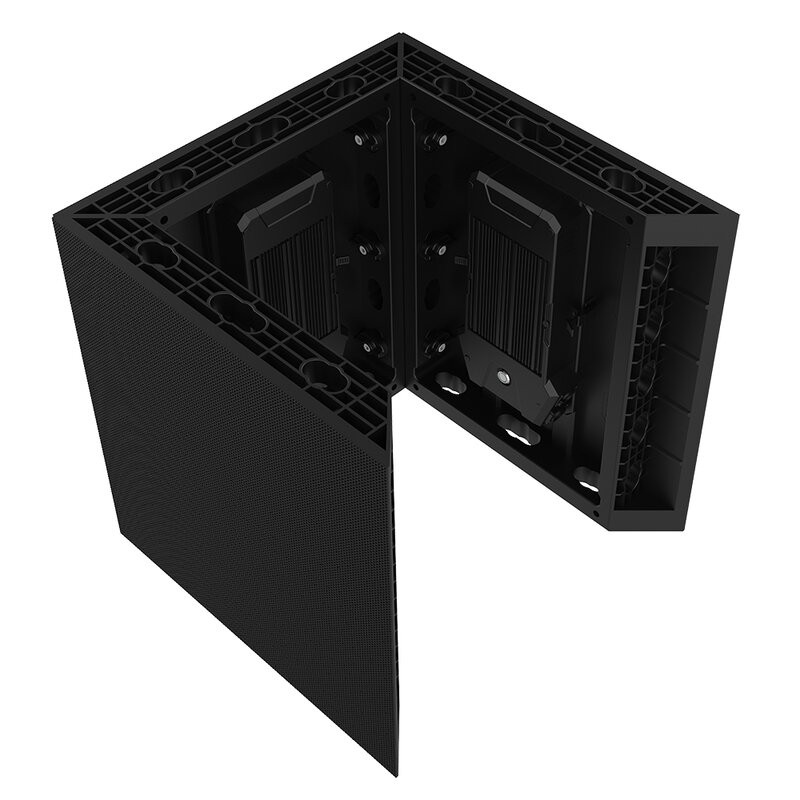

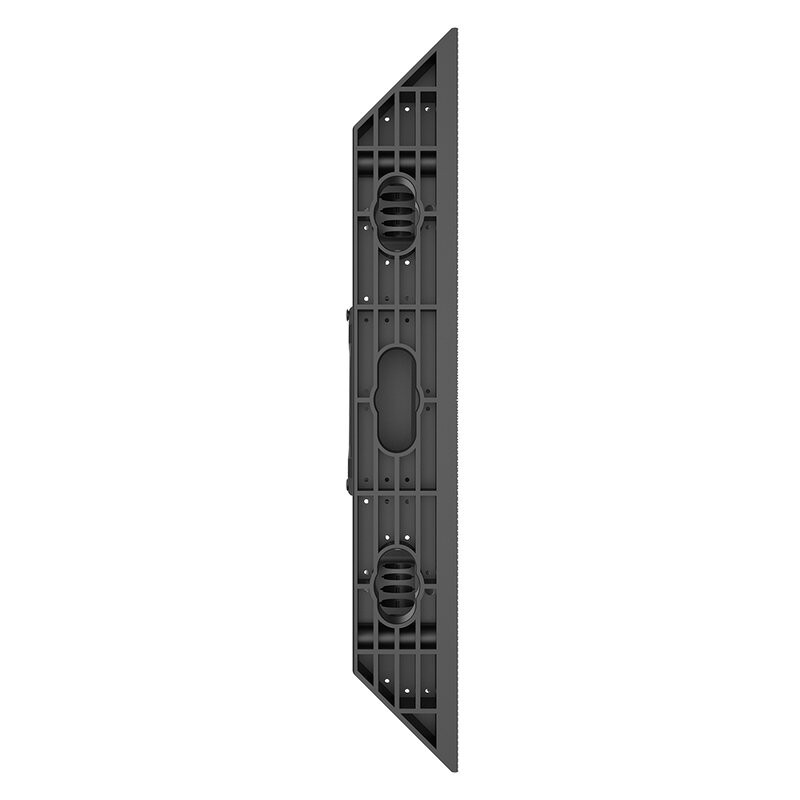

Yes Tech - MG6S cube p1.9 indoor color led

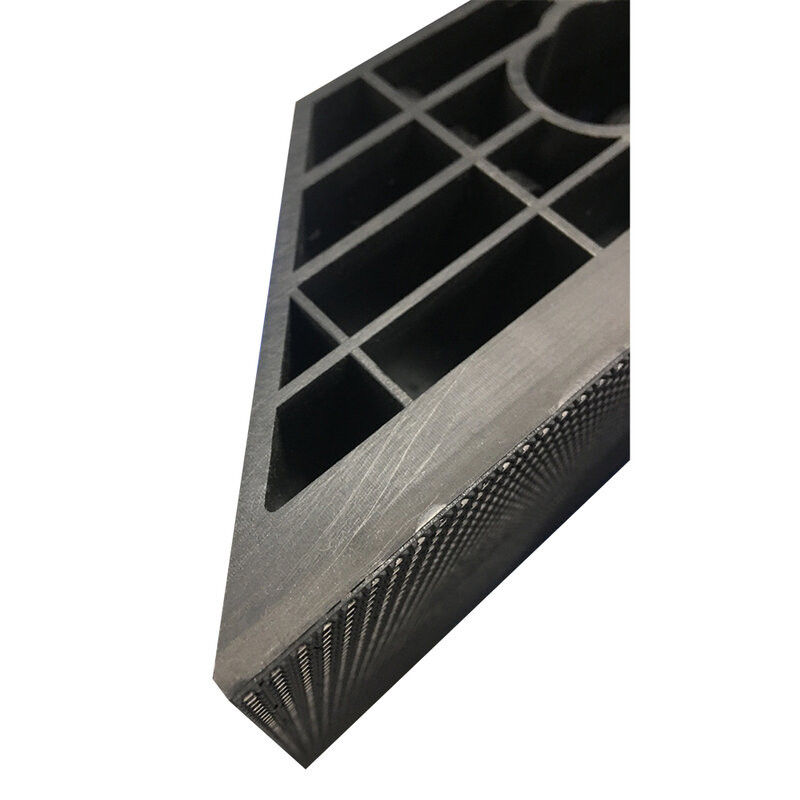

Indoor, IC DP3254, SMD 4-in-1 common anode black LED lamps, 800 - 1500 nit, 3840 - 7680 Hz, 500 x 500 mm, 45° angle chassis, 6.7 kg
1 406,00 €
- 41%

833,00 €

Pay in 4 interest-free payments of 208,25 € with Discover More

La quantité sélectionnée est supérieure à celle disponible en stock. Pas de problème ! Nous procéderons en vous envoyant immédiatement la quantité disponible. Nous vous enverrons ensuite le solde, sous 10 jours environ.
Unfortunately, the quantity you have selected exceeds the amount available in stock.
Condition : Neuf

Not available.

delivery is not available for this product.

Livraison gratuite pour toute commande égale ou supérieure à 199 € sont limités à la livraison au sein de l'Europe



EN Instruction Manual (4.85MB)

NO DESC

Documentation

Détails du produit

Technical characteristics

Module
LED encapsulation 4-in-1 common anode
Pixel pitch 1.9 mm
Module resolution 128 x 128(W×H)
Module size 250 x 250(mm)
Cabinet
Module quantity per cabinet 2 x 2 (W x H)
Cabinet resolution 256 x 256 (W x H)
Cabinet size(mm) 500 x 500 x 73
Cabinet area 0.25 m2
Weight 6.7 kg/cabinet
Pixel density 262144 dot/m2
IP grade IP50
White balance brightness 800 - 1500 nit
Color temperature 6500 - 10000 K adjustable
Horizontal viewing angle 160°
Vertical viewing angle 140°
Electrical parameters
Power consumption (W/m2) 600 ±15% / 200 ±15%
Connectors Seetronic
Power supply Megmeet
Working voltage 100 - 264 VAC 50/60 Hz
Processing performance
Driving method constant drive
Scanning method 1/16 s
Drive IC DP3265
Receiving card Nova A8S-N
Refresh frequency  7840 Hz
Control system Nova Star
Usage parameter
Life span 80,000 h
Working / storage temperature -20 to +45 / -30 to +60 ℃
Working / storage humidity 10 to 90% / 10 to 90% RH (no condensation)
Communication mode CAT5
Certification CE FCC ETL
