SKU: P1.9MG6SI21

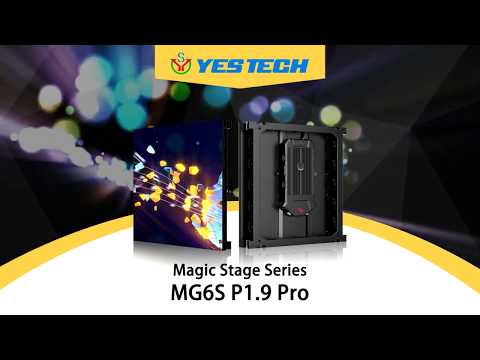

Yes Tech - P1.9 MG6S

Name: P1.9 MG6S
Brand: Yes Tech
SKU: P1.9MG6SI21
Price: 809.5 EUR
Availability: OutOfStock

Indoor, IC DP3254, SMD 4-in-1 common anode, 1000 nit, ≤ 7840 Hz, 500 x 500 mm, 6.7 kg

(0)

1 400,00 €

- 42%

809,50 €

Pay in 4 interest-free payments of 202,38 € with Discover More

La quantité sélectionnée est supérieure à celle disponible en stock. Pas de problème ! Nous procéderons en vous envoyant immédiatement la quantité disponible. Nous vous enverrons ensuite le solde, sous 10 jours environ.

Unfortunately, the quantity you have selected exceeds the amount available in stock.

Condition : Neuf

J'accepte les conditions générales et la politique de confidentialité

Not available.

delivery is not available for this product.

Livraison gratuite pour toute commande égale ou supérieure à 199 € sont limités à la livraison au sein de l'Europe

Variants of this product

Yes Tech - P0.93 Mnano

1 129,50 €

(0)

P0.93 Indoor, IC ICN2069, flip chip COB, 600 nit, ≤3840 Hz, IP65 (for front), 600 x 337.5 mm, 4 kg

EGO Display - EasyCOB G2-P1.2

456,50 €

(0)

Indoor, 600 nit, 15,000:1, 600 x 337.5 mm, 4 kg, high-performance LED panel, high stability, energy-efficient design, accurate flatness adjustment, full front maintenance

Yes Tech - MG6S cube p1.9 indoor color led

833,00 €

(0)

Indoor, IC DP3254, SMD 4-in-1 common anode black LED lamps, 800 - 1500 nit, 3840 - 7680 Hz, 500 x 500 mm, 45° angle chassis, 6.7 kg

Yes Tech - P1.25 Mnano

614,00 €

(0)

P1.25 Indoor, IC ICN2069, flip chip COB, 600 nit, ≤3840 Hz, IP65 (for front), 600 x 337.5 mm, 4 kg

Yes Tech - P1.9 Mwall

531,00 €

(0)

Indoor, fixed installation only, IC DP3265, SMD1515, full black LED, copper wire, Nova A5S Plus, module flash function, 800 - 1000 nit, ≤3840 Hz, 500 x 500 mm, 5.6 kg

EN Instruction Manual (1.2MB)

NO DESC

Documentation

Watch it in action

Close the video

Détails du produit

Technical characteristics

Module
LED encapsulation	4-in-1 common anode
Pixel pitch	1.9 mm
Module resolution（W x H)	128 x 128
Module size	250 x 250 mm
Cabinet
Module quantity per cabinet（W×H）	2 x 2
Cabinet resolution（W×H）	256 x 256
Cabinet size	500 x 500 x 73 mm
Cabinet area	0.25 m²
Weight	6.7 kg/cabinet
Pixel density	262144 dot/m²
IP grade	IP50
White balance brightness	1000 nit
Color temperature	6500 - 10000 K adjustable
Horizontal viewing angle	160°
Vertical viewing angle	160°
Electrical parameters
Power consumption	400 / 105 W/m²
Connectors	Seetronic
Power supply	Megmeet
Working voltage	100 - 264 V_AC50/60 Hz
Processing performance
Driving method	constant drive
Scanning method	1/32 s
Drive IC	DP3265
Receiving card	Nova A8S-N
Refresh frequency	7840 Hz
Control system	Nova Star
Usage parameter
Life span	80,000 h
Working / storage temperature	-20 to +45 / -30 to +60 ℃
Working / storage humidity	10 to 90% / 10 to 90% RH (no condensation)
Communication mode	CAT5
Certification	CE FCC ETL
