SKU: P2.6MG14I20

Yes Tech - P2.6 MG14 Indoor

Name: P2.6 MG14 Indoor
Brand: Yes Tech
SKU: P2.6MG14I20
Price: 518.5 EUR
Availability: OutOfStock

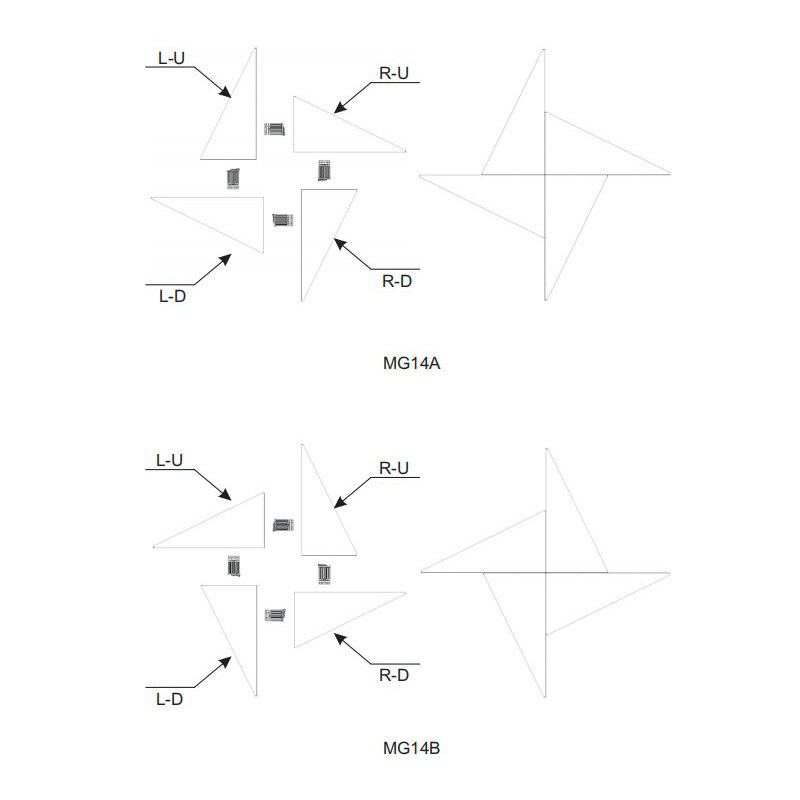

Small triangle display indoor, IC ICN2153, SMD1515, full black LEDs, copper wire, 800 - 1000nit, ≤3840 Hz, 250 x 500 mm, 2.5 kg

(0)

864,00 €

- 40%

518,50 €

Pay in 4 interest-free payments of 129,63 € with Discover More

La quantité sélectionnée est supérieure à celle disponible en stock. Pas de problème ! Nous procéderons en vous envoyant immédiatement la quantité disponible. Nous vous enverrons ensuite le solde, sous 10 jours environ.

Unfortunately, the quantity you have selected exceeds the amount available in stock.

Condition : Neuf

J'accepte les conditions générales et la politique de confidentialité

Not available.

delivery is not available for this product.

Livraison gratuite pour toute commande égale ou supérieure à 199 € sont limités à la livraison au sein de l'Europe

Variants of this product

EGO Display - P2.84SMD-U

277,50 €

(0)

Indoor, IC MB15153, SMD2020, ≥1200 nit, ≥2700 Hz, 500 x 500 mm, 8.8 kg

EGO Display - EasyFLEX-P2.5-25x50

186,50 €

(0)

Indoor, 3-in-1 SMD, 800 nit, 5000:1, ≥ 3840 Hz, 250 x 500 mm, 3.5 kg high-performance LED panel, flexible design, concave, convex, right angle splicing for option

EGO Display - EasyPRO-P2.5

120,50 €

(0)

Indoor, front service, SMD1515, 800 nit, 3840 Hz, 320 × 480 mm, 2.1 kg

Yes Tech - P2.6 XTRA Indoor

707,50 €

(0)

Indoor, IC DP3365, SMD1515 black LEDs, 800 - 1000 nit, > 1920Hz, 500 x 500 mm, 7.5 kg

Yes Tech - P2.6 MU Indoor

415,50 €

(0)

Indoor, IC DP3265, SMD1515, black LEDs, 800 - 1000 nit, 3840 Hz, IP 50, 500 x 500 mm, 7 kg

EN Instruction Manual (5.89MB)

Documentation

NO NAME (1.06MB)

NO DESC

Documentation

Détails du produit

Technical characteristics

Module
LED encapsulation	1515
Pixel pitch	2.6 mm
Cabinet size	250 x 500 x 73 mm
Cabinet area	0.0625 m²
Weight	2.5 kg/cabinet
Pixel density	147,456 dot/m²
IP grade	IP50
White balance brightness	800 - 1200 nit
Color temperature	6500 - 10,000 K adjustable
Horizontal viewing angle	160°
Vertical viewing angle	120°
Electrical parameters
Power consumption	420 / 140 W/m²
Working voltage	100 - 264 V_AC 50/60 Hz
Processing performance
Driving method	Constant drive
Scanning method	1/24 s
Frame frequency	50 & 60 Hz
Refresh frequency	1920 - 3840 Hz
Control system	Nova Star
Usage parameters
Life span	80,000 h
Working / storage temperature	-20 to 45 °C / -30 to 60 °C
Working / storage humidity	10 - 90% / 10 - 90% RH (no condensation)
Communication mode	CAT5
Certification	CE FCC ETL
