SKU: P3.9MG11I52

Yes Tech - P3.9 MG11

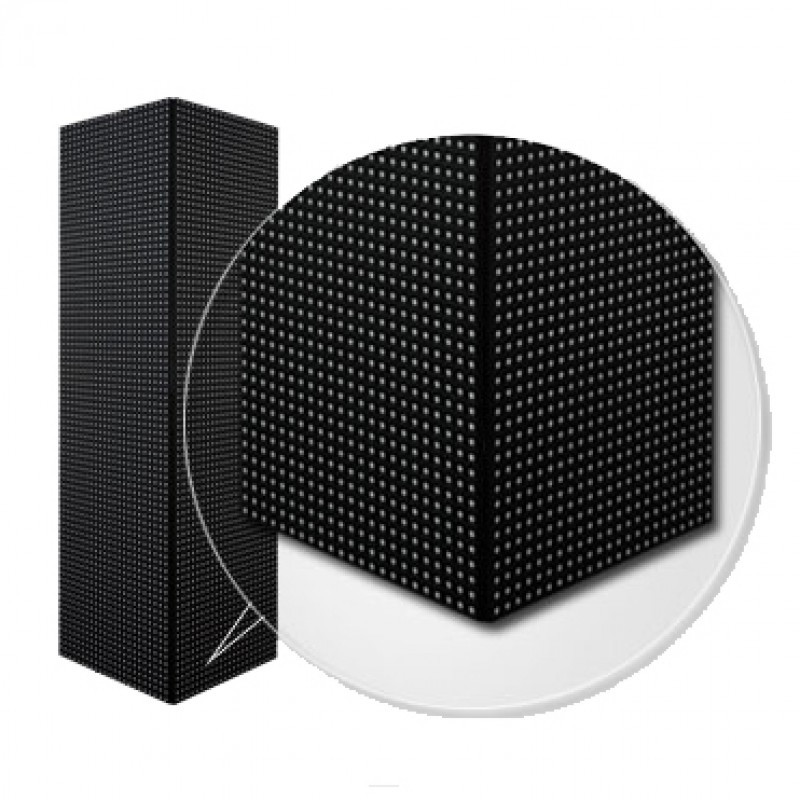

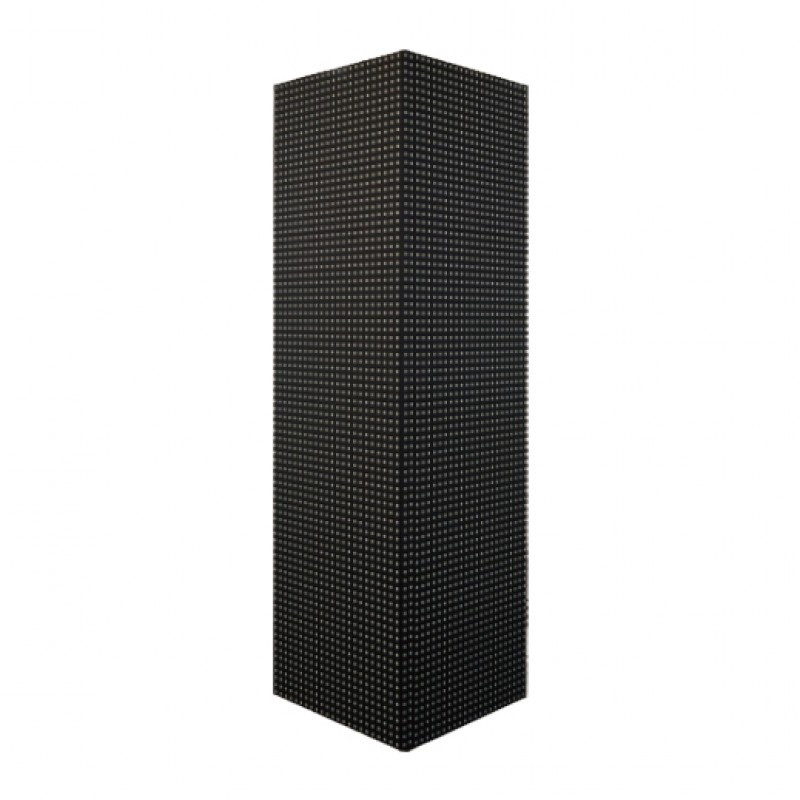

Right-angle display indoor, IC MBI5253, SMD2020, 800-1200 nit, ≤3840 Hz, 125x500 mm, 1.7 kg
2 223,00 €
- 40%

1 334,00 €

La quantité sélectionnée est supérieure à celle disponible en stock. Pas de problème ! Nous procéderons en vous envoyant immédiatement la quantité disponible. Nous vous enverrons ensuite le solde, sous 10 jours environ.
Unfortunately, the quantity you have selected exceeds the amount available in stock.
B-STOCK starting from 1200.5€
Condition : Neuf

Not available.

delivery is not available for this product.

Livraison gratuite pour toute commande égale ou supérieure à 199 € sont limités à la livraison au sein de l'Europe



Watch it in action

Video Youtube
Close the video

Détails du produit

  • Price with IC MBI5253

  • Pixel configuration: SMD 3 in 1

  • Supply voltage: AC100~240V / 50Hz-60Hz
  • Brightness adjustment: Brightness of R,G,B 256 colours  adjustable by software
  • Gray scale: 64G (under 4096 grade scale)
  • Refresh frequency (HZ): ≤3840Hz
  • Operating environmental temperature (C°): -20C°+50C°
  • Operating environmental humidity (HR): 10% -90%
  • Average no failure time (hours): >10,000
  • Life-span (hours): >100,000
  • Malfunction dot rate: <0.00003
  • Ingress Protection for front/back: IP50 (P2.84+P3.9 indoor), IP65 (P4.8+P5.9outdoor)
  • Integrated circuits (IC): MBI5253
  • Encapsulation: Nationstar (P2.84+P3.9 indoor),Inteled (P4.8+P5.9outdoor)

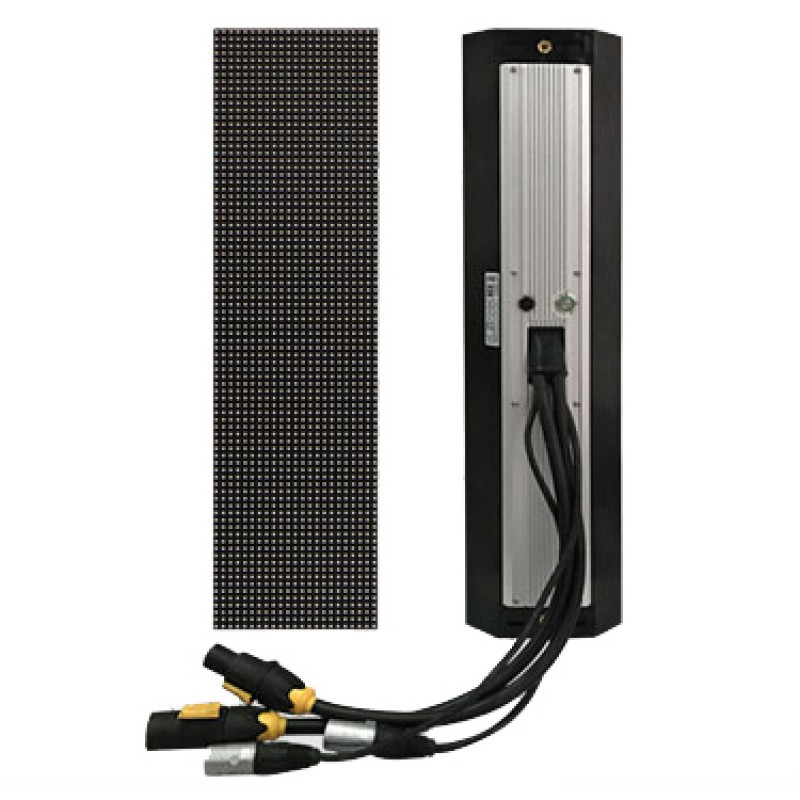

  • Connector: Neutrik
  • Display content: Text, graphics, logo, animation, live video, movie, etc.
  • Communication distance: UTP transmission distance 100m, maximum 130m, (multimode fiber 500m, single mode fiber 150km optional)
  • Connection method: Synchronized with computer; If TV, DVD/VCD player, VCR, etc, a video processor is needed.
  • Certifications: CE, CCC, ISO, TUV, ETL

Cabinet

Size 2x 125x500mm/cabinet
Weight 1.7 kg

Screen

Pixel pitch 3.9mm
Maximum power consumption 480 W/m2
Average power consumption 160 W/m2
Brightness 800-1200 cd/m2
Driving method 1/16 scan
Viewing angle 160°/120°
Cabinet resolution 32x128 dot
LED SMD2020 full black LEDs
More.. Show less
