SKU: P3.9MG7SO21-U

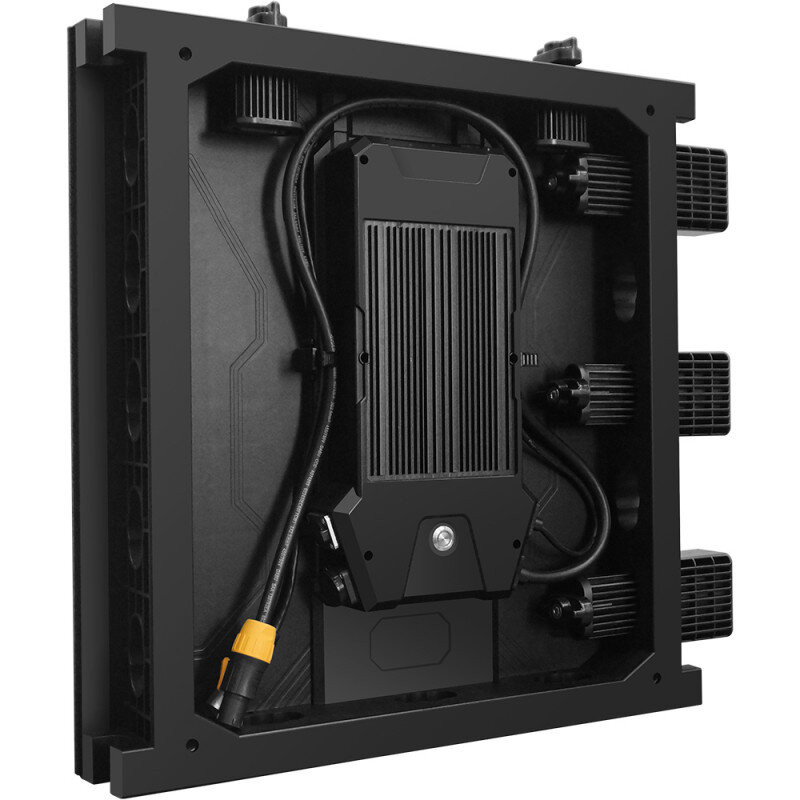

Yes Tech - P3.9 MG7S

Outdoor, IC ICN2065, SMD1516, full black LED, copper wire, 4500 nit, ≤7680 Hz, 500 x 500 mm, 6.5 kg

978,50 €

Pay in 4 interest-free payments of 244,63 € with Discover More

368 articles disponibles dans notre entrepôt italien

La quantité sélectionnée est supérieure à celle disponible en stock. Pas de problème ! Nous procéderons en vous envoyant immédiatement la quantité disponible. Nous vous enverrons ensuite le solde, sous 10 jours environ.
Unfortunately, the quantity you have selected exceeds the amount available in stock.
978,50 €
Condition : Usagé

Prime

livraison rapide est disponible pour ce produit.

Ce produit est disponible dans nos entrepôts en Italie, il sera donc livré dans un délai de 2 à 5 jours ouvrables.

Livraison gratuite pour toute commande égale ou supérieure à 199 € sont limités à la livraison au sein de l'Europe



LED Screen Maintenance (42.64KB)

NO DESC

Documentation

EN Instruction Manual (11.32MB)

NO DESC

Documentation

Watch it in action

Video Youtube
Close the video

Détails du produit

Technical characteristics

Module
LED encapsulation  1516 full black LED
Pixel pitch  3.9 mm
Module resolution (W x H)  64 x 64
Module size  250 x 250 mm
Cabinet
Module quantity per cabinet (W×H)  2 x 2
Cabinet resolution (W x H)  128 x 128
Cabinet size   500 x 500 x 73 mm
Cabinet area  0.25 m2
Weight   7.4 kg/cabinet
Pixel density  65,536 dot/m2
IP grade  IP65
White balance brightness  4500 nit
Color temperature  6500 - 10,000 K adjustable
Horizontal viewing angle  160°
Vertical viewing angle  160°
Contrast ratio  8000:1
Electrical parameters
Power consumption  840 / 280 W/m2
Power supply  Megmeet
Working voltage  100 - 264 VAC 50/60 Hz
Processing performance
Driving method  constant drive
Scanning method  1/11
Driving IC  ICN2065
Receiving card  Nova A5S+
Refresh frequency  ≤ 7680 Hz
Control system  Nova Star
Usage parameter
Life span  80,000 h
Working / storage temperature    -20 to 45 °C / -30 to 60 °C
Working / storage humidity  10 - 90% / 10 - 90% RH (no condensation)
Communication mode  CAT5
Certification  CE FCC ETL
