Blackmagic Design - Blackmagic Studio Camera 4K Pro G2

Conçue pour les puissants mélangeurs SDI, la Blackmagic Studio Camera 4K Pro G2 comprend des connexions professionnelles 12G-SDI et Ethernet 10G. C’est idéal lorsque la caméra est positionnée loin du mélangeur. Elle intègre une sortie 12G-SDI et une entrée retour programme 12G-SDI qui inclut le contrôle caméra, le réseau d’ordres et le tally. Vous disposez également d’une puissante sortie HDMI avec des fonctions de contrôle. De plus, grâce à Ethernet 10G, toutes les connexions sont rassemblées sur un seul câble pour un workflow de type SMPTE beaucoup moins onéreux.

Camera Features

• Effective Sensor Size: 17.78mm x 10 mm (Four Thirds)

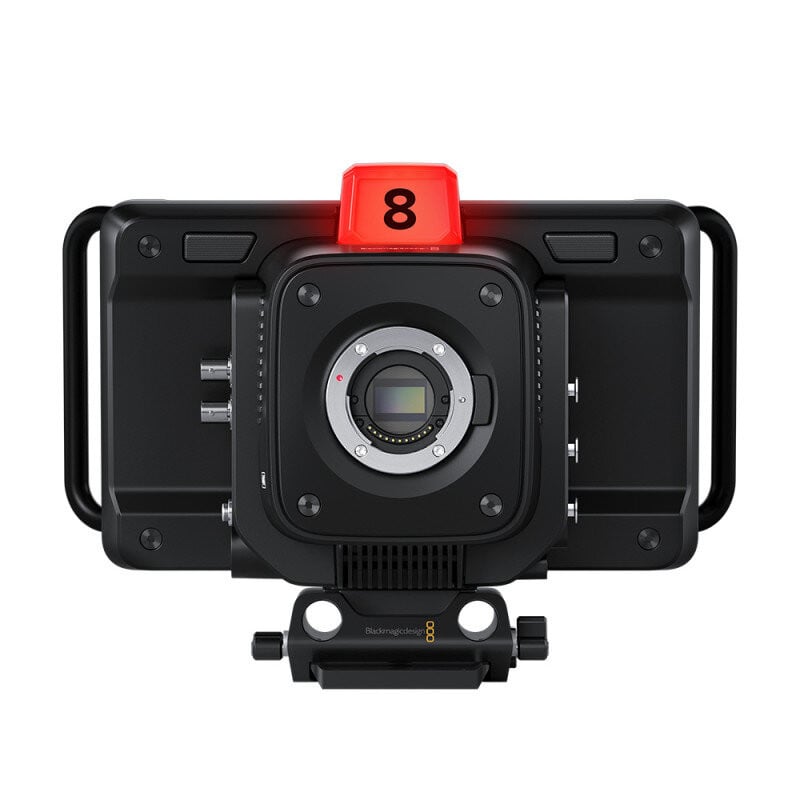

• Lens Mount: Active MFT Mount.
• Lens Control: Iris, focus, zoom on supported lenses.
• Dynamic Range: 13 Stops.
• Dual Native ISO: 0 dB and 18dB gain.
• Sensitivity at 0 dB Gain: f11 with 2160p59.94. f12 with 2160p50. at 2,000 lux with 89.9% reflectance.
• Signal to Noise Ratio: 63 dB for 2160p.
• Shooting Resolutions: 3840 x 2160 (Ultra HD) up to 60 fps.
• Frame Rates: 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 frames per second.
• Off-speed frame rates up to 60 fps in Ultra HD.: Focus
• Auto focus available using compatible lenses.

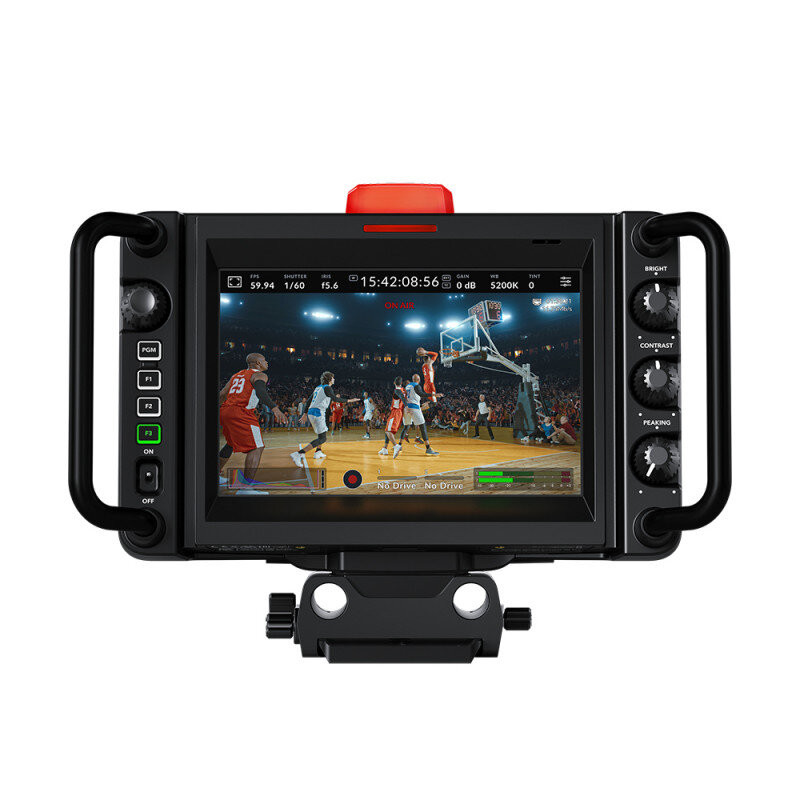

• Screen Dimensions: 7 inch 1920 x 1200
• Screen Type: LCD capacitive touchscreen.
• Screen Brightness: 2000 nits
• Controls: Touchscreen camera settings and menus with rotary settings dial, program button, F1, F2 and F3 assignable function buttons, brightness contrast and peaking dials.
• Mounting Options: 2 x 1/4 inch tripod mount. 1 x 3/8 inch tripod mount.

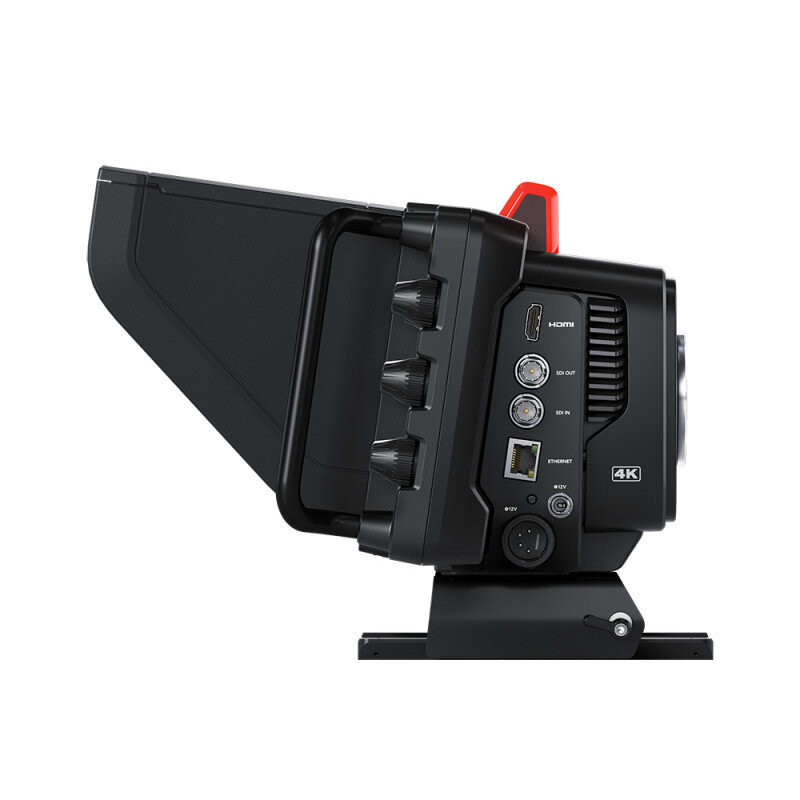

Connections

• SDI Video Inputs: 1
• SDI Video Outputs: 1
• SDI Rates: 1.5G, 3G, 6G, 12G.
• HDMI 2.0 Video Outputs: 1

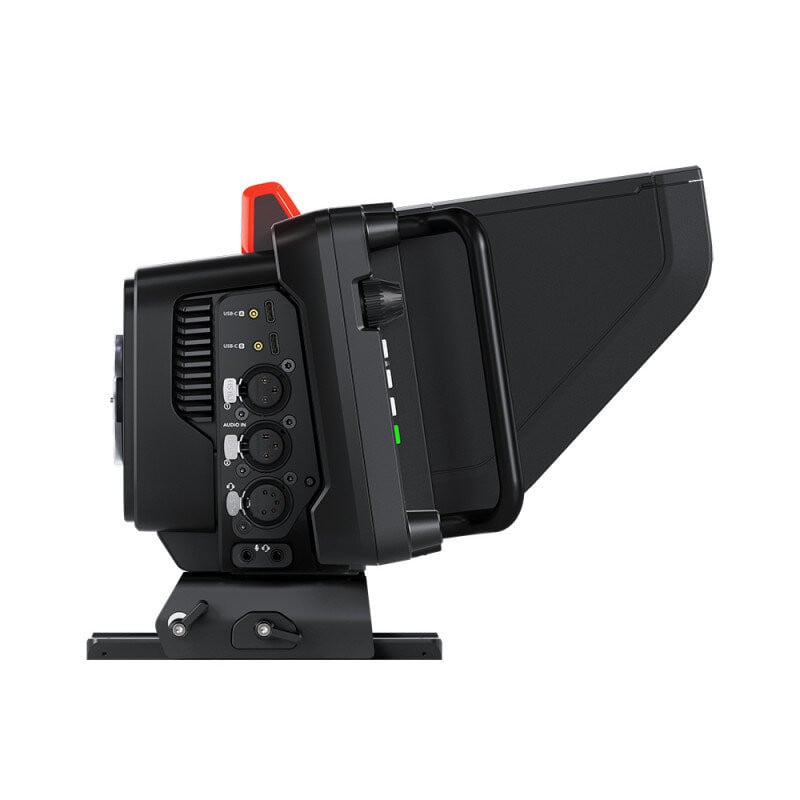

• Analog Audio Input: 2 x XLR analog switchable between mic and line levels. Phantom power support. - 1 x 3.5 mm Stereo Input. Can also be used for Time Code input.
• Analog Audio Output: 1 x 5-pin XLR for talkback headset. - 1 x 3.5 mm TRRS mini-jack for headphones with mic.
• Reference Inputs: Tri-Sync or Black Burst when used with optional Blackmagic Studio Converter.
• SDI Audio Output: 2 channels of program audio embedded in 1.5G/3G/6G/12G-SDI. 2 talkback channels on 15 and 16
• Remote Control: Remote camera control over SDI, HDMI or Ethernet.
• Ethernet: 10Gb/s
• Computer Interface: 2 x USB Type‑C 3.1 Gen 1 (up to 5Gb/s) expansion ports for external recording and focus / zoom demand connection. Software updates using USB‑C Port A.

Audio

• Microphone: Integrated stereo microphone.
• Built in Speaker: 1 x mono speaker.

Standards

• SD Video Standards: None
• HD Video Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
• SDI Compliance: SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10
• SDI Audio Sampling: Television standard sample rate of 48 kHz and 24‑bit.

Media

• Media: 2 x USB-C 3.1 Gen 1 expansion ports for externalmedia for recording Blackmagic RAW.
• Media Format: Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.

Supported Codecs

• Blackmagic RA W Constant Bitrate 3:1,
• Blackmagic RA W Constant Bitrate 5:1,
• Blackmagic RA W Constant Bitrate 8:1,
• Blackmagic RA W Constant Bitrate 12:1,
• Blackmagic RA W Constant Quality Q0,
• Blackmagic RA W Constant Quality Q1,
• Blackmagic RA W Constant Quality Q3,
• Blackmagic RA W Constant Quality Q5

Storage Features

• Storage Type: 2 x USB‑C 3.1 Gen 1 expansion ports for external media.
• Recording Formats: Blackmagic RA W 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 in Ultra HD 3840 x 2160 at the selected frame rate.
• Storage Rates: Storage rates based on 30 frames per second.
  • 3840 x 2160 (Ultra HD)
  • Blackmagic RA W 3:1 - 127 MB/s
  • Blackmagic RA W 5:1 - 77 MB/s
  • Blackmagic RA W 8:1 - 48 MB/s
  • Blackmagic RA W 12:1 - 32 MB/s
  • Blackmagic RA W Q0 - 96 to 190 MB/s
  • Blackmagic RA W Q1 - 64 to 153 MB/s
  • Blackmagic RA W Q3 - 43 to 109 MB/s
  • Blackmagic RA W Q5 - 26 to 64 MB/s

Constant Quality storage rates quoted are indicative only. Actual storage rates are entirely dependent on image subject matter.

Control

• External Control: Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling your camera and lens from tripod handles. Blackmagic Control Protocol over SDI and HDMI for external control when used with a compatible ATEM switcher with ATEM Software Control or ATEM Camera Control Panel. Includes control of some camera settings, focus, iris and zoom with compatible lenses, color corrector, tally and record start and stop to external media via USB expansion port.

Talkback and Tally

• Live Tally Indicator: 1 x front facing for talent, 1 x rear facing for operator.
• Talkback: SDI Channels 15 and 16.

Power Requirements

• Power supply: 1 x External 12 V_DC 60 W power supply.
• Power Inputs: 1 x 12 V_DC locking 5.5 mm barrel connector. 1 x 12 V_DC 4 pin XLR input for external power supply or battery use. 1 x RJ45 Ethernet connector for power from Type 4 PoE power supplies.
• Power Usage: 26 ‑ 40  W using DC input. 30 ‑ 46  W using PoE input.
