NovaStar - NovaPro UHD JR

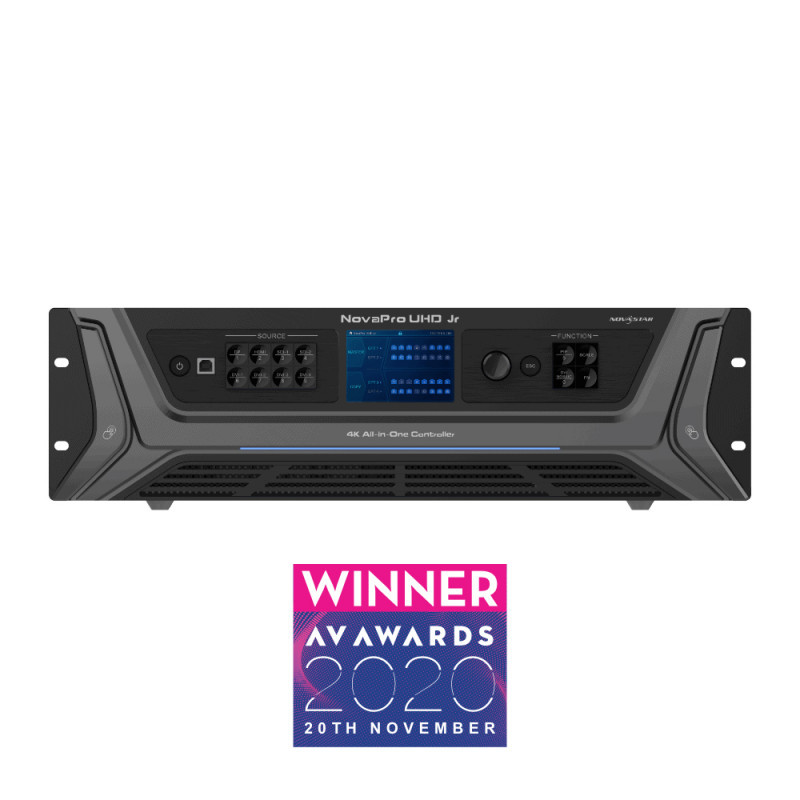

NovaPro UHD Jr est un nouveau contrôleur tout-en-un de NovaStar qui offre d’excellentes capacités de traitement vidéo, des fonctions de carte d’envoi et des configurations d’écran LED. Il propose une variété de connecteurs d’entrée vidéo et prend en charge une sortie d’image et un traitement en 4K × 2K @ 60 Hz.

Entrées :

• 4 x DVI
• 2 x 12G-SDI
• 1 x DP 1.2
• 1 x HDMI 2.0

Sorties :

• 16 x port Ethernet (jusqu’à 10,4 Mpixels de capacité de chargement)
• 4 x OPT (connecteurs optiques 10 G)
• 1 x HDMI 2.0 LOOP
• 2 x 12G-SDI LOOP
• 1 x Moniteur

Contrôle :

• 1 x Ethernet
• 1 x USB Type B
• 1 x USB Type A
• 1 x Genlock IN-LOOP
• 1 x RS232

Avec le logiciel de contrôle intelligent V-Can de Novastar, NovaPro UHD Jr permet des effets mosaïque d’image plus riches et des opérations plus rapides et plus simples. NovaPro UHD Jr peut envoyer la vidéo traitée à l’écran LED via les ports Ethernet Neutrik et les ports fibre optique. Grâce à ses puissantes capacités de traitement vidéo et à ses fonctions d’envoi, NovaPro UHD Jr convient aux systèmes de contrôle de scène, sites de conférence, événements, expositions et autres applications de location haut de gamme, ainsi qu’aux écrans LED à pitch fin.

• A variety of inputs and outputs: Provides 1 × DP 1.2, 4 × DVI, 1 × HDMI 2.0 with loop output and 2 × 12G-SDI with loop output.
• More output connectors, larger loading capacity: Provides 16 × Neutrik Ethernet output and 4 × optical fiber output, with loading capacity up to 10,400,000 pixels. The maximum width is 16K and maximum height is 8K.
• DVI mosaic: An input source can be made up of at most 4 DVI input sources.
• HDR output
• Greatly enhances display image quality, providing more clear and vivid image.
• Decimal frame rates: The supported frame rates are 23.98, 29.97 and 59.94.
• Low-latency output: Reduces the latency from sending card to receiving card by 2 frames when the device is used together with NovaStar Armor series receiving cards (A8/A8s/A9s/A10s Plus).
• Customized BKG settings: Supports pure color and image BKGs.
• Personalized image scaling: Supports 3 kinds of image scaling modes: full screen, pixel to pixel, custom.
• Capture function: Captures input source image which can be used as a BKG image.
• Image mosaic: Up to 4 NovaPro UHD Jr units can be connected to load a super-large screen when used with the video distributor.
• V-Can (smart control software from NovaStar) supported
• 10 presets: At most 10 user presets can be created and saved as templates which can be used directly and conveniently.
• EDID management supported: Supports custom EDID and standard EDID.

Input

DVI X4:

Four DVIs are all single-link DVI connectors by default

• 4 × DVI inputs
• Each DVI: Input resolution up to 1920×1200 @ 60 Hz, downward compatible
• 4 DVI input sources constitute 1 input source (DVI MOSAIC).
• Standard resolutions supported

In dual-link mode

• DVI 1 and DVI 3 are dual-link DVI connectors while DVI 2 and DVI 4 are unavailable.
• DVI 1/DVI 3: Input resolution up to 3840×1080 @ 60 Hz, downward compatible
• Standard resolutions supported

12G-SDI X2: Input resolution up to 4096×2160 @ 60 Hz, downward compatible - Standard resolutions unsupported

DP 1.2: - Input resolution up to 3840×2160 @ 60 Hz, downward compatible - HDCP 1.3 compliant - Standard resolutions supported

HDMI 2.0:  - Input resolution up to 3840×2160 @ 60 Hz, downward compatible - HDCP 1.4 and HDCP 2.2 - EDID management - Standard resolutions supported

Output

Ethernet port X16: - 16 × Neutrik Gigabit Ethernet output connectors, allowing for a loading capacity of up to 10,400,000 pixels - Maximum loading capacity: Max. width: 16K, max. height: 8K - Maximum loading capacity of a single Ethernet port: 8-bit input source: 650,000 pixels, 10-bit/12-bit input source: 320,000 pixels

OPT 1–4: 10G optical connectors - OPT 1 transmits data of Ethernet ports 1–8. - OPT 2 transmits data of Ethernet ports 9–16. - OPT 3 serves as the hot backup or copy for OPT 1. - OPT 4 serves as the hot backup or copy for OPT 2.

HDMI 2.0 LOOP: - HDMI loop output connector Only 1 level of device cascading supported - HDCP 1.4 - EDID management

12G-SDI LOOP X2: SDI loop output connectors

MONITOR: HDMI connector for output monitoring Resolution up to 1920×1080 @ 60 Hz

Control

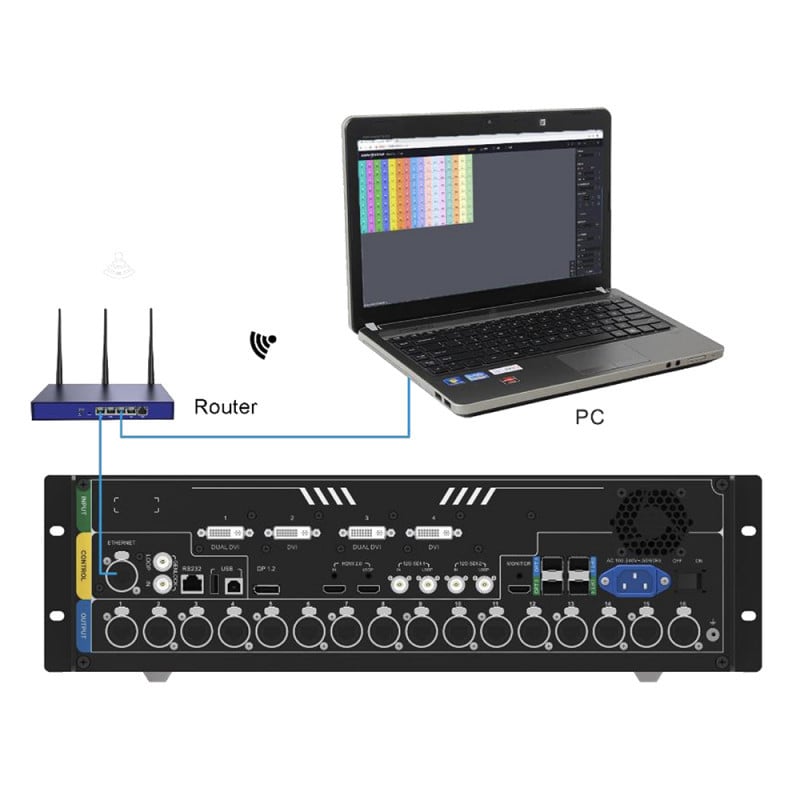

ETHERNET: Connect to the PC for communication, or connect to the Web for device control.

USB (Type-B): Connect to the PC for device control. Used as the input connector to connect a NovaPro UHD Jr unit for image

USB (Type-A): Used as the output connector to connect a NovaPro UHD Jr unit for image mosaic

GENLOCK IN- LOOP: Connect to a synchronization signal to synchronize all the connected NovaPro UHD Jr units.

RS232: Connect to the control device.
