SKU: P2.6MG6SI21-CW-U

Yes Tech - P2.6 MG6S

Indoor, front service, IC DP3265, SMD1515, full black LED, copper wire, 1200 nit, ≤3840 Hz, 500 x 500 mm, 5.7 kg

508,50 €

Pay in 4 interest-free payments of 127,13 € with Discover More

328 articles disponibles dans notre entrepôt italien

La quantité sélectionnée est supérieure à celle disponible en stock. Pas de problème ! Nous procéderons en vous envoyant immédiatement la quantité disponible. Nous vous enverrons ensuite le solde, sous 10 jours environ.
Unfortunately, the quantity you have selected exceeds the amount available in stock.
508,50 €
New starting from 565€
Condition : Usagé

Prime

livraison rapide est disponible pour ce produit.

Ce produit est disponible dans nos entrepôts en Italie, il sera donc livré dans un délai de 2 à 5 jours ouvrables.

Livraison gratuite pour toute commande égale ou supérieure à 199 € sont limités à la livraison au sein de l'Europe



EN Instruction Manual (1.2MB)

NO DESC

Documentation

Watch it in action

Video Youtube
Close the video

Détails du produit

Technical characteristics

Module
LED Encapsulation  1515
Pixel pitch  2.6 mm
Module resolution(W x H)  96 x 96
Module size  250 x 250 mm
Cabinet
Module quantity per cabinet(W x H)  2 x 2
Cabinet resolution(W x H)  192 x 192

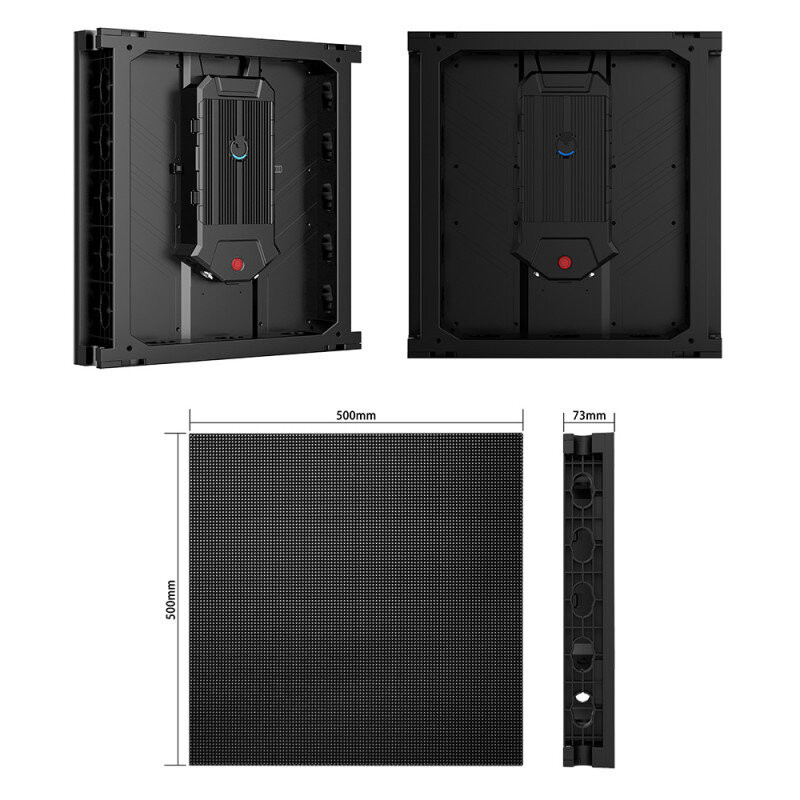

Cabinet size  500 x 500 x 73 mm
Cabinet area  0.25 m2
Weight  6.7 kg/cabinet
Pixel density  147,456 dot/m2
IP grade  IP50
White balance brightness  1200 nit
Color temperature  6500 - 10,000 K adjustable
Horizontal viewing angle  160°
Vertical viewing angle  160°
Electrical parameters  power consumption (W/m2): Max.: 450 ±15% / Average: 150 ±15%
Working voltage  100 - 264 VAC 50/60 Hz
Processing performance
Driving method  constant drive
Scanning method  1/24 s
Frame frequency  50 & 60 Hz
Refresh frequency  ≤ 3840 Hz
Control system  Nova Star
Usage parameter
Life span  80,000 h
Working / storage temperature  -20 to 45  /-30 to 60 ℃
Working / storage humidity  10 to 90% / 10 to 90% RH (no condensation)
Communication mode  CAT5
Certification  CE FCC ETL
