Détails du produit
Technical characteristics
Module | |
LED Encapsulation | 1515 |
Pixel pitch | 2.6 mm |
Module resolution(W x H) | 96 x 96 |
Module size | 250 x 250 mm |
Cabinet | |
Module quantity per cabinet(W x H) | 2 x 2 |
Cabinet resolution(W x H) | 192 x 192 |

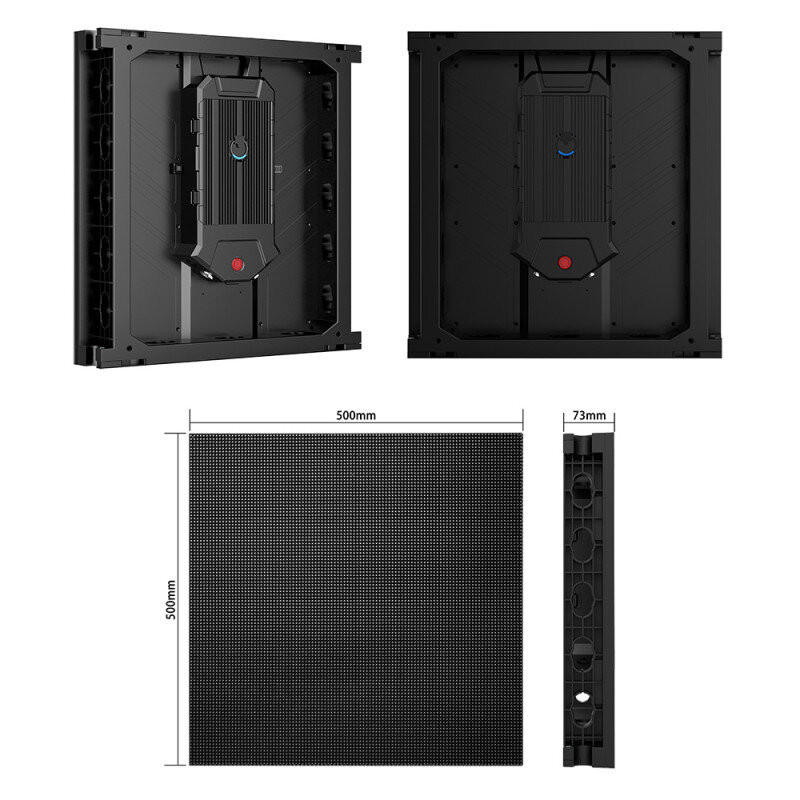

Cabinet size | 500 x 500 x 73 mm |
Cabinet area | 0.25 m2 |
Weight | 6.7 kg/cabinet |
Pixel density | 147,456 dot/m2 |
IP grade | IP50 |
White balance brightness | 1200 nit |
Color temperature | 6500 - 10,000 K adjustable |
Horizontal viewing angle | 160° |
Vertical viewing angle | 160° |
Electrical parameters | power consumption (W/m2): Max.: 450 ±15% / Average: 150 ±15% |
Working voltage | 100 - 264 VAC 50/60 Hz |
Processing performance | |
Driving method | constant drive |
Scanning method | 1/24 s |
Frame frequency | 50 & 60 Hz |
Refresh frequency | ≤ 3840 Hz |
Control system | Nova Star |
Usage parameter | |
Life span | 80,000 h |
Working / storage temperature | -20 to 45 /-30 to 60 ℃ |
Working / storage humidity | 10 to 90% / 10 to 90% RH (no condensation) |
Communication mode | CAT5 |
Certification | CE FCC ETL |
