SKU: P3.9MWI21

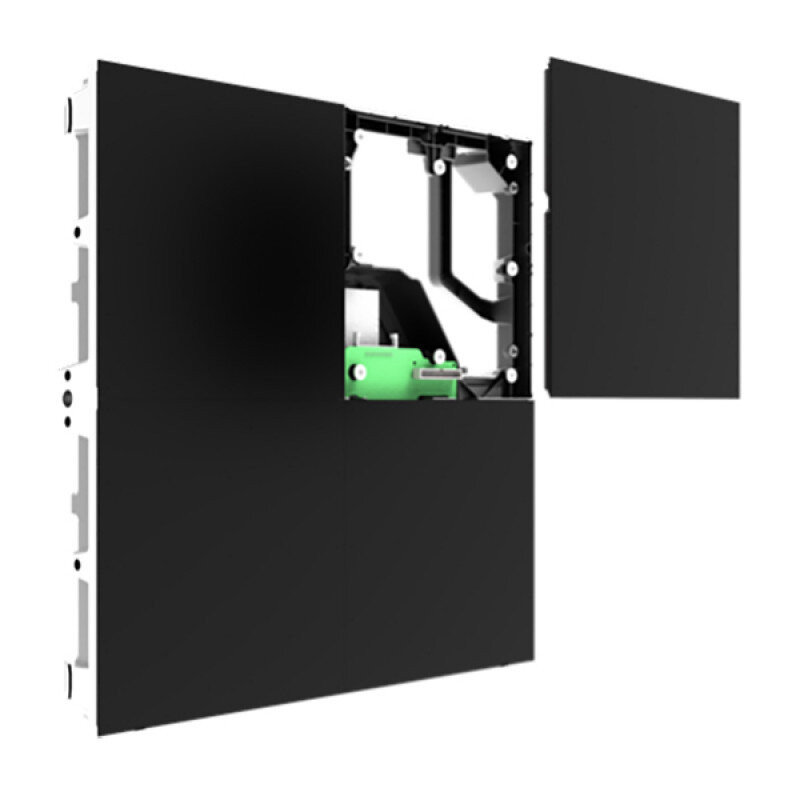

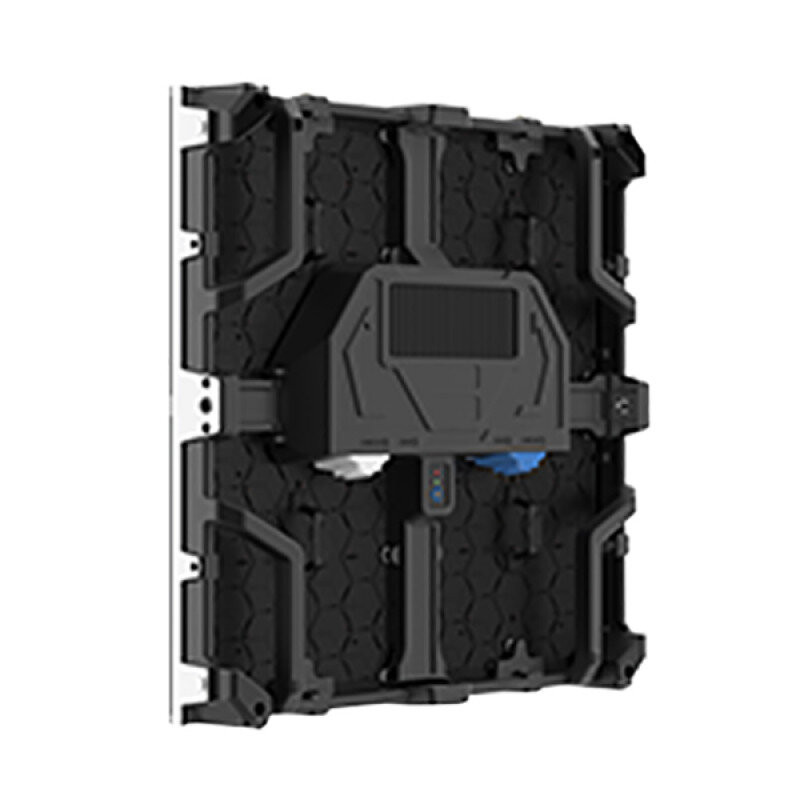

Yes Tech - P3.9 Mwall

Indoor, fixed installation only, IC ICN2153, SMD2020, full black LEDs, copper wire, 800 - 1000 nit, ≤3840 Hz, 500 x 500 mm, 6 kg
642,50 €
- 41%

378,50 €

Pay in 4 interest-free payments of 94,63 € with Discover More

La quantité sélectionnée est supérieure à celle disponible en stock. Pas de problème ! Nous procéderons en vous envoyant immédiatement la quantité disponible. Nous vous enverrons ensuite le solde, sous 10 jours environ.
Unfortunately, the quantity you have selected exceeds the amount available in stock.
Condition : Neuf

Not available.

delivery is not available for this product.

Livraison gratuite pour toute commande égale ou supérieure à 199 € sont limités à la livraison au sein de l'Europe



EN Instruction Manual (4.47MB)

NO DESC

Documentation

Détails du produit

Technical characteristics

Module
LED encapsulation  2020
Pixel pitch  3.9 mm
Module resolution (W x H)  64 x 64
Module size  250 x 250 mm
Cabinet
Module quantity per cabinet (W×H)  2 x 2
Cabinet resolution (W x H)  128 x 128
Cabinet size   500 x 500 x 65 mm
Cabinet area  0.25 m2
Weight   6 kg/cabinet
Pixel density  65,536 dot/m2
IP grade  IP20
White balance brightness  800 - 1000 nit
Color temperature  6500 - 10,000 K adjustable
Horizontal viewing angle  160°
Vertical viewing angle  120°
Contrast ratio  9000:1
Electrical parameters
Power consumption  480 / 160 W/m2
Working voltage  100 - 264 VAC 50/60 Hz
Processing performance
Driving method  constant drive
Scanning method  1/24 s
Driving IC  ICN2153
Refresh frequency  ≤ 3840 Hz
Control system  Nova Star
Usage parameter
Life span  80,000 h
Working / storage temperature    -20 to 45 °C / -30 to 60 °C
Working / storage humidity  10 - 90% / 10 - 90% RH (no condensation)
Communication mode  CAT5
Certification  CE FCC ETL
