SKU: H10795

EAN: 3662009018614

Audiophony PA

Audiophony PA - BM-KIT

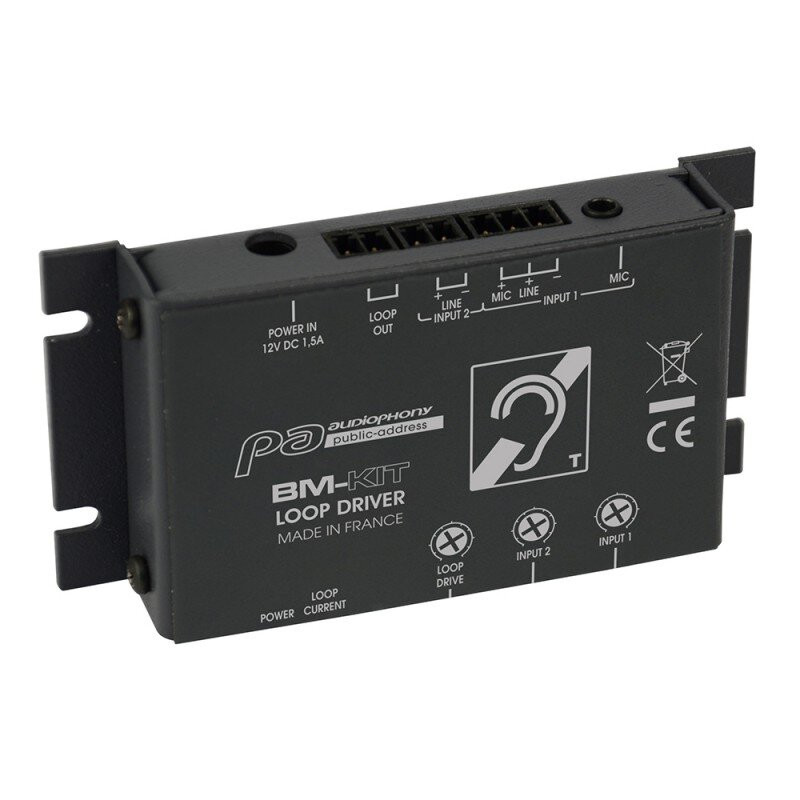

KIT loop amplifier for desk
star_border star_border star_border star_border star_border
(0)
244,50 €
- 18%

200,50 €

Pay in 4 interest-free payments of 50,13 € with Discover More

Unfortunately, the quantity you have selected exceeds the amount available in stock. No problem! We will go ahead and send you the available quantity. We will then send you the reminder approximately within ten days.
Unfortunately, the quantity you have selected exceeds the amount available in stock.
Condición: Nuevo

No disponible.

No se ofrece servicio de entrega para este producto.

Envío gratuito para pedidos iguales o superiores a 199 €, limitado a entregas dentro de Europa.

Variants of this product

Rondson - PL1

282,50 €

Mobile induction loop kit for the hearing impaired people in places open to the public such as bank counters, ticket offices or post offices
Rondson - PDA103C

254,00 €

Magnetic induction loop kit for the hearing impaired
Rondson - DUOPROTECT

457,50 €

Plexiglass protection kit with counter microphone and loop for the hearing-impaired
Rondson - PACK DUO-2

458,00 €

Counter magnetic induction loop kit system
Audiophony PA - BM-SCAN

874,50 €

Dispositivo de medición de ruido de fondo

Detalles del producto

Inputs

  • Audio inputs: 2 (1 micro or line input and 1 line input)
  • Type: 3.5 mm TRS-F mini-jack, Euroblock/Phoenix terminal block
  • Phantom: 4.5V 1mA

Power supply

  • Power supply: 12 VDC 1.5A
  • Type: Separated power block
  • MainsSystems: 230 V 50/60 Hz
  • Power: 20 W max.
  • Fuse: Thermal protection

Audio processor

  • Compressor:Variable 1:1 to 20:1
  • Etching: 10mS
  • Descent: Automatic 500mS or 1500mS
  • Noise reduction: Bandwith limits for 8 kHz total gain, 16 kHz to -6 dB
  • Dynamic: > 60 dB
  • THD: THD+N <0,5% at 1 kHz

Output

  • Type: Current
  • Loop resistance: 0,1 ohm to 1 ohm
  • Peak current: 5A
  • RMS Current: 3.5A at 1 kHz
  • Protection: Thermal, short-circuit and start

Dimensions (mm) andWeight

  • BM-KIT: 92 x 52 x 18 (L x H x P)
  • Packaging: 190 x 190 x 50
  • Weight: 0.350 kg
More.. Show less

ES Manual de instrucciones (1.59MB)

Documentation

DE Bedienungsanleitung (1.59MB)

Documentation

NL Gebruikershandleiding (1.59MB)

Documentation

EN Instruction Manual (700.53KB)

Documentation

FR Manuel d'instructions (701.02KB)

Documentation
