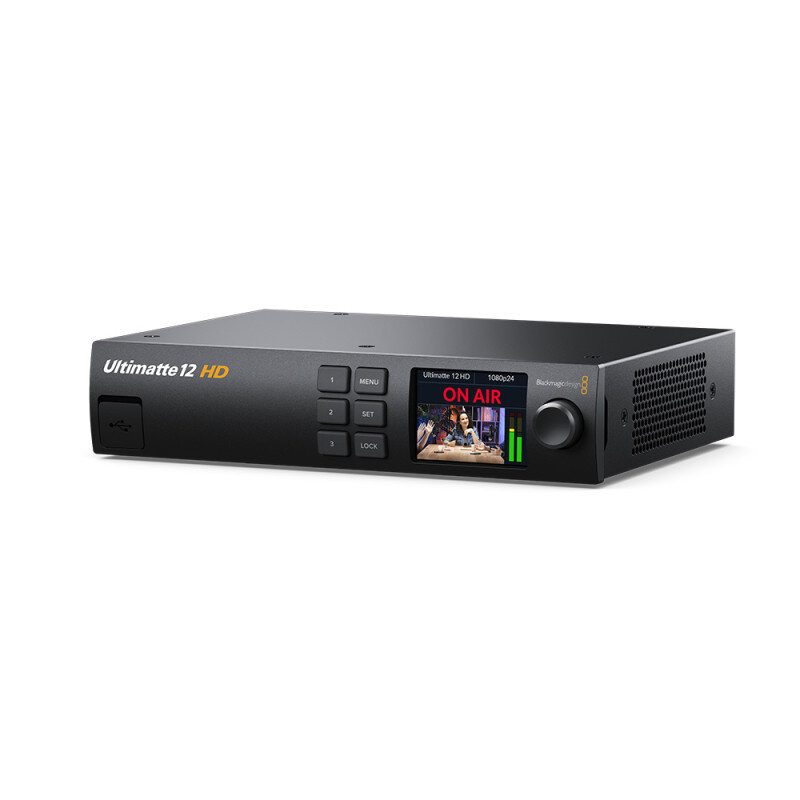

Blackmagic Design - Ultimatte 12 HD

Ultimatte 12 HD es un procesador avanzado de composición en tiempo real diseñado para hacer recortes de video en vivo con gráficos de última generación para emisión, sets virtuales y mucho más. Ultimatte 12 HD incorpora nuevos algoritmos y tecnología de color, manejo de bordes y separación de colores excepcional, una fidelidad cromática impresionante y supresión de derrames mejorada como nunca antes. El diseño de alto rendimiento 3G-SDI te da la potencia para trabajar en HD con procesamiento de subpíxeles para una imagen increíble.

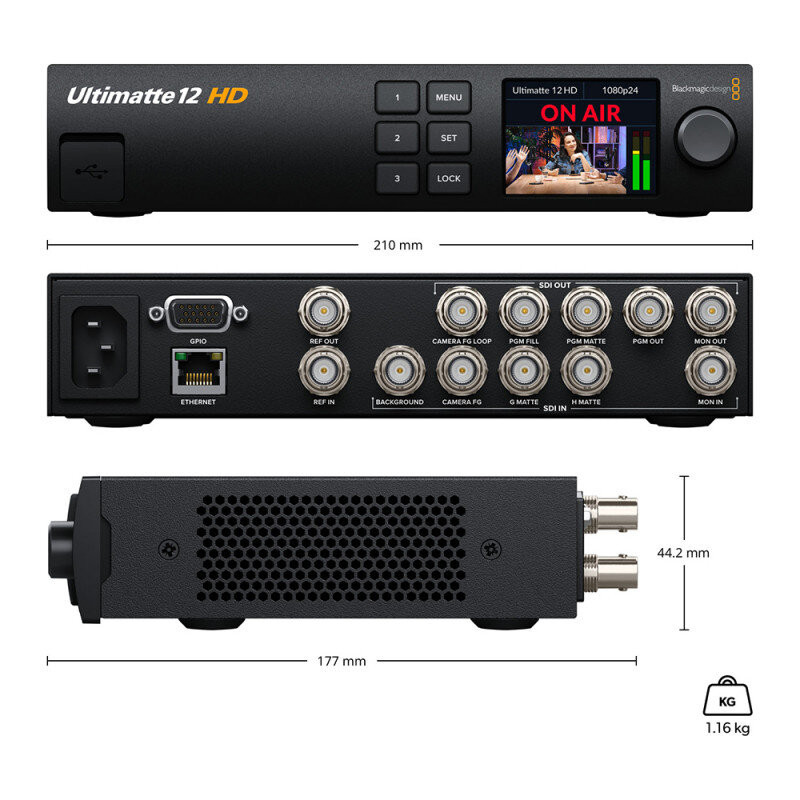

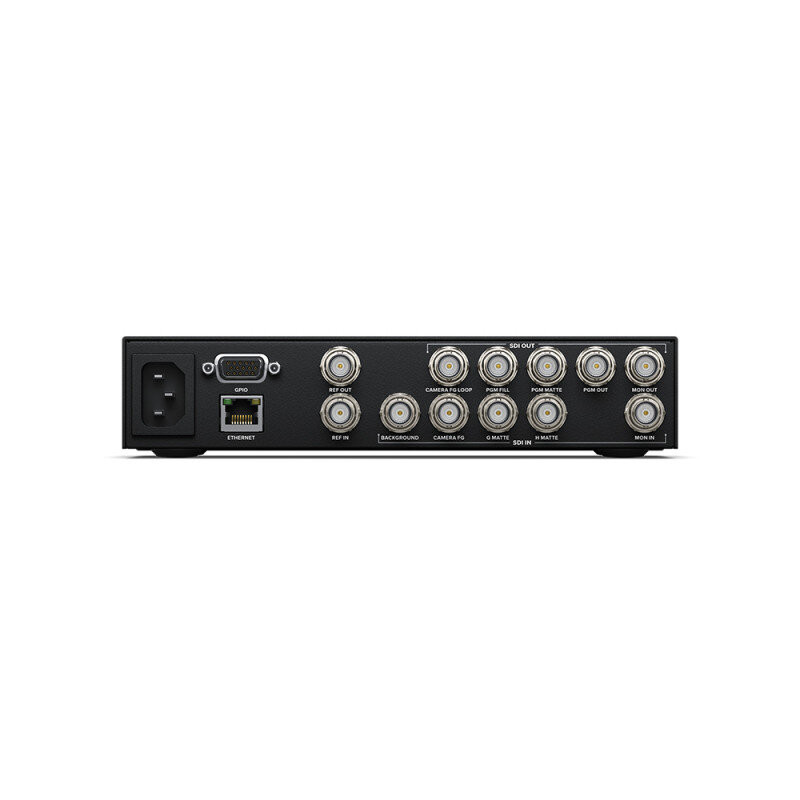

Connections

• SDI Video Inputs: 5
• SDI Video Outputs: 4
• SDI Video Loop Outputs: 1 reclocked SD or HD Camera FG.
• SDI Rates: 270Mb, 1.5G, 3G.
• Video Input Re-Sync: On all inputs.
• Reference Connections: 1 x BNC In, 1 x BNC Out. Tri-Sync or Black Burst.
• GPIO: DE15
• Ethernet: Up to 1Gb/s for device control and loading stills into Media Pool.
• Computer Interface: 1 x USB-C 3.0 for device configuration and software updates.

Standards

• SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards: 720p50, 720p59.94, 720p60 - 1080i50, 1080i59.94, 1080i60 - 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 - 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
• SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B.
• Video Sampling: 4:2:2
• Color Precision: 10-bit
• Color Space: REC 601, REC 709, REC 2020.
• Multiple Rate Support: Auto detection of SD and HD.

Composite Sources

• Foreground: 1 x 3G-SDI In with Loop Out
• Bac kground: 1 x 3G-SDI In. Still from Media Pool
• Bac kground Matte: Internal Window. Still from Media Pool
• Garbage Matte: 1 x 3G-SDI In
• Internal Window: Still from Media Pool
• Holdout Matte: 1 x 3G-SDI In
• Internal Window: Still from Media Pool
• Layer: Still from Media Pool
• Layer Matte: Internal Window. Still from Media Pool

Composite Outputs

• Fill: 1 x 3G-SDI
• Matte: 1 x 3G-SDI
• Program: 1 x 3G-SDI

Monitor

• Monitor In: 1 x 3G-SDI for monitor cascade
• Monitor Out: 1 x 3G-SDI For monitoring Program, Foreground Input, Bac kground Input, Combined Matte, Internal Matte, Fill Out, Layer Input, Bac kground Matte Input, Garbage Matte Input, Holdout Matte Input, Layer Matte Input, Processed Layer Matte, Processed Holdout Matte, Processed Garbage Matte, Processed Bac kground Matte, Screen Correction.

Media Pool

• Bac kground Still Image Formats: TG A, TIFF, BMP, PNG, JPG.
• Bac kground with Alpha Still Image Formats: TG A, TIFF, BMP.
• Layer Image Still Image Formats: TG A, TIFF, BMP, PNG, JPG.
• Layer with Alpha Still Image Formats: TG A, TIFF, BMP.
• Garbage Matte Still Image Formats: TIFF, BMP, PNG, JPG.
• Holdout Matte Still Image Formats: TIFF, BMP, PNG, JPG.
• Media Pool Memory: 6GB non-volatile internal storage.

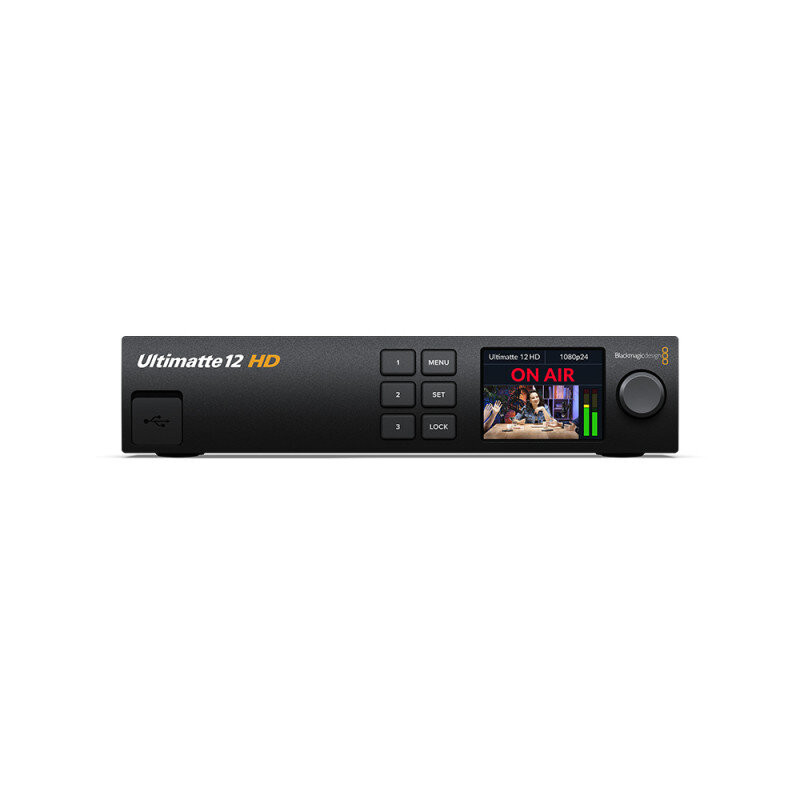

Displays

• Built in 2.2 inch color display for device name, video preview, video standard audio meters, status and menus.

Software

• Software Updates: Using USB‑C or Ethernet connection to Mac™ or Windows™ computers.
• Configuration: Ultimatte IP address is set via the front panel or Ultimatte setup utility connected via USB.
