SKU: P3.9MG11I21

Yes Tech - P3.9 MG11 Indoor

Right-angle display indoor, IC ICN2153, SMD2020, full black LEDs, copper wire, 800 - 1200 nit, ≤3840 Hz, 125 x 500 mm, 1.8 kg
1 438,00 €
- 40%

863,00 €

La quantité sélectionnée est supérieure à celle disponible en stock. Pas de problème ! Nous procéderons en vous envoyant immédiatement la quantité disponible. Nous vous enverrons ensuite le solde, sous 10 jours environ.
Unfortunately, the quantity you have selected exceeds the amount available in stock.
Condition : Neuf

Not available.

delivery is not available for this product.

Livraison gratuite pour toute commande égale ou supérieure à 199 € sont limités à la livraison au sein de l'Europe



EN Instruction Manual (6.53MB)

NO DESC

Documentation

NO NAME (1.06MB)

NO DESC

Documentation

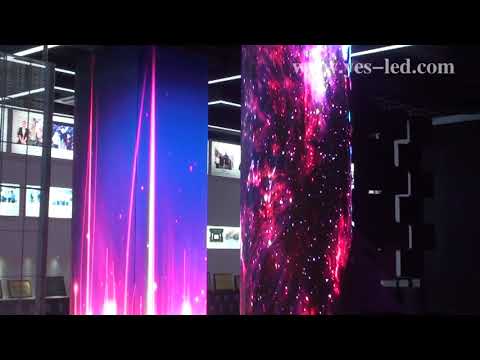

Watch it in action

Video Youtube
Close the video

Détails du produit

Technical characteristics

Basic parameters
Operating environment indoor
LED encapsulation 2020 (black)
Pixel Pitch   3.9 mm
Pixel density  65,536 dot/m2
Weight 1.7 kg/unit
Dimensions 125 x 500 x 56 mm
IP grade IP50
Performance parameters
White balance brightness  800 - 1200 cd/m2
Single LED brightness / chroma calibration yes / yes
Color temperature   7000 ±300 K
Pixel center distance deviation < 3%
Brightness uniformity < 97%
Color uniformity within ±0.003 Cx, Cy
Frame frequency  50 & 60 Hz
Refresh frequency  ≤ 3840 Hz
Using parameters
Life span  80,000 h
Working voltage 100 - 240 VAC  50/60 Hz
Max. / average power consumption   480 / 160 W/m2
Scanning method 1/16
Horizontal / Vertical viewing angle   n.d.
Communication mode CAT5
Certification TUV CE, FCC, ETL, BIS, Saber
