P3.9 MG11 Indoor

SKU: P3.9MG11I21

Yes Tech

Yes Tech - P3.9 MG11 Indoor

Right-angle display indoor, IC ICN2153, SMD2020, full black LEDs, copper wire, 800 - 1200 nit, ≤3840 Hz, 125 x 500 mm, 1.8 kg
star_border star_border star_border star_border star_border
(0)
1,438.00 €
- 40%

863.00 €

Unfortunately, the quantity you have selected exceeds the amount available in stock. No problem! We will go ahead and send you the available quantity. We will then send you the reminder approximately within ten days.
Unfortunately, the quantity you have selected exceeds the amount available in stock.
Condition: New

Not available.

delivery is not available for this product.

Free Shipping for order equal or above € 199 are limited for delivery within Europe

Variants of this product

Yes Tech - P3.9 MG12

565.00 €

Triangle display indoor, IC MBI5252, SMD2020, 800-1200 nit, ≤3840 Hz, 500x500 mm, 4 kg
Yes Tech - P3.9 Mwall

378.50 €

Indoor, fixed installation only, IC ICN2153, SMD2020, full black LEDs, copper wire, 800 - 1000 nit, ≤3840 Hz, 500 x 500 mm, 6 kg
EGO Display - EasyPRO-P3-mk2

120.00 €

Indoor, front service, Black SMD 3-in-1 TOP 2020, 800 nit, 3840 Hz, 320 × 480 mm, 1.7 kg
EGO Display - P3.9SMD-I-U - Indoor

366.00 €

Indoor, 1R1G1B, 900 nit, 2400 Hz, 500 x 500 mm, 9 kg
Yes Tech - P3.9 MG14 Indoor

573.00 €

Small triangle display indoor, IC ICN2153, SMD2020, full black LEDs, copper wire, 800 - 1000 nit, ≤3840 Hz, 250 x 500 mm, 2.5 kg

EN Instruction Manual (6.53MB)

NO DESC

Documentation

NO NAME (1.06MB)

NO DESC

Documentation

Watch it in action

Video Youtube
Close the video

Product Details

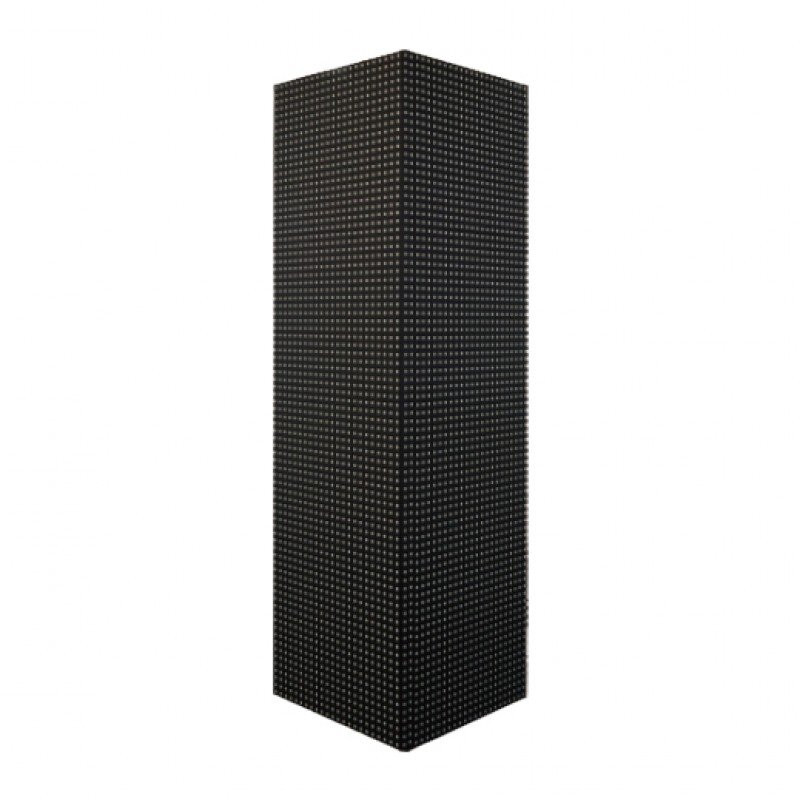

Right-angle LED display (P3.9 MG11), 125 x 500 mm, SMD2020, for indoor use (800 - 1200 nits).

It is part of the MG Creative Extension series which includes triangle, rectangle, circular sector etc. This newly updated series will allow you to think and design the stage even more creatively, not only with the arc layout and presentation, but also polygon, sector, etc.

By combining the Magic Stage LED wall modules with the MG Creative Extension which includes right angle (MG11), triangle (MG12), circular sector (MG13) etc. LED displays, you can realize a variety of creative displays of the desired shape, such as numbers, letters, columns, Christmas tree, diamond, windmill, flower, heart, etc.

User benefits

  • Allows you to create LED walls of different shapes by combining the cabinets of the Magic Stage series

Areas of use

  • All those in which the Yes Tech LED displays of the Rental & Staging series are used

Technical characteristics

Basic parameters
Operating environment indoor
LED encapsulation 2020 (black)
Pixel Pitch   3.9 mm
Pixel density  65,536 dot/m2
Weight 1.7 kg/unit
Dimensions 125 x 500 x 56 mm
IP grade IP50
Performance parameters
White balance brightness  800 - 1200 cd/m2
Single LED brightness / chroma calibration yes / yes
Color temperature   7000 ±300 K
Pixel center distance deviation < 3%
Brightness uniformity < 97%
Color uniformity within ±0.003 Cx, Cy
Frame frequency  50 & 60 Hz
Refresh frequency  ≤ 3840 Hz
Using parameters
Life span  80,000 h
Working voltage 100 - 240 VAC  50/60 Hz
Max. / average power consumption   480 / 160 W/m2
Scanning method 1/16
Horizontal / Vertical viewing angle   n.d.
Communication mode CAT5
Certification TUV CE, FCC, ETL, BIS, Saber
