Blackmagic Design - Blackmagic URSA Cine 12K LF + EVF

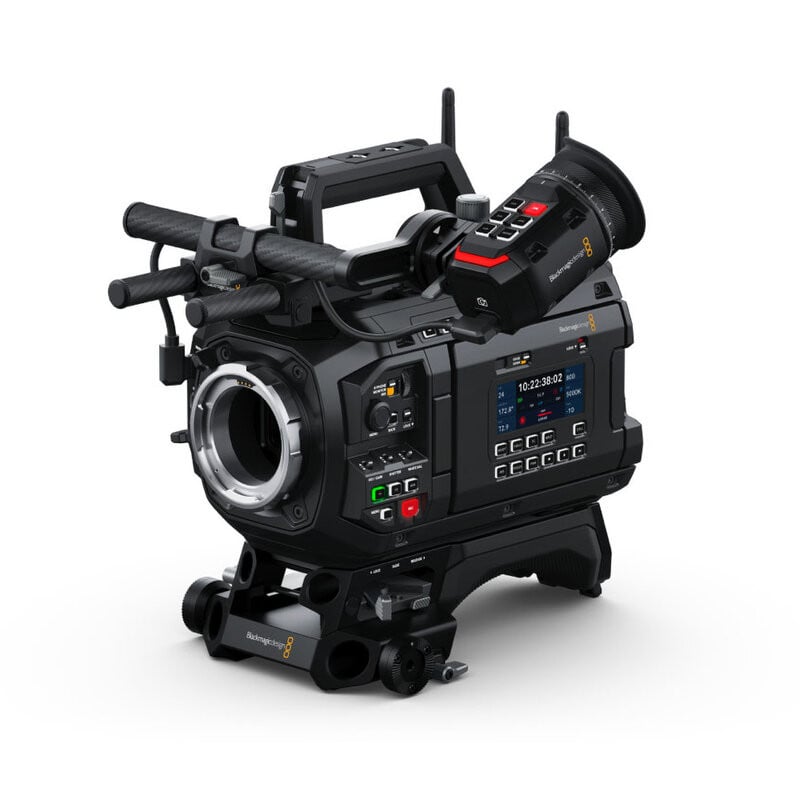

La Blackmagic URSA Cine 12K LF + EVF es simplemente la Blackmagic URSA Cine 12K LF con el visor electrónico Blackmagic URSA Cine EVF incluido.

Es una cámara de vídeo digital de gama alta dirigida al mundo del cine, diseñada para profesionales que buscan un equipo completo, listo para usar y preparado para expandirse con accesorios existentes.

Con un sensor RGBW de 36 × 24 mm de fotositos más grandes, ofrece una resolución de hasta 12,288 × 8040 píxeles y un rango dinámico de 16 pasos, asegurando una calidad de imagen excepcional incluso en situaciones de luz exigentes. A diferencia del modelo Blackmagic URSA Cine 12K LF Body, este set incluye asa, soporte, fuente de alimentación, placa para batería, montura PL y visor electrónico (EVF) como estándar. Además, incorpora una segunda pantalla táctil HDR de 5" con controles dedicados, filtros IR ND integrados y conexiones profesionales Lemo y Fischer.

Incluye un módulo Blackmagic Media de 8 TB para grabación, puerto Ethernet 10G para transferencia rápida de archivos y Wi-Fi para sincronización con Blackmagic Cloud. Hay una gran variedad de accesorios opcionales disponibles para ampliar aún más sus prestaciones.

Pensada para quienes buscan un rendimiento cinematográfico sin concesiones, es una solución potente y flexible para producciones de alto nivel.

Ventajas para el usuario

• Sensor full frame RGBW 12K
• La versión completa incluye asa, soporte, fuente de alimentación, placa para batería y montura PL de serie (montura EF opcional, además de otros soportes dedicados)
• Posibilidad de alcanzar 440 fps con la nueva montura B4 para ópticas broadcast
• Pantalla táctil secundaria con controles dedicados para monitorización y control intuitivo en rodaje
• Incluye visor electrónico EVF
• Filtros IR ND integrados
• Soporta Blackmagic RAW hasta 12K
• Puerto Ethernet 10G para subida instantánea y sincronización con Blackmagic Cloud
• Conectividad avanzada
• Audio profesional con entradas XLR y alimentación phantom
• Diseñada para integración con accesorios Blackmagic y de terceros
• Construcción robusta

Áreas de uso

• Producción cinematográfica
• Series de TV
• Anuncios publicitarios
• Rodajes de VFX
• Documentales de naturaleza

Technical characteristics

Camera features

• Effective sensor size: 35.64 × 23.32 mm
• Pixel pitch: 2.9 µm
• Lens mount: PL mount. Interchangeable with URSA Cine lockable EF mount included
• Lens control: lens control of compatible EF lenses, lens data from compatible PL lenses and control of some PL lenses
• Dynamic range: 16 stops
• Shooting formats: 12,288 × 8040p 3:2, 12,288 × 6912p 16:9, 12,288 × 6480p 17:9, 12,288 × 5112p 2.4:1, 9648 × 8040p 6:5, 9408 × 6264p 3:2, 8688 × 4896p 16:9, 9312 × 4896p 17:9, 9312 × 3864p 2.4:1, 7680 × 6408p 6:5, 8192 × 5360p 3:2, 8192 × 4608p 16:9, 8192 × 4320p 17:9, 8192 × 3408p 2.4:1, 6432 × 5360p 6:5, 4096 × 2680p 3:2, 4096 × 2304p 16:9, 4096 × 2160p 17:9, 4096 × 1704p 2.4:1, 3216 × 2680p 6:5
• Frame rates: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps
• High speed frame rates: 12K 3:2 up to 80 fps, 12K 17:9 up to 100 fps, 12K 2.4:1 up to 120 fps, 9K 3:2 up to 100 fps, 8K/4K 3:2 up to 144 fps, 8K/4K 2.4:1 up to 224 fps
• Built-in ND filters: clear, 2-stop, 4-stop, 6-stop IR ND
• Focus: peaking via focus button, auto focus with compatible lenses
• Iris control: manual via wheel and touchscreen slider, auto iris via button with compatible lenses
• Monitoring screens: 2 × 5" LCD capacitive touchscreen, 1920 × 1080 resolution, 1500 nit brightness + camera status screen + EVF (Electronic Viewfinder)
• EVF display resolution: Full 1920 × 1080, 6.22 Million dots
• EVF display type: OLED
• EVF diopter range: -5 to +5
• Metadata support: automatically populated lens data from i/Technology with compatible PL, LPL lenses and electronic EF lenses when using optional EF lens mount. Automatic recording of camera settings and slate data such as project, scene number, take and special notes

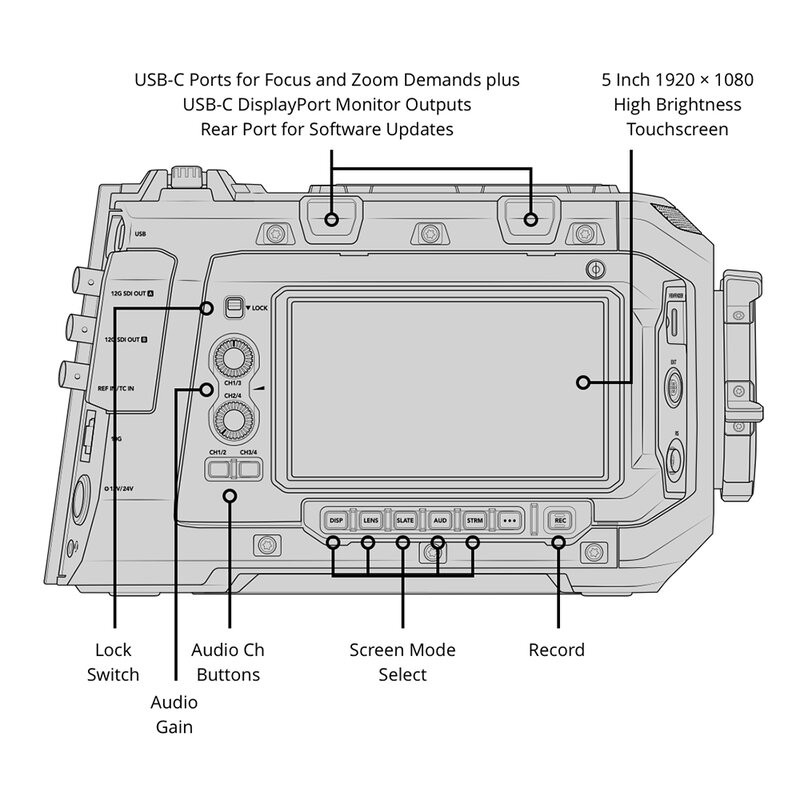

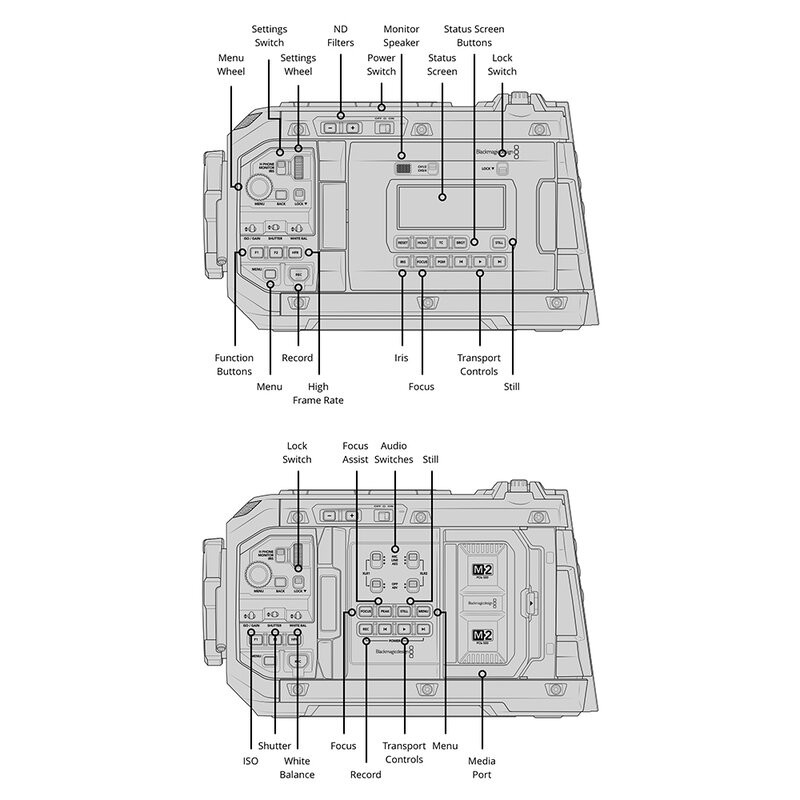

• Controls: touchscreen menus on 5" screen, push buttons, 7 assignable shortcut keys, 6 assignable EVF keys
• Time Code clock: less than 1 frame drift every 8 hours

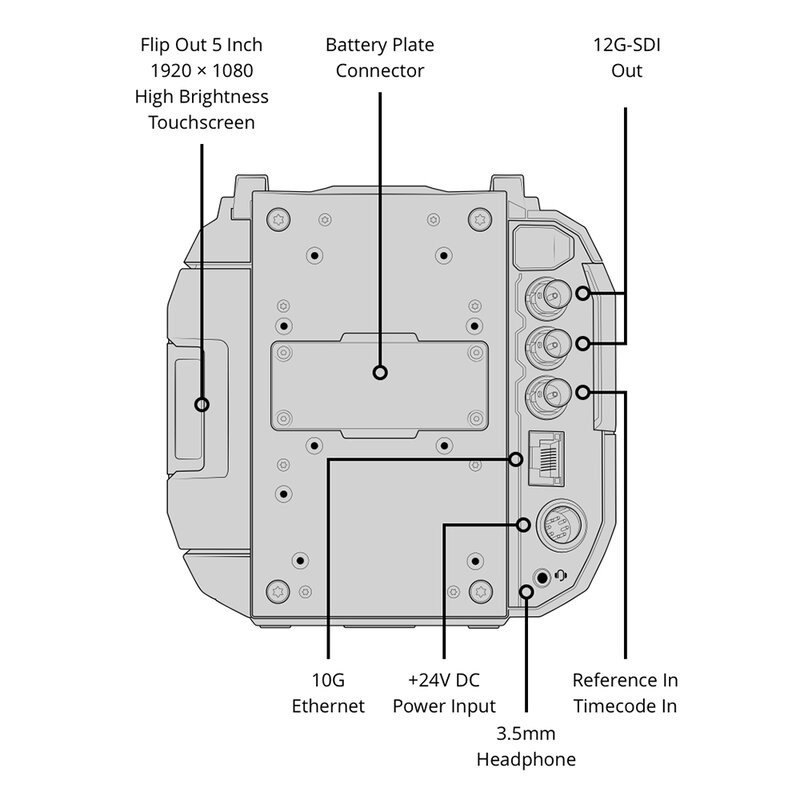

Connections

• Total video outputs: 2
• SDI rates: 1.5G, 3G, 6G, 12G
• Analog audio inputs: 2 × XLR MIC / line and AES audio, Phantom power
• Analog audio output: 1 × 3.5 mm headphone jack
• Reference inputs: Tri-Sync, Black Burst, Timecode
• Viewfinder: 1 × USB-C with video, power, control
• USB-C monitor outputs: 2 × side ports for URSA Cine EVF, PYXIS Monitor, DisplayPort

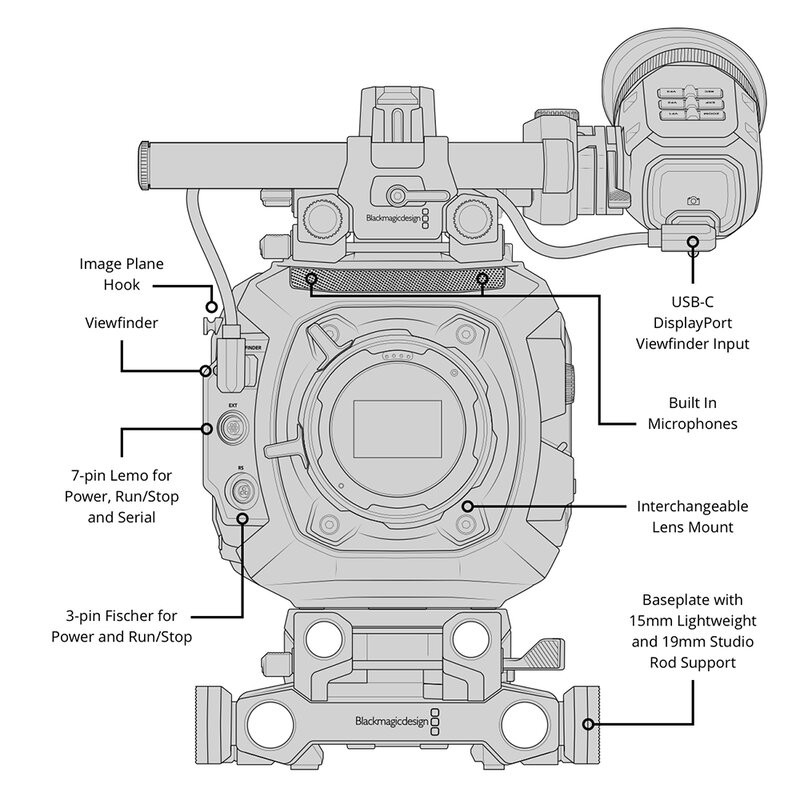

• Accessory ports: 1 × 7-pin Lemo EXT, 1 × 3-pin Fischer RS
• Computer interface: 2 × USB-C expansion ports
• Ethernet: 1 × RJ‑45 10 Gb/s for SMB file sharing, Web Media Management, Blackmagic Cloud uploads, camera control and streaming

Audio

• Microphone: integrated stereo
• Speaker: 1 × mono

Video standards

• HD: 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 50, 1080p 59.94, 1080p 60, 1080i 50, 1080i 59.94, 1080i 60
• UHD: 2160p 23.98, 2160p 24, 2160p 25, 2160p 29.97, 2160p 30, 2160p 50, 2160p 59.94, 2160p 60
• SDI compliance: SMPTE 292M, SMPTE 424 Level B, SMPTE 2081-1, SMPTE 2082-1
• SDI audio sampling: 48 kHz, 24 bit

Media

• Media: 1 × Blackmagic Media Module
• Media format: Blackmagic

Supported codecs

• Blackmagic RAW constant bitrate 3:1, 5:1, 8:1, 12:1, 18:1, Q0, Q1, Q3, Q5, H.264 1920 × 1080 8-bit 4:2:0

Control

• External control: Blackmagic URSA Cine EVF can trigger record plus camera functions assigned to the VF1, VF2, VF3, Zoom, Exp and Record buttons. External Camera Control supported using REST API over Ethernet, WiFi or serial communication via the 7-pin Lemo connector. Run / Stop supported via 3-pin Fischer and 7-pin Lemo connector. Blackmagic iPad control and Bluetooth control supported. Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling camera and compatible lenses

Cloud synchronization

• Blackmagic Cloud

Streaming

• Protocols: SRT, RTMP
• Local streaming: Ethernet, Wi-Fi
• Global streaming: Ethernet, Wi-Fi, USB-C cellular

Network management

• NTP: Network Time Protocol support
• FTP: download files from any drive attached to your camera using FTP
• Web media manager: access, browse, download and delete files from any drive connected to the camera
• SMB: file sharing using SMB

Storage features

• Storage type: 1 × Blackmagic Media Module 8 TB
• Storage rates: please see the user manual
• Recording formats:
  • Blackmagic RAW 3:1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at full sensor width or height resolutions: [12,288 × 8040], [12,288 × 6912], [12,288 × 6480], [12,288 × 5112] and [9648 × 8040] plus simultaneous H.264 1080 proxies
  • Blackmagic RAW 3:1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at Super 35 windowed resolutions: [9408 × 6264], [8688 × 4896], [9312 × 4896], [9312 × 3864] and [7680 × 6408] plus simultaneous H.264 1080 proxies
  • Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 scaled to: [8192 × 5360], [8192 × 4608], [8192 × 4320], [8192 × 3408] and [6432 × 5360] plus simultaneous H.264 1080 proxies
  • Blackmagic RAW 3:1, 4:1, 5:1, 6:1, Q0, Q1, Q3 and Q5 scaled to: [4096 × 2680], [4096 × 2304], [4096 × 2160], [4096 × 1704] and [3216 × 2680] plus simultaneous H.264 1080 proxies

Software

• Software included: URSA Cine Blackmagic OS, DaVinci Resolve Studio, Blackmagic Camera Setup, Blackmagic RAW Player, Blackmagic RAW QuickLook Plugin, Blackmagic RAW SDK

Operating systems

• Mac 14.0 Sonoma, Mac 15.0 Sequoia or later, Windows 10 and 11

Accessories

• Optional accessories: PYXIS Monitor, PYXIS Monitor Kit, LPL, EF, Mount Shims, Battery Plates (B-Mount, Gold, VLock), Baseplates (15, 19), Handle, Grips, LCD Sunshade, Media Dock, Media Modules

Power requirements

• Power supply: +24 VDC external power supply 100 - 240 VAC 50/60 Hz compatible with IEC C14 socket. B-Mount battery plate
• Power input: 1 × 8-pin Lemo socket for 12 V to 34 VDC
• Power output: 1 × 7-pin connector with +24 VDC output, 1 × 3-pin Fischer with +24 VDC output, B-Mount battery plate including 2-pin connector with +12 V regulated output

Environmental specifications

• Operating temperature: 0 to 40 °C
• Storage temperature: -20 to 45 °C
• Relative humidity: 0 to 90% non-condensing

Physical specifications

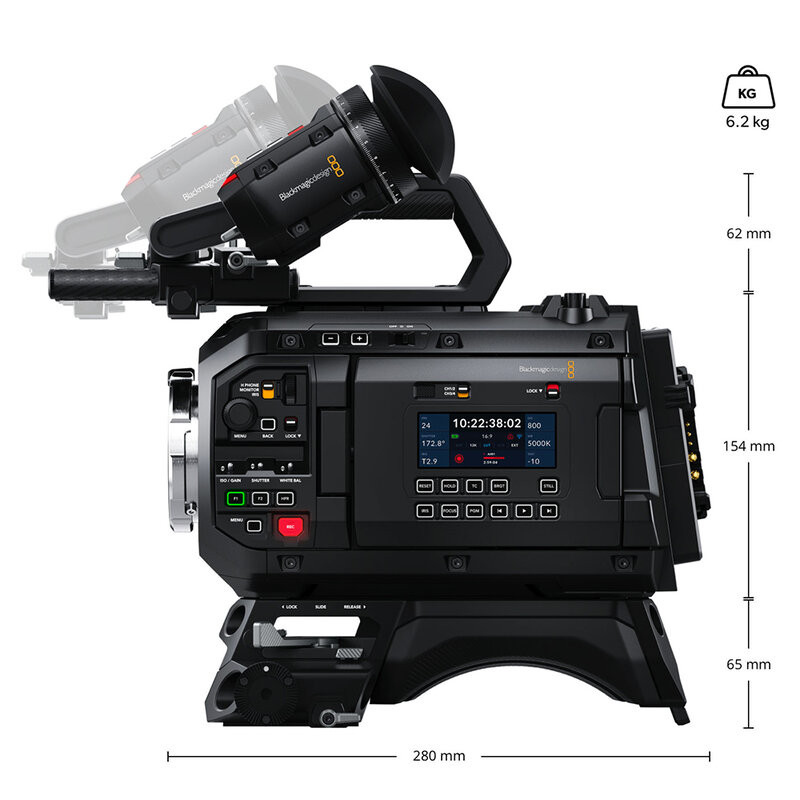

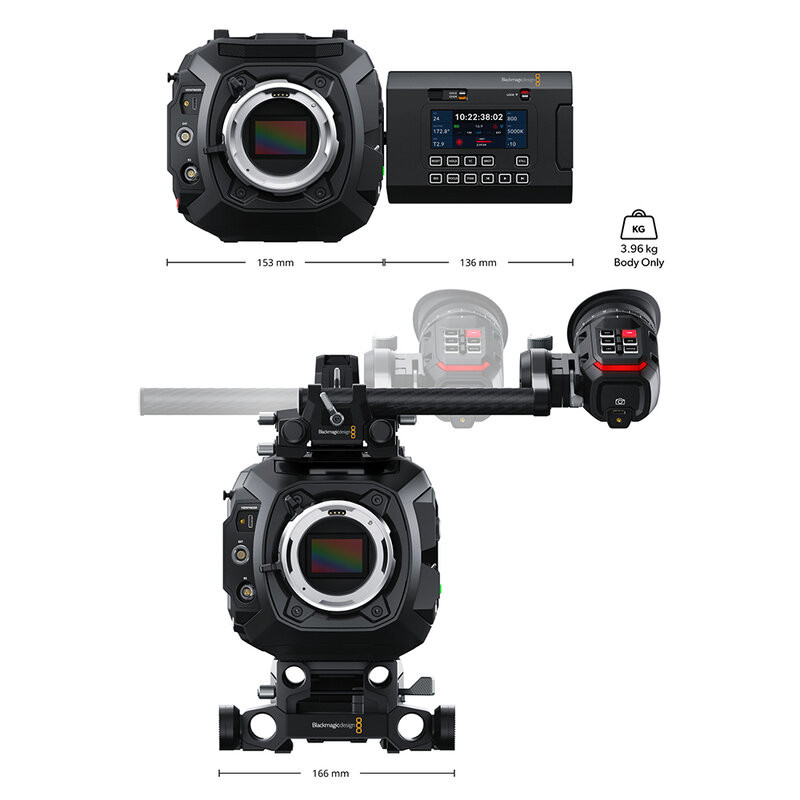

• Dimensions: 28 × 28.1 × 15.3 cm + EVF dimensions
• Weight: 3.96 kg

What’s included

• Blackmagic URSA Cine 12K LF camera with PL lens mount
• Blackmagic Media Module 8 TB
• Blackmagic URSA Cine handle and bolts
• Blackmagic URSA Cine top rod mount
• Blackmagic URSA Cine baseplate 19
• Blackmagic URSA Cine battery plate B mount
• Blackmagic URSA Cine rubber caps for connectors
• Blackmagic URSA Cine Wi-Fi antennas
• Blackmagic URSA Cine mount EF and mount screws
• Blackmagic URSA Cine 24 V 250 W power supply
• Blackmagic EF body cap
• Blackmagic PL body cap
• Plastic folding screen hood for 5″ LCD
• Blackmagic URSA Cine EVF

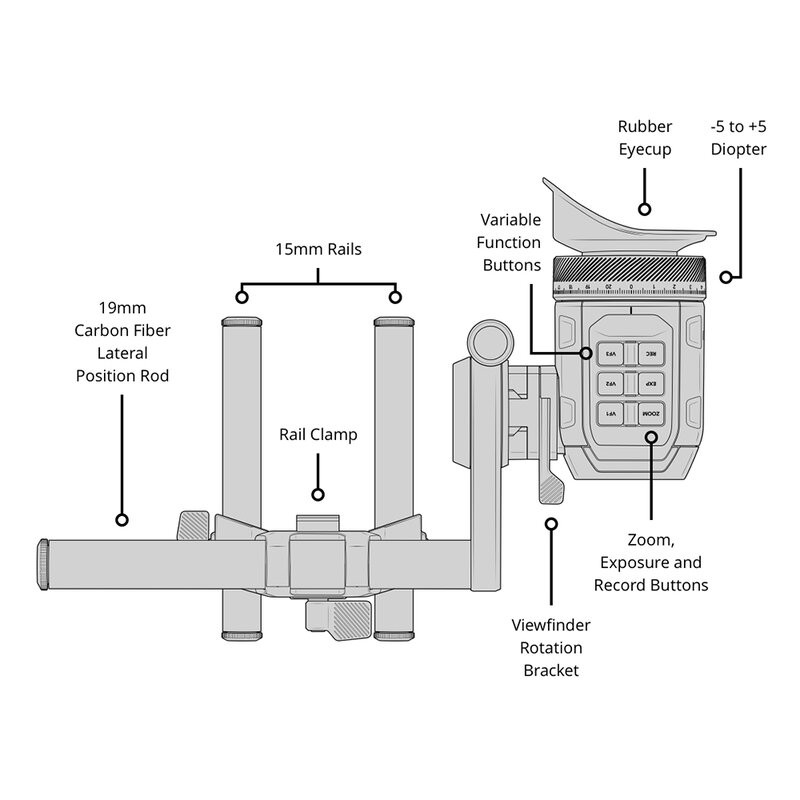

• Blackmagic URSA Cine EVF rotating bracket with 19 mm carbon fibre rod
• Blackmagic URSA Cine EVF bracket rod mount
• Blackmagic URSA Cine EVF extension
• DaVinci Resolve Studio with activation key
• Welcome wallet with QR code for software download
• Blackmagic Design Sticker
• Pelican 1510 Case with custom foam
