Yes Tech - P2.6 MG6S

500 x 500 mm P2.6 MG6S LED display, SMD1515, copper wire, full black LED, indoor (1200 nit).

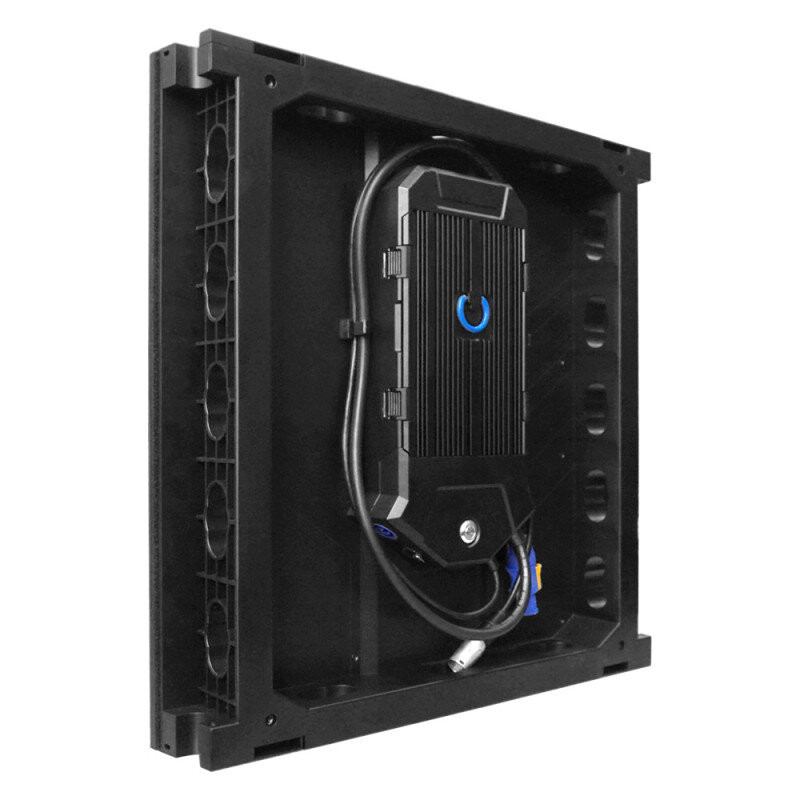

This new cabinet for the creation of LED walls is based on a highly industrialized, simple and elegant project. Modular design is optimized for cable storage; it is stable, safe (thanks to a new corner protection system), convenient. By adopting a nano-technological polymer cabinet, it was possible to keep the weight down to just 5.9 kg per cabinet.

With a totally modular design, the module, the driving card, the receiving board and the power supply are connected via pins and can all be available for front maintenance, as well as the entire cabinet for rear maintenance. The back cover is secured by a buckle which can be quickly disassembled for easy maintenance.

Inside, the cabinet is wireless, for better security and a cleaner layout. The panel is fireproof up to grade V-0. P4.8 MG6S supports flash and intelligent module management and double backup correction data, which makes debugging safer.

Using full black LEDs, high refresh rate high gray ICs and HDR technology, the gray scale can reach 18 bits for significantly improved image quality.

Easy to transport, P2.6 MG6S saves time in installation and is therefore particularly suitable for rental. If used as a sky curtain, the reduced weight makes installation easier and safer. The unique design of the cabinet structure and connector (two-in-one or curved type, both available) allows you to form indoor, outdoor, S-shaped and circular LED walls. The multi-hole frame, along with easy-to-use connectors, allows the modules to be moved left / right, front / back, up / down for the representation of letters, numbers, characters and other creative shapes.

User benefits

• High image quality
• Lightweight and easy-to-transport cabinet
• Easy and quick maintenance
• Low operating temperature of components
• Creative shapes can be created
• High reliability

Areas of use

• Indoor concerts
• Award ceremonies
• Conferences
• Indoor sports events
• Creative installations thanks to the possibility of creating special shapes
