SKU: TL-054B

EAN: 8436554950164


VMB - TL-054B

Frontal load lift, 5.45 m/220kg, ILS Black

In stock - 4 items

1,700.00 €

Product attachments

Download EN ES DE Instruction Manual (PDF format)
Download Certification (PDF format)

Product Details

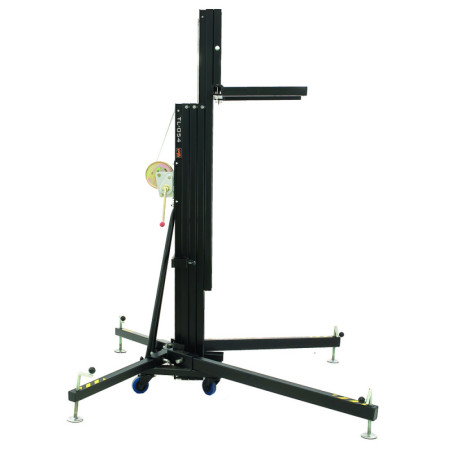

Lifter made with structural steel base and 6082-T6 aluminum alloy for the sections. Designed to lift heavy loads from the ground, and keep them at high altitudes.

This lifting tower is very compact and easy to handle, it has 4 swivel castors on the base and can fit through a door.

Powerful stabilizers in the legs, to level the lifter in difficult terrains, with slight slope.

Black finish, with epoxy powder paint offering great resistance.

It has two adjustable steel load forks that support the load, either supported on top of it, or hung underneath.

VMB offers you a wide range of accessories, which combined with this lifter allows you to increase the number of applications. One of the most used accessories, for example, is the RH-2 transport kit, which serves to tilt the lifter, horizontally and make the transportation in vans, trucks, etc. easier.

The TL-054 features the inertial pendulum ILS safety system. It also has the special SRS Retentor system, patented by VMB, which guarantees that the towerlift’s aluminum sections will rise in order, and most importantly: automatically.

VMB offers you a 2-year warranty and stock of spare parts for 5 years. In addition we have our own factory in Spain, where we offer service to review and repair your lifter.

  • Max. height 5.45 m (17.8′)
  • Max. Load 220 Kg (485 lb)
  • Safety (ILS) Inertia Lock System
  • Work surface 2 x 2m (6.6 x 6.6′)
  • Folded height 1.7m (5.6′)
  • Winch 900 Kg
  • Adaptor Forks 54.5 cm included
  • Weight 87Kg (191lb)
  • Color black
