SKU: H10879
EAN: 4049521304095
Audiophony - iLINE H10879
Stereo sound system, 2 columns + 2 subwoofers, 1020 W
Not available.
delivery is not available for this product.
Free Shipping for order equal or above € 199 are limited for delivery within Europe
Variants of this product
3,690.00 €
Composition stereo 2040W
540.00 €
1000 W wooden line array coloum + subwoofer system, 2 x 8" LF + 8 x 3", DSP, 4 channel mixer, Bluetooth receiver
832.00 €
590 W full-featured high-end active sound system with 4 x 80 W satellites and a 12" subwoofer
748.50 €
3-way column loudspeaker with 2000 W peak power, 130 dB SPL, 12" subwoofer, Class-D bi-amplification (800 W RMS), 6 x 3" mid drivers, 1" neodymium tweeter, DSP, Bluetooth 5.3 with TWS
703.50 €
Active System 2.1 - 1020 W + DSP + Application
Watch it in action
Close the video
Product Details

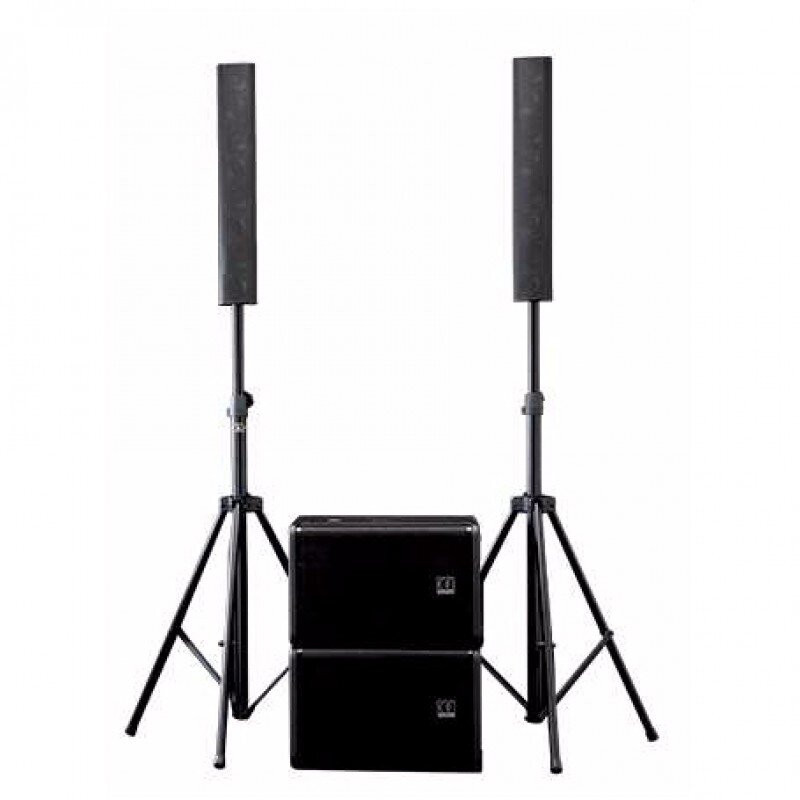

1020 W stereo sound system, consisting of 2 iLINE83 column speakers (H10756), 2 iLINEsub12 A active subwoofers (H10761), 1 USB > RJ45 converter for the DSP of the iLINEsub12A (H10762), 2 CAB-200 (H8245) and 2 CSP215 / 6 (H9841).
Technical characteristics
iLINE83
| Power handling | 160 WRMS / 320 W max. |
| Frequency response | 135 Hz - 17 kHz |
| Sensitivity | 95 dB/W/m |
| SPL max. | 120 dB |
| Nominal impedance | 16 ohm |
| Speakers | 8 x 3" |
| Dispersion (H x V) | 115° x 20° |
| Connectors | Input / output speakON |
| Materials | die-cast aluminium housing, integral steel grill protection |
| Mounting systems | wall mout bracket plate: iLINE83sup mounting socket for speaker stand |
| Dimensions | 11 x 69 x 14.8 cm |
| Net weight | 7.6 kg |
iLINEsub12 A
| Power | 700 W @ 4 ohm + 700 W @ 4 ohm |
| Frequency response | 50 Hz – 200 Hz |
| Axial sensitivity | 96 dB/W/m |
| Max SPL | 124 dB |
| Nominal impedance | 8 ohm |
| Driver | 12" |
| Connectors – input | balanced line-level XLR |
| Connectors – outputs | amplified speakON bass/treble: 1+/1- wideband output – 2+/2- bass output |
| Power supply | IN/OUT on powerCON: 220 – 240 VAC 50/60 Hz 20 A |
| DSP – I/O | IN/OUT on RJ45 plug |
| Amplification – total power | 700 + 700 WRMS @ 4 ohm |
| Amplification – wideband outputs | 700 WRMS @ 4 ohm |
| Amplification – bass outputs | 350 WRMS @ 8 ohm + 350 WRMS @ 8 ohm (internal) |
| Settings – volume | general system level |
| Settings – DSP | 28/56 bit, 50 MIPS |
| System adjustment | via software supplied with the iLINEbox |
| Materials | finnish birch plywood, black polyurea resin, integral metal grid |
| Floorstanding speaker connection | two 35 mm headers with integrated connector |
| Dimensions | 35 × 51.5 × 49 cm |
| Net weight | 23.5 kg |
More..
Show less
Show all attachments
Show less attachments
Stereo sound system, 2 columns + 2 subwoofers, 1020 W
