SKU: H10884
EAN: 4049521700958
Audiophony - iLINE H10884

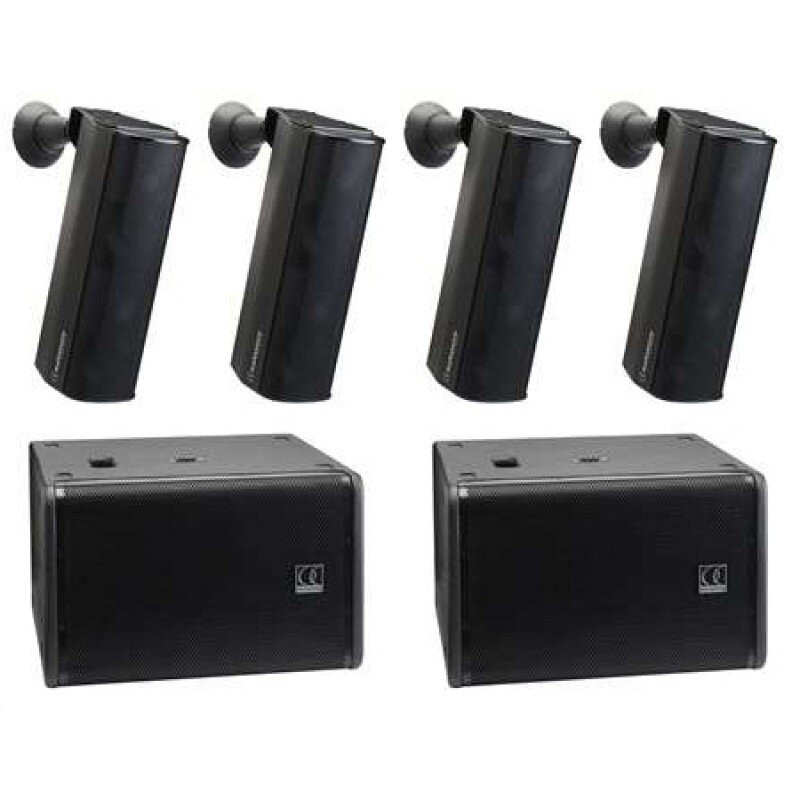

Stereo sound system: 4 x iLINE43 + 4 x iLINE24sup + 2 x iLINEsub12 A + iLINEbox, black color
Available
delivery is available for this product.
This item is currently in stock and will be shipped from our supplier's warehouse in Europe.
Free Shipping for order equal or above € 199 are limited for delivery within Europe
Variants of this product
2,151.00 €
Composition mono 1020W
227.00 €
Column speaker 8" SUB + 4 x 2,5" + MP3/BT player
1,498.50 €
1500 W RMS PA loudspeaker system consisting of 2 x ELO 12 MK2 satellites and 2 x ELO SUB15A MK2 subwoofers, DSP
832.00 €
590 W full-featured high-end active sound system with 4 x 80 W satellites and a 12" subwoofer
2,199.50 €
Stereo sound system, 2 columns + 2 subwoofers, 1020 W
Watch it in action
Close the video
Product Details
2680 W stereo sound system consisting of 4 x iLINE43 column loudspeakers (H10754), 4 x iLINE24sup stands (H10773), 2 x iLINEsub12 A subwoofers (H10761) and 1 iLINEbox USB to RJ45 converter for the DSP of the iLINEsub12 A (H10762).
Technical characteristics
iLINE43
| Power handling | 80 WRMS / 160 W max. |
| Frequency response | 135 Hz - 17 kHz |
| Sensitivity | 92 dB/W/m |
| SPL max. | 114 dB |
| Nominal impedance | 8 ohm |
| Speakers | 4 x 3" |
| Horizontal dispersion | 115° |
| Vertical dispersion | 20° |
| Connectors | IN/OUT speakON |
| Materials | die-cast aluminium housing integral steel grill protection |
| Mounting systems | wall mout bracket plate: iLINE43sup mounting socket for speaker stand |
| Dimensions | 11 x 35 x 14.8 cm |
| Net weight | 4 kg |
iLINE24sup
| Material | steel |
| Finishing | black polyurethane paint |
| Angle | 45° |
iLINEsub12 A
| Power | 700 W @ 4 ohm + 700 W @ 4 ohm |
| Frequency response | 50 Hz – 200 Hz |
| Axial sensitivity | 96 dB/W/m |
| Max. SPL | 124 dB |
| Nominal impedance | 8 ohm |
| Driver | 12" |
| Input | balanced line-level XLR |
| Outputs | amplified speakON bass / treble: 1+/1- wideband output – 2+/2- bass output |
| Power supply | IN/OUT on powerCON: 220 - 240 VAC 50/60 Hz 20 A |
| DSP | yes |
| Input / output | on RJ45 plug |
| Total power available | 700 + 700 WRMS @ 4 ohm |
| Wideband outputs | 700 WRMS @ 4 ohm |
| Bass outputs | 350 WRMS @ 8 ohm + 350 W RMS @ 8 ohm internal |
| Volume | general system level |
| DSP | 28/56 bit, 50 MIPS |
| System adjustment | via the software supplied with the iLINEbox |
| Materials | finnish birch plywood, black polyurea resin, integral metal grid |
| Floorstanding loudspeaker connection systems | two 35 mm headers with integrated connector |
| Dimensions | 35 x 51.5 x 49 cm |
| Net weight | 23.5 kg |
iLINEbox
| Connectors | RJ45, USB B |
| Provided with | USB A / USB B cord |
| Dimensions | 56 x 58 x 23 mm |
| Weight | 65 g |
More..
Show less
Show all attachments
Show less attachments
Stereo sound system: 4 x iLINE43 + 4 x iLINE24sup + 2 x iLINEsub12 A + iLINEbox, black color
