SKU: MICROIPAMP120WI-U

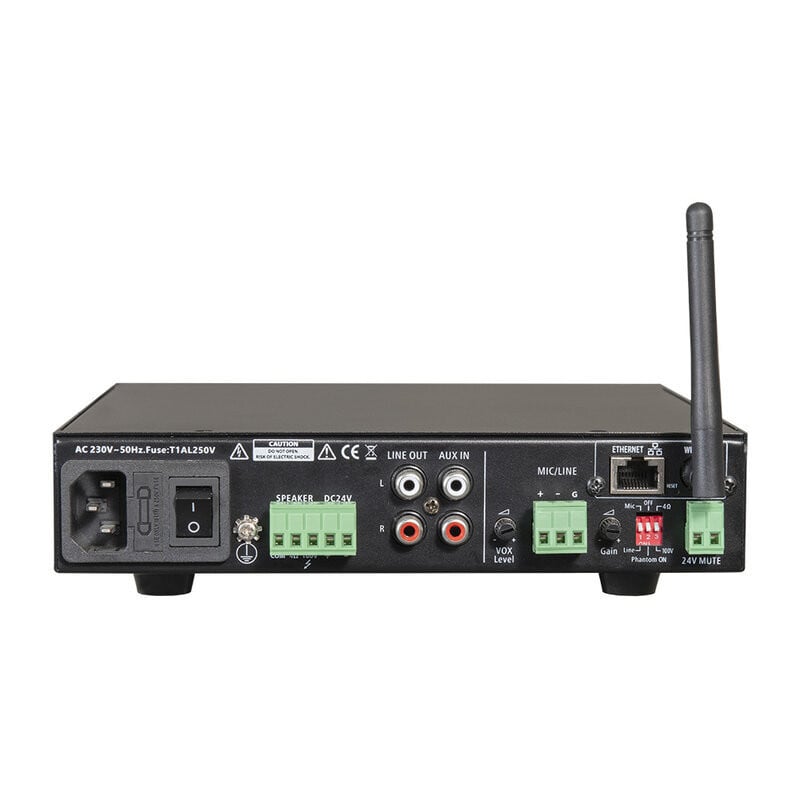

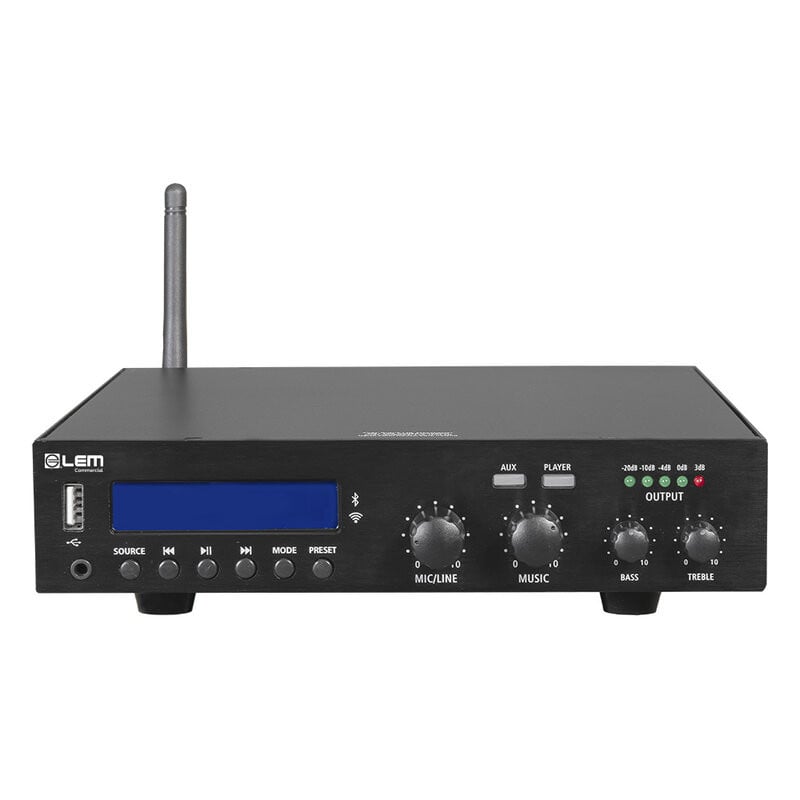

LEM Commercial - Micro ipAMP120wi
Compact Class‑D mixer‑amplifier, 120 W power output, 100 V / 8 ohm, MIC / line inputs, AUX inputs, integrated USB / Bluetooth / FM media player
Prime
fast delivery is available for this product.
This product is available in our warehouses in Italy, therefore it will be delivered within 2 - 5 working days.
Free Shipping for order equal or above € 199 are limited for delivery within Europe
Variants of this product
798.50 €
240 W integrated amplifiers, 100 V line
228.00 €
2 x 60 W 1U rack‑mount mixer / amplifier, 3 MIC / line inputs, 2 AUX inputs, Bluetooth / USB / SD / FM / DAB+ media player
570.50 €
60 W mixing amplifier with integrated FM tuner, MP3, USB, SD and Bluetooth audio source module
1,016.00 €
500 W mixing amplifier with integrated FM tuner, MP3, USB, SD and Bluetooth audio source module
468.00 €
300 W mono power amplifier, 70 - 100 V, Class-D
Product Details
Compact 120 WRMS Class-D mixer amplifier designed for commercial PA applications requiring energy efficiency, reliability, and simplicity. It also operates at 100 V. The half-rack size allows for flexible installation even in very small spaces.
It features a built-in media player with USB, Bluetooth, and FM, as well as one MIC / line input, one line input, and one stereo AUX input.
The MICROIPAMP120WI also includes a 24 V emergency contact that mutes all sources except channel 1, making it suitable for evacuation systems or priority announcements.
User benefits
- Built-in media player with USB, Bluetooth, and FM
- Balanced MIC / line input with selectable phantom power
- 100 V or low-impedance (8 ohms) operation
- 24 V emergency contact for announcement priority
- Ultra-compact 1U rack format for installations with limited space
Areas of use
- Small retail environments
- Offices
- Waiting rooms
- Background music installations
Technical characteristics
- Power output: 120 WRMS (THD < 1%)
- Speaker output: 8 ohm, 100 V
- Line Output: 0 dBV, 600 ohm
- Inputs:
- MIC: –45 dBV unbalanced
- AUX: –10 dBV unbalanced
- Media player: USB player with BT, FM tuner
- Priority: MIC overrides line and media player
- Frequency response: 100 Hz – 20 kHz (±3 dB)
- Distortion: THD+N ≤ 2% @ 1 kHz, at rated power
- S/N ratio: MIC 80 dB, line 82 dB
- Protection circuits: AC fuse, short circuit, overload, overheat
- AC mains: 170 – 260 VAC 50 Hz
- DC power: 24 V
- Dimensions (W × H × D): 21 × 4.4 x 33 cm
- Weight: 2.62 kg
