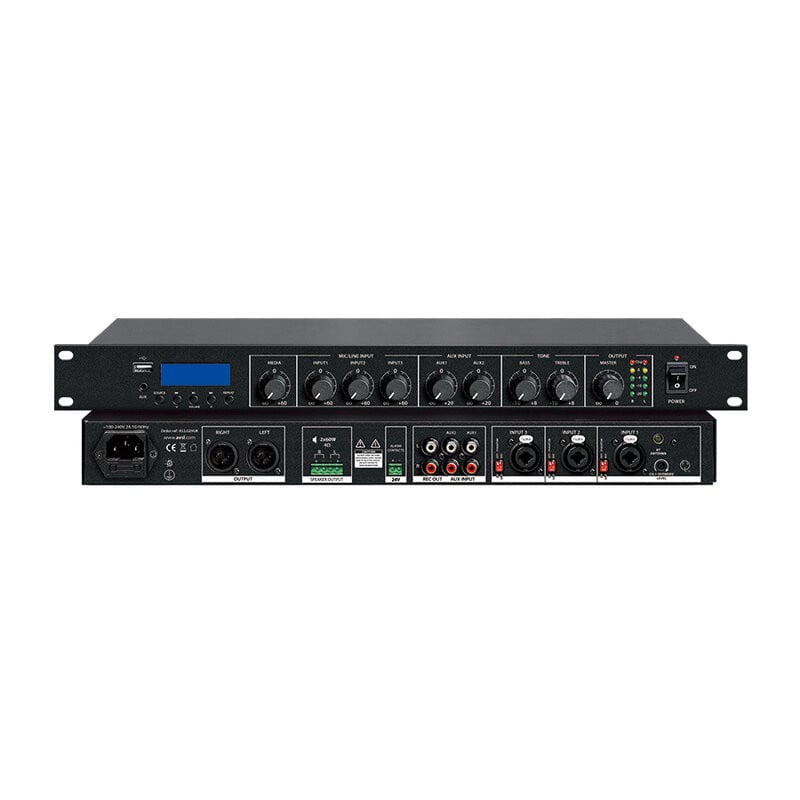

LEM Commercial - Midi ipAMP2.60wi

The MIDIIPAMP2.60WI is a compact mixer / amplifier in a standard 19" 1U rack format designed for sound reinforcement systems in commercial, corporate, and hospitality environments.

It offers three MIC / line inputs with selector and Phantom power, two stereo AUX inputs, an integrated media player with Bluetooth, USB, SD, FM, and DAB+ tuner. It also features XLR pre-balanced outputs and Euroblock terminals for connecting low-impedance (4 ohm) loudspeakers.

The front panel includes dedicated controls for each of the three inputs, bass / treble EQ, media player volume control, and a master level with LED VU meters for instant monitoring. The media player section allows complete management of digital sources, while the 24 V emergency contact allows integration with alarm systems, ensuring channel 1 priority in case of emergency.

Thanks to its 2 x 60W power and rugged construction, the MIDIIPAMP2.60WI is ideal for fixed installations where reliability, Versatility and audio quality are important.

User benefits

• 3 MIC / line inputs with selectable phantom power for maximum operational flexibility
• Integrated media player
• Balanced outputs and low-impedance speaker terminals (2 x 60 W)
• 1U rack-mount format, ideal for installations with limited space

Areas of use

• Shops, supermarkets, and shopping centers
• Hotels, restaurants, bars
• Conference rooms, meeting rooms, and corporate offices
• Schools, public facilities
• Places of worship
• Museums, showrooms, and exhibition spaces
• PA installations for background music and announcements

Technical characteristics

• Power supply: 100 – 240 V_AC 50/60 Hz
• Fuse: T2AL
• Inputs: 3 x XLR / jack (balanced / unbalanced) MIC / line; 2 x AUX L+R RCA; 3.5 mm mini-jack to media player
• Audio source: internal Bluetooth, USB, FM & DAB+ player
• Output power: 2 × 60 W_RMS on 4 ohms
• Loudspeaker outputs: L+/L– and R+/R– screw terminals (Euroblock)
• Line outputs: L+R XLR; record OUT (RCA)
• Emergency control: 24 V contacts mute all except channel 1
• Phantom power: +20 V (switchable on channels 1 – 3)
• Input impedance: 2.2 kohm (MIC / line); 10 kohm (AUX)
• Controls: media, 3 x MIC / line, 2 x AUX, Treble, Bass, Master level
• Rear panel controls: CH.1 override level; MIC / line and Phantom DIP switches
• Frequency response:
  • MIC: 20 Hz – 18 kHz
  • Line: 14 Hz – 20 kHz
  • AUX: 10 Hz – 23 kHz
• Input sensitivity (MIC): –45 dBV
• Input sensitivity (AUX / line): –10 dBV
• SNR (MIC): 55 dB
• SNR (AUX / line): 60 dB
• Dimensions: 48.2 x 4.4 x 13 cm
• Weight: 1.96 kg
