RGBlink - mini2022

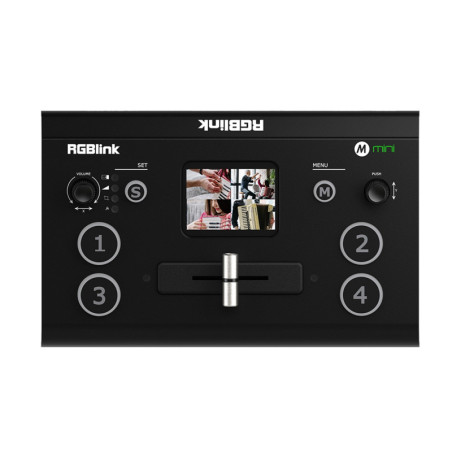

With all the features of the previous model, including the exclusive built-in 2.1" TFT LCD preview display, the mini RGBlink mini switcher for streaming features 4 high-definition HDMI inputs, a configurable HDMI output and a streaming output USB 3.0 to connect with virtually any laptop or streaming platform. It allows image scaling and cropping, Logo overlay, 6 transition effects, 6 image multi-view, preview and schedule switching, etc. The PiP function gets a boost in this new version, with two fully scalable video windows to any possible position. Take advantage of audio from multiple sources with the mix, including Line and TRRS mini-jack connectors for stereo + microphone, as well as support for headphone/microphone combinations. Mini is powered through the standard USB-C port for even greater compatibility and live mobile flexibility. Lightweight (only 480g) and robust thanks to an all-new precision impact-resistant die-cast ABS housing, with industry-leading hardware performance and reliability, the mini is the must-have mini streaming switcher.

• 4 HDMI inputs, 1 HDMI output
• 6 images multi-view, switch between preview and program
• 2.1 in TFT full color screen
• Support MIC and LINE audio input, multi-channel mix audio
• Image scaling & croping
• Support PIP,PBP
• Support T-Bar switch
• 6 transition effects
• LOGO overlay
• Support PC and APP control
• Optimized heat management and dissipation
• Integrated design, easy to carry

Interface

• Input: HDMI 1.3 4×HDMI-A
• Output: HDMI 1.3 1×HDMI-A / USB 3.0 1×USB-A
• Audio: In 1×3.5 mm audio jack / Out 1×3.5 mm audio jack
• ​Communication: LAN 1×RJ45
• ​Power Type-C 1×USB-C

Performance

• Input Resolution
  • HDMI
  • SMPTE 720p @ 50/60 | 1080i @ 50 | 1080p @ 23.98/24.97/50/59.94/60
  • VESA 1024x768 @ 60 | 1280x720 @ 60 | 1280x768 @ 60 | 1280x1024 @ 60 | 1360x768 @ 60 |
  • 1366x768 @ 60 | 1440x900 @ 60 | 1600x1200 @ 60 | 1680x1050 @ 60 | 1920 x 1080 @ 60
• Output Resolution
  • HDMI
  • SMPTE 720p @ 50/60 | 1080p23.98/24.97/50/59.94/60
  • VESA 1024x768 @ 60 | 1080x768 @ 60 | 1080x1024 @ 60 | 1360x768 @ 60
• Support Standards
  • HDMI 1.3
  • H.265 ITU-T H.265/ISO/IEC 23008-2
  • USB 3.0
• Ethernet 10/100/1000BaseT
• Color Space YPbPr
• Grayscale Processing 10bit
• Video Sampling  YUV 4:2:2
• ​Latency <4 frames
• ​Audio in Delay Up to 8 frames
