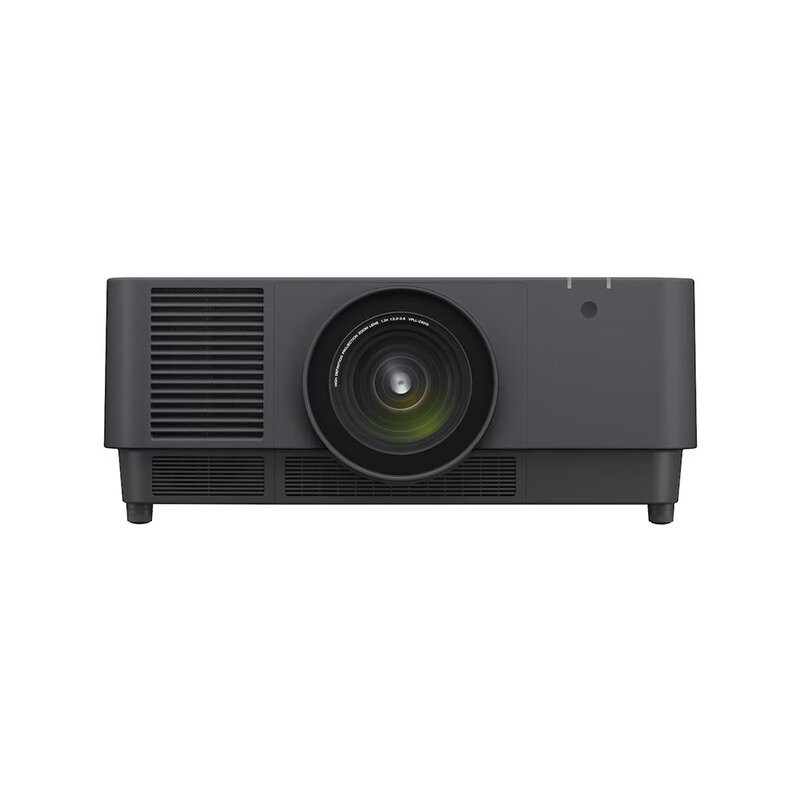

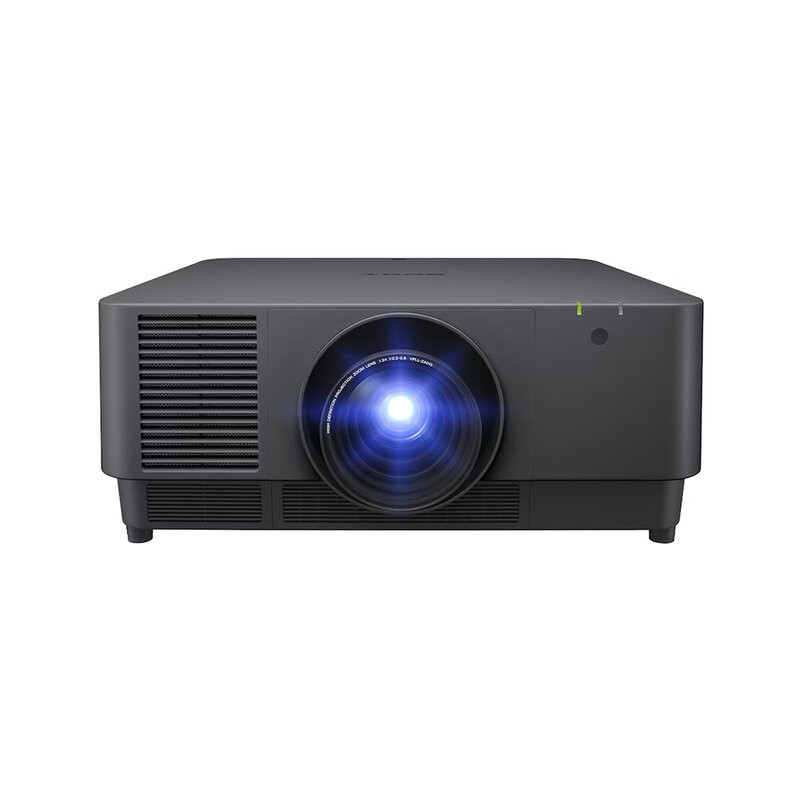

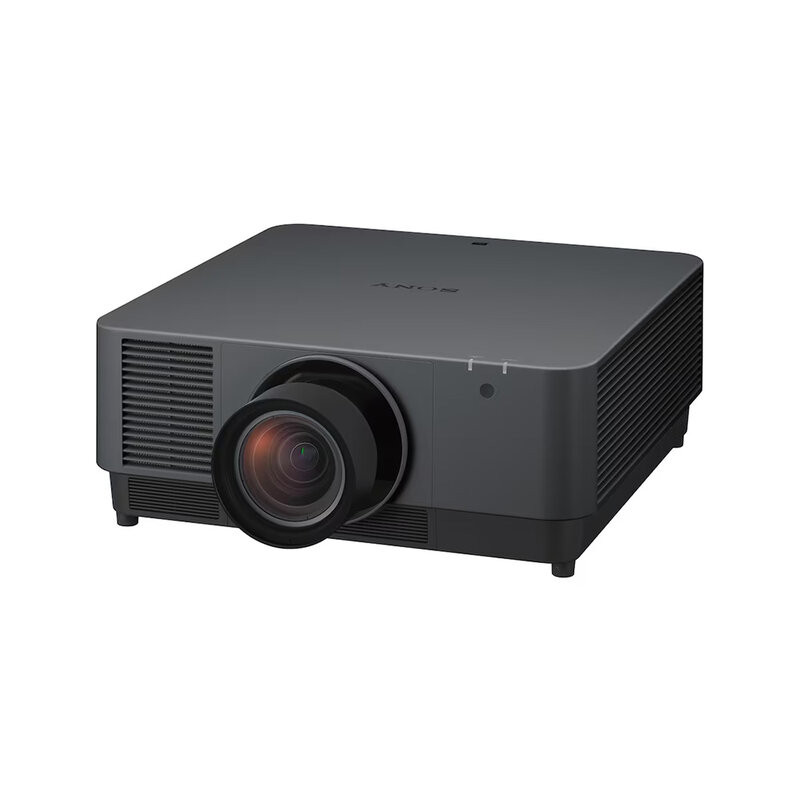

Sony - VPL-FHZ91L/B/1

The VPL‑FHZ91L is a high-brightness 3 LCD laser projector designed for professional installations in large venues.

With 9000 lumens of light output (9800 lumens in the center), it delivers crisp, impactful images even in brightly lit spaces. Visual quality is further enhanced by exclusive Reality Creation technology, which uses a powerful pattern-matching database to optimize lower-resolution images and improve clarity without adding digital noise. The laser light source ensures up to 20,000 hours of operation with consistent brightness over time and requires minimal maintenance compared to traditional projectors.

Installation is simple and flexible thanks to intelligent settings that automatically adjust brightness, cooling, and color, as well as compatibility with a wide range of interchangeable lenses and a generous lens shift that allows projection to be adapted to different environments, including rooms with high ceilings or multi-screen setups.

The elegant, unobtrusive design easily integrates into any space, while network capabilities allow control and monitoring via systems such as Crestron Connected and Extron XTP. The VPL‑FHZ91L is a versatile and reliable solution for those seeking high performance, high-impact images, and operational continuity in professional AV installations.

Supplied without lens.

User benefits

• Brighter images thanks to the laser light source
• Reality Creation technology optimizes lower-resolution content for improved clarity
• Quick and easy setup
• Great installation flexibility thanks to the wide lens shift adjustment
• Lens position memory
• Reduced maintenance
• Networked control and monitoring
• Control possible using third-party RS232C protocols

Areas of use

• Conference rooms
• Auditoriums
• Art galleries
• Museums
• Visitor attractions
• Large venues in general

Technical characteristics

Display

• Display system: 3 LCD system
• Size of effective display area: 3 x 1” BrightEra LCD panel, aspect ratio: 16:10
• Number of pixels: 6,912,000 (1920 x 1200 x 3) pixels

Projection lens

• Not supplied

Light source

• Light source: laser diode

Filter replacement cycle (max.)

• 10,000 hrs (service maintenance)

Screen size

• Depend on Lens

Light output

• Mode standard: 9000 lm / 9800 lm (center)
• Mode middle: 8000 lm
• Mode low: 7000 lm

Color light output

• ​Mode standard: 10,000 lm
• ​Mode middle: 8800 lm
• Mode low: 7700 lm

Contrast ratio (full white / full black)

• Contrast ratio (full white / full black): ∞:1

Displayable scanning frequency

• Horizontal: 15 to 92 kHz
• Vertical: 48 to 92 Hz

Keystone correction (max.)

• Keystone correction (max.): horizontal: ±30°, vertical ±30°

Accepted signal resolution

• Computer signal input: max. signal resolution 1920 x 1200
• Video signal input: 480i 60, 576i 50, 480p 60, 576p 50, 720p 60, 720p 50, 1080i 60, 1080i 50

​​Input / output

• INPUT A: RGB / Y PB PR input connector: 5 BNC (F.)
• INPUT B: RGB input connector: mini D-sub 15-pin (F.)
• INPUT C: DVI input connector: DVI-D 24-pin (single link), HDCP support HDCP: v1.4
• INPUT D: HDMI input connector: HDMI 19-pin, HDCP support HDCP: v1.4
• INPUT E: HDBaseT interface connector: RJ45, 3 play
• INPUT F: optional adaptor slot for 3G-SDI input adaptor (BKM-PJ20)
• INPUT G: HTML viewer
• OUTPUT: monitor output for input A / input B connector: mini D-sub 15-pin (F.)
• REMOTE: D-sub 9-pin (M.) / RS232C
• USB-1: Type-A x 1
• USB-2: Type-B x 1 (for service)
• LAN: RJ45, 10/100/1000BASE-T

Acoustic noise

• Light output mode standard: 39 dB
• Light output mode middle: 39 dB

Operating temperature / humidity

• Operating temperature: 0 to 45 °C
• Operating humidity: 20 to 80% (no condensation)

Storage temperature / humidity

• Storage temperature: -10 to 60 °C
• Storage humidity: 20 to 80% (no condensation)

Power requirements

• 100 - 240 V_AC 8.4 A to 3.4 A, 50/60 Hz

Power consumption

• 220 to 240 V_AC: 814 W

Power consumption (standby mode)

• 220 to 240 V_AC: 0.5 W (when “Standby mode” is set to “Low”)

Power consumption (networked standby mode)

• 220 to 240 V_AC: 21.3 W (LAN), 26.5 W (HDBT), 26.6 W (all terminals and networks connected, when "Standby Mode" is set to "Standard")

Standby mode / networked standby mode activated

• Approx. 2 minutes

Heat dissipation

• 220 to 240 V_AC: 2777 BTU/h

Supplied accessories

• Remote commander RM-PJ30

Optional lenses

• VPLL-Z4107, VPLL-4008, Z4111, Z4015, Z4019, Z4025, Z4045

Dimensions & weight

• Dimensions (W x H x D, without protrusions): 54.4 x 20.5 x 56.4 cm
• Weight: 26 kg
