ACCSOON - Accsoon CineView M7

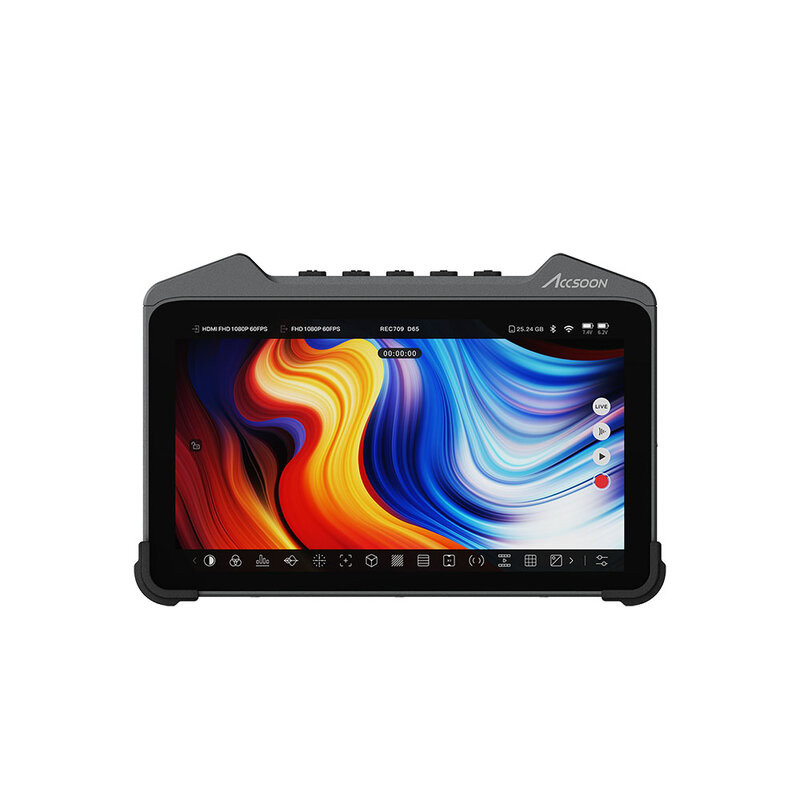

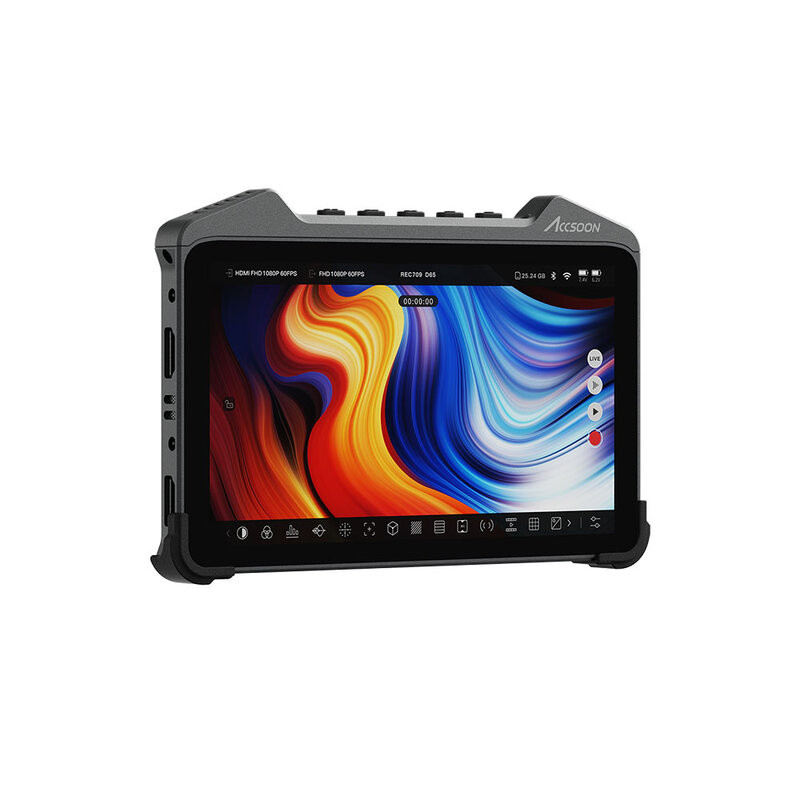

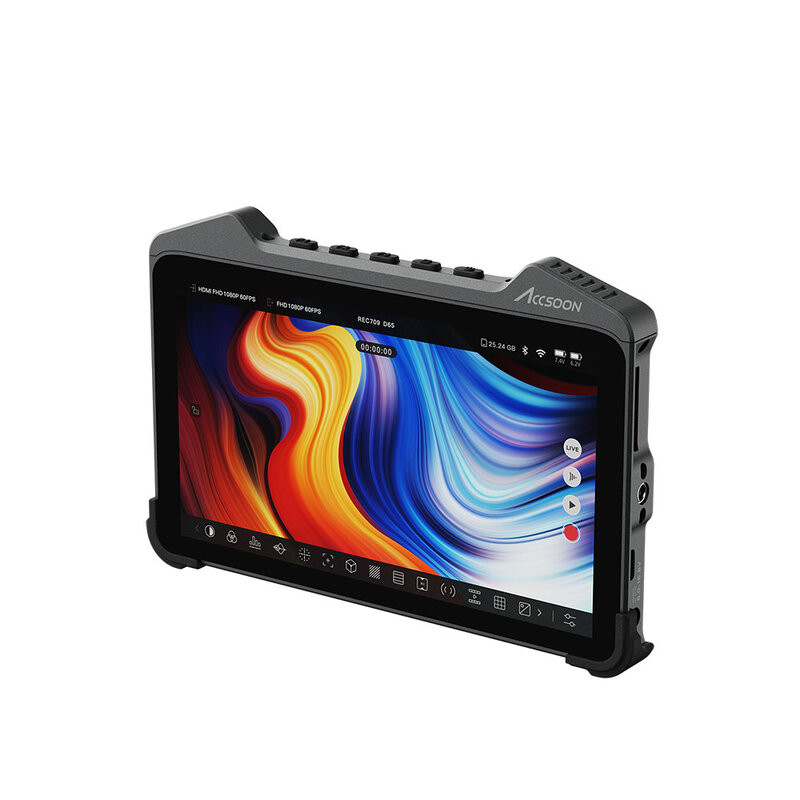

Accsoon CineView M7 is a 7" "smart" LCD touch monitor with 1920 x 1200 pixel resolution and built-in Wi-Fi 6 to live stream from your camera, with any RTMP or SRT protocol, to YouTube or Facebook. Equipped with a high performance chipset, CineView M7 combines professional monitoring tools with advanced video features, expanding the possibilities of on-set workflows.

It is designed to offer an intuitive Android-based interface, with a series of visual assistance tools that can be easily activated via the display. The monitor supports internal recording of the video signal in H.264 or H.265 format with a maximum bitrate of 50 Mbps, allowing files to be saved to internal memory, SD card or external SSD via USB Type-C 3.0. You can choose the destination of the recording files, which can be HD or 4K.

It can be used as a director's monitor, or as a true camera monitor with cinema-level color accuracy. Each unit is in fact subjected to precision calibration to ensure precise control over each frame while meeting different shooting needs.

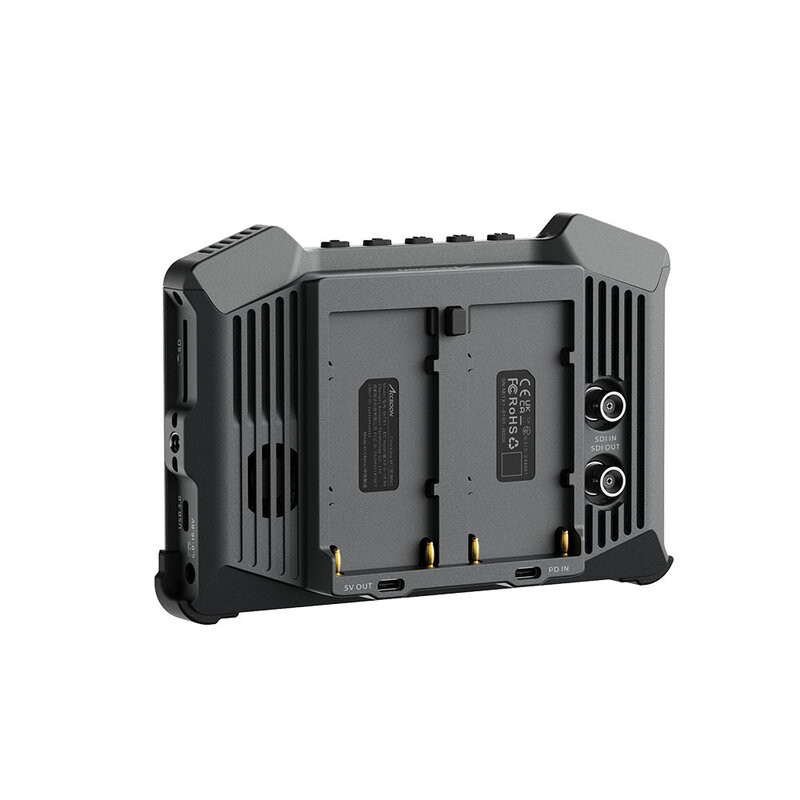

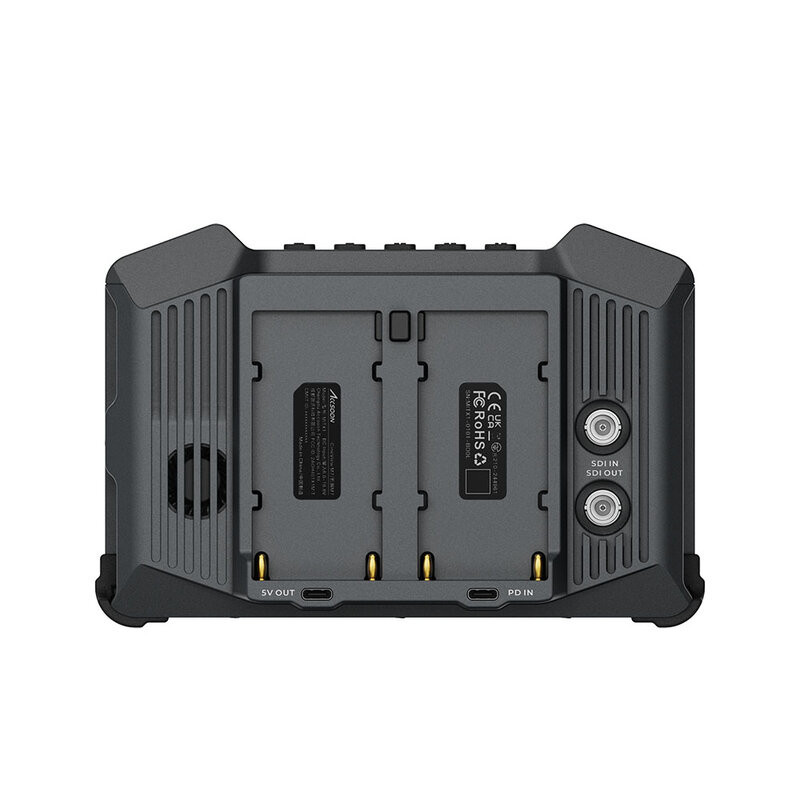

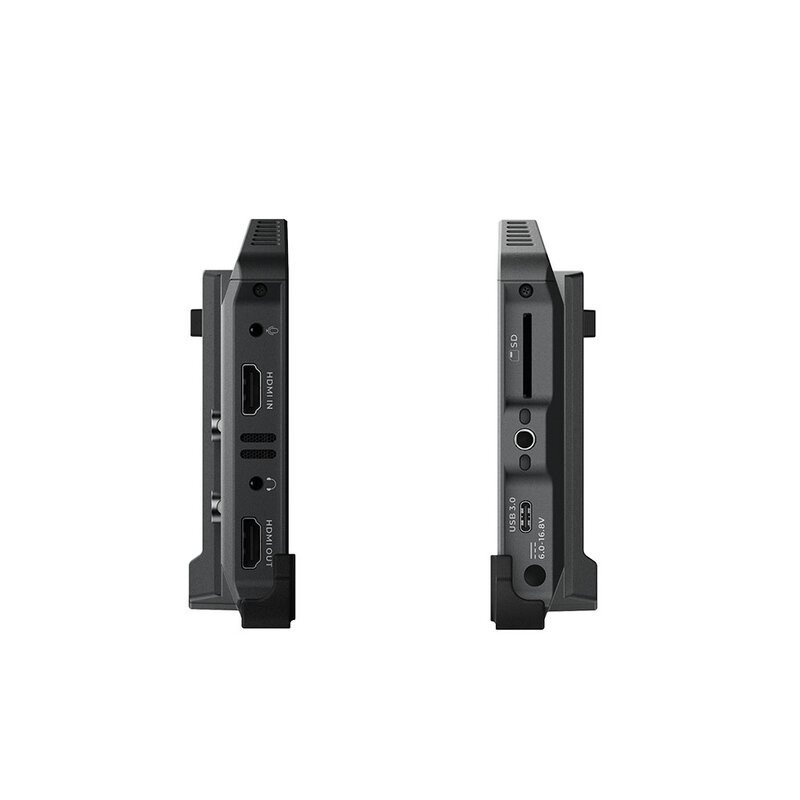

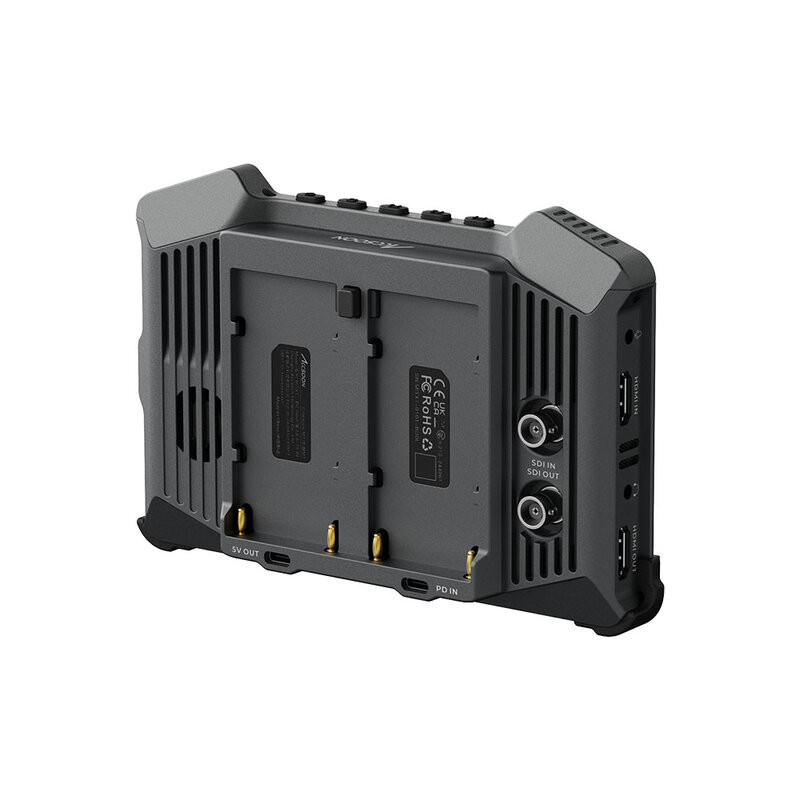

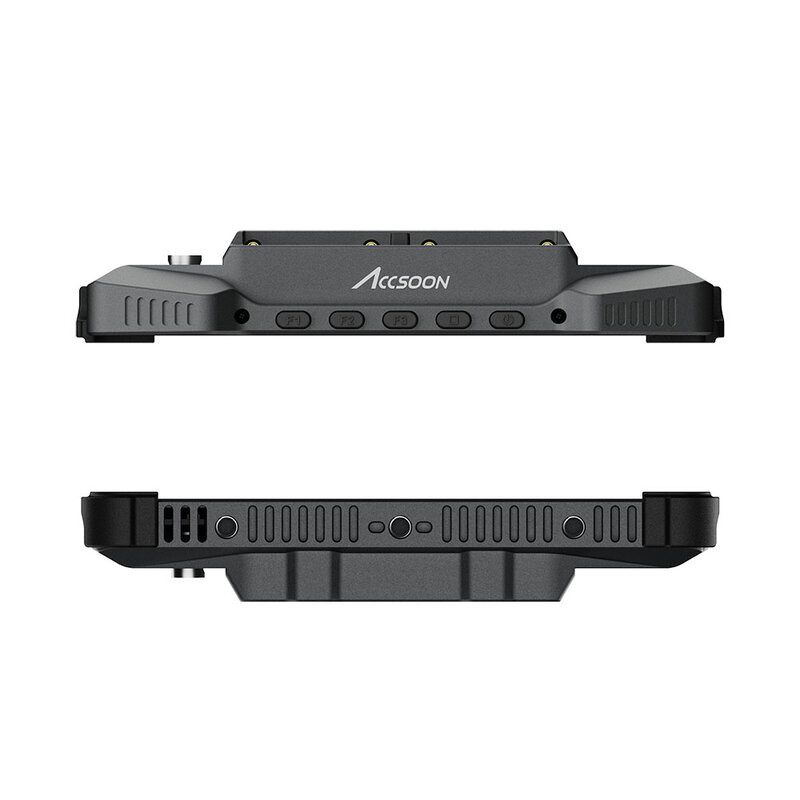

It features HDMI and SDI inputs and outputs, as well as a 3.5 mm headphone jack and microphone input. For power, it offers multiple options including DC power, dual NP-F battery slots and USB-C PD port. The monitor body is robust, very thin, and features mounting threads for greater installation flexibility.

User benefits

• Precise color fidelity for professional monitoring
• 4K60 video inputs and outputs
• SDI and HDMI cross conversion
• Simultaneous SDI and HDMI outputs
• HD / 4K video up / down conversion
• SD card support
• LUT box | real-time viewing application
• Microphone and headphone jacks
• USB 3.0 for external storage
• Supports PD, DC and NP-F power
• Streaming, uploading to cloud, sharing via built-in Wi-Fi

Areas of use

• On-set monitoring, ideal for checking shots in real time
• Professional multi-camera setups
• Mobile productions
• Instant review of shots

Technical characteristics

• Display screen: 7” LCD
• Touchscreen: ultra high resolution capacitive touchscreen
• Resolution: 1920 × 1080 pixels
• Aspect ratio: 16:9
• PPI: 323
• Brightness: 1000 nits
• Contrast ratio: 1000:1
• Viewing angle: 176° / 176°
• Backlight type: edge-lit ultra-transparent LED backlight
• Screen color calibration: supported
• LUT: 1D and 3D Cube LUTs supported (1D: up to 4096 points, 3D: up to 127 points)
• Video input port: HDMI 2.0 / 3G-SDI
• Video output port: HDMI 2.0 / 3G-SDI
• HDMI video input format:
  • 4K DCI (4096 x 2160): 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
  • 4K UHD (3840 x 2160): 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
  • 1080p: 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
  • 1080i: 50 / 59.94 / 60
  • 720p: 50 / 59.94 / 60
• SDI video input format:
  • 1080p: 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 (Level A/B)
  • 1080i: 50 / 59.94 / 60
• HDMI video output format:
  • 4K DCI (4096 x 2160): 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
  • 4K UHD (3840 x 2160): 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
  • 1080p: 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
  • 1080i: 50 / 59.94 / 60
  • 720p: 50 / 59.94 / 60
• SDI video output format:
  • 1080p: 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 (Level A)
  • 1080i: 50 / 59.94 / 60
• DC port: 6.0 - 16.8 V, 5.5 x 2.1 mm, center positive
• Compatible battery: NP-F550, NP-F750, NP-F970
• USB-C power input port: PD 3.0 (9 V 3 A, 12 V 3 A, 15 V 3 A)
• USB-C power output port: max. 5 V / 2 A
• Headphone mini-jack: 3.5 mm CTIA
• Microphone mini-jack: 3.5 mm TRS
• Microphone input audio sampling: 16 bit, 48 kHz
• Power consumption: 12 - 28 W (varies according to actual usage)
• Housing: aircraft-grade aluminium alloy
• Heat dissipation: active + passive cooling
• Work environment temperature: -10 to 40 ℃
• Dimensions: 18.22 × 12.07 × 3.15 cm
• Weight: 476 g
