ACCSOON - Accsoon CineView M7 Pro

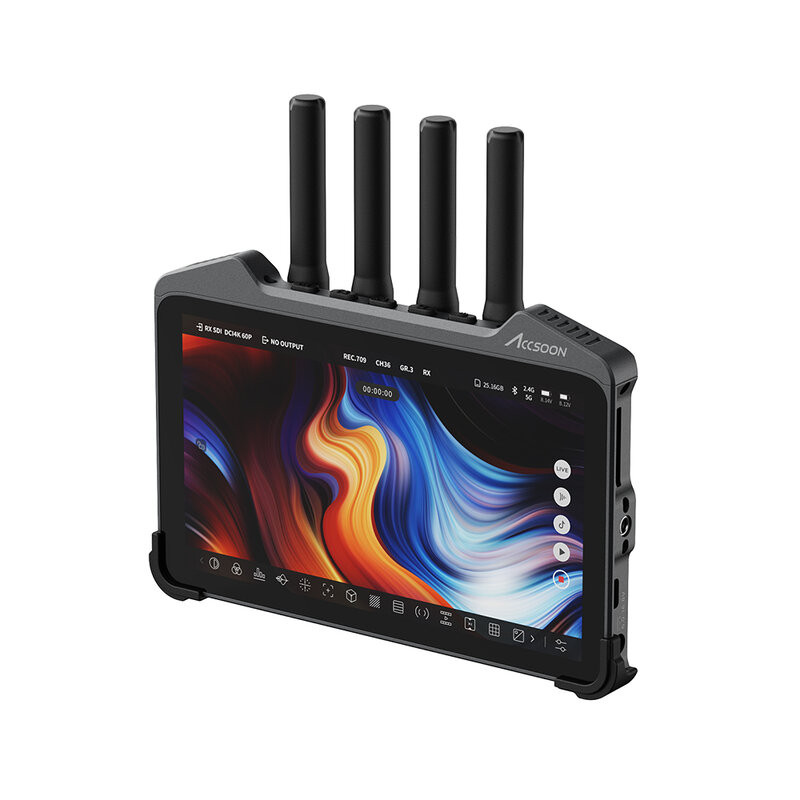

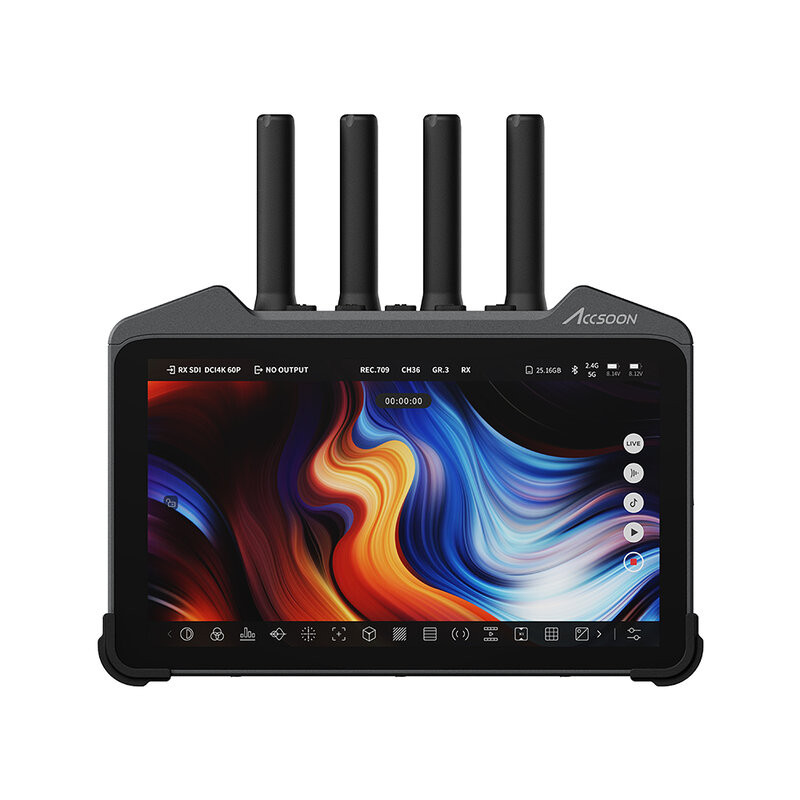

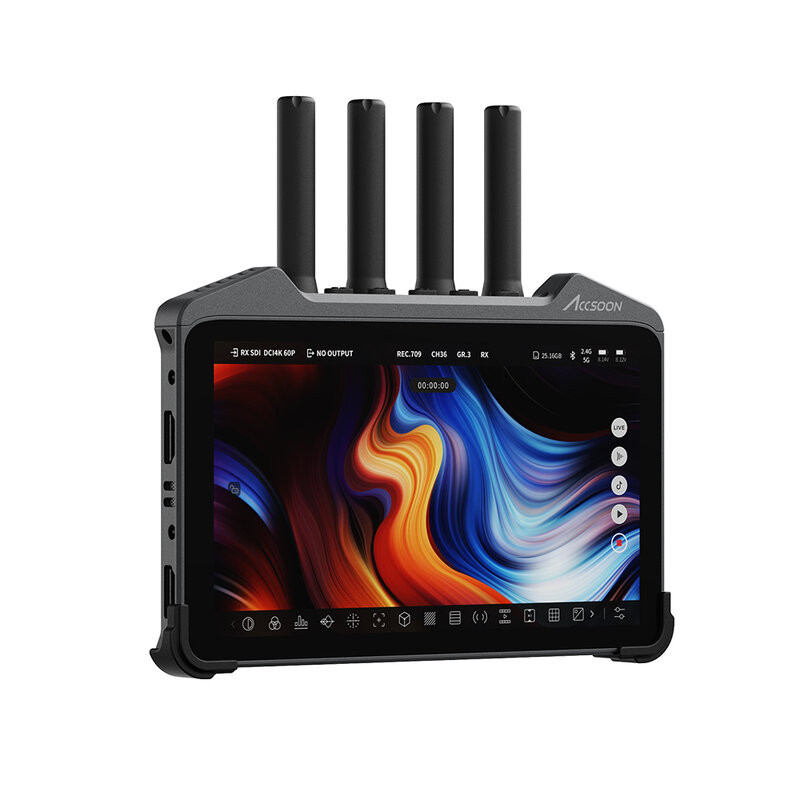

The CineView M7 Pro is a 7" LCD touchscreen monitor with 1920 x 1200 pixel resolution, 1000 nits of brightness, and built-in Wi-Fi 6, designed for professional on-set monitoring. It can be configured as a video transmitter or receiver, integrating with other Accsoon devices to create flexible and reliable wireless workflows, becoming the connection point for the entire CineView ecosystem.

Compared to the base model, the M7 Pro features a dedicated video transmission module that allows you to simultaneously receive and transmit up to 4K signals to four receivers, including other M7 Pro monitors, CineView Master 4K monitors, or mobile devices via the Accsoon SEE app, with approximately 60 ms latency and a line-of-sight range of up to 350 meters. It supports live streaming to YouTube, Facebook, or RTMP/SRT servers, and offers internal recording in H.264 or H.265 at up to 50 Mbps, saving to internal memory or SD card. or external SSD via USB-C 3.0. Recorded files can be played back directly on the monitor or sent to an external display via HDMI or SDI. Automatic transfers to networked computers via Wi-Fi are also possible, enabling true camera-to-cloud functionality.

With the latest firmware update, the CineView M7 series also introduces native integration with Adobe Frame.io, making the monitor a connected production node. Thanks to the internal Android system, the M7 Pro can upload recorded files directly to the cloud, manage a dedicated upload queue, and automatically resume transfers in the event of network interruptions. An upload history section allows you to check the status of files, review completed files, and restart any failed transfers, dramatically reducing the steps between acquisition and remote review and integrating the monitor into professional camera-to-cloud workflows.

The monitor also includes remote control of compatible cameras (Canon and Sony), with adjustment of ISO, aperture, focus, and recording start directly from the touchscreen, via IP or USB connection. It offers professional visual assistance functions such as Waveform, false color, peaking, and real-time 3D LUT support, as well as advanced tools like clipping-free zoom in, vertical desqueeze for anamorphic effects, a safe zone to prevent UI overlap, updated aspect ratio presets, and background customization in the SEE app. Factory color calibration and high brightness make it ideal as a director's monitor or on-camera viewfinder, even when working on location.

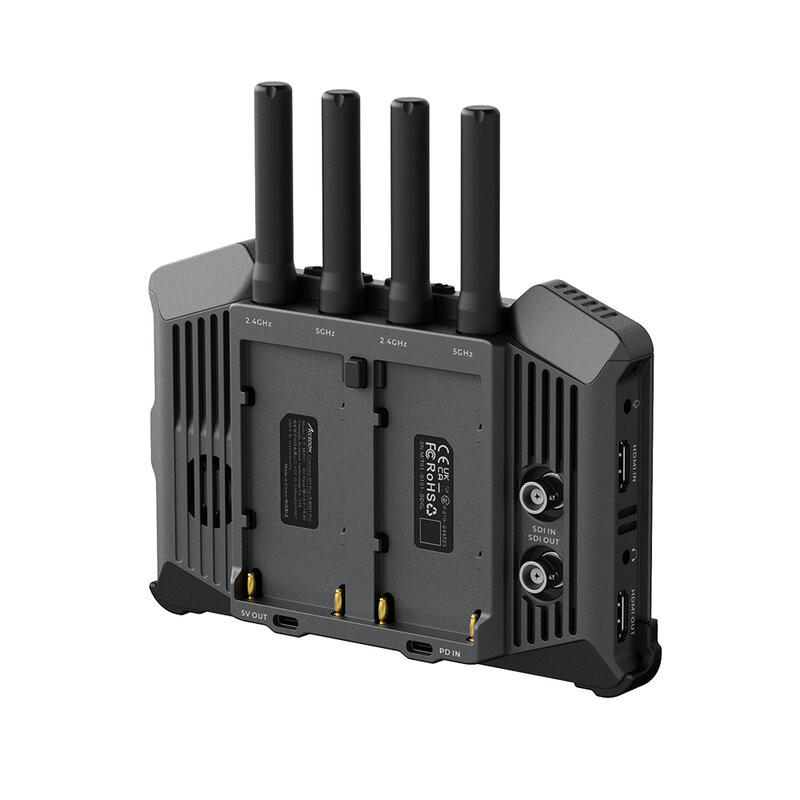

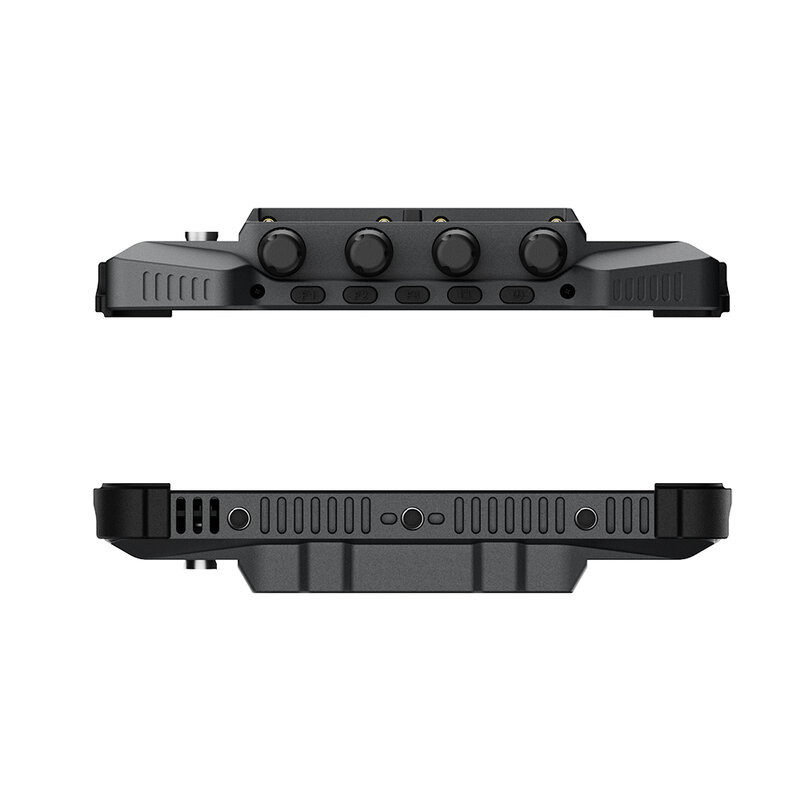

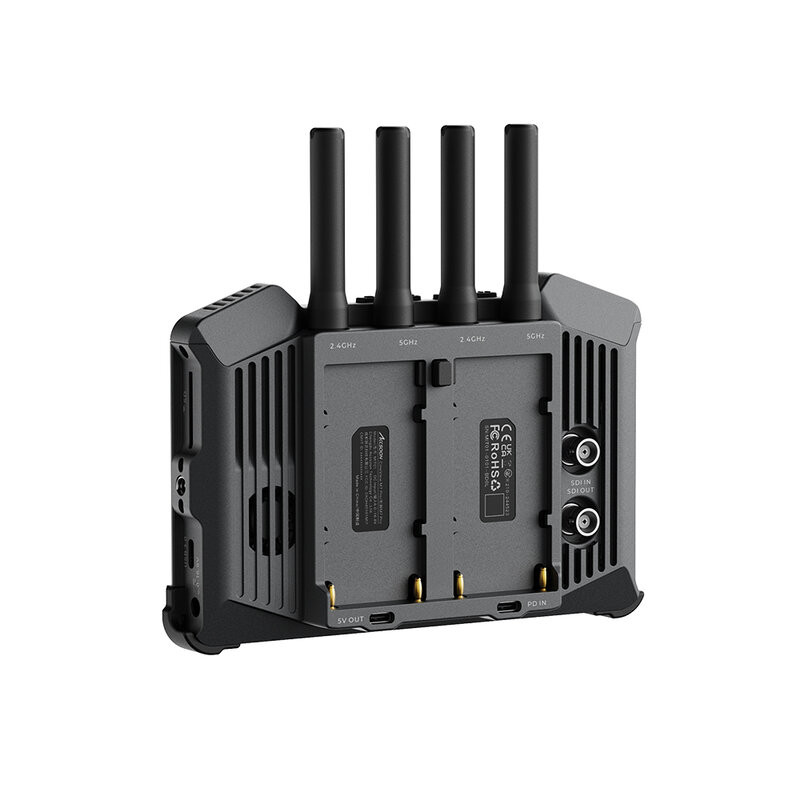

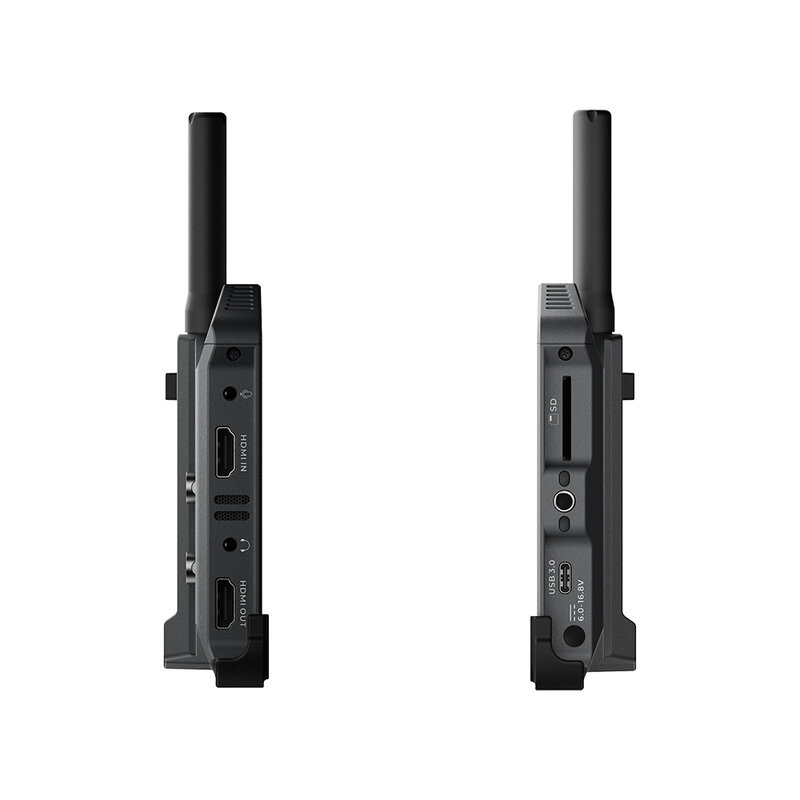

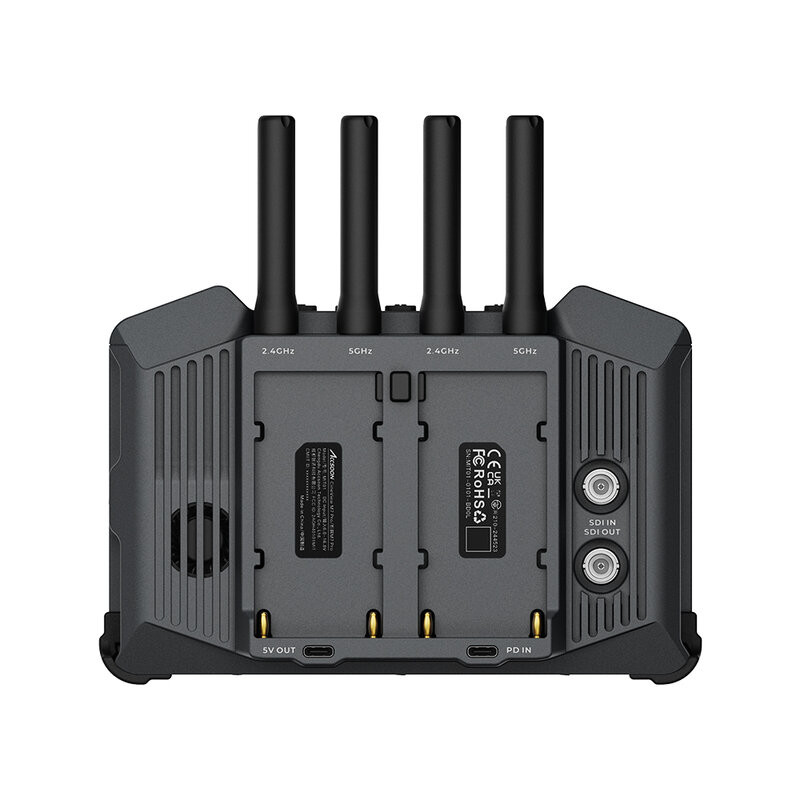

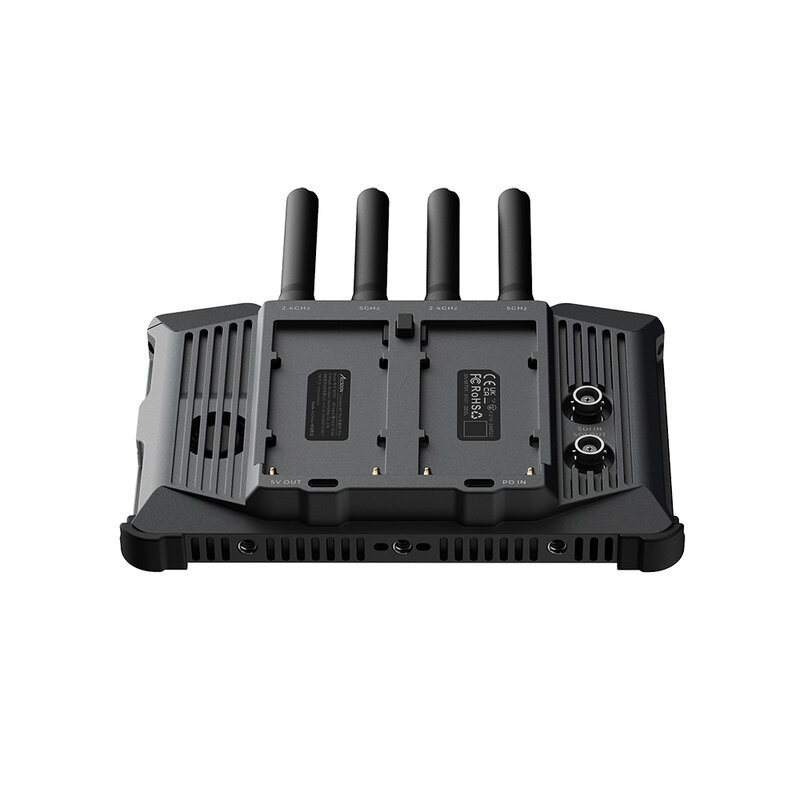

It features HDMI and SDI inputs and outputs with cross conversion (e.g., 1080p SDI input > 4K HDMI output) and up/down scaling between HD and 4K. It also includes a 3.5 mm headphone mini jack, microphone input, dual hot-swappable NP-F battery slots, DC power, and USB-C PD, ensuring continuous operation while streaming and shooting. The slim, rugged body features multiple mounting threads for versatile installation on a camera, rig, or stand.

User benefits

• Built-in video transmission module with four Antennas for wireless reception and transmission
• CineView system compatibility, allowing reception of signals from Accsoon transmitters
• Remote control of Canon and Sony cameras via touchscreen
• Precise color fidelity for professional monitoring
• 4K 60Hz video inputs and outputs
• SDI and HDMI cross-conversion
• Simultaneous SDI and HDMI outputs
• HD/4K video up/down conversion
• SD card support
• LUT box | real-time viewing application
• Clipping-free zoom-in and vertical de-squeeze
• Safezone for camera interfaces and updated aspect ratio presets
• Microphone and headphone jacks
• USB 3.0 for external storage
• Supports PD, DC, and NP-F power
• Streaming, cloud upload, and sharing via built-in Wi-Fi
• Native integration with Frame.io with direct upload, automatic transfer resume, and upload queue management

Areas of use

• On-set monitoring, ideal for checking shots in real time
• Professional multi-camera setups
• Mobile productions
• Instant review of footage
• Remote and synchronized camera control
• Advanced wireless video transmission

Technical characteristics

• Display screen: 7” LCD
• Touchscreen: ultra high resolution capacitive touchscreen
• Resolution: 1920 × 1080 pixels
• Aspect ratio: 16:9
• PPI: 323
• Brightness: 1000 nits
• Contrast ratio: 1000:1
• Viewing angle: 176° / 176°
• Backlight type: edge-lit ultra-transparent LED backlight
• Screen color calibration: supported
• LUT: 1D and 3D Cube LUTs supported (1D: up to 4096 points, 3D: up to 127 points)
• Video input port: HDMI 2.0 / 3G-SDI
• Video output port: HDMI 2.0 / 3G-SDI
• HDMI video input format:
  • 4K DCI (4096 x 2160): 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
  • 4K UHD (3840 x 2160): 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
  • 1080p: 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
  • 1080i: 50 / 59.94 / 60
  • 720p: 50 / 59.94 / 60
• SDI video input format:
  • 1080p: 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 (Level A/B)
  • 1080i: 50 / 59.94 / 60
• HDMI video output format:
  • 4K DCI (4096 x 2160): 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
  • 4K UHD (3840 x 2160): 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
  • 1080p: 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
  • 1080i: 50 / 59.94 / 60
  • 720p: 50 / 59.94 / 60
• SDI video output format:
  • 1080p: 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 (Level A)
  • 1080i: 50 / 59.94 / 60
• DC port: 6.0 - 16.8 V, 5.5 x 2.1 mm, center positive
• Compatible battery: NP-F550, NP-F750, NP-F970
• USB-C power input port: PD 3.0 (9 V 3 A, 12 V 3 A, 15 V 3 A)
• USB-C power output port: max. 5 V / 2 A
• Headphone mini-jack: 3.5 mm CTIA
• Microphone mini-jack: 3.5 mm TRS
• Microphone input audio sampling: 16 bit, 48 kHz
• Power consumption: 12 - 28 W (varies according to actual usage)
• Housing: aircraft-grade aluminium alloy
• Heat dissipation: active + passive cooling
• Wireless transmission latency: 60 ms
• Wireless transmission distance: dual-band connection 350 m
• Work environment temperature: -10 to 40 ℃
• Dimensions: 18.22 × 12.07 × 3.15 cm
• Weight: 494.3 g
