ACCSOON - CineView Master 4K II RX (RX Only)

This AV receiver is part of Accsoon's new CineView Master 4K II wireless system, the top-of-the-line system from Accsoon, offering DCI 4K video quality at 60 fps for crisp, smooth on-site monitoring.

It uses 2.4, 5, and 6 GHz tri-band transmission technology to ensure a stable and robust connection with a latency of just 25 ms from input to output. Based on Accsoon's proprietary RTMS 4.0 protocol, this technology enables intelligent dynamic adjustment of audio and video data across three bands, promising greater robustness, faster connection times, lower latency, and the ability to easily handle multiple connections. Accsoon developed the proprietary RTMS 4.0 protocol to work with the new high-performance 8K-capable A/V processor. Together, the protocol and processor represent a remarkable 400% increase in processing power.

The receiver allows you to choose between monitoring in DCI 4K or 1080p, which is useful for directors who need a sharper image, and for camera operators who want even greater range and slightly lower latency in 1080p.

The CineView Master 4K II features clean, modern design and is built to withstand heavy production use. It's also optimized for heat dissipation, with the option to reduce fan speed or even turn it off for audio-critical scenarios. Finally, it can be powered using NP-F batteries or a 12VDC power supply.

Connectivity-wise, it offers 3G SDI output, HDMI 2.0 up to DCI 4K 60 fps, and an MFi-certified USB-C port for wired video output to an iPhone/iPad—a new addition to the 4K II version.

Please note: The battery and power supply are not included.

User benefits

• DCI 4K 60 fps video reception
• 2.5 km line-of-sight range (without obstacles)
• Ultra-low latency
• Clear, interference-free signal reception thanks to integrated Tri-Band technology
• Connect up to ten wireless devices
• USB-C MFi video output
• Rugged construction for heavy-duty use typical of the rental industry (Plug & Play)

Areas of use

• Film and TV production
• On-set monitoring

Technical characteristics

• 8K high performance A/V processor
• Protocol: proprietary RTMS 4.0 protocol developed by Accsoon

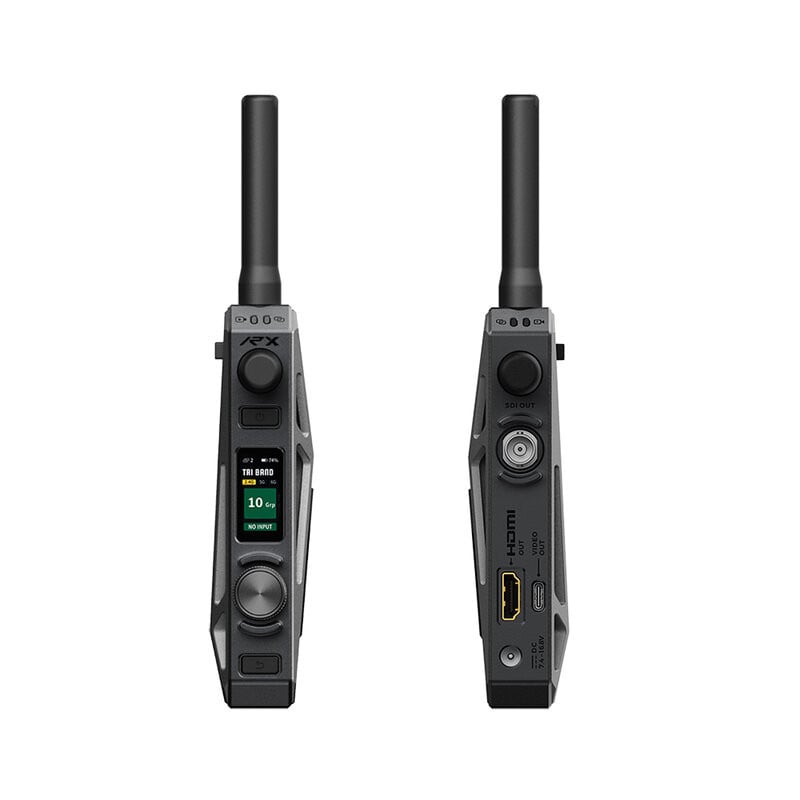

• Video output: HDMI, 3G SDI, USB video OUT
• Camera control: USB-C
• SDI output formats: 1080p @ 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 fps Level A, 720p @ 50 / 60
• HDMI output formats: DCI 4K (4096 × 2160) @ 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60p, UHD @ 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60p, 1080p @  23.98 / 24 / 25 / 29.97 / 30 / 50 /5 9.94 / 60p, 720p @ 50 / 60
• Audio: HDMI embedded, SDI embedded
• Latency: TX to RX 1080p 60 fps < 25 ms, 4K 60 fps < 35 ms (camera latency not included), TX to iOS 1080p 60 < 25 ms, 4K 60 ＜ 35ms (camera latency not included)
• Battery: compatible with NP-F550, NP-F750, NP-F970 (not included)
• DC port: 5.5 × 2.1 mm, center positive
• DC voltage: 7.4 – 16.8 V (power supply not included)
• Transmission range: ≥ 2.5 km (no obstacles, no interferences)
• Power consumption: 5 W average (without powering other devices)
• Operating environment temperature: -10 to 40 ℃
• Dimensions: 130 × 95 × 32 mm (without antennas)
• Weight: 320 g (without antennas)

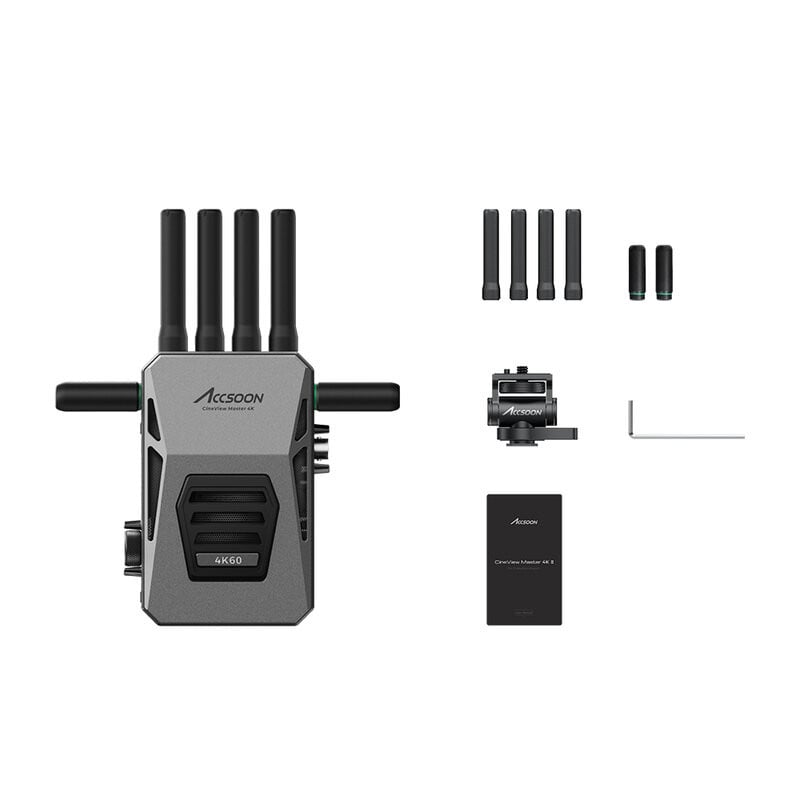

• What's in the box:
  • 1 × CineView Master 4K II receiver
  • 1 × Cold shoe mount adapter
  • 4 × 2.4/5 GHz antenna
  • 2 × 6 GHz antenna
  • 1 × Allen key
  • 1 × user manual
