SKU: F2.GS.R

Agora - F2.GS.R

Name: F2.GS.R
Brand: Agora
SKU: F2.GS.R
Price: 2886 EUR
Availability: OutOfStock

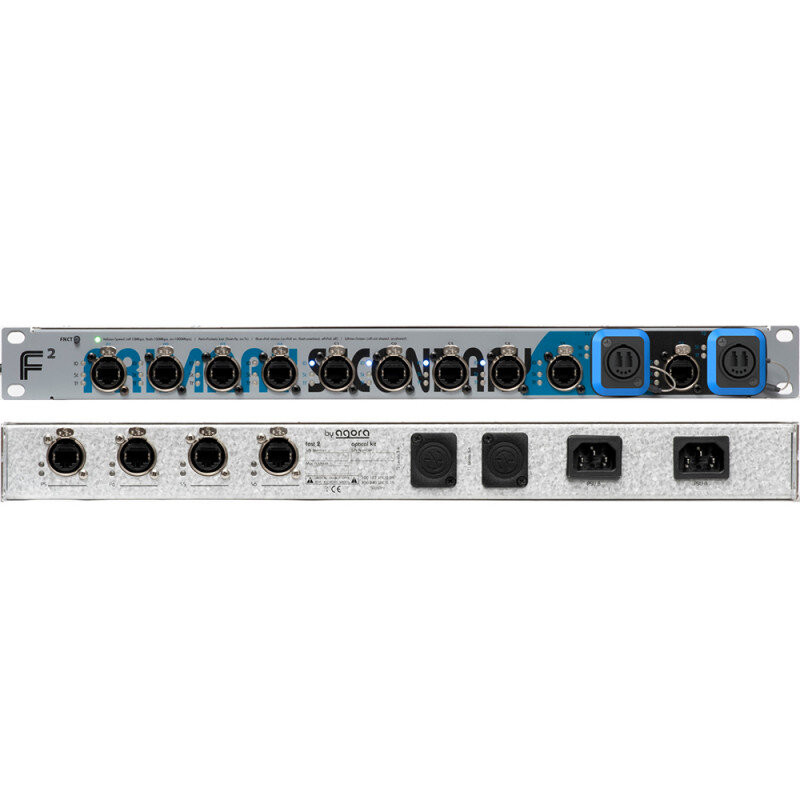

FAST 2 + 2 x transmit 1 Gbit ports - F.O. DUAL opticalCON Neutrik with single-mode (front panel) and internal redundant power supply

(0)

4,422.50 €

- 35%

2,886.00 €

Unfortunately, the quantity you have selected exceeds the amount available in stock. No problem! We will go ahead and send you the available quantity. We will then send you the reminder approximately within ten days.

Unfortunately, the quantity you have selected exceeds the amount available in stock.

Condition: New

I accept the general conditions and the privacy policy.

Not available.

delivery is not available for this product.

Free shipping for orders over € 199 (within Europe)

Variants of this product

Agora - F2.R

2,298.50 €

(0)

FAST 2 + internal redundant power supply

Agora - F2.GS

2,641.00 €

(0)

FAST 2 + 2 x transmit 1 Gbit ports - F.O. DUAL opticalCON Neutrik with single-mode (front panel)

Agora - F2.GMQ

2,837.00 €

(0)

FAST 2 + 2 x transmit 1 Gbit ports - F.O. QUAD OC Neutrik with multi-mode (front panel) and recovery of fiber 3/4 on the rear DUAL OC

Agora - F2.GM.R

2,788.00 €

(0)

FAST 2 + 2 x transmit 1 Gbit ports - F.O. DUAL opticalCON Neutrik with multi-mode (front panel) and internal redundant power supply

Agora - F2.GMQ.R

3,081.50 €

(0)

FAST 2 + 2 x transmit 1 Gbit ports - F.O. QUAD OC Neutrik with multi-mode (front panel), recovery of fiber 3/4 on the rear DUAL OC and internal redundant power supply

EN Instruction Manual (1.71MB)

Documentation

Product Details

FAST 2 with 2 x 1 Gbit transmit ports - F.O. dual opticalCON Neutrik - single-mode (on the front panel) and internal redundant power supply.

Connectivity & Interface

Front panel	8 x 10 Base-T /100 Base-TX / 1000 Base-T etherCON ports (4 primary / 4 secondary) 2 x 10 Base-T /100 Base-TX / 1000 Base-T etherCON ports (1 primary / 1 secondary) 2 x 10 Base-T /100 Base-TX / 1000 Base-T opticalCON DUAL ports (1 primary / 1 secondary) 3 LEDs (STATUS, TRAFFIC, ID) on each etherCON port 2 LEDs (STATUS and TRAFFIC) on each opticalCON port 1 x multipurpose LED 1 x configuration and navigation function switch
Rear panel	4 x 10 Base-T / 100 Base-TX / 1000 Base-T etherCON ports (2 primary / 2 secondary) 2 x power cord (redundant internal power supply option - 10/16 A – connectors IEC13 lock)
Software	Telnet protocol for up to 100 devices connected Offline editor mode Service and maintenance window

Processing

Motherboard	l x ARM9E: 800 MHz 2 x 64 MB- DDR3 SDRAM 128 MB flash memory Dataflow: up to 2 x 14.9 Mbps Switching capacity: 2 x 20 Gbps
Network	99 x groups available Capacity of 2 x 8 K MAC Address IEEE 802.lp Oos

General

Size (W x D x H)	400 x 482.6 x 43.6 mm
Weight (without options)	3.8 kg
Power consumption	100 - 127 V_AC 3.2 A, 200 - 240 V_AC 1.6 A
Power supply	100 - 240 V_AC 50/60 Hz
Idle power (1)	8 W
Maximum power rating (2)	17 W
Storage temperature / humidity	-40 °C a 70 °C / 10-90% without condensation
Operating temperature / humidity	0 °C a 40 °C / 10-90% without condensation
Acoustic	Without fan
Altitude	Up to 10,000 ft (3000 m)

1 - Idle power is the actual power consumption of the device with no ports connected
2 - Maximum power
