SKU: GMK2.XS.GMQ
Agora - GMK2.XS.GMQ
GHOST MK2 + 2 x transmit 10 Gbit ports - F.O. DUAL opticalCON single-mode (front panel) + 2 x transmit 1 Gbit ports - F.O. QUAD OC multi-mode + F.O. 3/4 to 2 x DUAL OC (rear panel).
Not available.
delivery is not available for this product.
Free shipping for orders over € 199 (within Europe)
Variants of this product
3,913.00 €
GHOST MK2 + 2 x transmit 10 Gbit ports - F.O. DUAL opticalCON single-mode (rear panel)
5,828.50 €
GHOST MK2 + 2 x transmit 1 Gbit ports - F.O. DUAL opticalCON multi-mode (rear panel) + H-DC card
4,402.50 €
GHOST MK2 + 2 x transmit 1 Gbit ports - F.O. DUAL opticalCON single-mode (front panel) + 2 x transmit 10 Gbit ports - F.O. DUAL opticalCON multi-mode (back panel)
4,625.00 €
GHOST MK2 + 2 x transmit 10 Gbit ports - F.O. DUAL opticalCON multi-mode (front panel) + 2 x transmit 10 Gbit ports - F.O. DUAL opticalCON single-mode (rear panel)
4,180.00 €
GHOST MK2 + 2 x transmit 1 Gbit ports - F.O. DUAL opticalCON multi-mode (front panel) + 2 x transmit 1 Gbit ports - F.O. DUAL opticalCON single-mode (rear panel)
Watch it in action
Close the video
Product Details

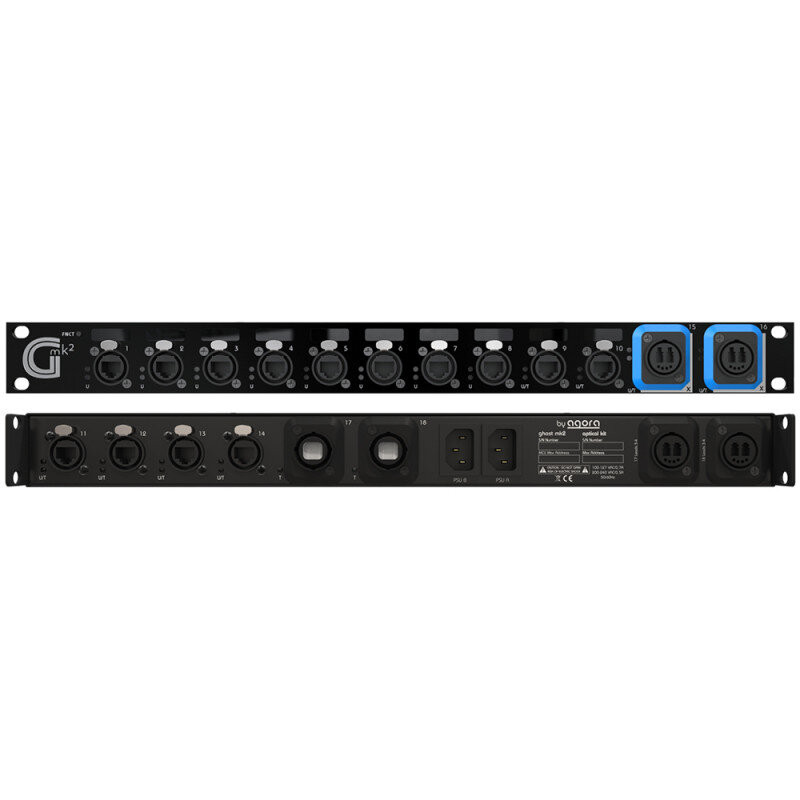

GHOST MK2 with 2 x 10 Gbit transmit ports - F.O. DUAL opticalCON single-mode (on front panel) + 2 x 1 Gbit transmit ports - F.O. QUAD OC multi-mode + F.O. 3/4 to 2 x DUAL OC (rear panel).
Connectivity & Interface
| Front panel | 10 x 10 Base-T / 100 Base-TX / 1000 Base-T etherCON 10 x 8 caracters LCD sceens 2 x 1000 or 10,000 Mbps opticalCON DUAL ports 2 LEDs (Status-Traffic, ID) on each port 1 x configuration and navigation function switch |
| Rear panel | 4 x 10 Base-T / 100 Base-TX / 1000 Base T-etherCON ports 2 x 1000 or 10,000 Mbps opticalCON DUAL ports 2 x extra opticalCON DUAL ports (opticalCON QUAD) 2 x IEC power sockets (internal redundant power supply) |
| Software | SNMPv3 & SSH remote protocol Emulate Mode |
Processing
| Mother board | 1 x Marvell 98DX Data flow : up to 95.23 Mbps Switching capacity: 128 Gb/ |
| Network | 250 x Groups available 16000 MAC Address capacity IEEE 802.1p traffic priority |
GENERAL
| Size (W x D x H) | 482.60 x 368 x 43.60 mm |
| Weight (without options) | 1.7 kg |
| Power consumption | 100 - 127 VAC 0.6 A, 200 - 240 VAC 0.4 A |
| Power supply | 100 - 240 VAC 50/60 Hz |
| Idle power* | 19.5 W |
| Maximum Power rating** | 26.6 W |
| Thermal dispersion (without options) | 80.36 BTU/h (110 V 60 Hz) |
| Storage temp. / humidity | -40 °C -70 °C / 5-90% without condensation |
| Operating temp. / humidity | 0 °C - 45 °C / 10-90% without condensation |
| Altitude | Up to 3 km (10,000 ft) |
| Operating noise | Without FAN |
Package
| Package includes | 1 x GHOST MK2 engine 2 x power cord IEC13 Lock |
More..
Show less
GHOST MK2 + 2 x transmit 10 Gbit ports - F.O. DUAL opticalCON single-mode (front panel) + 2 x transmit 1 Gbit ports - F.O. QUAD OC multi-mode + F.O. 3/4 to 2 x DUAL OC (rear panel).
