SKU: LCU-2Se
EAN: 4719850652760
Antari - LCU-2S Liquid Supply System
Professional liquid supply system designed for continuous fluid delivery to smoke and fog machines
Not available.
delivery is not available for this product.
Free Shipping for order equal or above € 199 are limited for delivery within Europe
Variants of this product
Flight case for 4 Sonicboom X smoke machines
396.50 €
G300 DMX Remote Unit that allows to control the G300 smoke machine via 2 DMX channels
44.00 €
Practical and lightweight ducting adaptor for the GFORCE smoke machines
220.50 €
G300 Standard Remote Unit for the G300 smoke machine, max. cable lenght 30 m
49.50 €
Mini Mist Ducting Adaptor to use in combination with Ducting Hose to lead the smoke where necessary
Product Details

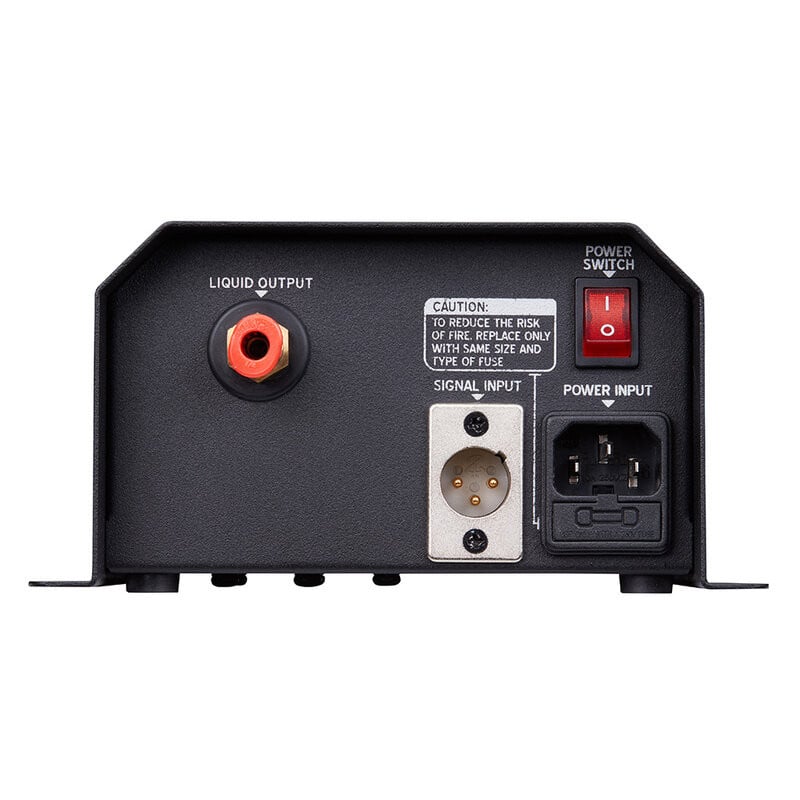

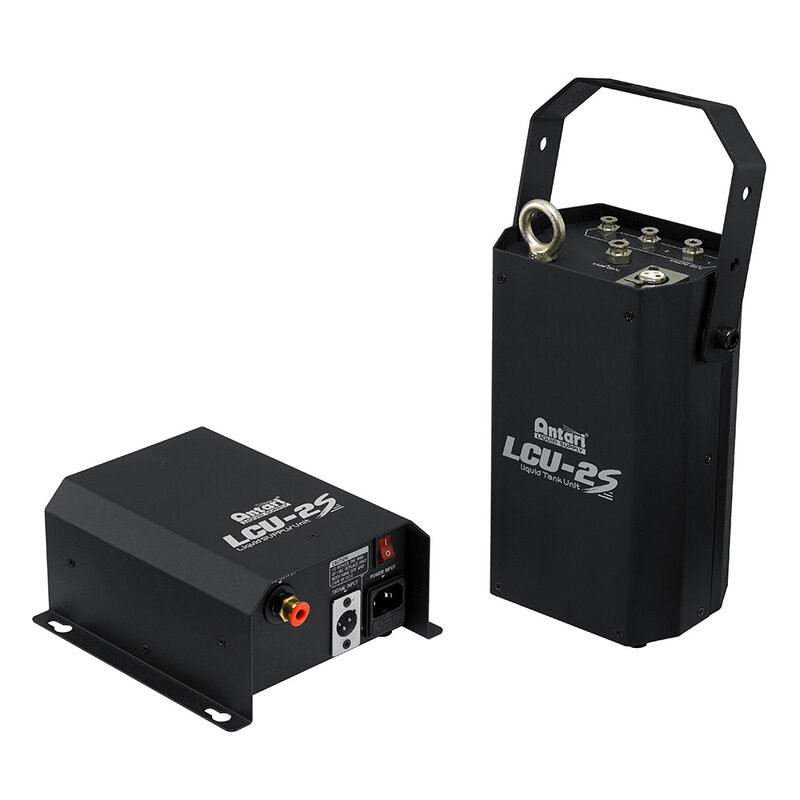

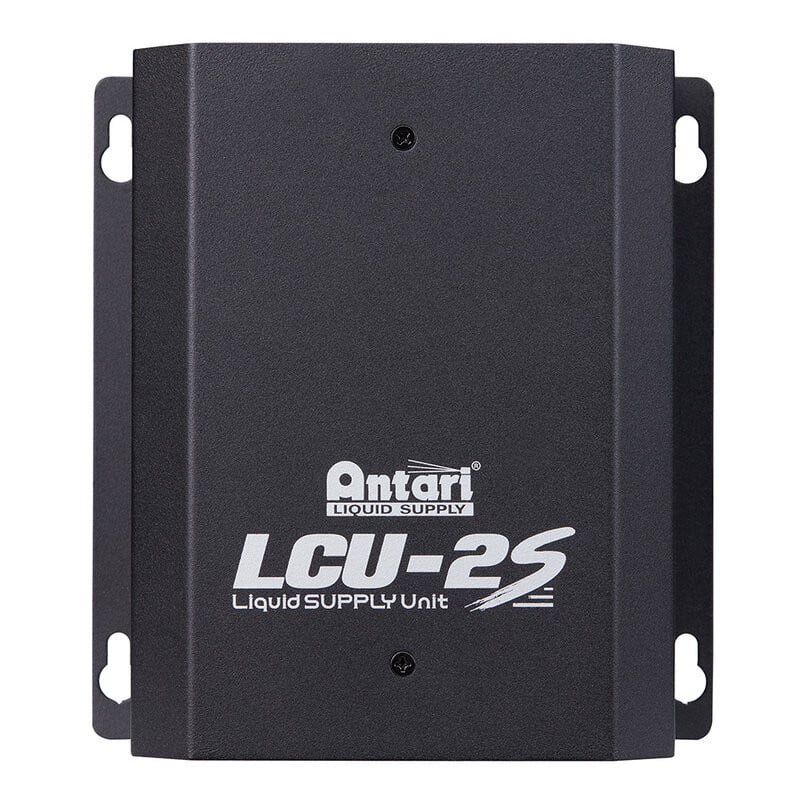

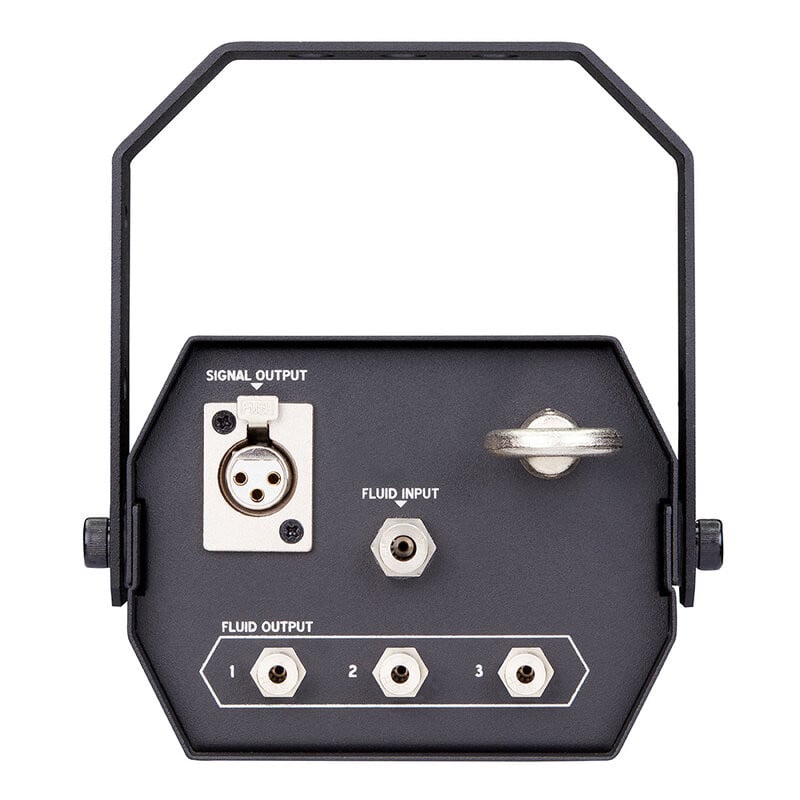

The LCU-2SE is a professional liquid supply system designed for fog machines and other special effects. This automated unit allows for precise and reliable continuous supply of liquids (such as fog or smoke fluids), ideal for fixed installations or long-lasting events.
The compact and robust device is compatible with various atmospheric effects machines. It is designed to reduce manual intervention, ensuring a constant flow of liquid and improving operational efficiency during shows, live events, or theatrical installations.
Main features
- DMX Control

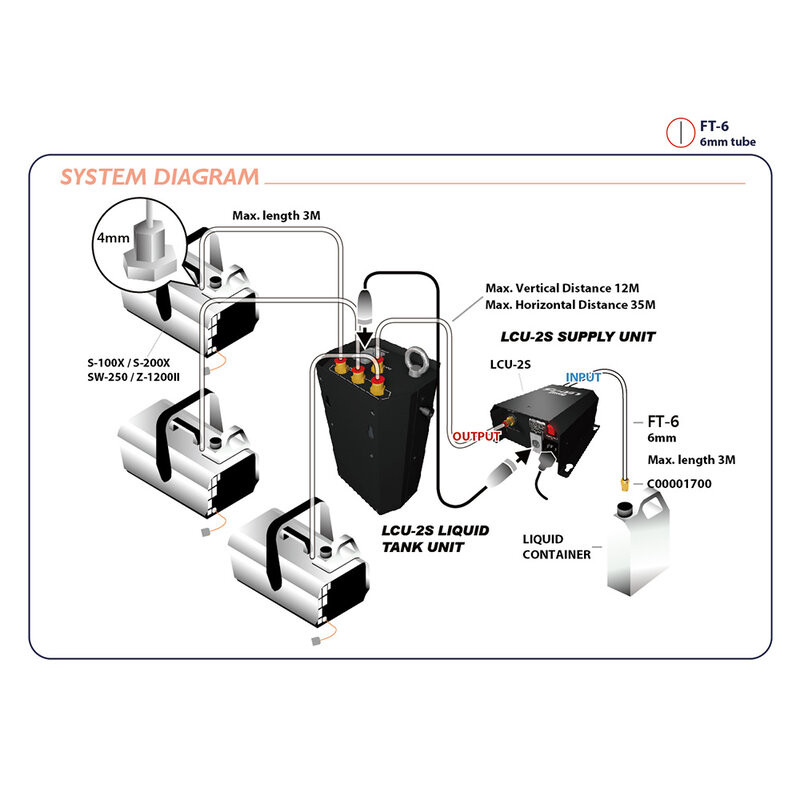

- Maximum flow: 35 m horizontal and 12 m vertical
Technical characteristics
| Rated voltage | 220 - 240 VAC 50/60 Hz 0.5 A |
| Rated power | 55 W |
| Fluid tank capacity | 0.8 L |
| Ambient temp range | 5 - 40 ℃ |
| Control | auto |
| Connection | IEC (power), XLR 3-pin (data) |
| Included accessories | XLR 3-pin data cable FT-6 12 m 6 × 4 mm tube FT-4 10 m 4 × 2.5 mm tube FTA-44 adapter (4 to 4 mm) × 3 FTA-64 adapter (6 to 4 mm) × 3 FLF-6 fluid filter |
| Dimensions | supply unit: 17.9 × 16.7 × 8.4 cm tank unit: 15.8 × 10.3 × 31.2 cm |
| Weight | supply unit: 2 kg tank unit: 1.8 kg |
More..
Show less
Professional liquid supply system designed for continuous fluid delivery to smoke and fog machines
