Audiophony - CARBON15A

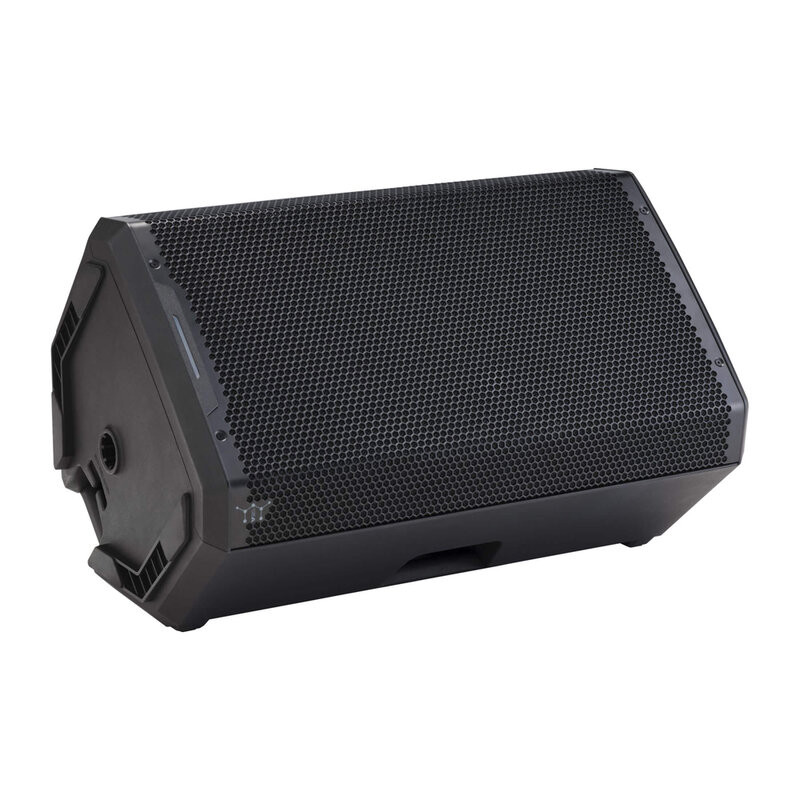

Audiophony CARBON15A is an active loudspeaker with DSP, TWS and App control.

This model with a 15" woofer offers extended dispersion thanks to the special horn mounted on a 1.35" compression driver with polymer diaphragm, which guarantees a clear high-frequency sound and even more transparent than a titanium tweeter.

The plastic casing is produced based on a technique that uses nitrogen to improve the properties of the plastic material itself, increasing its resistance (+20%) and durability and also improving its audio performance.

The Class-D amplifier, without cooling fans, provides a power reserve of 1000 W_RMS for the bass and 500 W_RMS for the treble. It has 2 MIC / line inputs with automatic switching, a Bluetooth TWS input and a LINK output.

The powerful integrated DSP offers different operating modes and customizable settings via a 2.4" color display. It allows you to select the presets (Normal, Live, Club, Speech), the loudspeaker position (Foot, Monitor, Stand), the Delay, HPF, Ducking with source adjustment, threshold, attenuation, release time etc. In addition, for each individual channel, we find the equalizer, the bass / treble control, various presets (Live, Vocal, Custom) etc.

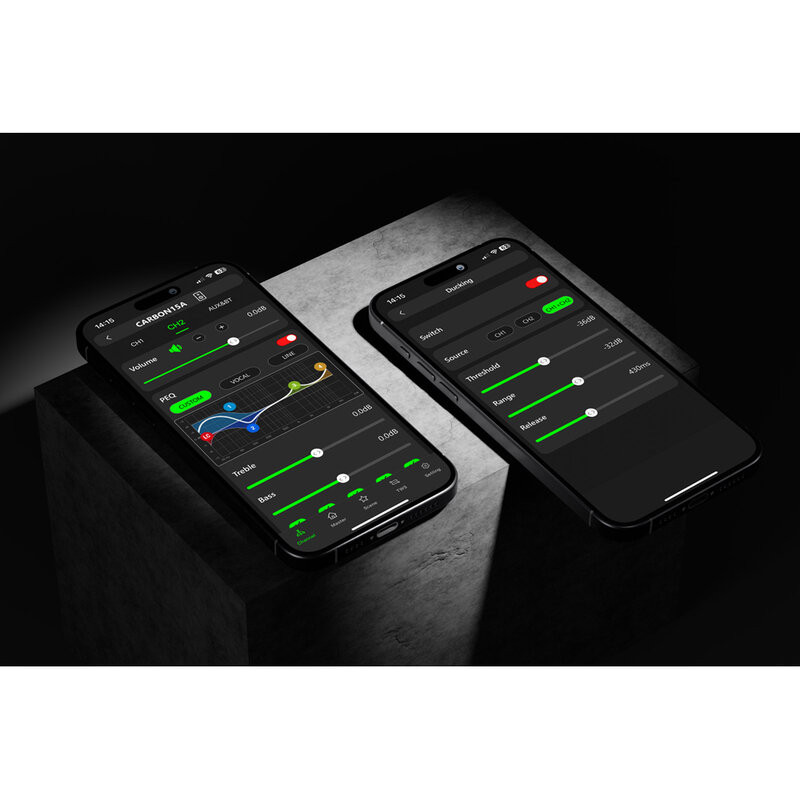

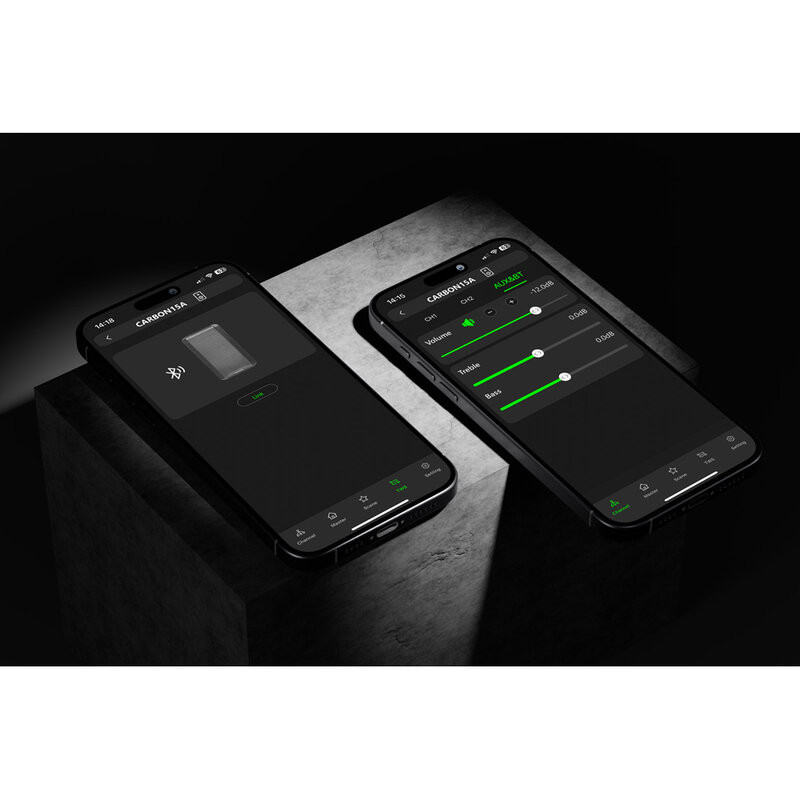

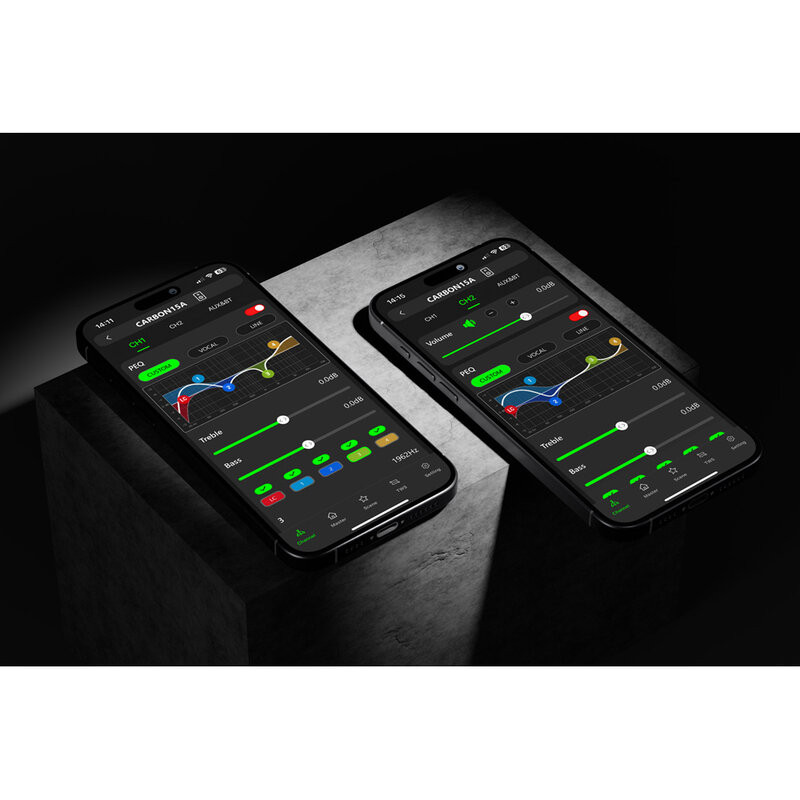

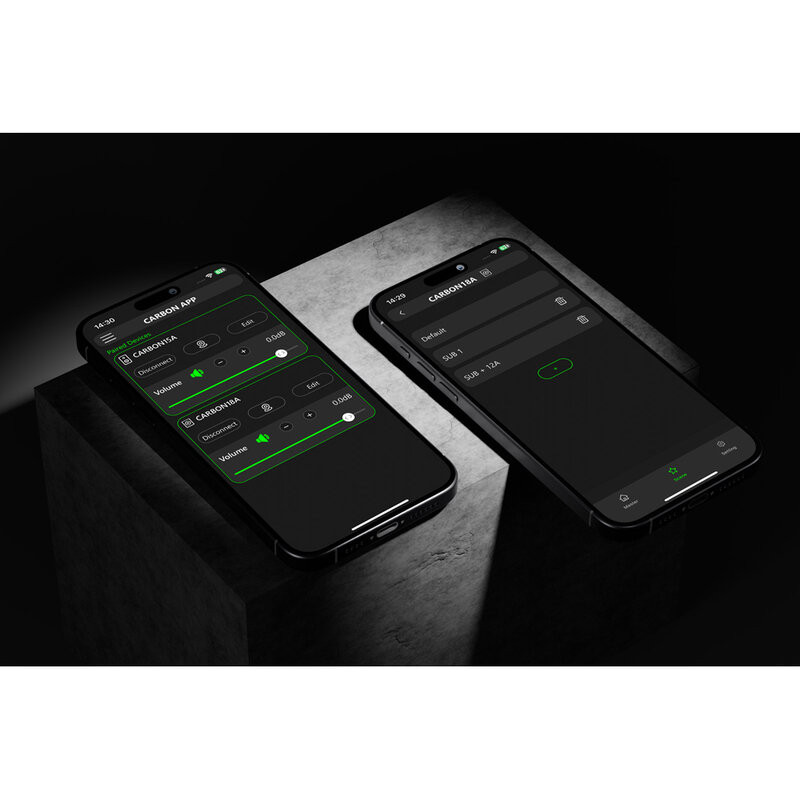

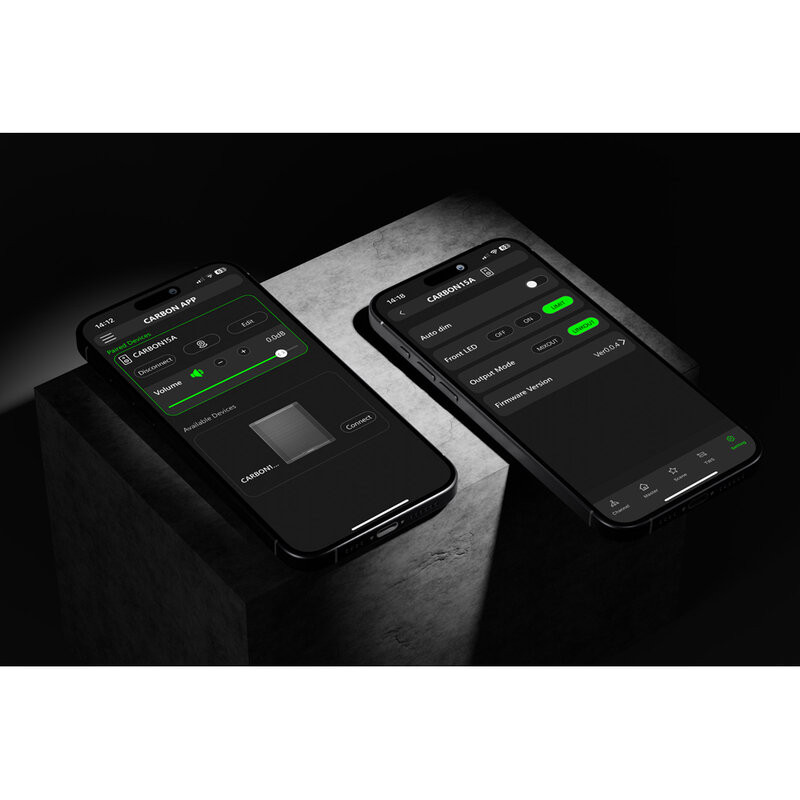

The dedicated App connects via Bluetooth to the loudspeaker for the setting of various parameters - from those of the speaker to those individual for each channel - pairing with Bluetooth and in general all the adjustments allowed using the display on the back of the CARBON15A and the menu system.

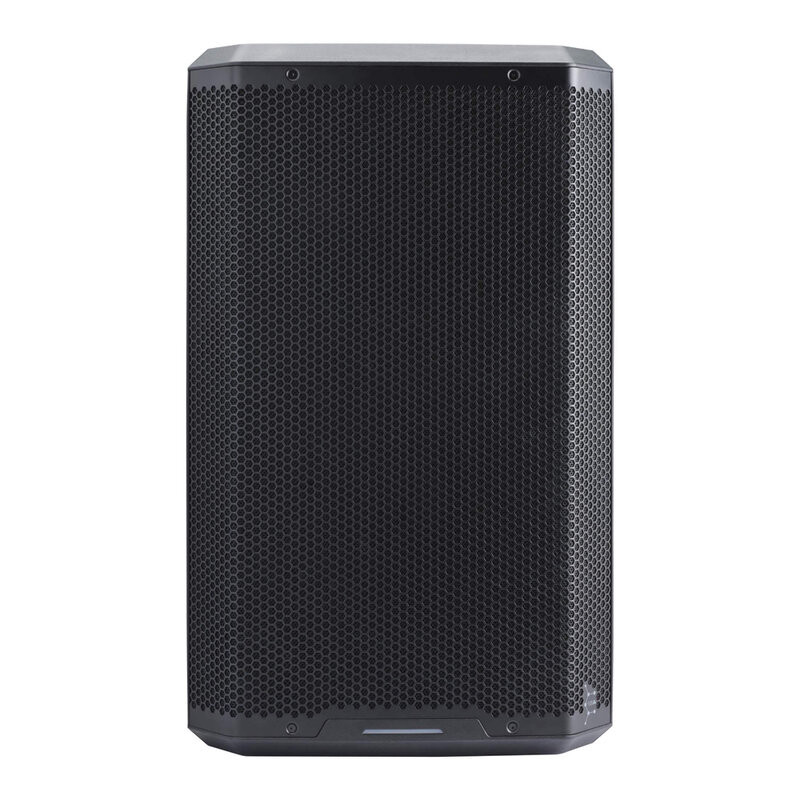

The structure is equipped with an integral metal grille, three handles and M10 inserts for easy assembly.

Benefits for users

• High sound quality, obtained thanks to the 15" woofer and the 1.35" compression driver horn loaded
• Advanced control thanks to the integrated DSP that offers different operating modes and customizable settings
• Extensive connectivity, including microphone input, Bluetooth TWS and LINK output
• Robustness and durability of the cabinet
• Easy transport and assembly

Areas of use

• Concerts and live performances
• Presentations
• Fixed or temporary installations in clubs, bars, restaurants and venues in general
• Outdoor events, parties and demonstrations
• DJ set
• Education

Technical characteristics

• Amplifier:
  • Class-D 1000 W_RMS / 2 ohm for bass
  • Class-D 500 W_RMS / 4 ohms for treble
  • Total amplifier power: 1500 W_RMS / 3000 W max.
• Frequency response: 45 Hz – 20 kHz
• Power supply: 220 - 240 V_AC 50 Hz SMPS
• Dispersion (H x V): 90° x 70°
• SPL: 131 dB max. (1 m)
• Woofer: 15", 2.5" voice coil, 60.1 Oz magnet
• Tweeter: 1.35" driver High Polymer
• Inputs:
  • 2 x line inputs on Combo XLR / jack with auto MIC / line switch
  • 1 x Bluetooth
• Outputs:
  • 1 x line output on XLR + Bluetooth TWS
• Settings: input volume, DSP with multiple settings (position, mode, equalizer, LED, reset, info)
• Protection: short-circuit, thermal and limiter protection
• Construction and riggings:
  • Plastic housing with Nitrogen injection
  • Integral metal grill
  • LED power / clip on front panel
  • 3 x handles on side, top and bottom
  • 3 x M10 inserts

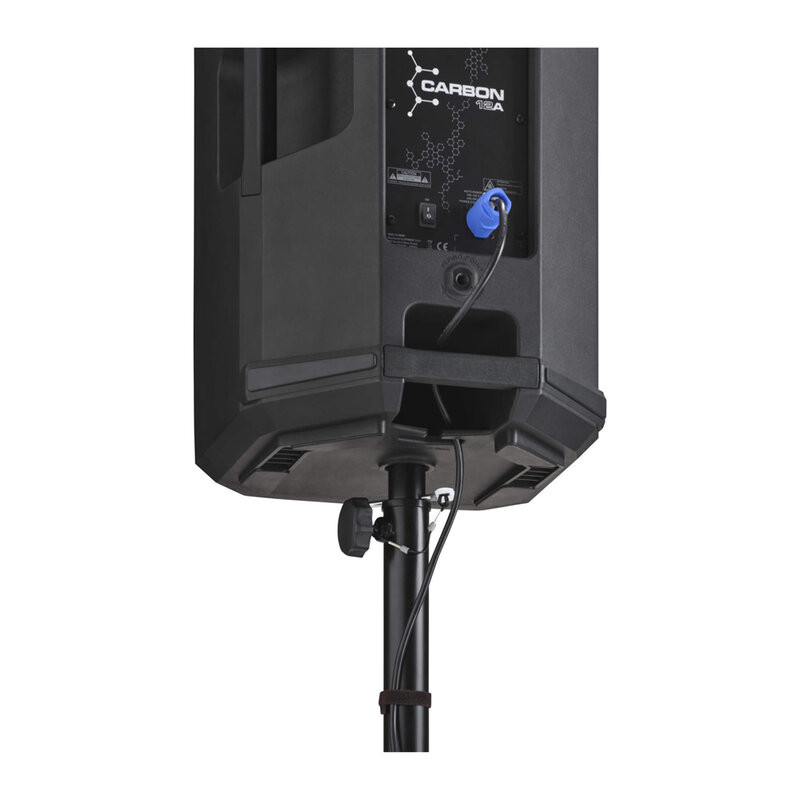

  • 36 mm base plate for stand
  • 6 x rubber pads, 4 bottom + 2 sides
• Dimensions: 43 x 71.3 x 40.3 cm
• Net weight: 22 kg
