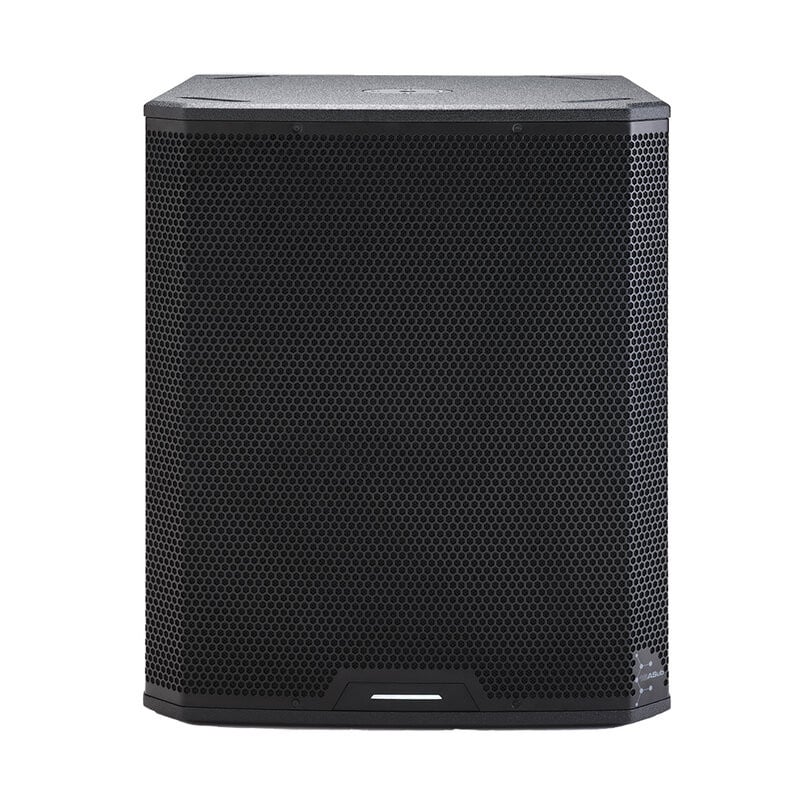

Audiophony - CARBON18ASub

The Hitmusic CARBON18ASub active subwoofer is designed to deliver high-quality audio performance.

Equipped with a Class-D amplifier with a RMS power of 1000 W at 8 ohm, it has a frequency response that extends from 30 Hz to 110 Hz, ensuring faithful and deep reproduction of low frequencies. The 18" woofer, with a 4" voice coil and a 95.6 Oz magnet, is capable of handling 800 W AES and 1600 W in program. The maximum sound pressure is 135 dB at 1 meter distance.

The subwoofer has two line inputs on COMBO XLR / jack connectors and two line outputs on XLR. Settings include input volume control and a DSP with multiple settings (Position, Mode, Equalizer,
LED, Reset, Info). It is equipped with protections against short circuits, overheating and overload.

The cabinet is constructed from 15 mm reinforced plywood, with an integral metal grille for protection. The design includes two side handles, a 36mm base for pipe mounting and four rubber feet on the bottom.

Technical characteristics

• Amplifier: 1000 W_RMS Class-D / 8 ohm
• Total amplifier power: 1000 W_RMS / 2000 W max.
• Frequency response: 30 – 110 Hz
• Power supply: 220 - 240 V_AC 50 Hz SMPS
• SPL: 135 dB max. @ 1 m
• Woofer: 18", 4" voice coil, magnet 95.6 oz, 8 ohm – 800 W_AES / 1600 W prog
• Inputs: 2 line inputs on COMBO XLR / jack
• Outputs: 2 line output on XLR
• Settings: input volume, DSP with multiple settings (Position, Mode, Equalizer,
  LED, Reset, Info)
• Protection: short-circuit, thermal and limiter protection
• Construction and riggings:
  • Reinforced 15 mm plywood cabinet
  • Integral metal grill
  • LED Power / Clip on front panel
  • 2 handles on side

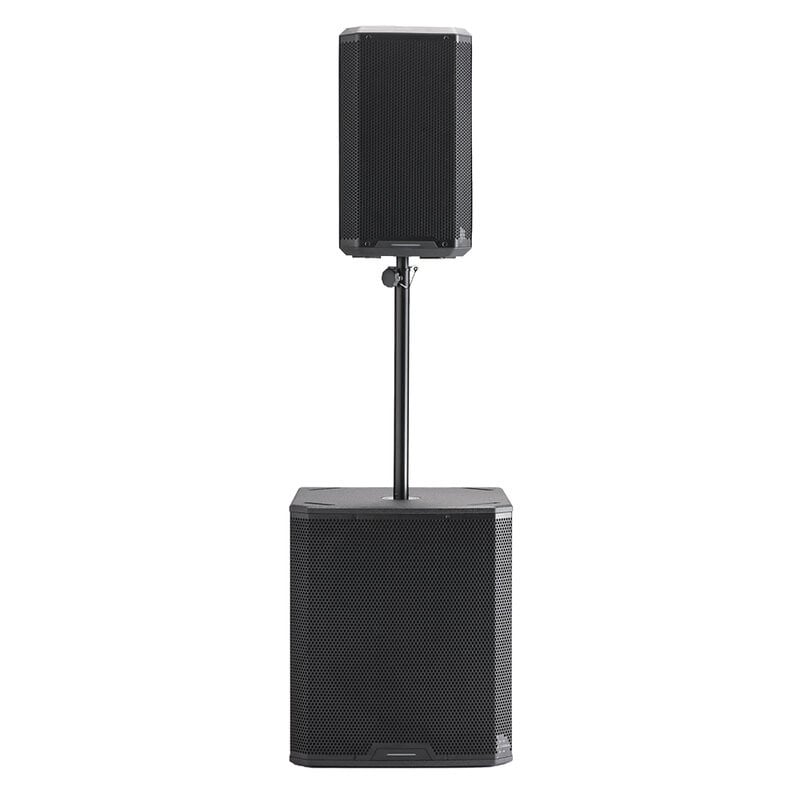

  • 36 mm base plate for junction tube
  • 4 rubber pads on the bottom
• Dimensions: 59.1 x 71.3 x 65.4 cm
• Net weight: 55 kg
