Audiophony - CUBsat4

Name: CUBsat4
Brand: Audiophony
SKU: H10663
Price: 67.5 EUR
Availability: InStock

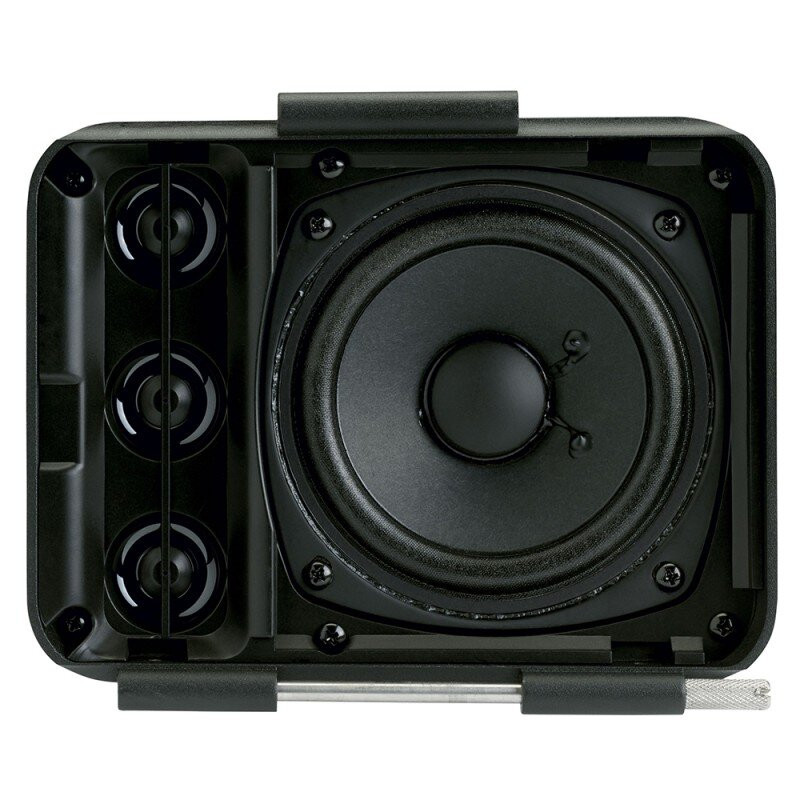

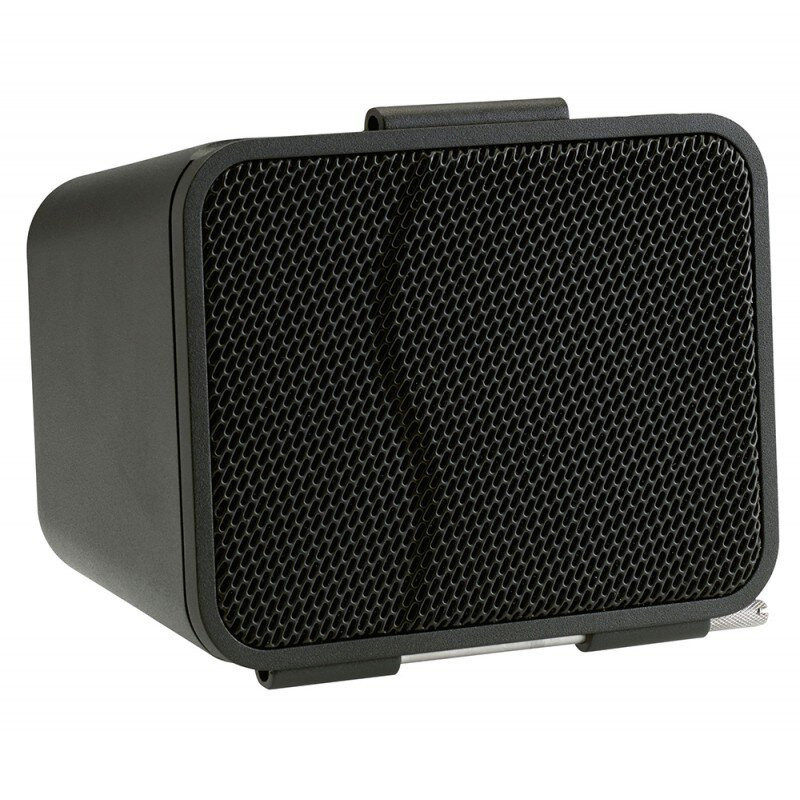

Passive mini Line Array satellite module, 30 W, 1 x 4" woofer + 3 x 0.5" tweeter

(0)

103.00 €

- 34%

67.50 €

Pay in 4 interest-free payments of 16.88 € with Discover More

items in stock in our European supplier's warehouse

Unfortunately, the quantity you have selected exceeds the amount available in stock. No problem! We will go ahead and send you the available quantity. We will then send you the reminder approximately within ten days.

Unfortunately, the quantity you have selected exceeds the amount available in stock.

67.50 €

Condition: New

Available

delivery is available for this product.

This item is currently in stock and will be shipped from our supplier's warehouse in Europe.

Free Shipping for order equal or above € 199 are limited for delivery within Europe

Variants of this product

Elokance - Opus 210A Array

1,665.00 €

(0)

Active array module, 2 x 10" woofer + 3" tweeter, 700 W RMS, built-in DSP, 100° x 15° dispersion

Product Details

Mini passive line array module.

All CUBsat4 loudspeakers have a 110° horizontal x 20° vertical dispersion pattern and incorporate a suspension mechanism with adjustable vertical tilt. This feature allows the loudspeaker's dispersion to be modified to meet the acoustic requirements of most venues.

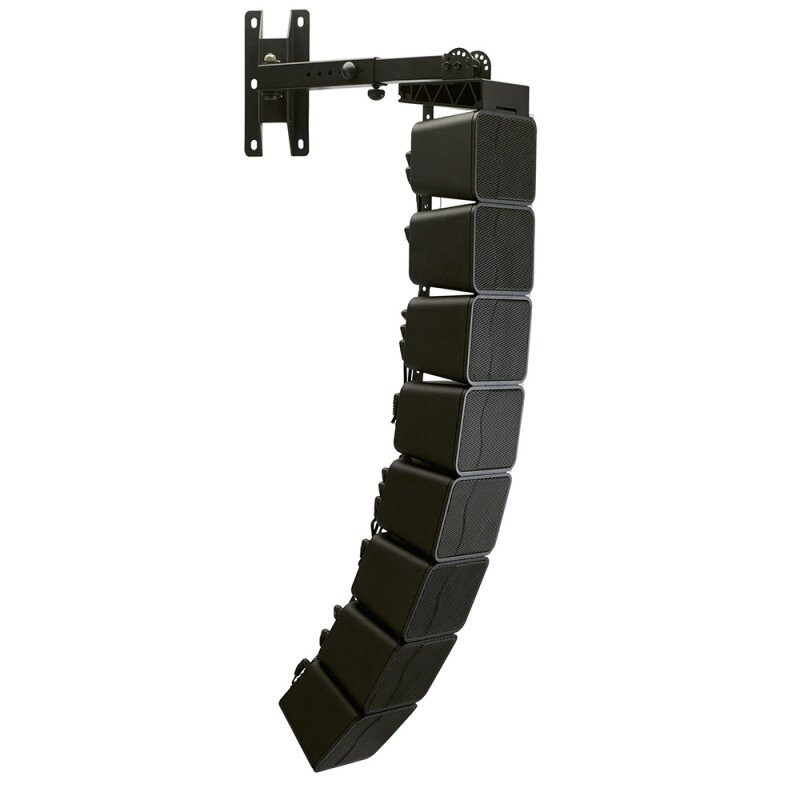

By connecting multiple modules together, and thanks to the adjustable direction, it is possible to create a Line Array with an adjustable angle between 0° and 12°.

Technical characteristics

Power output: 30 W_RMS - 90 W max.
Frequency response: 100 Hz - 20 kHz
Filter: passive 2-way filter at 3 kHz
Max SPL. (@ 1 m): 91 dB
Nominal impedance: 8 per module with built-in impedance transformer
Boomer: 4" (neodynium magnet)
Tweeter: 3 x 0.5" soft dome
Dispersion: wave guide (H x V) 110° x 20° per module
Cluster orientation: 0 / 4 / 8 / 12°
Connectors: via 3 x jack 6,35" input and serial and parallel link
Material: die-cast aluminium housing and fixation bracket; steel pin and hinge; black finish
Dimensions: 17 x 14 x 15 cm
Net weight: 1.45 kg
