SKU: H10761

EAN: 3662009018294

Share

Audiophony - iLINEsub12 A

12" active subwoofer 700 W + 700W with built-in DSP
Available
Condition: New

In stock - 12 items

616.00 €

Pay in 4 interest-free payments of 154.00 € with Discover More

Product attachments

iLINEsub12 A
Chiudi il video
Download NL Gebruikershandleiding (PDF format)
Download EN FR Instruction Manual (PDF format)
Download DE Bedienungsanleitung (PDF format)
Download ES Manual de instrucciones (PDF format)

Product Details

12" active subwooferWith amplification also for satellites and built-in DSP

Power 700+700 W RMS / 4 ohm
Frequency response 50 Hz - 200 Hz
Sensitivity 96 dB /124 dB max
Impedance 8 ohm
Speakers 12''

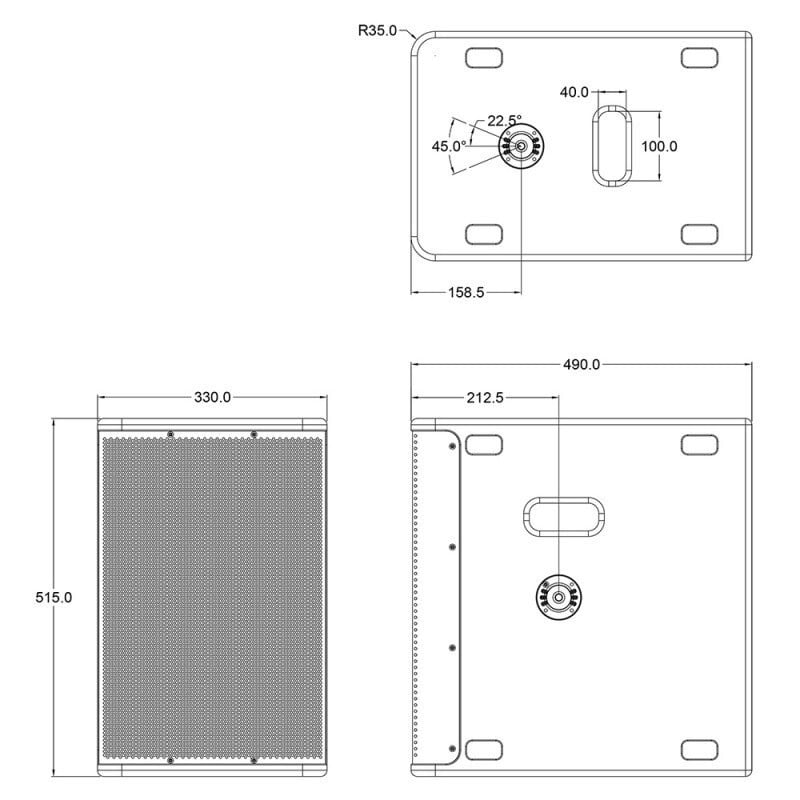

Dimensions 350 x 515 x 490mm
NetWeight 23.5 kg
Dispersion HxV -
Power supply Powercon In/Out: AC 220 V-240V / 50/60 Hz.20A
DSP RJ45 In/Out
Materials

Finnish birch plywood and integral steel grill protection

Finishing Black polyurethane paint

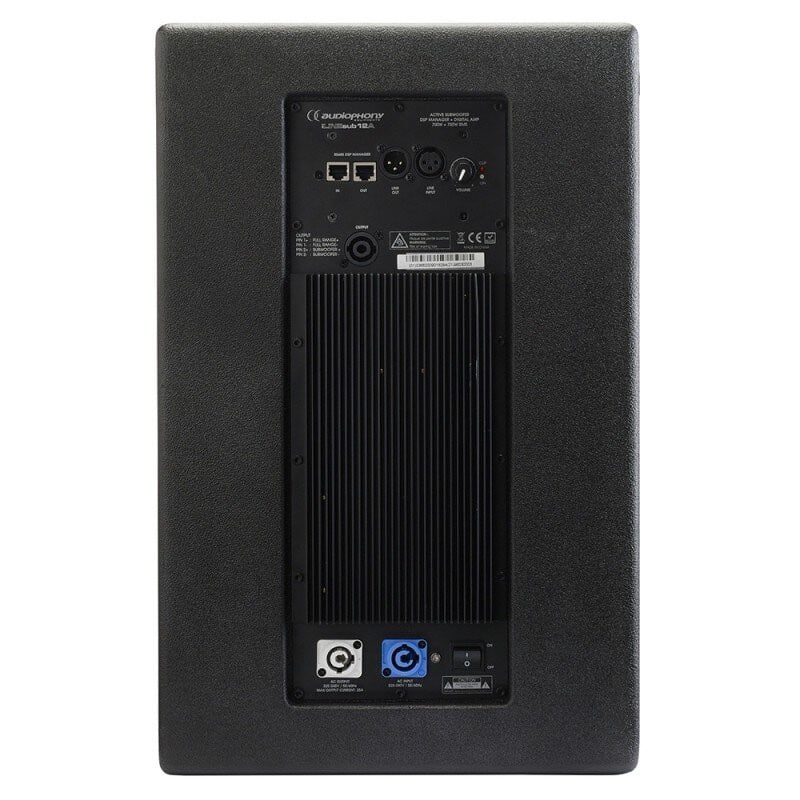

Connectors:

  • Input: Line level balanced XLR3-F
  • Output: Line level balanced XLR3-M, Powered speakON: - 1+/1- full range:  2+/2- bass output

Amplification: Total power avaible 700+700 W RMS / 4 ohm:

  • Full range output: 700 W RMS / 4 ohm .
  • Bass output: 350 W RMS / 8 ohm. + 350 W RMS / 8 ohm internal

Settings:

  • Volume: General level of the system
  • DSP: 28/56 bytes, 50 MIPS ; System configuration by the software providedWith converter iLINEbox ref. 10762

Column speaker connexion system:

  • 2 x 35 mm baseWith integrated connector
