SKU: H10908
EAN: 3662009019642

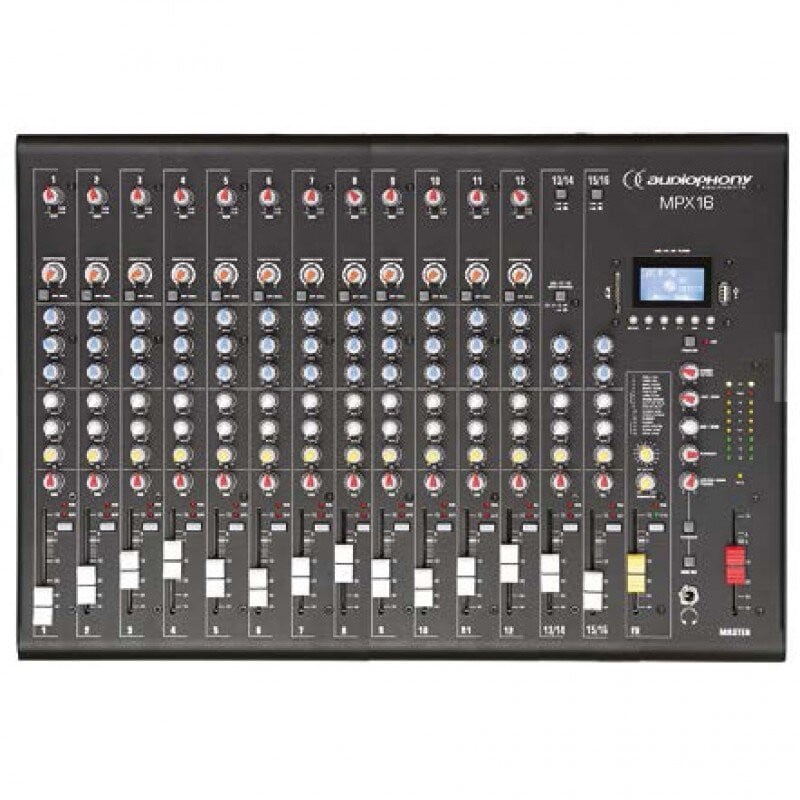

Audiophony - MPX16
16 CH analog mixer, compressor on MIC channels, DSP, effects, USB / SD / BT player
Available
delivery is available for this product.
This item is currently in stock and will be shipped from our supplier's warehouse in Europe.
Free Shipping for order equal or above € 199 are limited for delivery within Europe
Variants of this product
227.50 €
6 CH mixer, compressor + effects, USB / SD / BT player
118.00 €
6 CH analog mixer, 4 MIC/line + 2 stereo + USB port
148.50 €
6 channels mixing console, 3-band EQ, echo / reverb effects, 24-bit / 48 kHz USB interface, Bluetooth / USB MP3 playback
75.00 €
3 CH analog mixer, 2 MIC/line + 1 stereo
131.00 €
6 CH analog mixer, 4 MIC/line + 2 stereo + USB port
Product Details
16-input analog mixer with DSP for effects and compressor on the MIC channels. The built-in USB/SD/BT device provides additional versatility, eliminating the need for additional peripherals.
Technical characteristics
Mono channels
- MIC inputs: balanced
- Frequency response: 10 Hz – 30 KHz, ±3 dB
- THD (THD & N): 0.03% @ +4 dBu, 22 Hz - 20 kHz A-weighted
- Compression: gain 0 - 9 dB, threshold 20 dB 5 dB
- SNR: 115 dB
- Line inputs: balanced
- Frequency response: 10 Hz – 30 kHz ±3 dB
- THD (THD & N): 0.005% @ +4 dBu, 22 Hz - 20 kHz A-weighted
- Max. gain: 75 dBu microphone input master output
Stereo channels
- Line inputs: balanced / asymmetrical
- Frequency response: 10 Hz – 55 kHz ±3 dB
- THD (THD & N): 0.005% @ +4 dBu, 22 Hz - 20 kHz A-weighted
Impedances
- MIC inputs: 1.4 kohm
- Line inputs: 10 kohm
- Other inputs: 10 kohm or more
- Recording output: 1 kohm
- Other outputs: 120 ohms
Mono channel equalization
- High: ±15 dB @ 12 kHz
- Mid: ±15 dB @ 2.5 kHz
Low: ±15 dB @ 45 Hz
Stereo channel equalization
- High: ±15 dB @ 12 kHz
Low: ±15 dB @ 60 kHz
- Multi-effect : 24-bit analog-to-digital converter, 16 programs
- Power supply: 100 - 240 VAC 50/60 Hz
- Dimensions: (L x W x E): 36.5 x 53 x 10 cm
- Weight: 6.9 kg
