Audiophony PA - AioCTLw

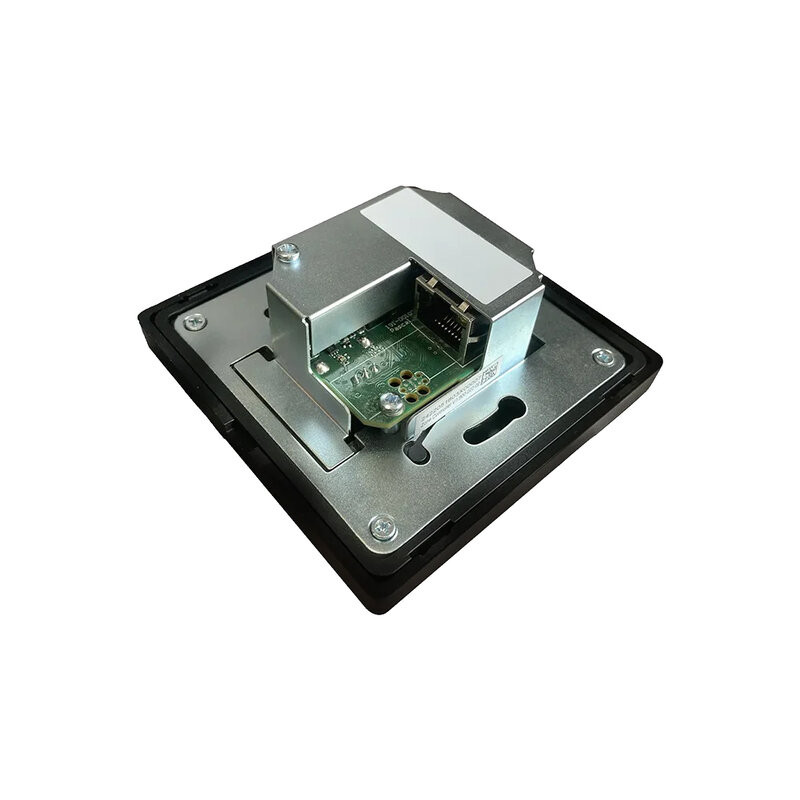

AioCTLw is a wall-mounted controller designed to offer simple and intuitive control of AIO matrixes, allowing end users to manage zone volume, source selection and muting instantly.

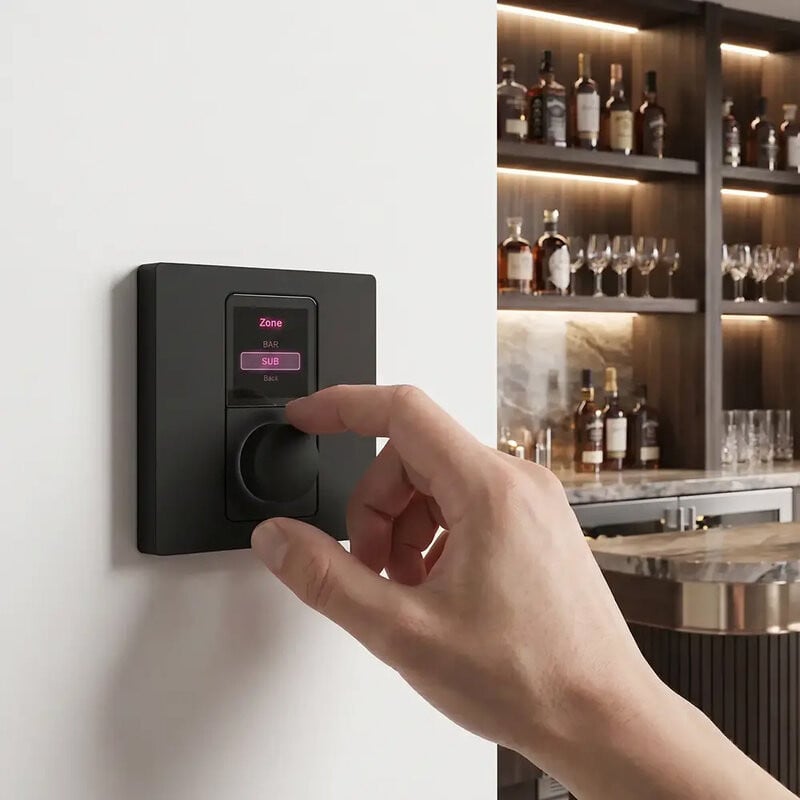

The device features an illuminated display and a click-to-click rotary knob, designed to ensure a smooth and accessible user experience without the need for training. Thanks to its compact design (87 × 87 × 43 mm) and compatibility with standard back boxes, the controller integrates easily into any environment.

Installation is extremely simplified: AioCTLw is powered via PoE, requiring only a single network cable and eliminating the need for external power supplies.

A single controller can manage one or more zones of the same AIO matrix, offering great flexibility in designing multi-zone systems. The installer maintains full control via the matrix's web interface, with the ability to set access restrictions to prevent unwanted changes.

Matte white color. Also available in black (AioCTLb).

User benefits

• Instant control of volume, source, and mute
• Simple and intuitive interface
• Compact design

Advantages for installers

• PoE power supply: a single cable, very quick installation
• Compatible with standard flush-mounted boxes
• Multiple zones can be controlled with a single controller
• Configurable restrictions to prevent tampering
• Full integration with AIO matrices via web interface

Areas of use

• Bars
• Restaurants
• Hotels
• Auditoriums
• Retail stores

Technical characteristics

• Compatibility: AIO matrices (Aio4125, Aio8125, Aio4500)
• Controls: volume by zone, source selection, mute
• Zones: 1 or more zones of a single AIO amplifier
• Interface: illuminated display, click‑activated rotary knob
• Power supply: PoE (Power over Ethernet)
• Mounting: compatible with standard flush‑mounting boxes
• Finish: matt white
• Other version: available in matt black (AioCTLb)
• Dimensions: 87 × 87 × 43 mm
• Weight: 120 g
