Audiophony PA - MIC-DESKevo

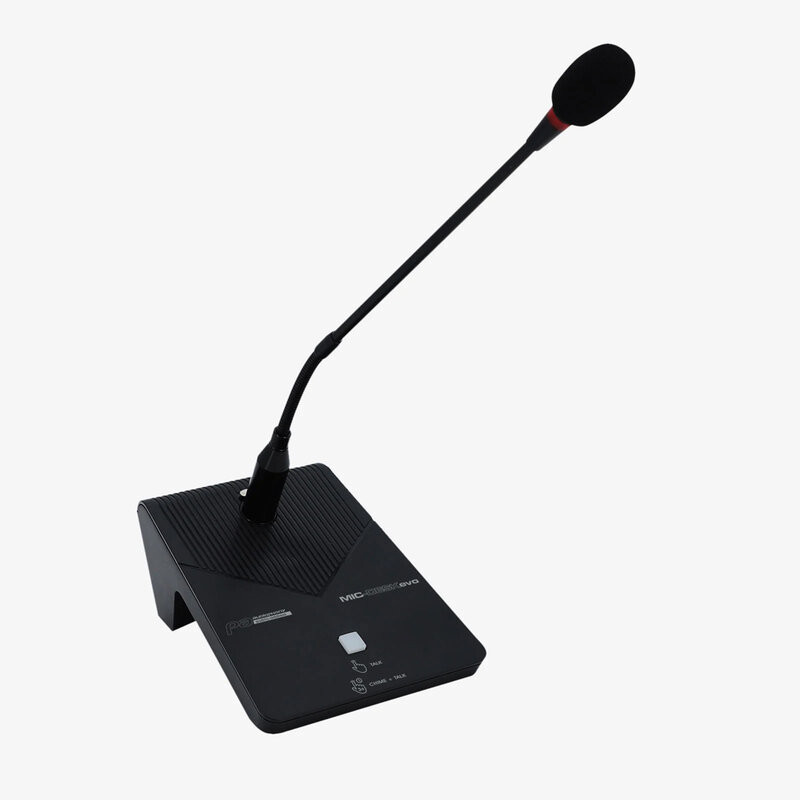

MIC‑DESKevo is an announcement console designed to provide clear and immediate voice communications.

It integrates a unidirectional electret condenser microphone capable of delivering a natural and precise voice, ensuring high intelligibility even in noisy or reverberant environments. The system includes a built-in chime signal, designed to attract attention before the announcement, activated by a simple long press of the front button, while a short press directly enables the microphone. Use is immediate and intuitive, requiring no setup or specific training, a feature particularly useful in installations with multiple operators.

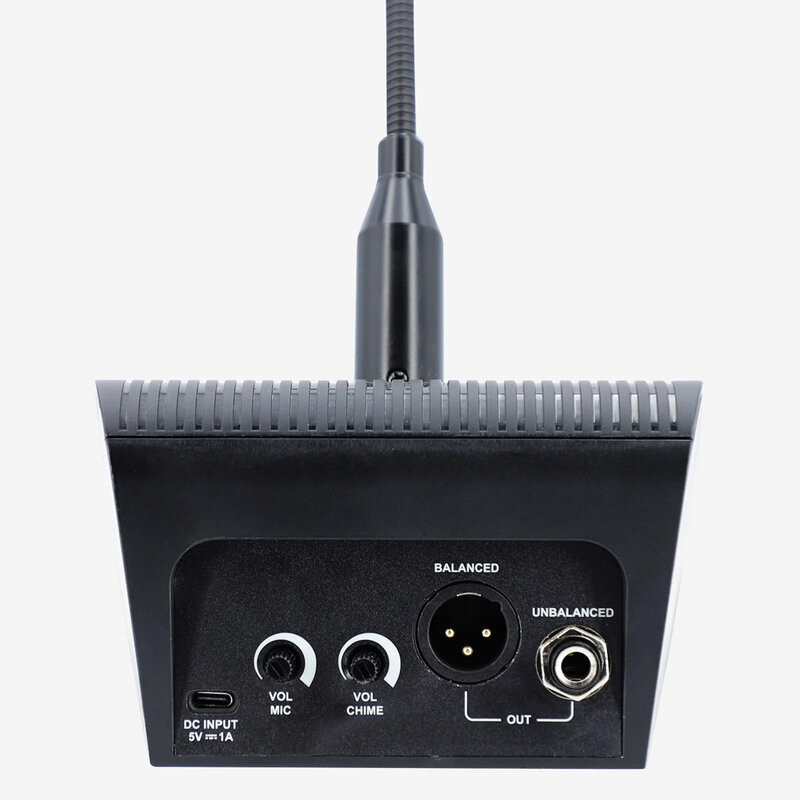

The back panel features separate volume controls for voice and chime, allowing you to adapt the sound level to different situations. Two outputs, one balanced XLR and one unbalanced 6.35 mm jack, allow connection to 70/100 V amplification systems, mixers, or audio matrixes, even simultaneously.

Power is supplied via USB-C, further simplifying installation and maintaining a clean aesthetic thanks to the rear positioning of all connections.

User benefits

• Instant use with a single button
• Built-in chime
• Independent adjustment of voice and chime levels via rear controls
• Compatibility with any audio system thanks to balanced and unbalanced outputs
• Powered via USB-C

Areas of use

• Schools
• Shopping centers
• Administrative buildings
• Healthcare facilities

Technical characteristics

• Unidirectional electret condenser capsule
• Sensitivity: -50 dB
• Frequency response: 20 Hz - 20 kHz
• Signal-to-noise ratio: > 100 dB
• Output level: 110 mV (unbalanced), 230 mV (balanced)
• Front-panel microphone input on XLR connector
• Rear-panel balanced output on XLR
• Rear-panel unbalanced output on 6.35 mm jack
• Front-panel talk button to activate microphone or trigger chime
• Rear-panel volume controls (microphone and chime)
• Power supply via adapter (USB-C, rear)
• Supplied without cord
• Dimensions: 19 x 8 x 15.5 cm
• Weight: 0.6 kg
